Find out the latest hot-rolled steel plate inventory specifications and sizes.

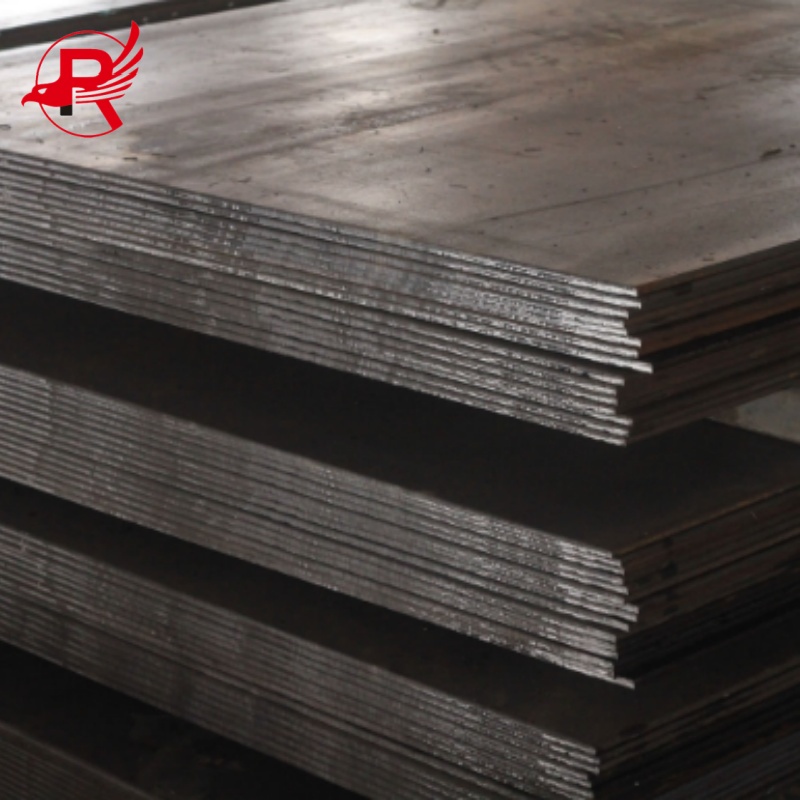

ASTM A572 Grade 60 High Strength Low Alloy Steel Plate Hot Rolled Structural Steel Sheet
| Material Standard | Yield Strength |
| ASTM A572 Grade 60 Hot Rolled Steel Plate |
≥ 60 ksi （415 MPa） |
| Dimensions | Length |
| Thickness: ≤ 32mm, Width: 1,500 mm – 3,000 mm, Length: 3,000 mm – 12,000 mm | Available in stock; customized lengths available |
| Dimensional Tolerance | Quality Certification |
| Thickness: ±0.15 mm – ±0.30 mm, Width: ±3 mm – ±10 mm | ISO 9001:2015, SGS / BV / Intertek Third-Party Inspection Report |
| Surface Finish | Applications |
| Hot rolled, pickled, oiled; optional anti-rust coating | Construction, bridges, pressure vessels, structural steel |
ASTM A572 Grade 60 – Chemical Composition (Hot Rolled Steel Plate)
| Element | Typical Range (wt%) | Notes |
| Carbon (C) | 0.23 max | Helps improve strength and hardness |
| Manganese (Mn) | 1.35 max | Improves strength and toughness |
| Phosphorus (P) | 0.04 max | Important impurity content should not be too high to avoid increased brittleness |
| Sulfur (S) | 0.05 max | Low impurity content results in better ductility |
| Silicon (Si) | 0.40 max | Enhances strength and oxidation resistance |
| Copper (Cu) | 0.20 min | Not essential, enhances corrosion resistance |
| Niobium (Nb) | 0.02–0.05 | Not essential, enhances strength (microalloying) |
| Vanadium (V) | 0.01–0.10 | Not essential, microalloying elements |
| Titanium (Ti) | 0.02–0.05 | Optional, grain refinement |
ASTM A572 Grade 60 – Mechanical Properties (Hot Rolled Steel Plate)
| Property | Typical Value | Notes |
| Yield Strength (YS) | 415 MPa (60 ksi) min | Stress at the onset of plastic deformation in steel |
| Tensile Strength (TS) | 520 MPa (75 ksi) | Maximum stress that steel can withstand before fracture |
| Elongation | 18–21% | Dulleriness (indicates ductility at fracture length of 200 mm or 50 mm) |
| Modulus of Elasticity | 200 GPa | Standards for carbon steel/low alloy steel |
| Hardness (Brinell) | 130–180 HB | Estimated range for hot-rolled steel |
Notes:
Hot rolled steel sheets ensure uniform thickness and excellent surface quality.
Suitable for structural, building, manufacturing, and industrial applications.
They can be welded and formed, making them versatile in engineering projects.
Click the Button on The Right
| Application Area | Typical Uses |
| Construction Engineering | Structural frames, beams, columns, floor slabs, building foundations. |
| Bridge Engineering | Bridge sub-components, connecting plates, reinforcing plates. |
| Steel Structure Fabrication | H-beams, angle steel, channel steel, steel plates and profiles. |
| Machinery Manufacturing | Machine bases, frames, load-bearing components. |
| Engineering Processing | Steel plate cutting, bending, welding, stamping. |
| Industrial Equipment | Engineering platforms, jackhouses, supports, etc. |
| Infrastructure Projects | Highway, railway, and urban engineering structures. |
| Shipbuilding & Containers | Ship structural components, container frames, and flooring. |
1) Branch Office - Spanish-speaking support, customs clearance assistance, etc.
2) Over 5,000 tons of stock in stock, with a wide variety of sizes
3) Inspected by authoritative organizations such as CCIC, SGS, BV, and TUV, with standard seaworthy packaging
1️⃣ Bulk Cargo
works for large shipments. The plates are loaded directly onto ships or stacked with anti-slip pads between the base and the plate, wooden wedges or metal wires between plates and surface protection with rain-proof sheets or oil for rust prevention.
Pros: High payload, low cost.
Note: Specialized lifting gear is needed and condensation and surface damage must be avoided during haulage.
2️⃣ Containerized Cargo
Good for medium to small shipments. The plates are packed one by one with waterproofing and anti-rust treatment; a desiccant can be added in the container.
Advantages: Provides superior protection, easy to handle.
Drawbacks: Higher cost, decreased container loading volume.
Stable cooperation with shipping companies such as MSK, MSC, COSCO efficiently logistics service chain, logistics service chain are we to your satisfaction.
We follow the standards of quality management system ISO9001 in all procedure, and have strict control from packaging material purchase to transport vehicle scheduling.
