Obtain the complete inventory and price list of cold-formed Z-shaped steel sheet piles

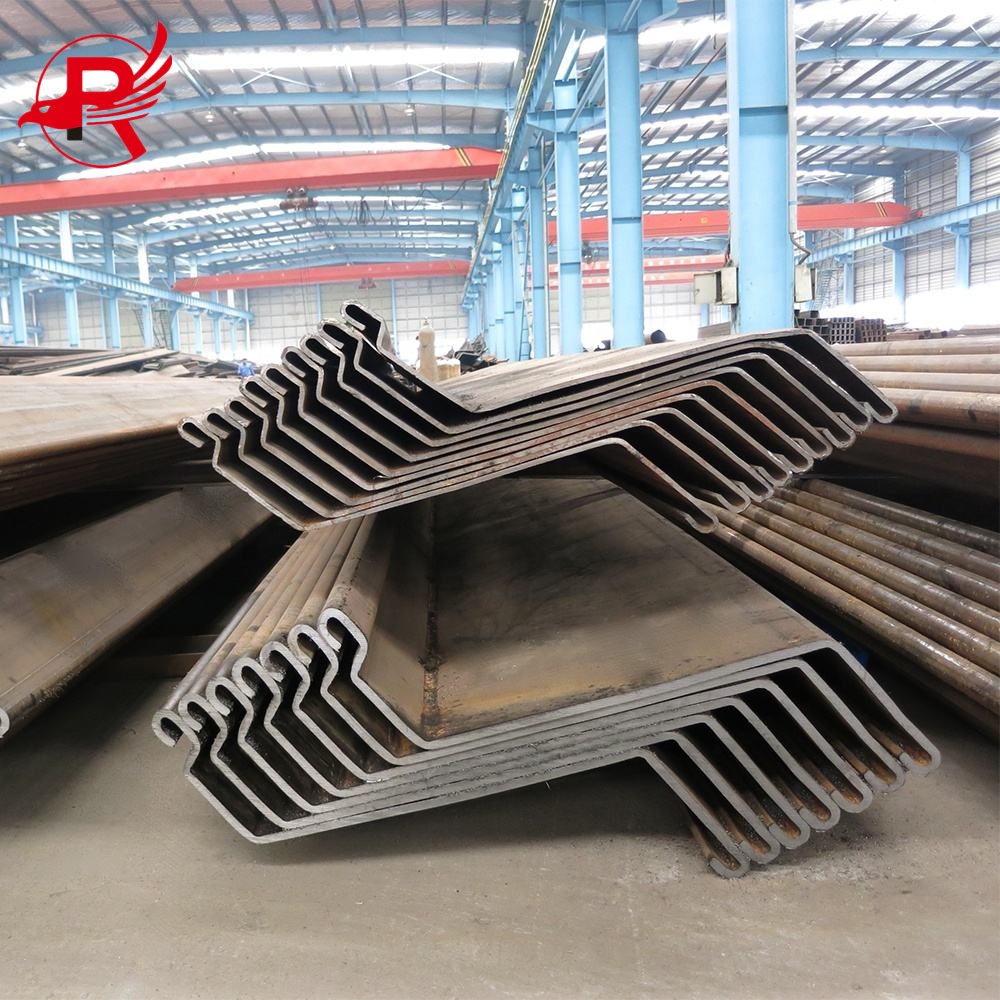

Q345 / Q345B Cold Formed Z Section Sheet Pile Structural Steel Piles
| Item | Details |
| Product Name | Cold Formed Z Type Sheet Pile |
| Material Grade | Q345 / Q345B |
| Section Type | Z Section / Z Profile |
| Production Process | Cold Formed / Cold Rolled |
| Yield Strength | ≥ 345 MPa |
| Tensile Strength | 470 – 630 MPa |
| Regular Sizes | 400×100mm, 400×125mm, 500×150mm, 600×180mm (customizable) |
| Length | 6m, 9m, 12m, 13m, 14m, 15m or customized length |
| Thickness | 6mm – 12mm |
| Surface Treatment | Anti-rust oil, black bitumen painting, epoxy coating |
| Interlock Type | Cold-formed standard lock (tight connection & good waterproof) |
| Typical Applications | Foundation pit support, river revetment, cofferdam, retaining wall, slope protection |
| MOQ | 1 bundle / negotiable |
| Delivery Time | 7 – 15 days after deposit |
| Package | Steel bundling, suitable for container & ocean transportation |
| Certificate | Mill Test Certificate (MTC) |
| Customization | Size, length, surface treatment, end cutting can be customized |
| Advantage | Cost-effective, easy construction, good structural stability |
The steel sheet piles z type advantanges
Cost-effective choice for most civil projects, with lower production cost than hot-rolled piles while meeting basic retaining and waterproof demands.
Tight and stable interlock design, no obvious gaps after installation, performs well in water blocking for foundation pits and cofferdams.
Q345/Q345B material offers sufficient strength and toughness, easy to drive and pull out, no easy deformation during construction.
Flexible size customization, we can adjust section height, thickness and length according to your project drawings and site conditions.
Light self-weight but strong structural stability, easy to load, transport and stack, saving your logistics and construction cost.
Short production cycle, fast delivery, able to respond to your urgent project needs quickly.
| Model | Effective Width (mm) | Section Height (mm) | Web Thickness (mm) | Flange Thickness (mm) | Unit Weight (kg/m) |
| Z260 | 400 | 260 | 6 | 6 | 22.5 |
| Z300 | 400 | 300 | 7 | 7 | 26.8 |
| Z360 | 400 | 360 | 8 | 8 | 31.2 |
| Z400 | 400 | 400 | 8 | 8 | 34.5 |
| Z500 | 500 | 500 | 9 | 9 | 42.6 |
| Z600 | 600 | 600 | 10 | 10 | 51.8 |
Click the button on the right to contact us
Foundation Engineering: Ideal for deep excavation support, retaining walls, and foundation stabilization, ensuring robust and safe structures.
Marine Projects: Perfect for docks, bridges, and coastal protection, providing excellent durability in marine environments.
Water Conservancy: Supports dams, levees, and river regulation projects with reliable structural strength.
Railway Infrastructure: Efficiently reinforces embankments, tunnels, and bridge foundations, combining high strength with quick installation.
Mining Operations: Applied in mining areas and tailings storage facilities to stabilize slopes and foundations effectively.
Note:
1.Free sampling, 100% after-sales quality assurance, Support any payment method;
2.All other specifications of round carbon steel pipes are available according to your requirement (OEM&ODM)! Factory price you will get from ROYAL GROUP.
Production line of Steel sheet pile rolling line
z type steel sheet pile production is a manufacturing process that involves the creation of Z-shaped steel sheets with interlocking edges. The process begins with the selection of high-quality steel and the cutting of the sheets to the required dimensions. The sheets are then shaped into the distinctive Z-shape using a series of rollers and bending machines. The edges are then interlocked to create a continuous wall of sheet pile. Quality control measures are put in place throughout the production process to ensure the final product meets the necessary standards.
Packaging is generally naked, steel wire binding, very strong.
If you have special requirements, you can use rust proof packaging, and more beautiful.
Transportation: Express (Sample Delivery), Air, Rail, Land, Sea shipping (FCL or LCL or Bulk)
Q: Is the material real Q345/Q345B? Can you provide test reports?
A: Yes, all our cold formed sheet piles use genuine Q345/Q345B structural steel. We supply original mill test certificates for every batch, with clear yield and tensile data for your inspection.
Q: How about the locking and waterproof effect? Will it leak easily?
A: The cold-formed locks are made to tight tolerances, so sheet piles connect firmly. For normal foundation pits and cofferdams, the sealing is good enough. We can also add sealing strips if you need higher water resistance.
Q: What standard sizes do you have? Can we customize section or length?
A: Regular models are Z260, Z300, Z360, Z400, Z500, Z600, with standard lengths 6m, 9m, 12m. We fully support custom thickness, height and length based on your project drawings.
Q: How long is the delivery time? Can we get a faster lead time for urgent orders?
A: Normal lead time is 7–15 days after deposit. For urgent projects, we can arrange priority production, as long as we confirm order quantity and details in advance.
Q: Will the piles deform easily during driving? Are they easy to construct?
A: Q345/Q345B has good toughness and strength. Our Z-type sheet piles are straight and stable, not easy to bend or twist during pile driving. They’re lightweight and simple to install on site.
-
