Wholesale ASTM A36/A992/A992M/A572 Gr 50 Steel I Beam – High Strength Structural I-Beams for Commercial Construction, Bridges & Industrial Warehouses Manufacturer and Supplier

ASTM A36/A992/A992M/A572 Gr 50 Steel I Beam – High Strength Structural I-Beams for Commercial Construction, Bridges & Industrial Warehouses

Short Description:

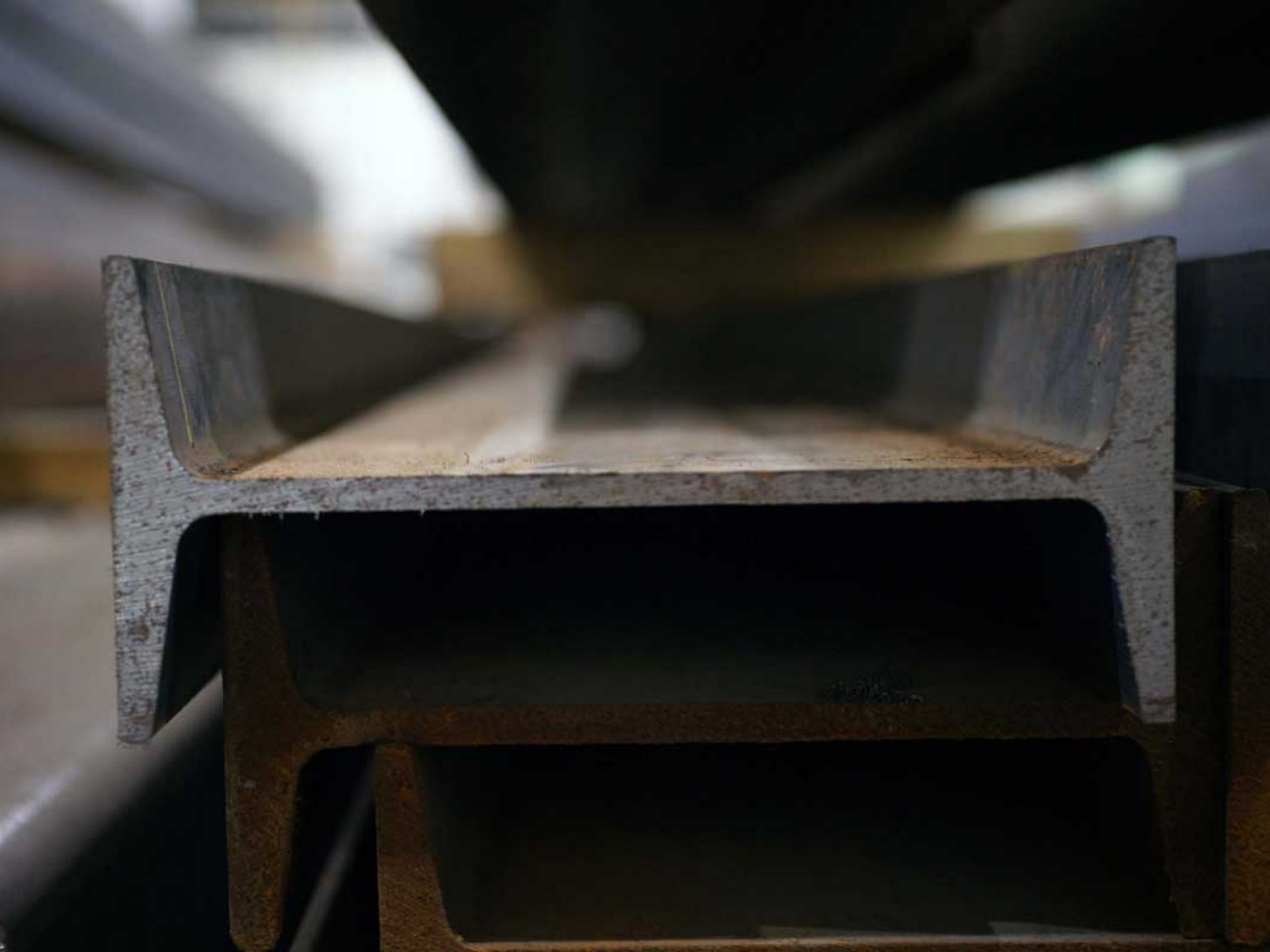

ASTM I-beams are steel profiles with a central vertical web and two horizontal flanges. They are extremely strong materials with excellent load-bearing capacity and machinability, and are commonly used in construction, bridges, and industrial applications in the United States.

Brand Name: Royal Steel Group

Minimum Order Quantity: 25 tons

Packaging Details: Export Waterproof Packaging, Strapping and Securing

Supply Ability: 5000 Tons Per Month

Payment Terms: T/T, Western Union

Delivery Time: 10-25 Working Days

Send email to us Whatsapp Email

Product Detail

Product Tags

Product Introduction

Item	Details
Material Standard	ASTM A36, A992/A992M, A572 Grade 50
Surface Treatment	Hot-dip galvanizing, painting, and other custom finishes available
Size Range	W8×21 through W24×104 (inch series)
Length	Standard stock lengths: 6m & 12m; custom lengths available on request
Dimensional Tolerance	Compliant with GB/T 11263 or ASTM A6 standards
Quality Assurance	ISO 9001 certified; third-party inspection reports (SGS/BV) provided upon request
Mechanical Properties	- A992: YS ≥ 345 MPa (50 ksi), TS ≥ 450 MPa (65 ksi)
	- A36: YS ≥ 250 MPa (36 ksi), TS ≥ 420 MPa
	- A572 Grade 50: YS ≥ 345 MPa, ideal for heavy structural applications
Typical Applications	Industrial plants, warehouses, commercial buildings, residential construction, bridges

Technical Data

Steel I Beam Chemical Composition

ASTM A36 / A992 / A572 Gr 50
Steel I Beam Chemical Composition
Element	ASTM A36	ASTM A992 / A992M	ASTM A572 Gr 50
Carbon (C)	0.25–0.29%	≤ 0.23%	≤ 0.23%
Manganese (Mn)	0.80–1.20%	0.50–1.50%	0.80–1.35%
Phosphorus (P)	≤ 0.040%	≤ 0.035%	≤ 0.040%
Sulfur (S)	≤ 0.050%	≤ 0.045%	≤ 0.050%
Silicon (Si)	≤ 0.40%	0.40–0.75%	0.15–0.40%
Copper (Cu)	0.20% min (if Cu-bearing)	—	—
Vanadium (V)	—	Micro-alloy allowed	≤ 0.06%
Columbium (Nb)	—	Micro-alloy allowed	≤ 0.05%
Titanium (Ti)	—	—	≤ 0.15%
CE (Carbon Equivalent)	—	≤ 0.45%	—

I-beam Sizes

Designation	Dimensions					Static Parameters
Designation	Dimensions					Moment of Inertia		Section Modulus
Imperial (in x lb/ft)	Depthh (in)	Widthw (in)	Web Thicknesss (in)	Sectional Area(in2)	Weight(lb/ft)	Ix(in4)	Iy(in4)	Wx(in3)	Wy(in3)
W 27 x 178	27.8	14.09	0.725	52.3	178	6990	555	502	78.8
W 27 x 161	27.6	14.02	0.660	47.4	161	6280	497	455	70.9
W 27 x 146	27.4	14	0.605	42.9	146	5630	443	411	63.5
W 27 x 114	27.3	10.07	0.570	33.5	114	4090	159	299	31.5
W 27 x 102	27.1	10.02	0.515	30.0	102	3620	139	267	27.8
W 27 x 94	26.9	10	0.490	27.7	94	3270	124	243	24.8
W 27 x 84	26.7	9.96	0.460	24.8	84	2850	106	213	21.2
W 24 x 162	25	13	0.705	47.7	162	5170	443	414	68.4
W 24 x 146	24.7	12.9	0.650	43.0	146	4580	391	371	60.5
W 24 x 131	24.5	12.9	0.605	38.5	131	4020	340	329	53.0
W 24 x 117	24.3	12.8	0.55	34.4	117	3540	297	291	46.5
W 24 x 104	24.1	12.75	0.500	30.6	104	3100	259	258	40.7
W 24 x 94	24.1	9.07	0.515	27.7	94	2700	109	222	24.0
W 24 x 84	24.1	9.02	0.470	24.7	84	2370	94.4	196	20.9
W 24 x 76	23.9	9	0.440	22.4	76	2100	82.5	176	18.4
W 24 x 68	23.7	8.97	0.415	20.1	68	1830	70.4	154	15.7
W 24 x 62	23.7	7.04	0.430	18.2	62	1550	34.5	131	9.8
W 24 x 55	23.6	7.01	0.395	16.2	55	1350	29.1	114	8.3
W 21 x 147	22.1	12.51	0.720	43.2	147	3630	376	329	60.1
W 21 x 132	21.8	12.44	0.650	38.8	132	3220	333	295	53.5
W 21 x 122	21.7	12.39	0.600	35.9	122	2960	305	273	49.2
W 21 x 111	21.5	12.34	0.550	32.7	111	2670	274	249	44.5
W 21 x 101	21.4	12.29	0.500	29.8	101	2420	248	227	40.3
W 21 x 93	21.6	8.42	0.580	27.3	93	2070	92.9	192	22.1
W 21 x 83	21.4	8.36	0.515	24.3	83	1830	81.4	171	19.5
W 21 x 73	21.2	8.3	0.455	21.5	73	1600	70.6	151	17.0
W 21 x 68	21.1	8.27	0.430	20.0	68	1480	64.7	140	15.7
W 21 x 62	21	8.24	0.400	18.3	62	1330	57.5	127	13.9
W 21 x 57	21.1	6.56	0.405	16.7	57	1170	30.6	111	9.4
W 21 x 50	20.8	6.53	0.380	14.7	50	984	24.9	94.5	7.6
W 21 x 44	20.7	6.5	0.350	13.0	44	843	20.7	81.6	6.4

Click the Button on The Right

Download the Latest I beam Specifications and Dimensions.

Click Here

Surface Finish

Ordinary Surface

Galvanized Surface (hot-dip galvanizing thickness ≥ 85μm, service life up to 15-20 years),

Black Oil Surface

Main Application

Steel I-Beam Application Summary Table
Standard	Typical Applications
ASTM A36	• Light to medium building structures • Commercial/industrial floors and beams • Warehouses and workshop frames • General welded structural parts • Non-high-strength bridge components • Machinery frames and fabricated parts
ASTM A992 / A992M	• High-rise building beams and columns • Long-span structural frames • Heavy industrial buildings • Bridge main girders and stringers • Airports, metro stations, large public projects • Seismic-resistant structures
ASTM A572	• Highway and railway bridges • Large-span steel structures • Lightweight high-strength building frames • Port, dock, and marine structures • Heavy equipment beams • Wind, solar, and heavy-load support systemsa

astm a992 a572 h beam application royal steel group (2)

astm a992 a572 h beam application royal steel group (4)

astm a992 a572 h beam application royal steel group (3)

astm a992 a572 h beam application royal steel group (1)

Royal Steel Group Advantage（Why Royal Group Stands Out for Americas Clients?）

1) Branch Office - Spanish-speaking support, customs clearance assistance, etc.

2) Over 5,000 tons of stock in stock, with a wide variety of sizes

3) Inspected by authoritative organizations such as CCIC, SGS, BV, and TUV, with standard seaworthy packaging

Packing And Delivery

Basic Protection: Each bale is wrapped with tarpaulin, 2-3 desiccant packs are put in each bale, then bale is covered with heat sealed waterproof cloth.

Bundling: The strapping is 12-16mm Φ steel strap, 2-3 tons / bundle for lifting equipment in American port.

Conformance Labeling: Bilingual labels (English + Spanish) are applied with a clear indication of material, spec, HS code, batch and test report number.

For large size h-section steel cross-section height ≥ 800mm), the steel surface is coated with industrial anti-rust oil and dried, then packed with tarpaulin.

Stable cooperation with shipping companies such as MSK, MSC, COSCO efficiently logistics service chain, logistics service chain are we to your satisfaction.

We follow the standards of quality management system ISO9001 in all procedure, and have strict control from packaging material purchase to transport vehicle scheduling. This guarantees the I-beams from the factory all the way to the project site, helping you build on a solid foundation for a trouble free project!

FAQ

Q: What are your company's quality standards for ASTM I-beams for the Central American market?
A: Our I-beams meet the two most commonly used and well-known industry standards in Central America: ASTM A36 and A572 Grade 50, to meet the needs of Central American buyers. In addition, we can also customize production according to local requirements, including NOM certification in Mexico, to adapt to the requirements of the local market.

Q: Can your company assist with customs clearance procedures for goods shipped to Central America?
A: Of course. We have established partnerships with professional and qualified customs brokers throughout Central America. They can assist you with all aspects of the process—submitting customs declarations, paying taxes, and handling all relevant documents—ensuring your goods clear customs smoothly and arrive on time.
