Learn About the Latest Q690 Steel Plate/Sheet Price, Specifications and Dimensions.

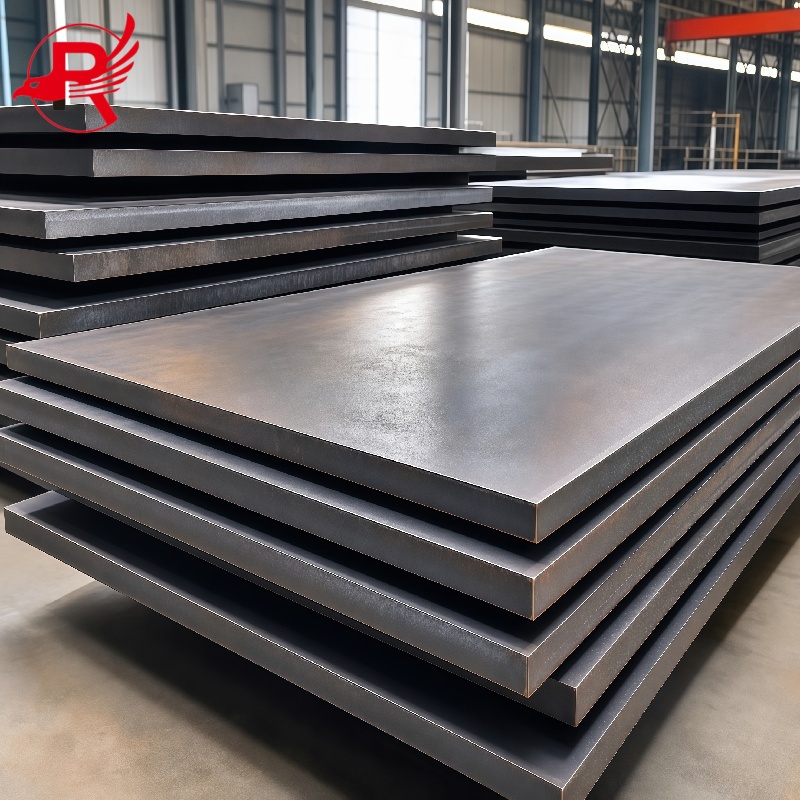

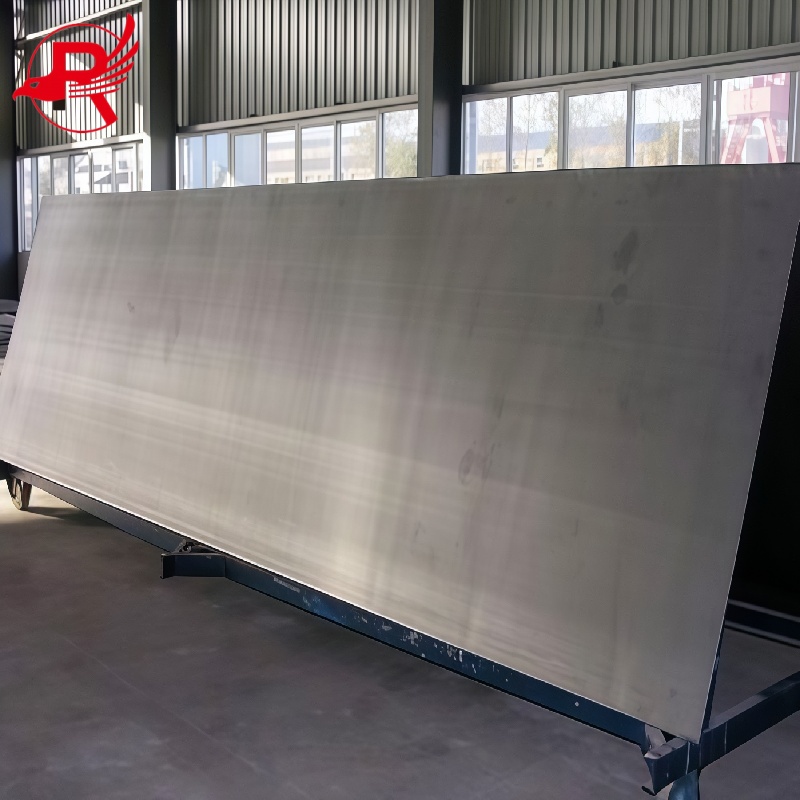

Q690 D/E High Strength Steel Plate | GB/T 1591-2018 Supplier
Q690 D/E is high strength structural steel grade developed for use in the field of construction that needs very high strength, good bearing capacity and light structural weight.
With the yield strength not less than 690MPa, Q690 can provide much higher strength than normal structural steels. It is ideal for heavy duty machinery and engineered components subject to high loads where maximising weight reductions is key.
Q690D and Q690E steel plates are available with Royal Steel Group either in standard or customized sizes for your mining, construction machinery, hydraulic engineering, transportation and other heavy industry applications.
| Item | Specification |
| Steel Grade | Q690D / Q690E |
| Applicable Standard | GB/T 1591-2018 |
| Minimum Yield Strength | ≥690 MPa |
| Tensile Strength | 770–940 MPa |
| Standard Thickness | 10–80 mm (3/8"–3") |
| Standard Width | 1220–3048 mm (48"–120") |
| Standard Length | 2438–12192 mm (96"–480") |
| Maximum Length | Up to 25910 mm (1020") |
| Product Type | Ultra-High-Strength Structural Steel Plate |
| Surface | Mill Finish / Customized |
| Processing | Cutting and customized processing available |
| Typical Applications | Hydraulic Supports, Heavy Machinery, Engineering Equipment |
Q690 is available in D and E subgrades, which are selected as per the requirements of the project and service conditions.
Q690D – used in high strength structural applications where improved impact toughness is needed.
Q690E – designed for applications where improved low temperature impact toughness is required.
The choice of grade depends on the relevant design code, service temperature, required impact toughness, welding process and project requirements.
690 MPa Mindeststreckgrenze
The Q690 has a minimum yield strength of 690 MPa which means it can be used for high load items where normal structural steel would mean thicker material.
Strength-to-weight ratios are high
Due to the high strength of Q690, suitable designs can reduce the thickness of components and structural weight but meet the load-bearing requirements.
Heavy-Duty Performance
Q690 steel plate is suitable for high engineering, such as heavy industry hydraulic supports, mining machinery.
Wide Size Availability
Q690 plates can be cut into plates with thickness: 10-80 mm, width: 1220-3048 mm and a standard length from 2438 to 12192 mm.
Tailored Supply
We can discuss tailor made plate size, cutting size, inspection requirements or other processing specifications based on your project.
Q690 Steel Plate Sizes
| Dimension | Standard Size |
| Thickness | 10–80 mm (3/8"–3") |
| Width | 1220–3048 mm (48"–120") |
| Standard Length | 2438–12192 mm (96"–480") |
| Maximum Length | Up to 25910 mm (1020") |
Typical size combinations may include:
10 × 1500 × 6000 mm
12 × 2000 × 6000 mm
16 × 2000 × 8000 mm
20 × 2200 × 10000 mm
25 × 2500 × 12000 mm
30 × 2500 × 12000 mm
40 × 3000 × 12000 mm
50 × 3000 × 12000 mm
60 × 3000 × 12000 mm
80 × 3000 × 12000 mm
Custom sizes are available subject to production and transportation requirements.
Click the Button on The Right
Royal Steel Group offers processing services to help customers reduce fabrication time and enhance project efficiency.
Services:
Cutting → Drilling → Bending → Edge Processing → Welding/Fabrication → Surface Treatment
Plate dimensions and processing requirements can be customized according to engineering drawings, quantities, and application conditions.
Q690 D/E high strength steel plate is generally used for:
Hydraulic supports
Heavy-duty engine machinery
Mining machinery
Construction machinery
Lifting equipment
Heavy transportation equipment
High load structural parts
Industrial equipment
Energy and infrastructure projects
Large welded engineering structures
Royal Steel Group provides Q690 steel high strength plates, with material certification, dimension tailoring service, cutting, testing, packaging service and delivery to engineering, industrial application and aftersales services worldwide.
We can supply with Q690D and Q690E, you could inform us your required grade, thickness, width, length, quantity, inspection standard and terms of delivery.
For quantity orders customers can reach us for price and technical confirmation according to the Q690 steel plate you need.
1) Branch Office - Spanish-speaking support, customs clearance assistance, etc.
2) Over 5,000 tons of stock in stock, with a wide variety of sizes
3) Inspected by authoritative organizations such as CCIC, SGS, BV, and TUV, with standard seaworthy packaging
Q690 steel plates can be supplied with relevant quality documentation according to project requirements, including:
Mill Test Certificate (MTC)
Chemical composition report
Mechanical property test results
Dimensional inspection
Impact testing documentation
Third-party inspection when required
Project-specific quality documentation
Q690 steel plates are packed with export-suitable packaging and loading methods. Packaging can be customized as per plate dimensions, weight, transportation mode and destination.
International delivery can be made by container, bulk vessel or other transportation mode, as per order requirement.
1. Q690 steel plate is what?
Q690 grade is an ultra-high-strength structural steel grade under GB/T 1591-2018 with a yield strength of 690 MPa as its lower limit.
2. What is the tensile strength of Q690?
The tensile strength of Q690 D/E is 770-940 based on the standard.
3. Difference between Q690D and Q690E?
Q690D and Q690E have different impact toughness requirements. The appropriate grade is determined by operating environment and temperature and the project description.
4. What are the sizes of Q690 steel plate?
The offered standard size is 10-80 mm thickness, 1220-3048 mm width, and 2438-12192 mm standard length with max length up to 25910 mm based on application details.
5. What does 690D Hamr Use？
Used in general mechanical engineering, shipbuilding, space, armaments, aircraft industry, etc.
6. What can you use Q690 steel for?
Q690 is high performance material suitable for the hydraulic supports, heavy-duty engineering machinery, mining machinery, lifting machinery and other high-load operation fields.
7. Is it possible to customize Q690 steel plate?
yes, We can discuss special thickness, widths, lengths, cutting dimensions, testing requirements, or other project related specifications. Royal Steel Group can discuss customized thickness, widths, lengths, cutting dimensions, inspection requirements and other project specific specifications.
Looking for Q690D or Q690E high-strength steel plate for heavy machinery, hydraulic supports, mining equipment, or engineering projects?
Contact Royal Steel Group for Q690 steel plate price, sizes, availability, MTC, inspection, customization, and international delivery solutions.
