Prefabricated Steel Structure Building Manufacturer for Industrial Warehouse & Workshop Projects
Steel Truss Frame Structure for Modular Building The steel truss frame is a kind of spatial structure, in the construction of building, the steel components are combined in different ways to constituted the rigid frame. Triangular shape delivers more strength and stability with less material and is more ideal for long span and open room.
Outstanding Features
High Strength-to-Weight Ratio -- Triangular truss geometry allows for strong load carrying capacity with less steel.
Wide Clear Span - It has wide maximum depth. No more internal columns needed.
Multi-purpose design – Suitable for warehouses, workshops, manufacturing plants and auditoriums & sports halls
Prefabrication & Rapid Assembly - Steel components are pre-cut and molded off-site and quickly bolted together on-site.
Longevity — A steel building can last for many decades With proper application of corrosion protection (galvanizing, painting, or coating).
Parts
Top Chord: Upper horizontal or sloped member of the truss
Bottom Chord: Bottom horizontal member in tension
Web Members: Diagonal and vertical elements that compose the triangular unit
Connections: Bolted or welded seams that joins the members
Bracing (Optional): Extra lateral stability for large spans
Core steel structure products for factory construction
1. Main load-bearing structure (adaptable to tropical seismic requirements)
| Steel Structure Building/Warehouse/Poultry Component Specification | |||
| System Category | Component Type | Core Specification & Material | Application & Remarks |
| Main Framing System | Structural Column | A36 / A572 / A992 grade hot-rolled or welded H-section steel | Core vertical load-bearing component for factory, warehouse and poultry house structures |
| Main Framing System | Structural Beam | A36 / A572 / A992 grade hot-rolled or welded H-section steel | Horizontal load-bearing member, connects columns to form the main structural frame |
| Secondary Framing System | Purlin | A36 / A572 grade cold-formed Z-section or C-section steel | Secondary horizontal member for supporting roof and wall panels, transfers load to main frame |
| Secondary Framing System | Knee Brace | A36 / A572 grade hot-rolled angle steel, hot-dip galvanized | Diagonal support at beam-column joints, enhances structural lateral stability and seismic resistance |
| Secondary Framing System | Tie Bar | A36 / A572 grade round steel, painted finish | Horizontal connecting member between columns, restricts column lateral displacement and improves overall rigidity |
| Secondary Framing System | Cross Bracing | A36 / A572 grade round steel, hot-dip galvanized | X-shaped diagonal bracing between columns, provides lateral support and resists wind/seismic loads |
| Roof & Wall Enclosure System | Single Steel Sheet | 0.5mm / 0.6mm / 0.7mm thick color-coated steel sheet | Economical roof and wall cladding option, suitable for standard industrial and agricultural buildings |
| Roof & Wall Enclosure System | Insulated Sandwich Panel | EPS / PU / Fiberglass Wool / Rock Wool core insulated sandwich panel | Thermal insulation and soundproof cladding, ideal for temperature-controlled warehouses and poultry houses |
| Floor Decking System | Steel Decking Floor | V-688 type profiled steel decking | Composite floor slab component for mezzanines and multi-storey steel structures, provides high load-bearing capacity |
| Structural Subsystem | Canopies, Fascias & Partitions | Custom-fabricated steel components, matched with main frame material | Auxiliary structural elements for building facade, entrance canopies and internal space division |
| Mezzanine & Platform System | Mezzanine & Platform Frame | A36 / A572 grade H-section steel main beam and secondary beam | Custom-built elevated platform for warehouse storage, office space or production line expansion |
| Building Accessory System | Doors, Windows & Louvers | Sliding doors, roll-up doors, steel windows and ventilation louvers | Matching building envelope components, provides access, natural lighting and ventilation for the building |
| Processing Method | Processing Machines | Processing |
| Cutting | CNC plasma/flame cutting machines, shearing machines | Plasma flame cutting for steel plates/sections, shearing for thin steel plates, with dimensional accuracy is controlled. |
| Forming | Cold bending machine, press brake, rolling machine | Cold bending (for c/z purlins), bending (for gutters/edge trimming), rolling (for round support bars) |
| Welding | Submerged arc welding machine, manual arc welder, CO₂ gas-shielded welder | Submerged arc welding (Dutch columns / H beams), stick weld (gusset plates), CO² gas shielded welding (thin walled items) |
| Holemaking | CNC drilling machine, punching machine | CNC Boring (bolt holes in connecting plates/components), Punching (batch small holes), With controlled holes diameter/position tolerances |
| Treatment | Shot blasting/sand blasting machine, grinder, hot-dip galvanizing line | Rust removal (shot blasting / sand blasting), weld grinding (deburr), hot-dip galvanizing (bolt/support) |
| Assembly | Assembly platform, measuring fixtures | The components of pre-assembled (column + beam + base) were disassembled for shipping after dimension verification. |
| 1. Salt spray test (core corrosion test) | 2. Adhesion test | 3. Humidity and heat resistance test |
| Standards ASTM B117 (neutral salt spray) / ISO 11997-1 (cyclic salt spray), suitable for the high-salt environment of the Central American coast. | Cross-hatch test using ASTM D3359 (cross-hatch/grid-grid, to determine peeling level); pull-off test using ASTM D4541 (to measure peel strength between coating and steel substrate). | Standards ASTM D2247 (40℃/95% humidity, to prevent blistering and cracking of the coating during rainy seasons). |
| 4. UV aging test | 5. Film thickness test | 6. Impact strength test |
| Standards ASTM G154 (to simulate strong UV exposure in rainforests, to prevent fading and chalking of the coating). | Dry film using ASTM D7091 (magnetic thickness gauge); wet film using ASTM D1212 (to ensure corrosion resistance meets specified thickness). | Standards ASTM D2794 (drop hammer impact, to prevent damage during transportation/installation). |
1. Overseas Branch & Spanish Language Support
We have foreign offices with Spanish-speaker personnel and we can speak 2 languages with our clients from Latin America and Europe.
Our team streamlines customs clearance, documentation, and export requirements to facilitate on-time delivery and expedite import processing.
2. Ready Stock For Fast Delivery
We keep sufficient standard hot rolled steel structure raw material stocks like H beam, I beam and steel structure components.
This means quicker lead times so customers can get a product they can count on, fast, for those emergency jobs.
3.Professional Packaging
All products are packed with standard seaworthy packaging(steel frame bundling,waterproof wrapping,edges protection).
This will guarantee and ensure safe loading, no movement during long distance transport and no damage when arrived at destination port.
4.Efficient Shipping & Delivery
We work with reliable national shippers and can provide flexible delivery terms:FOB, CIF, DDP.
by sea,rail,road,we promise you timely shipment and effective logistic tracking service.
Treatment on surface Display: Epoxy zinc-rich coating, Galvanized(hot dip galvanized layer thickness≥85μm service life can reach 15-20 years), black oiled, etc.
Black Oiled
Galvanized
Epoxy Zinc-rich Coating
Package：
The products are well protected in packaging to keep their surface and structure intact during handling. The parts are normally packaged with waterproof materials such as plastic film or rust proof paper and the small accessories are packed with wooden box. In addition, all the straps/parts are clearly marked to guarantee safe unloading and professional installation on site.
Transport:
Steel structures can be shipped by container or bulk carrier according to the size and destination. Large or heavy items are also firmly fastened by steel straps with wooden strips on both sides for double protection during transportation. All the processes in logistics are done according to the international transportation standard, even the long distance and overseas, to make sure the products delivery on time and safety.
1. Can you customize steel structure buildings according to our project?
Yes. Royal Steel Group provides customized warehouse, workshop, and factory building solutions based on your dimensions, loads, local codes, and operational requirements.
2. What information do you need for a quotation?
Simply provide your building size, project location, and intended use. Our engineering team will quickly prepare an optimized solution and competitive quotation.
3. Do you provide design and engineering support?

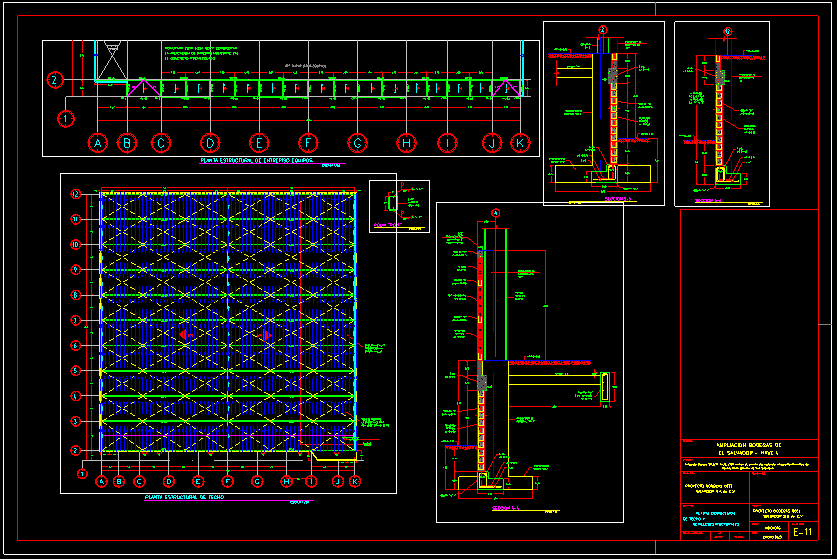

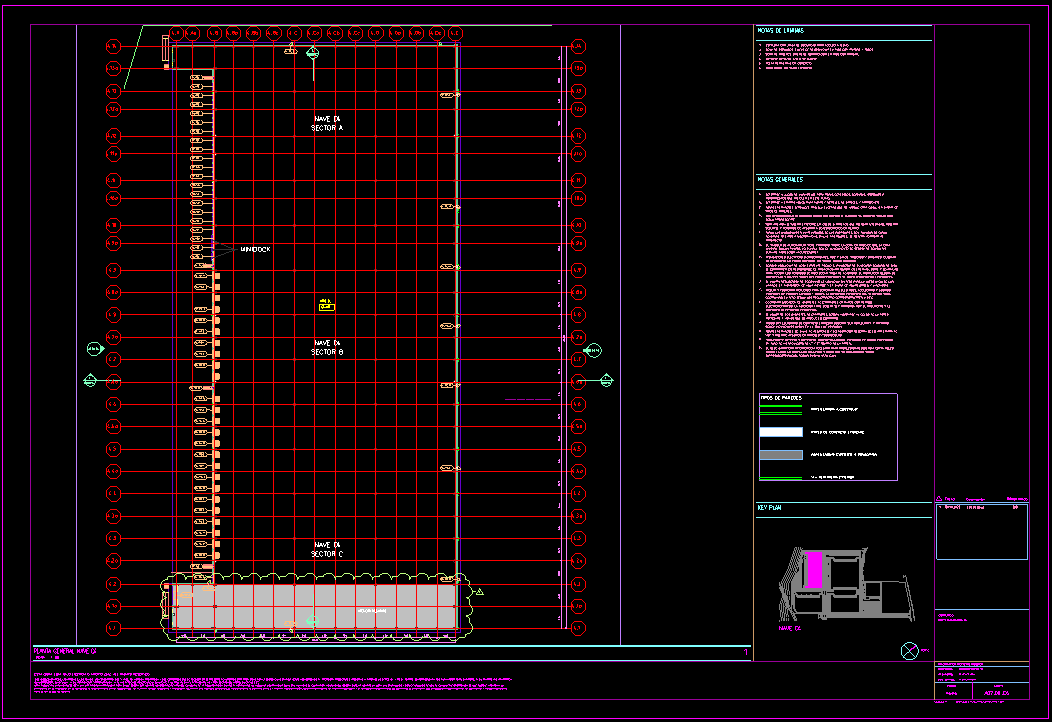

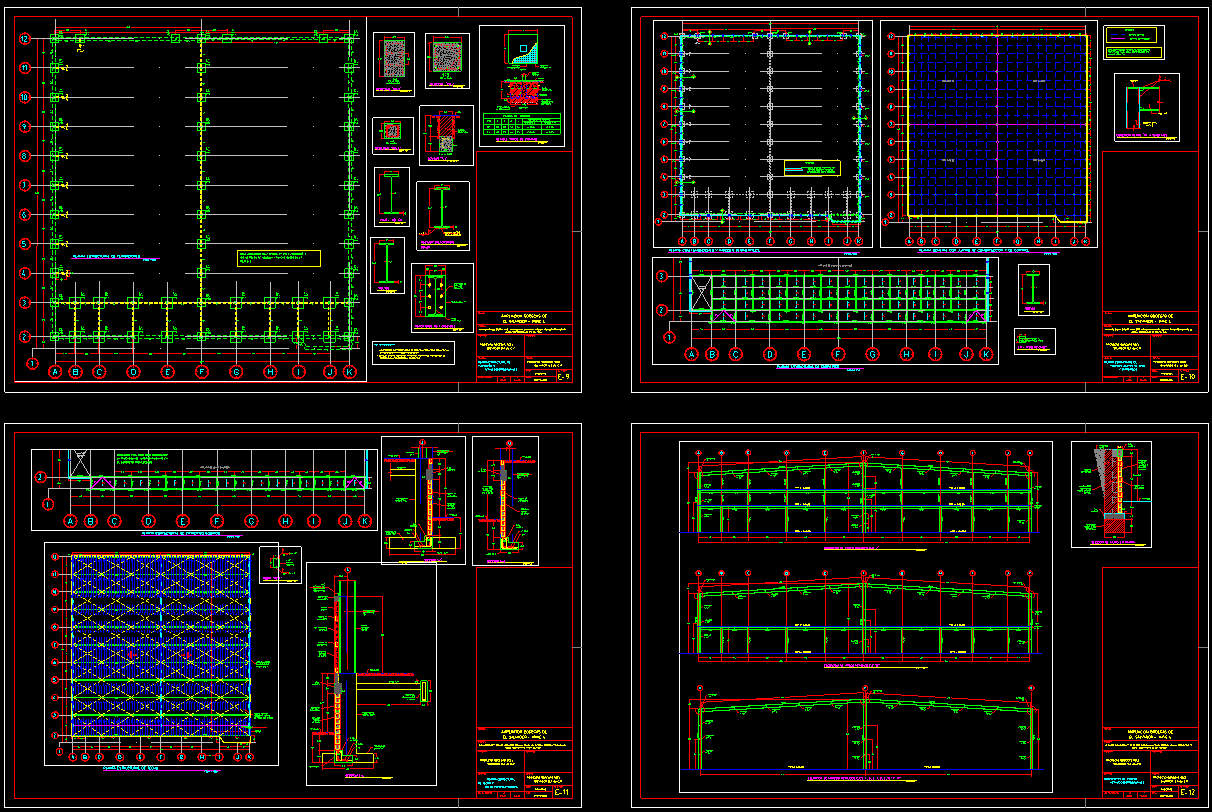

Yes. We offer design optimization, shop drawings, fabrication drawings, and technical support to help customers reduce construction risks and improve installation efficiency.
4. What surface treatment options are available?
We offer painted, epoxy-coated, and hot-dip galvanized steel structures to meet different environmental and corrosion protection requirements.
5. How do you ensure product quality?
All steel components undergo strict quality inspections before shipment. Material certificates, inspection reports, and project documentation are available upon request.
6. Why choose Royal Steel Group?
Royal Steel Group provides one-stop structural solutions, combining engineering support, steel fabrication, quality control, and global delivery experience to help customers complete projects efficiently and cost-effectively.
-
