Seamless vs. Welded API Pipe: Which One to Choose?

In high-risk infrastructure projects such as offshore oil drilling platforms, chemical plants, or city-level high-pressure gas pipelines, pipelines are truly at the heart of the project. Regarding the API 5L steel pipe standard, the debate typically centers on two main options: seamless steel pipe and welded steel pipe (ERW/LSAW).

Choosing the wrong pipeline is not just a budget issue, but also a matter of safety and lifespan. Below is a comprehensive guide to help you find the right pipeline for your specific application.

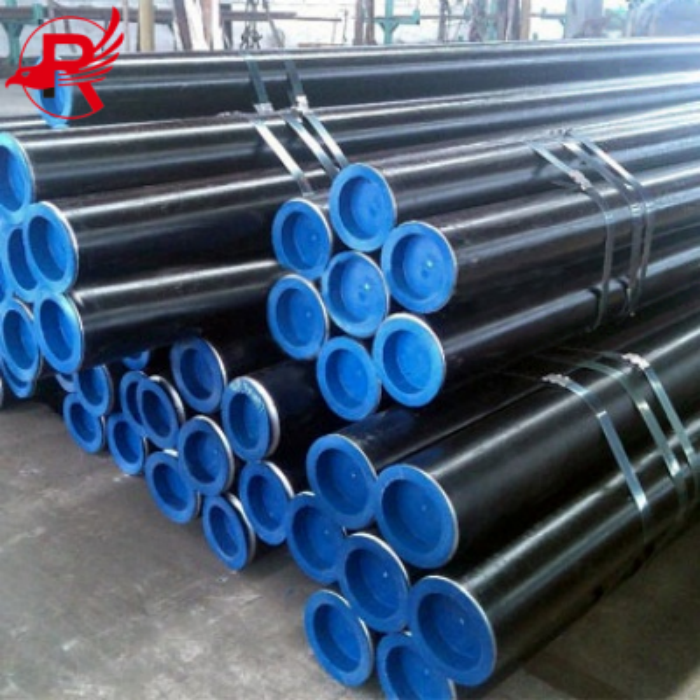

royal steel group api 5l steel pipe (4)

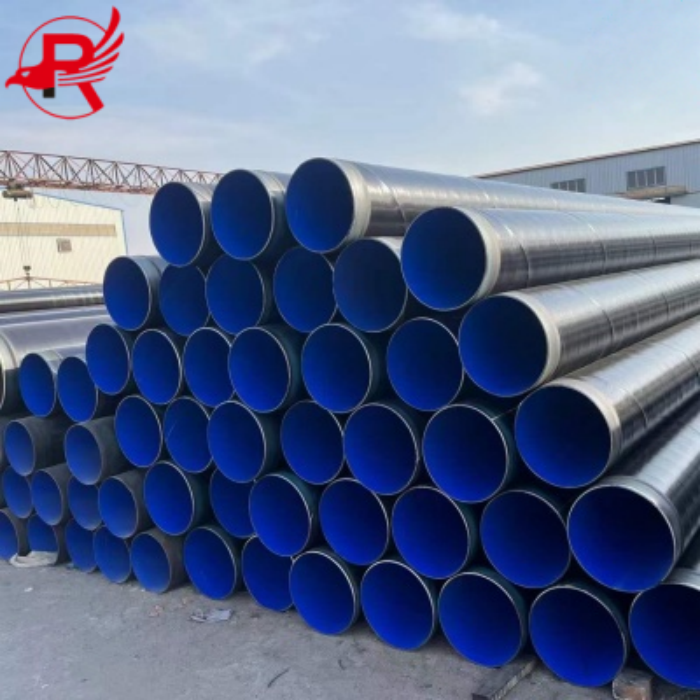

royal steel group api 5l steel pipe (2)

Understanding the Manufacturing Gap

The fundamental difference between seamless steel pipes and welded steel pipes lies in their manufacturing processes.

Seamless Steel Pipes (SMLS)

Seamless steel pipes are manufactured by drilling holes in a solid round steel billet using a mandrel machining process. Because there is no welding, the circumference of the pipe is completely uniform.

Advantages: High pressure resistance, high reliability, good geometric uniformity (high roundness).

Disadvantages: High production cost, long delivery time for large-size pipes.



Welded Steel Pipes (ERW, LSAW, SSAW)

Welded steel pipes are made from steel billets, coils, or plates. The billet is rolled into a pipe and then welded using high-frequency resistance welding (ERW) or submerged arc welding (LSAW).

Advantages: High cost-effectiveness, available in large diameters, and generally more uniform wall thickness (tolerances).

Disadvantages: The weld seam has always been considered a "weak point," although modern testing has greatly reduced this perception.

Pressure and Temperature: The Breaking Points

Operating conditions should be the most important consideration in your decision-making.

Ultra-high pressure applications: Seamless tubing is the standard for ultra-high pressure applications. Because there are no longitudinal welds, there is no risk of "weld failure." If your application requires pressures above 2,000 PSI, seamless tubing is likely the preferred option.

Acidic/corrosive environments: In acidic environments (containing hydrogen sulfide), welded tubing welds are more susceptible to stress corrosion cracking (SCC). While high-quality welded tubing undergoes special treatments to resist this corrosion, seamless tubing has a natural advantage in chemical homogeneity and is therefore more resistant.

API 5L Pipe A Critical Pipeline for Energy Transportation

Size and Scale Matters

Your choice might be made for you based solely on the required outside diameter (OD).

Pipe Type Typical Size Range Best Use Case
Seamless 1/8" to 26" High-pressure, small-to-medium diameter lines.
Welded (ERW) 2" to 24" Low-to-medium pressure, long-distance transport.
Welded (LSAW) 16" to 60"+ Massive mainline transmission, structural pilings.



If you want a 48-inch mainline pipe for a cross-country gas pipeline, seamless is simply not possible to make at that size. You are going to step up to the LSAW (Longitudinal Submerged Arc Welded) or the SSAW (Spiral) pipe.

The Cost-Benefit Analysis

At current prices, welded pipe is approximately 20% to 30% cheaper than seamless steel tube of the same size and grade.

When to save: If you need to transport water, perform low-pressure oil and gas collection, or simply require structural piping, welded pipe is the most cost-effective option.

When to invest more: In life-or-death systems, power plant pipelines, or hotspots in refineries, the additional cost of seamless pipe is equivalent to insurance against catastrophic failure.

Quality Standards: The API 5L Factor

Supply of grades remains unaffected (although PSL1 and PSL2 grades differ). Both seamless and weldable steel must meet API 5L PSL1 PSL2 product specification grades.

PSL1: Standard quality for general applications.

PSL2: More stringent requirements for chemical composition, notch toughness, and mechanical properties. Most offshore and high-pressure projects mandate the use of PSL2 seamless steel.

Final Conclusion: Which Should You Choose?

Seamless Steel Pipe Option: If you are in environments with high-pressure gases, high-temperature steam, or deep sea, repairs will be impossible in the event of a failure.

Welded Steel Pipe Option: If you are working on a large project requiring medium pressure, need pipes with a diameter greater than 24 inches, or have a limited capital expenditure budget.

Professional Advice: Before finalizing your procurement list, consult a professional project engineer or experienced supplier to review your specific "design parameters." Suitable piping should not only have maximum strength but also ensure safety and cost-effectiveness.

Enter your project requirements to learn more about the details and considerations for your project.
