News - Seamless vs Welded Pipe: Which is Better for Your Project?

With infrastructure needs growing worldwide and industrial processing facilities increasing in size, the selection of structural and fluid transport components has become a matter of engineering integrity. One of the best types has pivotal decisions that structural engineers, contractors and procurement managers have to make is whether to use seamless steel pipes or welded steel pipes.

Seamless Steel Pipes

Welded Steel Pipes

Understanding the Core Manufacturing Differences

The primary distinction related to these two industrial essentials is their manufacturing process that most influences their mechanical properties.

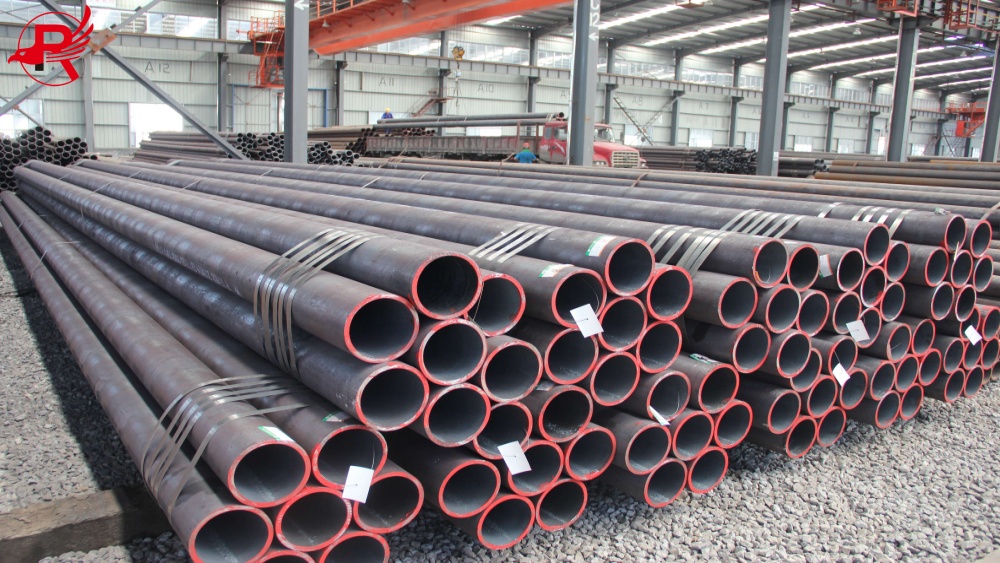

1.Seamless Steel Pipes (ERW / SMLS)

Seamless pipes have no weld seam or joint. They are normally made by a hot rolling process, or cold drawing process, where a solid round steel billet is punched through being center at high temperature.

Key Benefit: Due to the fact that seamless pipes have no welded seam, the structural integrity in a seamless pipe is uniform along the length of the pipe. This eliminates the possibility of "seam failure," the most susceptible point in any welded pipeline.

Typical Dimension: The dimensions in this product are commonly available according to API 5L (line pipe), ASTM A106, and ASTM A53 (for high temperature applications).

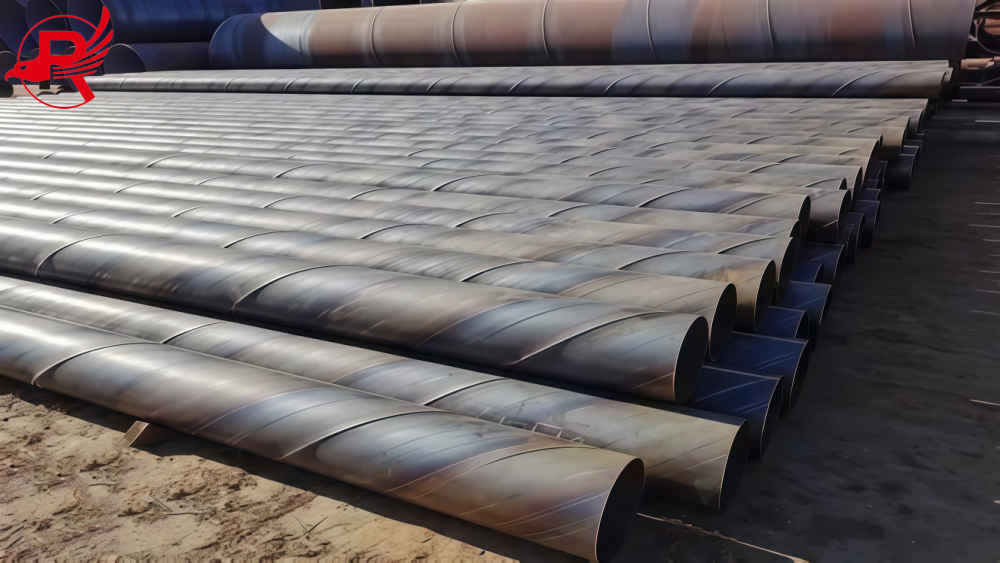

2.Welded Steel Pipes (ERW, LSAW, SSAW)

Welded pipes are made from flat steel plate or strip (coil) that is formed into a round shape. The edges are then welded together by high-energy welding method. Types include Electric Resistance Welding (ERW), Longitudinal Submerged Arc Welding (LSAW), Spiral Submerged Arc Welding (SSAW).

Key Benefit: High technology production has greatly enhanced the reliability of weld seam. Welded pipe is also available in larger sizes than seamless, allowing for greater design and application flexibility.

Typical Dimension: In line with ASTM A53, API 5L and many other regional structural specifications.

Comparative Performance: Construction vs. Industrial Projects

To determine which pipe is superior, engineers must weigh project-specific variables across several key parameters:

Performance Metric	Seamless Steel Pipe	Welded Steel Pipe
Pressure Rating	Extremely High. Handles extreme working pressures without bursting.	Moderate to High. Pressure capacity is limited by the strength of the weld seam.
Dimensional Accuracy	Less precise wall thickness; variations can occur during extrusion.	Excellent. Highly uniform wall thickness and precise outer diameter tolerances.
Size Availability	Limited maximum diameters (typically up to 24 inches for standard mills).	Virtually unlimited diameters (LSAW/SSAW can exceed 60 inches).
Cost Efficiency	Higher production costs translate to a premium market price.	Highly Cost-Effective. Mass production from steel coils keeps prices lower.

When to Choose Seamless Pipes

High Pressure and High Temperature: Oil Refineries, chemical plants, boiler tubes.

Critical Fluid Transport: Hydrocarbon transmission lines where a leak or failure could cause potential catastrophic environmental and financial loss.

Heavy Duty Mechanical Applications: Hydraulic cylinders, automotive drive shafts, and high load bearing columns.

When to Choose Welded Pipes

Structural and Architectural Applications: Piling pipes, building scaffolding, sports stadium trusses, and bridge construction where the pipe primarily handles compression loads rather than internal pressure.

Low to Medium Pressure Utilities: Water supply networks, HVAC systems, and fire sprinkler pipelines.

Large-Diameter Projects: Long-distance water or low-pressure gas mains that require massive outer diameters exceeding standard seamless manufacturing limits.

Royal Steel Group: Your Trusted Global Piping Partner

Be it high pressure API 5L seamless line pipes for a refinery or large diameter LSAW/SSAW welded pipes for deep foundation piling, Royal Steel Group ensures strict quality control. All the products are supported by fully traceable Mill Test Certificates (MTCs) and meet international standards including ASTM, API, EN. Royal Steel Group also supports the procurement function with dual-certified products and specialized corrosion coatings, enabling fiscal optimization of materials without compromising on structural safety or regulatory compliance.
