Any infrastructure or facility project will almost certainly call for steel beams — and two of the most commonly specified types are I-beams and wide flange beams. People mix them up all the time, and it is easy to see why: they look similar at a glance and serve the same basic purpose. But knowing where they diverge starts with two basic terms. The flange is the horizontal part of the beam; the web is the vertical piece that holds the two flanges together. Once you have got that down, the rest falls into place.

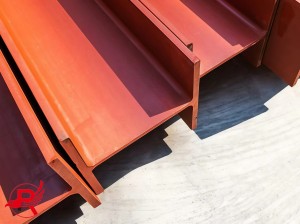

What Is a Wide Flange Beam?
Often referred to as a W-beam, a wide flange beam has a cross-section that looks like a sideways H. The web can be the same width as the flange or even wider. You identify a W-beam by the first number in its designation, which tells you the nominal depth in inches, followed by the weight per foot. A W21x44, for instance, runs roughly 21 inches deep and tips the scales at 44 pounds per foot. Structurally, the web takes on shear forces while the flanges do the heavy lifting against bending.
You will find wide flange beams across a broad range of construction work:
Bridges
Factory platforms
Support beams for steel buildings and manufacturing facilities
Heavy machinery frames
Truck bed frames

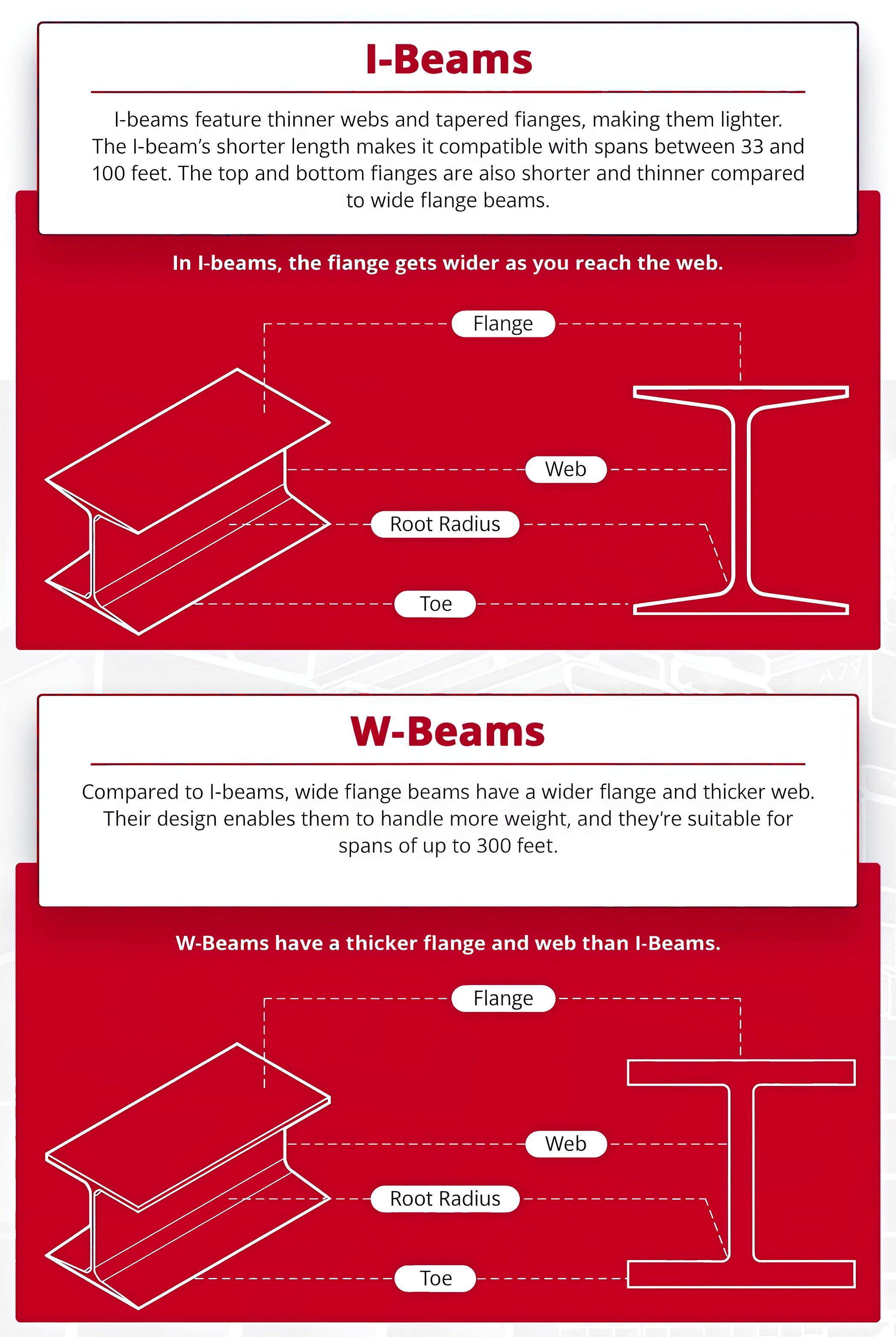

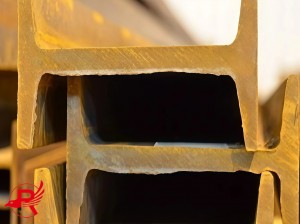

What Is an I-Beam?
An I-beam gets its name from its cross-section, which resembles a capital I. The flanges are noticeably shorter than the web is tall, and that shape is what allows the beam to flex under heavy loads rather than snap. Compared with W-beams — which come in a much wider range of sizes and lengths — I-beams have a more limited catalog to choose from.
They show up in all kinds of structures, including:
Warehouses and factories
Truck bed frames
Support beams for facilities, construction, and engineering projects
Backing supports for steel angles and channels
