How to Choose the Right Steel Beam: I-Beam vs W-Beam Sizes, Types & Applications

tructural steel beams vary significantly in profile design, flange construction, weight ratings, and load-bearing performance. Each beam style is engineered for unique use cases. Below are the four most prevalent beam types used in modern residential, commercial, and industrial construction:

W-Beams (Wide Flange Beams)
Wide flange (W) beams are the most popular structural steel solution in contemporary construction. Featuring wide, parallel flanges and uniform web and flange thickness throughout the profile, these beams deliver exceptional structural rigidity and reliable load-bearing capacity over long spans.
Ideal Applications: Multi-story commercial buildings, warehouse structural framing, bridge support systems, and large-scale industrial construction
Size Range: W4x13 through W44x335, offering the most extensive size selection of all structural beam profiles
Core Benefits: Delivers superior strength-to-weight ratios compared to traditional standard I-beams, optimizing structural performance while keeping material and installation costs efficient
For all construction projects beyond basic residential garage builds, structural engineers almost always specify W-beams as the primary framing solution.

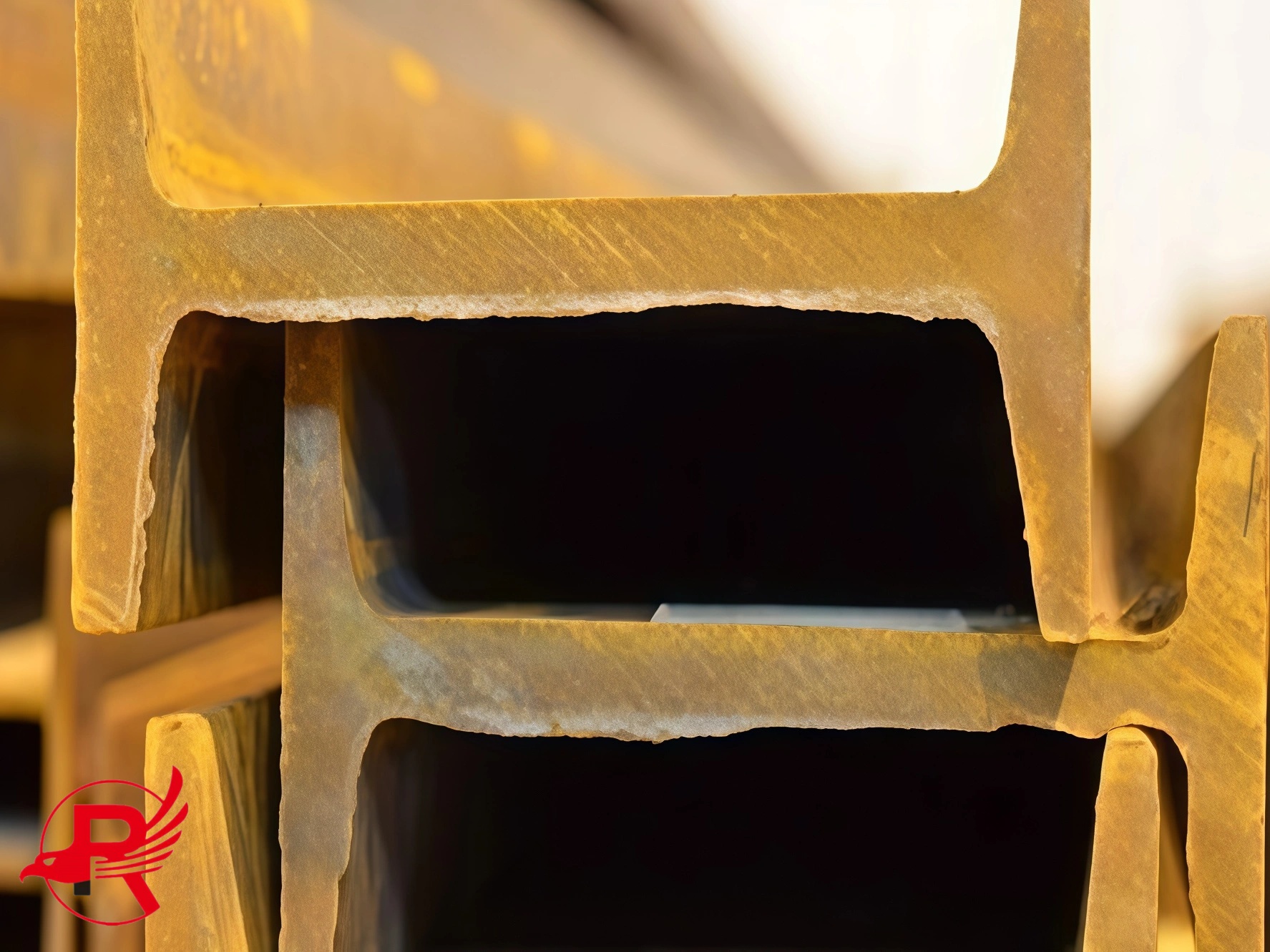

S-Beams (American Standard I-Beams)
S-beams represent the original traditional I-beam design, distinguished by tapered flanges that gradually narrow outward from the central web. Developed earlier than wide flange beams, they remain a practical choice for targeted, specialized construction scenarios.
Ideal Applications: Light-duty structural framing, crane rail systems, and retrofitting or renovating older buildings where matching original structural profiles is critical
Size Range: S3x5.7 up to S24x121
Core Benefits: Their tapered flange design simplifies seamless connections to complementary structural components in custom framing configurations

H-Pile Beams (HP Bearing Piles)
HP beams (H-piles) feature a near-square H-shaped profile, with flange widths nearly identical to the beam’s overall depth. As the heaviest and most robust structural beam option, they are purpose-built for extreme vertical load resistance.
Ideal Applications: Deep foundation piling, underground structural support, heavy-duty load-bearing columns, and retaining wall reinforcement
Size Range: HP8x36 through HP18x204
Core Benefits: Unmatched vertical load capacity, making them the top choice for deep foundation work and high-pressure structural support applications

Structural T-Beams
Structural tees are custom-fabricated by longitudinally cutting standard W-beams or S-beams down their central web. These specialty beams serve niche structural roles and are not stocked as standard inventory items.
Ideal Applications: Truss system construction, structural bracing, and connection joints for large primary structural members
Note: T-beams are typically fabricated to order from full-size standard beams to meet project-specific dimensions.
