Lightweight Building Frame Mobile Prefabricated House Steel Structure Building Farm Storage Warehouse

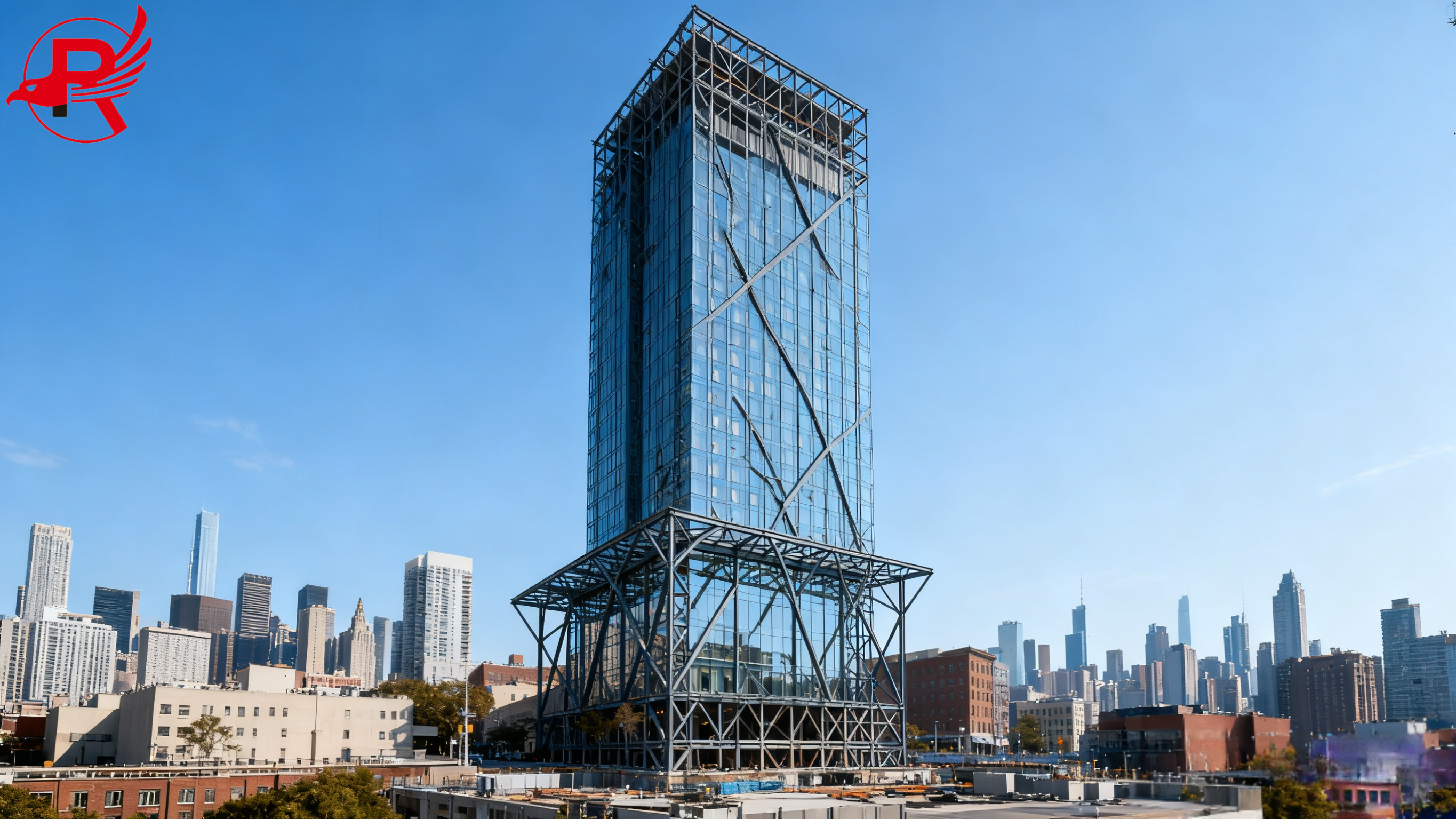

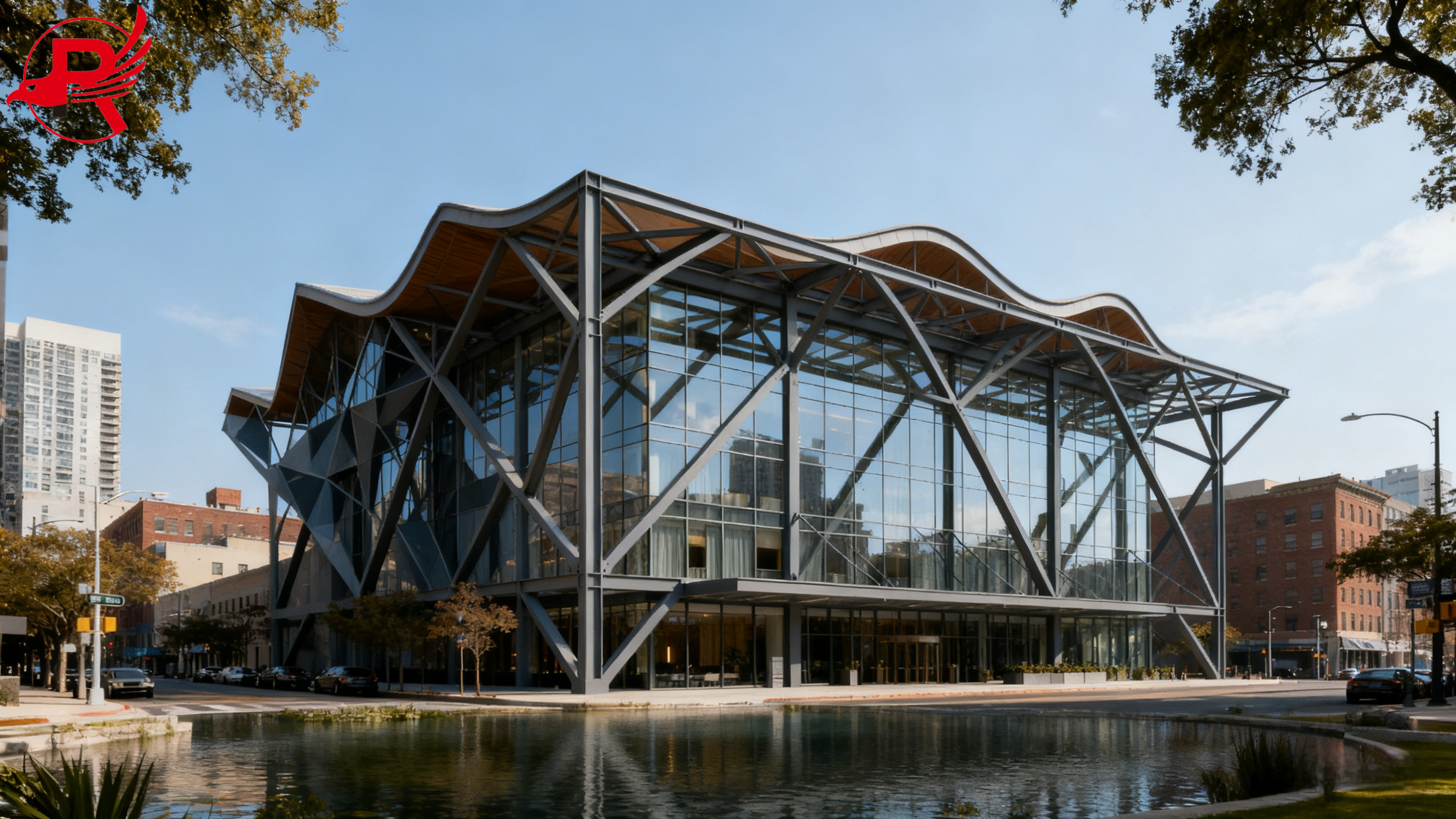

Steel Structure Building: [Introduction] Steel structure is supported by high strength steel, which brings a series of good properties such as being earthquake prood, wind proof, speedy in construction and flexible in space.
Steel Structure House: Steel structure houses take advantage of the pre-engineered steel framing system which enables them to save energy, are environmental friendly, have thermal insulation, and have the least investment in duration.

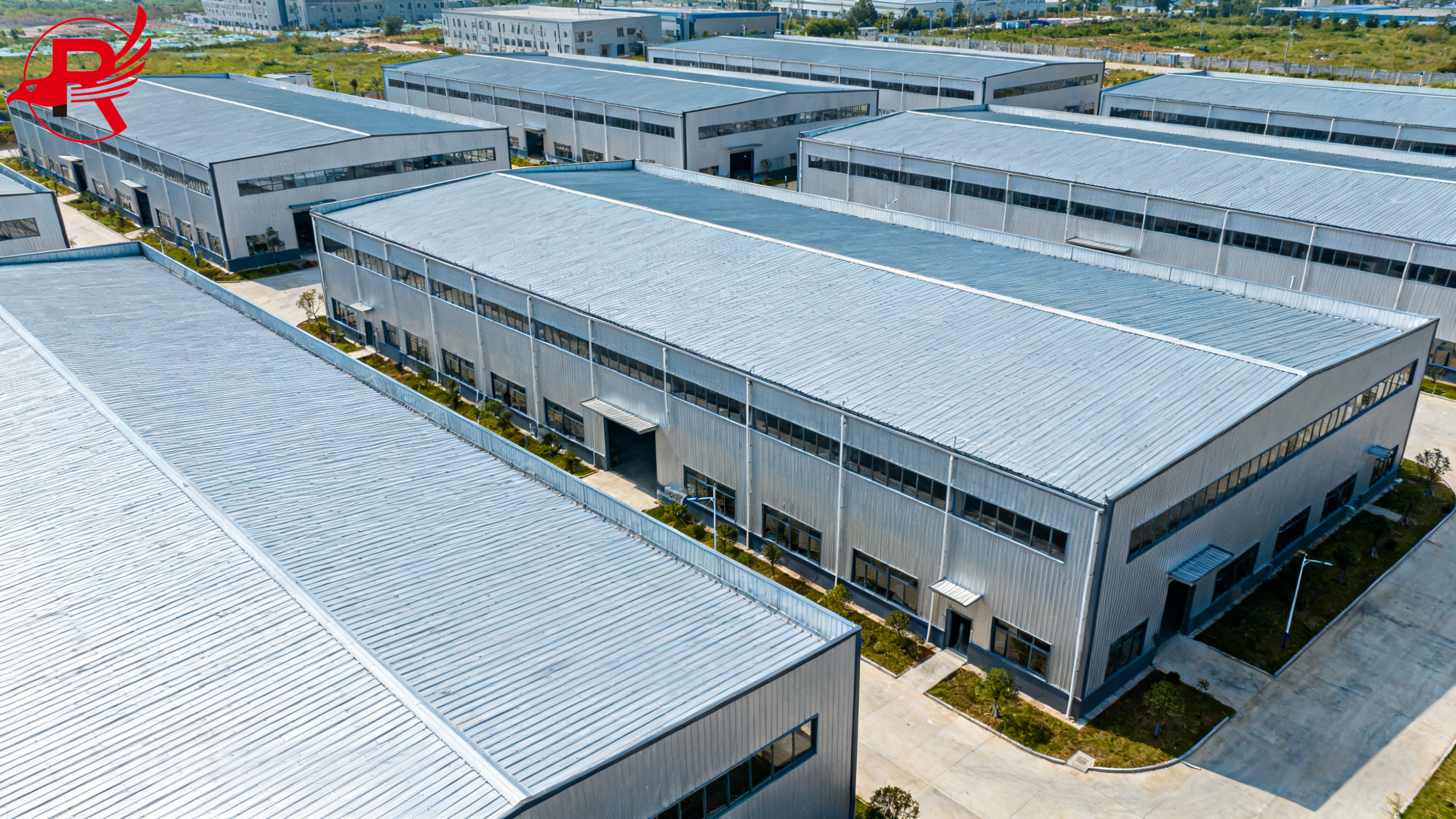

Steel Structure Warehouse: Steel structure warehouse to be large span, high space utilization, rapid installation, easy to design.

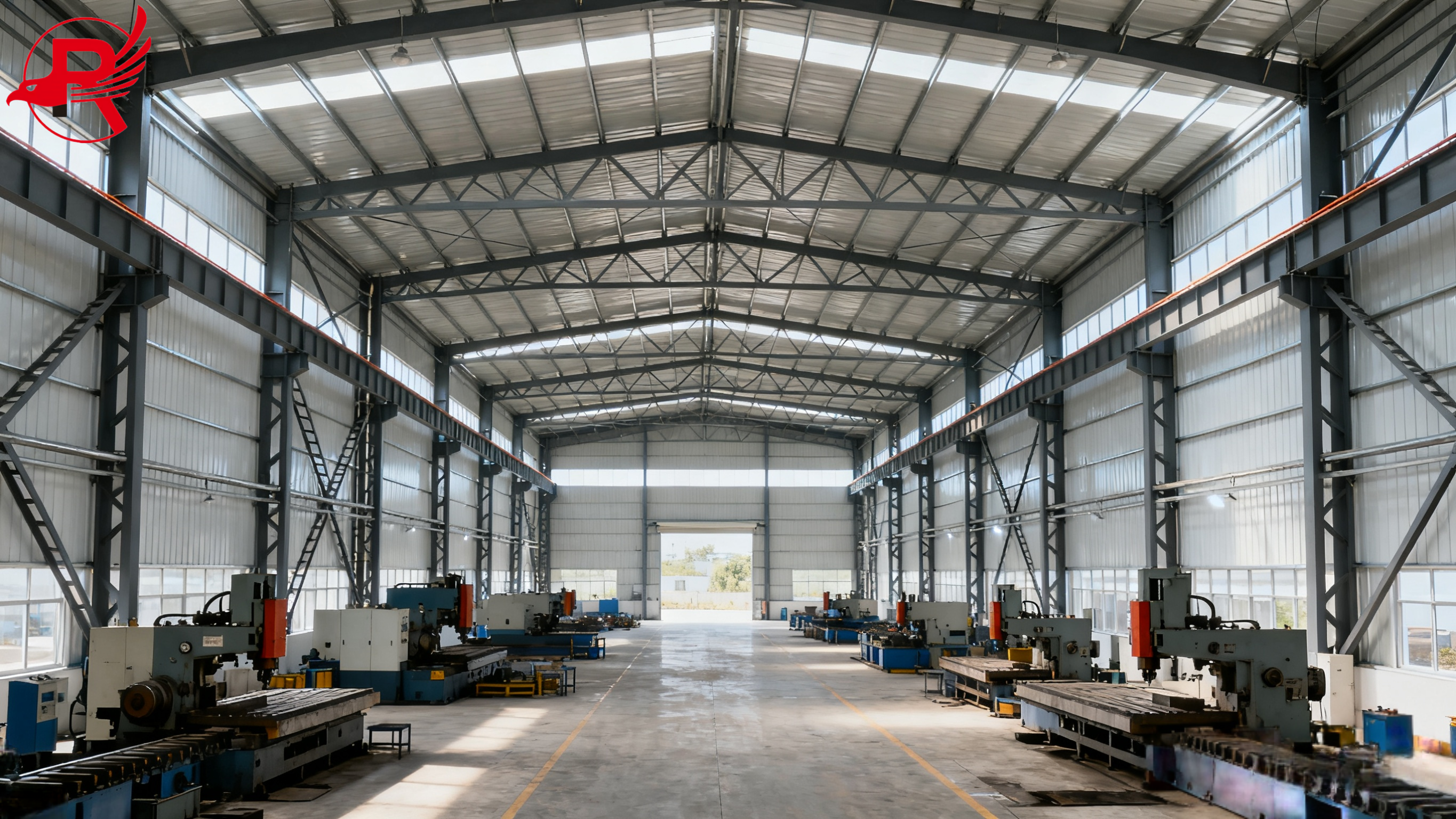

Steel Structure Factory Building: Steel building factory buildings can be designed with no columns for large areas due to its strong load bearing capacity, making the buildings perfect for manufacturing and industrial uses.
Core steel structure products for factory construction
1. Main load-bearing structure (adaptable to tropical seismic requirements)
| Product Type | Specification Range | Core Function | Central America Adaptation Points |
| Portal Frame Beam | W12×30 ~ W16×45 (ASTM A572 Gr.50) | Main beam for roof/wall load-bearing | High-seismic node design with bolted connections to avoid brittle welds, section has been optimized to reduce self-weight for local transport |
| Steel Column | H300×300 ~ H500×500 (ASTM A36) | Supports frame and floor loads | Base embedded seismic connectors, hot-dip galvanized finish (zinc coating ≥85μm) for high humidity environment |
| Crane Beam | W24×76 ~ W30×99 (ASTM A572 Gr.60) | Load-bearing for industrial crane operation | Heavy duty design (for 5~20t cranes) with end beam fitted with shear resistant connecting plates |
2. Enclosure system parts (weather seal + rust protection)
Roof purlins: C12×20~C16×31 (hot-dip galvanized) at a distance of 1.5~2m for the installation of color coated steel sheet, with a typhoon load not less than level 12.
Wall purlins: Z10×20~Z14×26 (corrosion resist paint), vent hole to reduce humidity for tropical factories.
Bracing (Φ12~Φ16 hot-dip galvanized round steel) and corner braces (L50×5 steel angles) stiffen the frame laterally to resist winds up to 150 mph.
3. Support auxiliary products (localised construction adaptation)
Steel embedded parts(10mm-20mm thick,WLHT galvanized) for concrete foundation commonly used in Central America
Embedded parts: Steel plate embedded parts (10mm-20mm thick,HOT galvanized),suitable for the concrete foundation usually employed in Central America;
Connectors: High strength bolts(Grade 8.8,hot-dip galvanized),no weld on site,to save construction time;
Water-based fire retardant paint (fire resistance ≥1.5h)and acrylic anti-corrosive paint(UV resist, life span ≥10years) that meet local environmental protect policies.
Steel Structure Sections
I-beams (capital "I" sections – in UK are UB for universal beam, UC for universal column; in Europe IPE, HE, HL, HD and others; in US are wide flange (WF or W-shapes) and H-shapes).
Z-beams (reverse half-flanges).
HSS (hollow structural sections) and SHS (structural hollow sections) include square, rectangular, circular (tubular) and oval shapes).
Angles Steel (L-Shaped Section).
Structural channels, C-Shaped sections or C shape sections are widely available from stock.
T-beams (T sections).
Steel bars which have a rectangular cross section but are not wide enough to be classified as plates.
Steel Rods Round and square rods, which have circular or square cross sections and are longer compared to their width.
Steel Sheets, are a metal sheets of thickness not more than 6 mm or 1/4 inch.

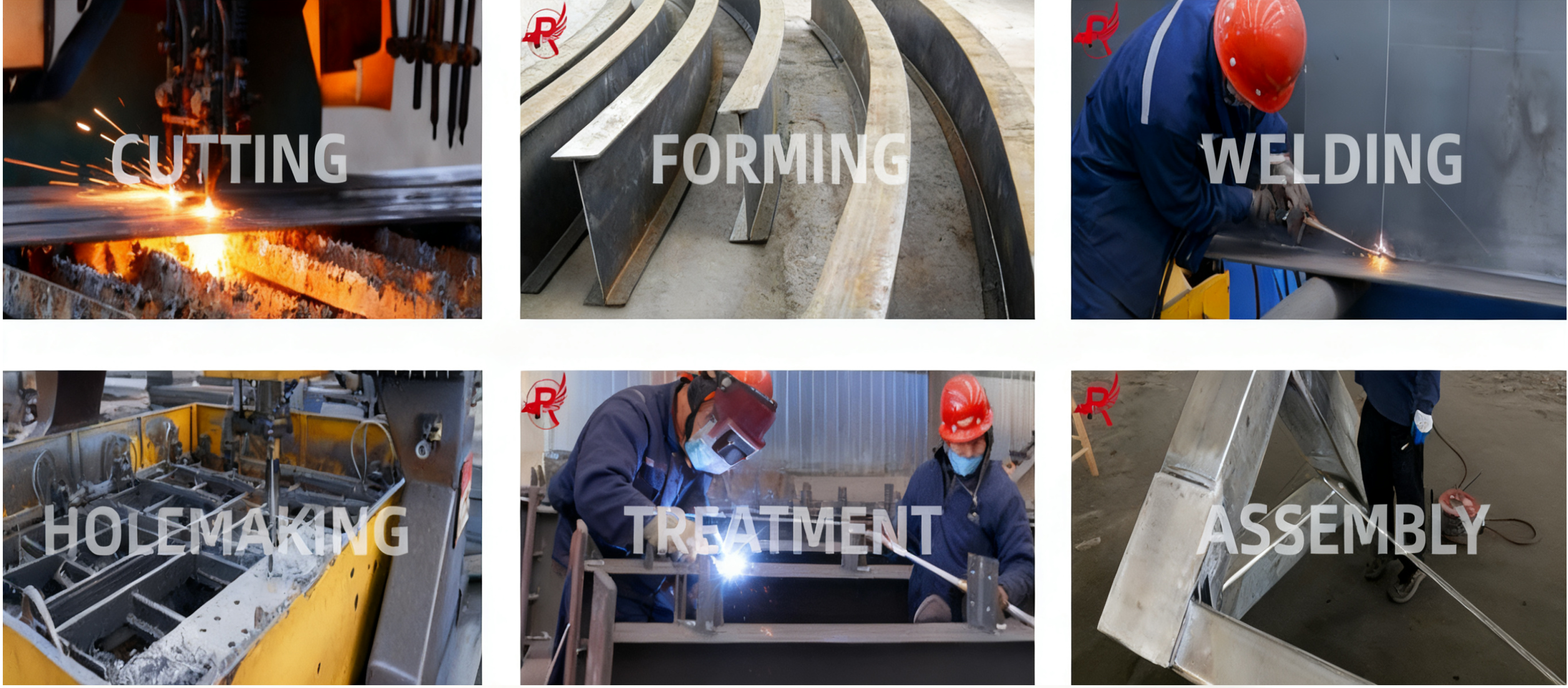

| Processing Method | Processing Machines | Processing |
| Cutting | CNC plasma/flame cutting machines, shearing machines | Plasma flame cutting for steel plates/sections, shearing for thin steel plates, with dimensional accuracy is controlled. |
| Forming | Cold bending machine, press brake, rolling machine | Cold bending (for c/z purlins), bending (for gutters/edge trimming), rolling (for round support bars) |
| Welding | Submerged arc welding machine, manual arc welder, CO₂ gas-shielded welder | Submerged arc welding (Dutch columns / H beams), stick weld (gusset plates), CO² gas shielded welding (thin walled items) |
| Holemaking | CNC drilling machine, punching machine | CNC Boring (bolt holes in connecting plates/components), Punching (batch small holes), With controlled holes diameter/position tolerances |
| Treatment | Shot blasting/sand blasting machine, grinder, hot-dip galvanizing line | Rust removal (shot blasting / sand blasting), weld grinding (deburr), hot-dip galvanizing (bolt/support) |
| Assembly | Assembly platform, measuring fixtures | The components of pre-assembled (column + beam + base) were disassembled for shipping after dimension verification. |
| 1. Salt spray test (core corrosion test) | 2. Adhesion test | 3. Humidity and heat resistance test |
| Standards ASTM B117 (neutral salt spray) / ISO 11997-1 (cyclic salt spray), suitable for the high-salt environment of the Central American coast. | Cross-hatch test using ASTM D3359 (cross-hatch/grid-grid, to determine peeling level); pull-off test using ASTM D4541 (to measure peel strength between coating and steel substrate). | Standards ASTM D2247 (40℃/95% humidity, to prevent blistering and cracking of the coating during rainy seasons). |
| 4. UV aging test | 5. Film thickness test | 6. Impact strength test |

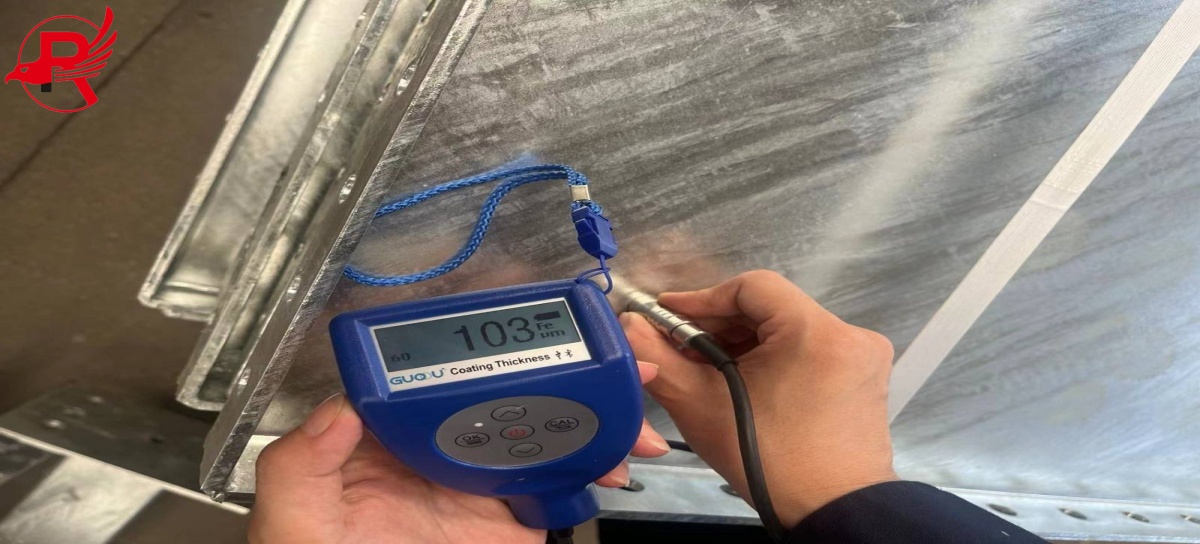

| Standards ASTM G154 (to simulate strong UV exposure in rainforests, to prevent fading and chalking of the coating). | Dry film using ASTM D7091 (magnetic thickness gauge); wet film using ASTM D1212 (to ensure corrosion resistance meets specified thickness). | Standards ASTM D2794 (drop hammer impact, to prevent damage during transportation/installation). |
Treatment on surface Display: Epoxy zinc-rich coating, Galvanized(hot dip galvanized layer thickness≥85μm service life can reach 15-20 years), black oiled, etc.

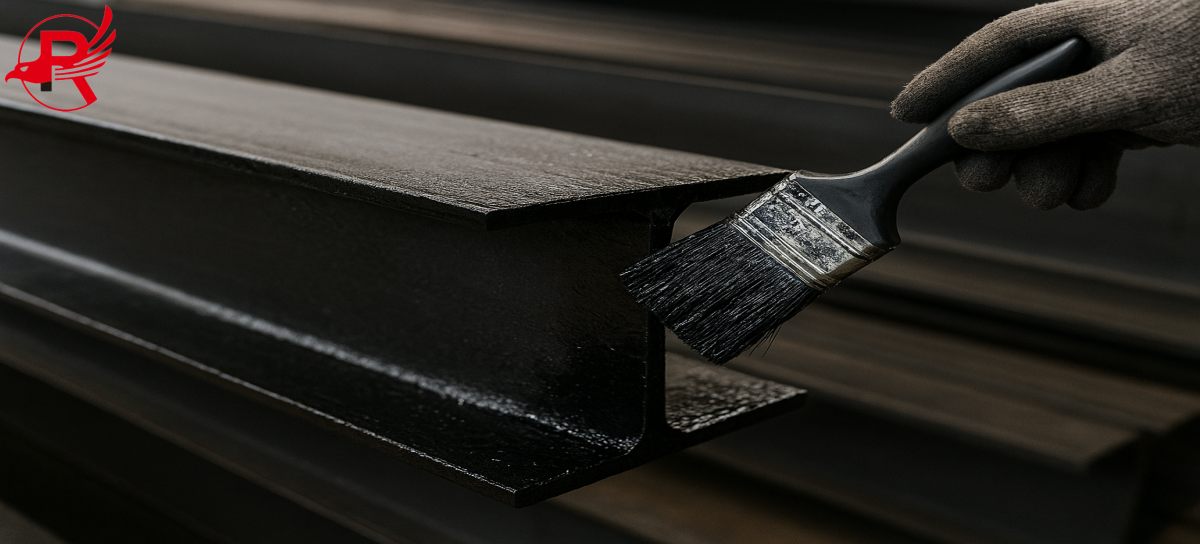

Black Oiled
Galvanized

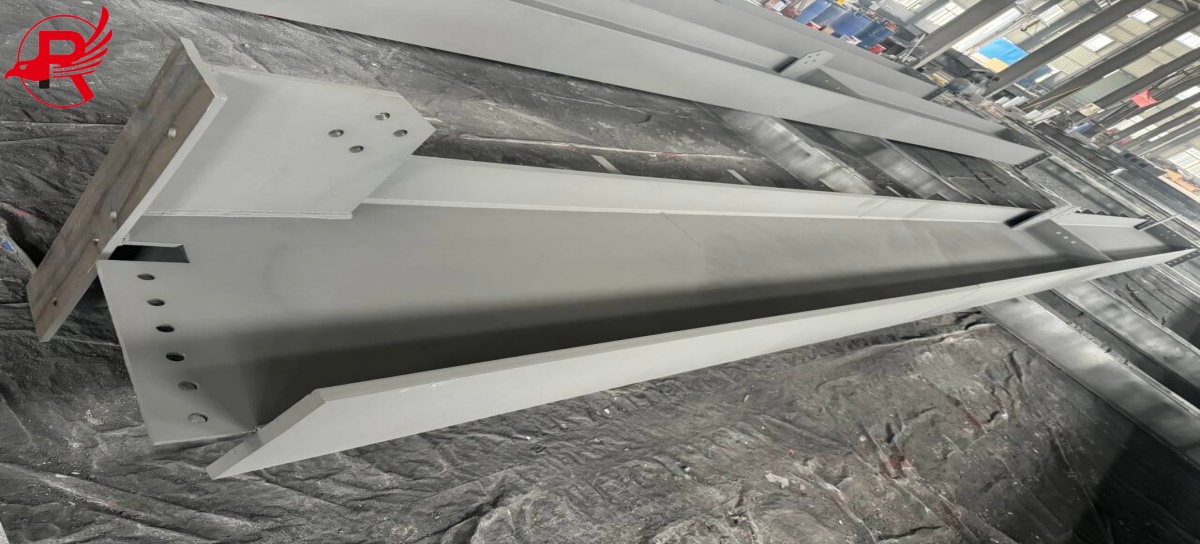

Epoxy Zinc-rich Coating

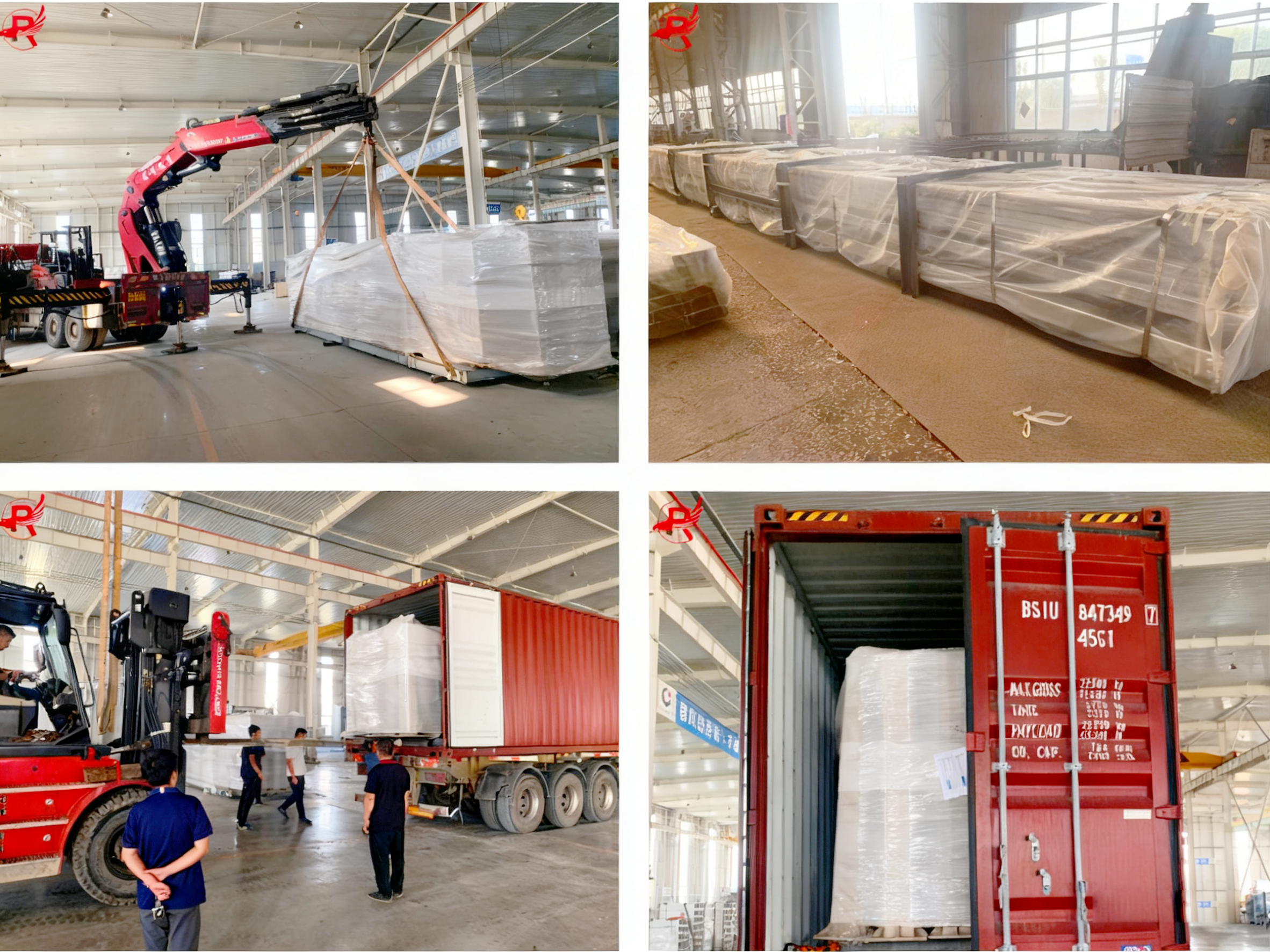

Packaging:

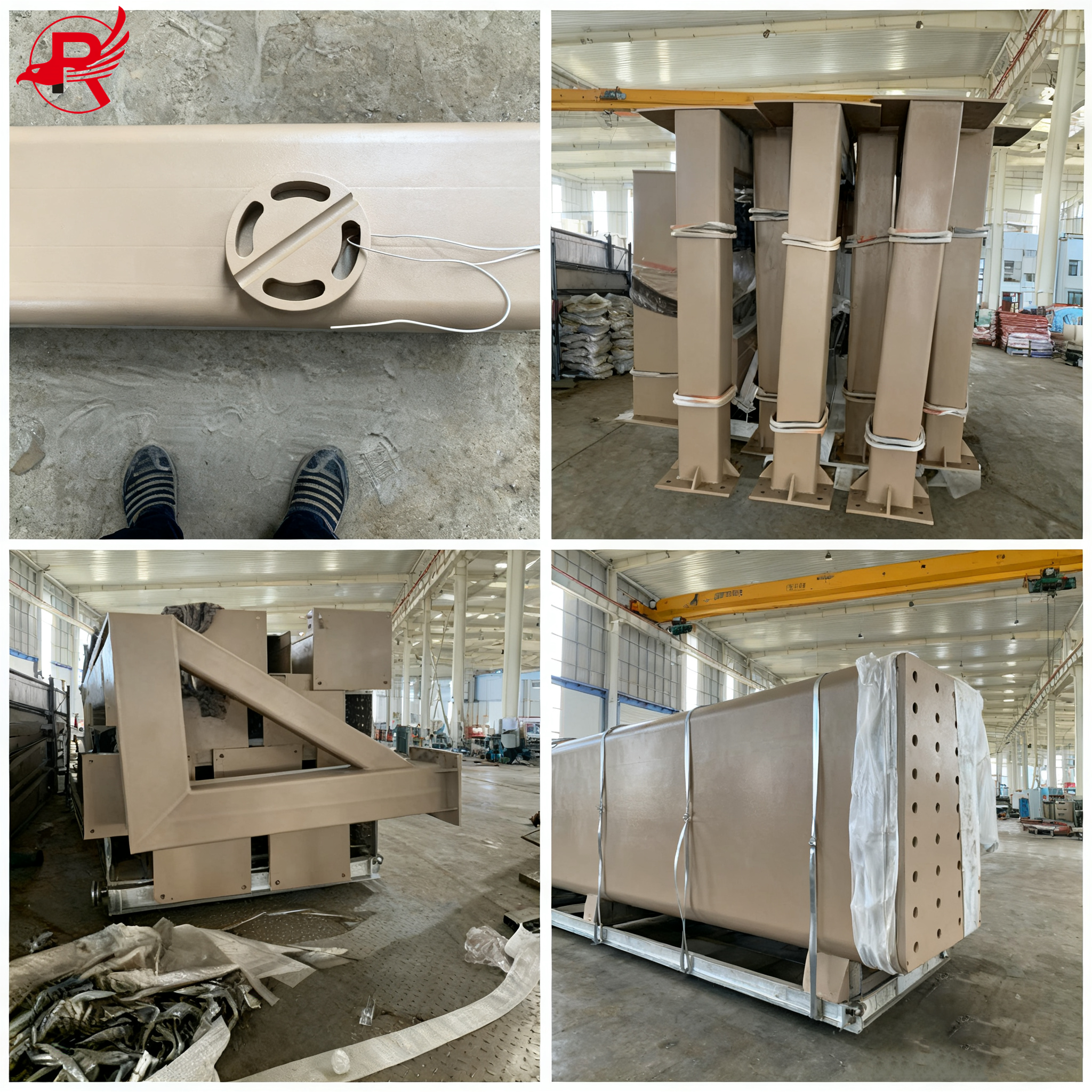

Steel products are firmly packaged to protect its surface and keep the structure during handling and transportation. The components are usually wrapped with a waterproof material such as plastic film or rust preventing paper, and small accessories are packed in wooden boxes. In contrast, all bundles/sections are clearly labeled so you can unload them securely and professionally install them on-site.
Transportation:
Steel structure can be shipped by container or bulk ship based on size and destination. Large or heavy items are banded with steel strapping and wood is installed on both edges to hold the load in place while in transit. All of the logistic processes are done in accordance with international transport standards in order to guarantee delivery in a timely manner and safe arrival even if shipping over long distances or overseas.
1. Overseas Branch & Spanish Language Support
We have overseas offices with Spanish-speaking staff that we are able to fully communicate with our clients from Latin America and Europe.
Our team processes help you with customs clearance, documentation, and for smooth delivery and faster import processing.
2. Ready Stock for Fast Delivery
We keep enough standard steel structure raw materials stock, which including H beam, I beam and structure parts.
This allows for faster lead times so customer’s can receive products quickly and reliably for those urgent projects.
3.Professional Packaging
All products are packed with standard seaworthy packaging -Steel frame bundling, waterproof wrapping, edge protection.
This will guarantee and ensure safe loading, stability during long distance transport and no damage upon arrival in the destination port.
4.Efficient Shipping & Delivery
We cooperate with trustable domestic shipping agents, can offer flexible terms of delivery including FOB, CIF, DDP.
Whether by sea, rail, road, we assure you on-time shipment and efficient logistics tracking services.
About material quality issues
Q: Standards compliance What are the standards applicable in your steel structures?
A: Our steel structure complies with the American Standards such as ASTM A36,ASTM A572 etc. for example: ASTM A36 is a general purpose carbon structural, A588 is a high – weather – resistanc structural suitable to be used in severe atmospherics.
Q: How do you control the quality of steel?
A: The steel materials are from the well-known domestic or international steel mills which has strict quality control system. When they arrived, the products are all tested rigorously, including the chemical composition analysis, the mechanical properties testing and the nondestructive testing, such as the ultrasonic testing (UT) and magnetic particle testing (MPT), to check if the quality meets with related standards.
