High quality Construction Used Ringlock Scaffolding System Steel Scaffold for Sale

Short Description:

A steel scaffolding bracket is a temporary structure that provides a stable platform for workers to carry out construction, repair or maintenance work at heights. It consists of steel pipes and fittings joined together to form a stable frame. Steel scaffolding supports may vary in size and configuration, depending on the type of work that needs to be done and the height required.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Type: Industry

Warranty: 1 Year

After-sale Service: Online technical support

Application: Hotel, Building Construction

Material: Q195 / Q235 / Q345/Customzied

Certificate: ISO900/ISO14001/OHSAS 18001

Packing: Bundle

Service: OEM Serivice

Inspection: SGS, TUV, BV, factory inspection

Delivery Time: 3-15 days (according to the actual tonnage)

Port Information: Tianjin Port, Shanghai Port, Qingdao Port, etc.

Length: 2-12m, or as required

Send email to us Whatsapp Email

Product Detail

Product Tags

steel ringlock scaffolding Description

48#Ringlock Model
Name	Model	Size(MM)	Material	Unit Weight(KG)
Vertical pole	B-PG200	483.2200	Q355B	1.89
Vertical pole	A-PG-500	483.2500	Q355B	3.45
Vertical pole	A-PG-1000	483.21000	Q355B	5.90
Vertical pole	A-PG-1500	483.21500	Q355B	8.00
Vertical pole	A-PG-2000	483.22000	Q355B	10.80
Vertical pole	A-PG-2500	483.22500	Q355B	12.50
Horizontal Bar Data
Horizontal bar	A-SG-300	482.75250	Q235B	1.40
Horizontal bar	A-SG-600	482.75550	Q235B	2.30
Horizontal bar	A-SG-900	482.75850	Q235B	3.40
Horizontal bar	A-SG-1200	482.751150	Q235B	4.30
Horizontal bar	A-SG-1500	482.751450	Q235B	5.20
Horizontal bar	A-SG-1800	482.751750	Q235B	6.00
Inclined Rod Data
Inclined Rod	A-XG-600	Φ1500*600	Q195	5.2
Inclined Rod	A-XG-900	Φ1500*900	Q195	5.5
Inclined Rod	A-XG-1200	Φ1500*1200	Q195	6
Inclined Rod	A-XG-1500	Φ1500*1500	Q195	6.5
Inclined Rod	A-XG-1800	Φ1500*1800	Q195	7
Adjustable Bracket Data
Head Jack	48 series	386005	Q235B	4.5
Base Jack	48 series	386005	Q235B	3.7

steel ringlock scaffolding Advantages

1. Advanced technology

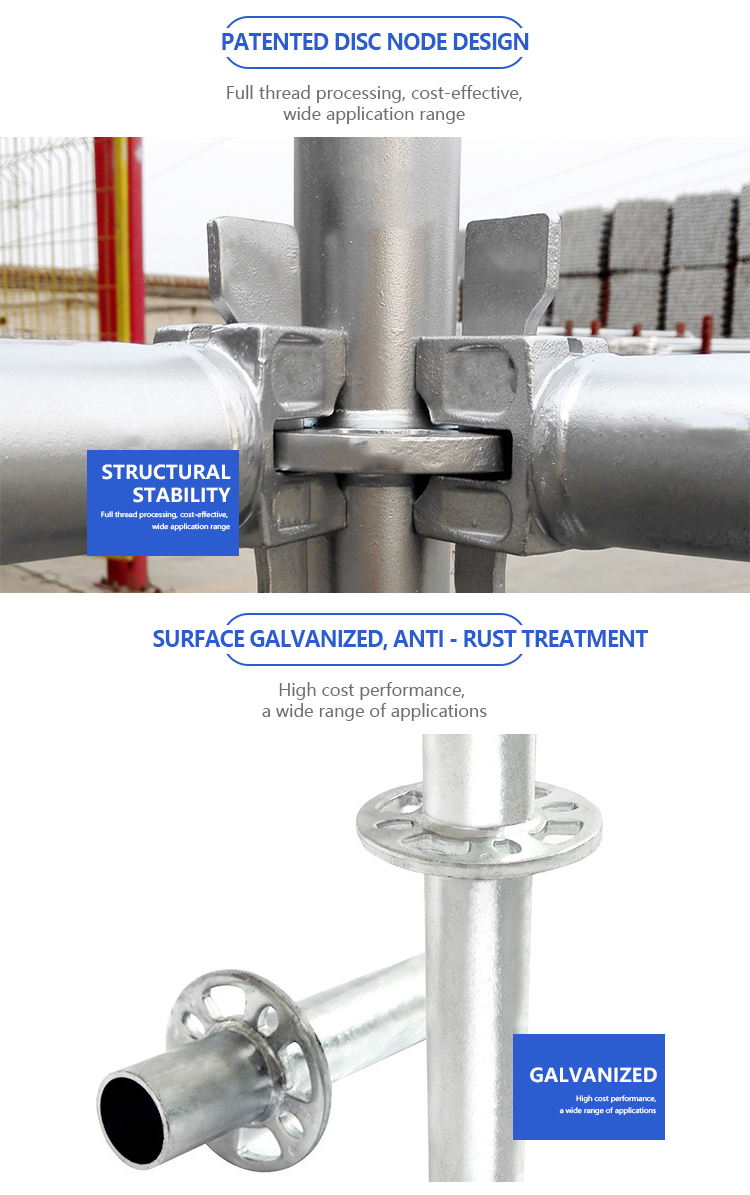

The disc type connection method is 0 mainstream scaffolding connection mode. The reasonable node design can reach the transmission force of each rod through the node center, mainly used in Europe and America 0 and regions. It is an upgraded product of scaffolding, mature technology and connection. Robust, stable structure, safe and reliable.
2. Raw material upgrade
The main materials are all low-alloy structural steel (national standard Q345B), the strength is 1.5--2 times higher than that of traditional scaffolding carbon steel pipe (national standard Q235).
3. Hot-dip galvanizing process
The main components are made of internal and external hot-dip galvanizing anti-corrosion technology, which not only improves the service life of the product, but also provides further guarantee for safety, while at the same time making beautiful and beautiful.
4, reliable quality

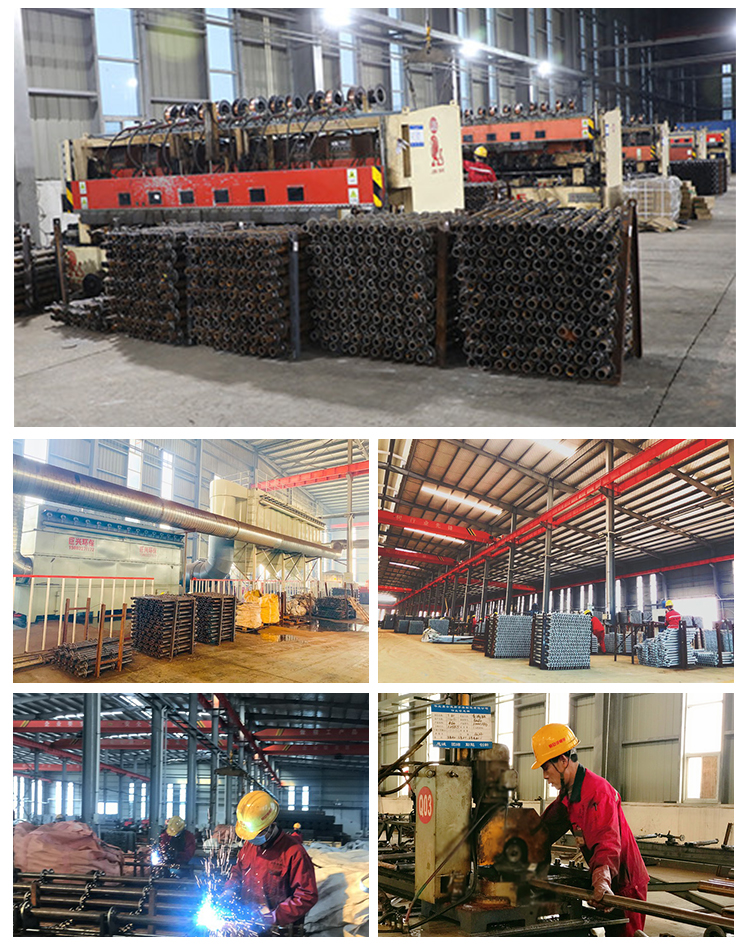

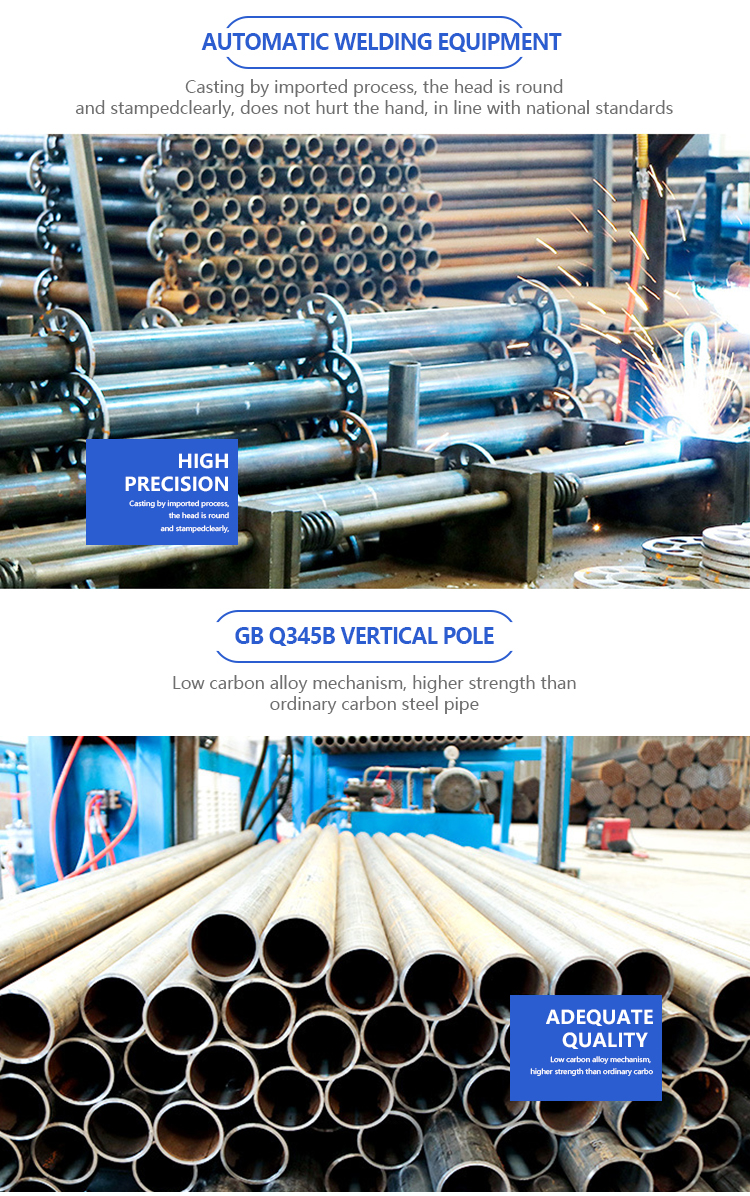

The product starts from the cutting, the whole product processing has to go through 20 to the process, and each step is carried out by special plane to reduce the intervention of human factors, especially the production of crossbars and poles, using self-developed fully automatic welding machine. The products have high precision, strong interchangeability and stable and reliable quality.
5, large carrying capacity
Taking the 60 series heavy-duty support frame as an example, the allowable bearing capacity of a single pole with a height of 5 meters is 9.5 tons (safety factor 2). The damage load reached 19 tons. It is 2-3 times that of traditional products.
6, low dosage and light weight
Under normal circumstances, the distance between the poles is 1.5 meters, 1.8 meters, the step of the crossbar is 1.5 meters, the large spacing can reach 3 meters, and the step distance is 2 meters. Therefore, the amount of the same support volume will be reduced by 1/2 compared to the conventional product, and the weight will be reduced by 1/2 to 1/3.
7, fast assembly, easy to use, save money
Due to the small amount and light weight, the operator can assemble it more conveniently. The cost of detachment, transportation, rental and maintenance will be saved accordingly, under normal circumstances.
