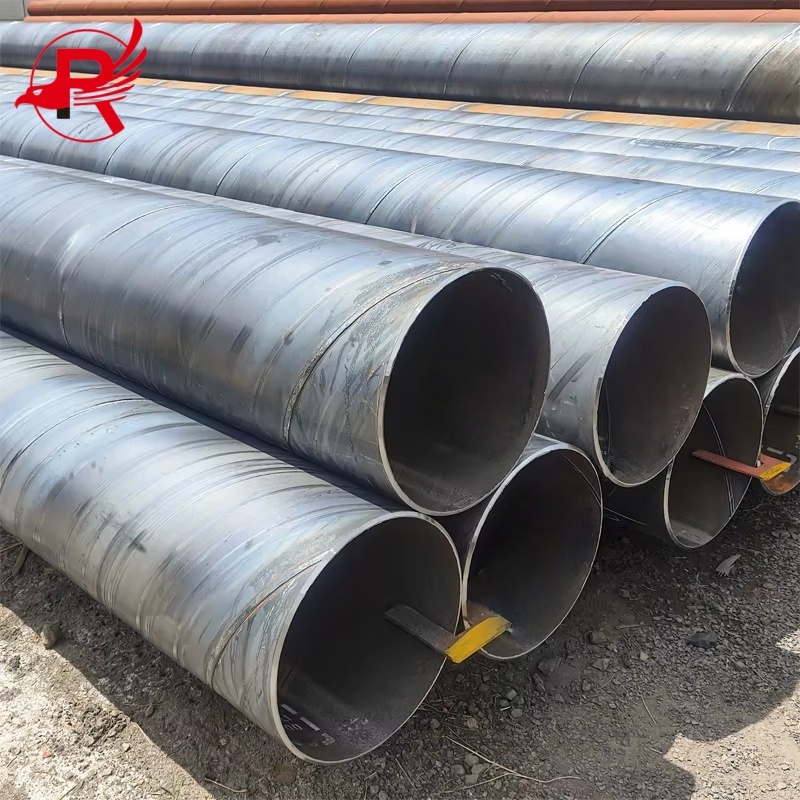

EN10219 S355J2H Steel Pipe Pile for Foundation | Royal Steel Group
| Item | Specification |
| Product Name | EN 10219 S355J2H Carbon Steel Pipe Pile |
| Applicable Standards | EN 10219-1 / EN 10219-2 |
| Steel Grade | S355J2H |
| Yield Strength | ≥ 355 MPa (for wall thickness t ≤ 16 mm) |
| Impact Property | ≥ 27 J at -20°C |
| Section Type | Cold-Formed Welded Circular Hollow Section (CHS) |
| Application Scenarios | Foundation piles, marine structures, offshore platforms, bridge foundations, port construction, retaining walls, and other infrastructure projects |
| Equivalent Grades | Q355D (China), ASTM A572 Grade 55 (USA) |
| Core Advantages | High strength, excellent weldability, outstanding low-temperature toughness, long service life, and full adaptability for heavy-duty foundation projects |
Technical Data
EN10219 S355J2H Steel Tubular Piles Chemical Composition
| Grade | C (%) Max | Si (%) Max | Mn (%) Max | P (%) Max | S (%) Max | N (%) Max | Cu (%) Max* |
| S355J2H | 0.2 | 0.55 | 1.6 | 0.03 | 0.03 | 0.009 | 0.55 |
EN10219 S355J2H Structural Steel Pipe Pile Mechanical Property
| Grade | Wall Thickness (mm) | Yield Strength (MPa) Min | Tensile Strength (MPa) | Elongation (%) Min | Impact Test |
| S355J2H | ≤ 16 | 355 | 510 – 680 | 22 | 27 J at -20°C |
| S355J2H | >16 – 40 | 345 | 510 – 680 | 22 | 27 J at -20°C |
| S355J2H | >40 – 63 | 335 | 510 – 680 | 21 | 27 J at -20°C |
| S355J2H | >63 – 80 | 325 | 510 – 680 | 20 | 27 J at -20°C |
| S355J2H | >80 – 100 | 315 | 510 – 680 | 20 | 27 J at -20°C |
| S355J2H | >100 – 120 | 305 | 490 – 630 | 19 | 27 J at -20°C |
EN10219 S355J2H Steel Pipe Piles Sizes
| Outside Diameter (OD) | Wall Thickness (WT) | Length |
| 219.1 mm (8") | 6 – 20 mm | 6 – 24 m |
| 273.0 mm (10") | 6 – 25 mm | 6 – 24 m |
| 323.9 mm (12") | 6 – 30 mm | 6 – 30 m |
| 355.6 mm (14") | 8 – 30 mm | 6 – 30 m |
| 406.4 mm (16") | 8 – 40 mm | 6 – 36 m |
| 457.0 mm (18") | 8 – 40 mm | 6 – 36 m |
| 508.0 mm (20") | 8 – 50 mm | 6 – 36 m |
| 609.6 mm (24") | 8 – 60 mm | 6 – 36 m |
| 711.2 mm (28") | 10 – 60 mm | 6 – 36 m |
| 813.0 mm (32") | 10 – 60 mm | 6 – 36 m |
| 914.0 mm (36") | 10 – 80 mm | 6 – 36 m |
| 1016.0 mm (40") | 10 – 80 mm | 6 – 36 m |
| 1220.0 mm (48") | 12 – 80 mm | 6 – 36 m |
| 1422.0 mm (56") | 12 – 80 mm | 6 – 36 m |
| 1626.0 mm (64") | 12 – 100 mm | 6 – 36 m |
Click the Button on The Right
High Strength for Heavy-Duty Foundation Works: Manufactured to EN 10219, S355J2H welded steel pipes feature a minimum yield strength of 355 MPa, delivering exceptional load-bearing capacity to meet the heavy foundation demands of bridges, ports, offshore facilities and large-scale infrastructure projects.
Outstanding Low-Temperature Toughness: The J2-grade steel provides a minimum impact energy of 27 J at -20°C, effectively preventing brittle fracture of steel in low-temperature and harsh environments, making it ideal for construction in cold regions.
Excellent Pile Driveability: Specially designed for structural pile foundation engineering, this product can withstand high impact stress during pile driving, with strong resistance to cracking and deformation, suitable for all types of pile installation scenarios.
Superior Weldability: The low carbon equivalent of the steel material ensures excellent weldability, enabling efficient on-site pile splicing, component processing and structural assembly, with high construction convenience.
Adaptable to Marine & Offshore Conditions: With high durability, the pipe pile can be matched with various high-end anti-corrosion coatings, widely used in marine foundations, offshore platforms, port terminals, coastal protection and other marine-related projects.
Complete Specifications & Customization Support: A full range of pipe diameters, wall thicknesses and lengths are available, with custom solutions supported to precisely meet the personalized construction needs of various deep foundation and infrastructure projects.
Full Compliance with EU Standards: Strictly manufactured in accordance with EN 10219 EU standards, the product’s mechanical properties, dimensional tolerances and quality control all comply with stringent European engineering specifications, ensuring compliant and reliable quality.
High Cost-Effectiveness & Practicality: Compared with traditional foundation construction methods, this Welded Steel Pipe Pile enables faster construction speed, lower overall cost, shorter project period and better long-term structural stability, serving as a high-performance, cost-effective solution for foundation engineering.
| Surface Type | Technical Description | Features & Application |
| Black Bare Finish (Original Mill Surface) | Uncoated original black steel surface, with weld beads cleaned and removed, uniform round cross-section; anti-rust oil treatment is available as an option | Cost-effective, the mainstream choice for general piling works; suitable for indoor foundations, temporary supports and short-term projects; convenient for on-site secondary welding and coating operations |
| Anti-Rust Paint Coating | Single or double layer of industrial anti-rust paint applied on the cleaned pipe surface, with full coverage and strong adhesion | Provides basic anti-corrosion protection; ideal for municipal foundations, building foundations and dry-land piling projects; effectively prevents surface oxidation and rust during transportation and construction |
| Hot-Dip Galvanized (HDG) | Manufactured via hot-dip galvanizing process, with full-surface zinc coating, stable metallurgical bonding and standardized zinc layer thickness | Delivers excellent anti-corrosion and weather resistance; suitable for outdoor open-air environments, coastal areas with mild corrosion, and long-term permanent structural piles |
| Coal Tar Epoxy Coating | Professional heavy-duty anti-corrosion coating dedicated to piling engineering, with thick and seamless film, resistant to water, soil and chemical corrosion | The preferred coating for piling engineering; ideal for port and wharf piles, river-crossing foundations, underground wet soil and marine auxiliary piles, with long service life in harsh underground and marine environments |
| Customized Coating | Customizable paint color, multi-layer composite anti-corrosion coating, zinc-rich primer coating and other customized surface treatments are available | Meets special engineering anti-corrosion standards and project appearance requirements, customizable according to customers’ technical drawings and specifications |
Basement & Building Foundation Works
Underground construction for high-rises, factories, warehouses and commercial & residential buildings; applicable to all categories of building pile foundations.
Bridge Pile Foundations
Load-bearing piles for highway, railway and urban viaducts, as well as river-crossing, lake-crossing and sea-crossing bridges.
Port Construction
Load-bearing foundations for terminals, shipyards and docks, supporting heavy machinery and port cargo transportation.
Offshore Wind Power & Marine Engineering
Foundations for offshore wind turbines; structural support for offshore platforms, subsea pipelines and seawalls. Good resistance against tides, waves and marine corrosion for coastal construction.
Large-Scale Civil Engineering
Large-diameter heavy-duty piles for dams, subway stations, tunnels and other mega projects, supporting industrial equipment and heavy structural loads.
EN 10219 S355J2H fully certified steel pipe piles
Large diameter options up to 3000 mm
Custom lengths and wall thicknesses available
Marine-grade anti-corrosion coating solutions
Third-party inspection available (SGS, BV, TUV, DNV)
Proven export experience for offshore, port, bridge and infrastructure construction
Factory-direct competitive pricing & prompt delivery
As a professional Piling Pipe Manufacturer of EN 10219 S355J2H piling pipes, Royal Steel Group delivers products balanced with strength, toughness, weldability and durability, suitable for rigorous foundation, marine, offshore and infrastructure projects across the globe.
1) Branch Office - Spanish-speaking support, customs clearance assistance, etc.
2) Over 5,000 tons of stock in stock, with a wide variety of sizes
3) Inspected by authoritative organizations such as CCIC, SGS, BV, and TUV, with standard seaworthy packaging
1. Packaging Standards
All steel pipe piles are bundled with steel straps for stable handling and transportation. Wooden blocks and dunnage are placed between stacked pipes to effectively prevent positional displacement during transit. Multiple surface protection methods are available as optional services, including black finish painting, anti-rust oil coating and plastic film wrapping. For galvanized pipe piles, we adopt temporary plastic film packaging to avoid surface scratches during shipment. Meanwhile, customized packaging solutions can be provided to meet specific project requirements.
2. Delivery & Transportation Details
We keep standard pipe lengths of 6m and 12m in sufficient stock, while non-standard and customized lengths are also available to meet diverse needs. The steel pipe piles feature sturdy structural performance, adapting perfectly to sea, rail and road transportation modes. The overall delivery cycle ranges from 15 to 30 working days after receiving the deposit, with the exact lead time subject to the order quantity and product specifications. We support global export services and can provide a complete set of official documents, including material test certificates, packing lists and bills of lading.
3. Handling & Storage Precautions
Direct contact between unprotected slings, hooks and pipe surfaces is prohibited during handling, as it may cause surface damage or pipe deformation. To prevent pre-installation rusting, the products shall be stored in cool, dry and well-ventilated warehouses or open areas. For oversized and overweight cargo, all loading and transportation operations must strictly comply with local logistics and shipping regulatory standards.
1. What is EN10219 S355J2H Steel Pipe Pile?
EN10219 S355J2H is a welded structural steel Piling Pipe Supplier according to the EN 10219 standard. With a minimum yield strength of 355 MPa and good impact toughness at low temperatures, it is widely used for heavy-duty foundation projects.
2. What are S355J2H Steel Pipe Piles used for?
They are commonly applied in:
Bridge and highway foundations
Marine and port structures
Offshore wind power projects
Offshore platforms
Deep foundation systems
3. What sizes of S355J2H Pipe Piles are available?
Available specifications include:
Outer diameter: 219.1 mm–3000 mm
Wall thickness: 6 mm–100 mm
Length: Up to 36 m or customized
Special sizes and project requirements can be supplied upon request.
4. Can S355J2H Pipe Piles be used in marine environments?
Yes. S355J2H offers high strength, excellent weldability, and impact resistance at low temperatures. With suitable anti-corrosion protection such as coating or painting systems, it is suitable for coastal and offshore applications.
5. Why Choose Royal Steel Group for S355J2H Pipe Piles?
EN 10219 standard compliant production
Large diameter pipe piles up to 3000 mm
Customized sizes, lengths, and surface coatings
Third-party inspection available (SGS, BV, TUV, DNV)
Stable supply and competitive export pricing
Royal Steel Group supplies EN10219 S355J2H steel pipe piles for global infrastructure, marine, and offshore foundation projects.
