ASTM A992 612 / 1216 Hot Rolled American Wide Flange Steel Beams W Beam

Short Description:

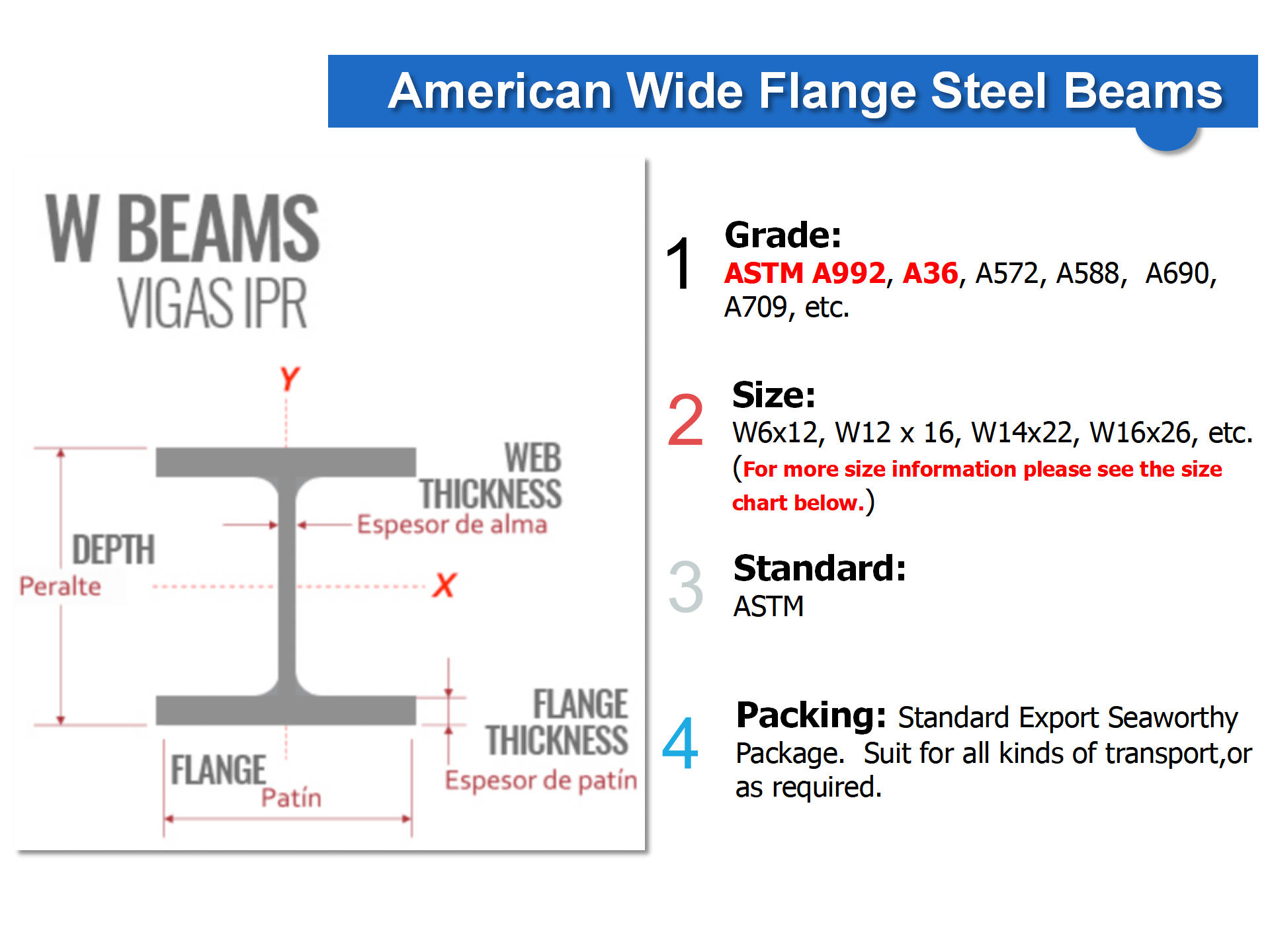

W Beams – wide flange beams – are stout, sturdy beams with wide flanges positioned perpendicularly to the web of the material giving them their characteristic shape and distinguishing them from I Beams.

Standard: ASTM

Grade: ASTM A992, A36, A572, A588, A690, A709, etc.

Size: W6x12, W12 x 16, W14x22, W16x26, etc.

Delivery Time: 7-15 Days

Payment Terms: TT/LC

Send email to us Whatsapp Email

Product Detail

Product Tags

Description

Hot rolled steel wide flange w beams are the most common of all beams and are an excellent candidate for most processing techniques. They are often characterized by a textured blue-grey finish, non-tapered flanges, and a thicker center web for increased strength. Commonly used in the construction industry, steel wide flange beams are a standard structural material, primarily used to carry loads transverse to its longitudinal axis (web). Steel wide flange beams are often heavier than standard w beams or junior beams. ASTM A992 / A572-50 / A529-50 are the standard specifications for structural steel.
For additional information on item sizes, and/or cert requests please contact our Sales Manager.

W Beams - American Wide Flange Beams - Static Parameters

Designation	Depth	Width	Web Thickness	Flange Thickness	Sectional Area	Weight	Static Parameters
Imperial	h	w	tw	tf	(in2)	(lbf/ft)	Static Parameters
(in x lb/ft)	(in)	(in)	(in)	(in)			Moment of Inertia		Elastic Section Modulus
							Ix	Iy	Sx	Sy
							(in4)	(in4)	(in3)	(in3)
W 27 x 178	27.8	14.09	0.725	1.19	52.3	178	6990	555	502	78.8
W 27 x 161	27.6	14.02	0.66	1.08	47.4	161	6280	497	455	70.9
W 27 x 146	27.4	14	0.605	0.975	42.9	146	5630	443	411	63.5
W 27 x 114	27.3	10.07	0.57	0.93	33.5	114	4090	159	299	31.5
W 27×102	27.1	10.02	0.515	0.83	30	102	3620	139	267	27.8
W 27 x 94	26.9	10	0.49	0.745	27.7	94	3270	124	243	24.8
W 27 x 84	26.7	9.96	0.46	0.64	24.8	84	2850	106	213	21.2

W 24 x 162	25	13	0.705	1.22	47.7	162	5170	443	414	68.4
W 24 x 146	24.7	12.9	0.65	1.09	43	146	4580	391	371	60.5
W 24 x 131	24.5	12.9	0.605	0.96	38.5	131	4020	340	329	53
W 24 x 117	24.3	12.8	0.55	0.85	34.4	117	3540	297	291	46.5
W 24×104	24.1	12.75	0.5	0.75	30.6	104	3100	259	258	40.7
W 24 x 94	24.1	9.07	0.515	0.875	27.7	94	2700	109	222	24
W 24 x 84	24.1	9.02	0.47	0.77	24.7	84	2370	94.4	196	20.9
W 24 x 76	23.9	9	0.44	0.68	22.4	76	2100	82.5	176	18.4
W 24 x 68	23.7	8.97	0.415	0.585	20.1	68	1830	70.4	154	15.7
W 24 x 62	23.7	7.04	0.43	0.59	18.2	62	1550	34.5	131	9.8
W 24 x 55	23.6	7.01	0.395	0.505	16.2	55	1350	29.1	114	8.3

W 21 x 147	22.1	12.51	0.72	1.15	43.2	147	3630	376	329	60.1
W 21 x 132	21.8	12.44	0.65	1.035	38.8	132	3220	333	295	53.5
W 21 x 122	21.7	12.39	0.6	0.96	35.9	122	2960	305	273	49.2
W 21 x 111	21.5	12.34	0.55	0.875	32.7	111	2670	274	249	44.5
W 21×101	21.4	12.29	0.5	0.8	29.8	101	2420	248	227	40.3
W 21 x 93	21.6	8.42	0.58	0.93	27.3	93	2070	92.9	192	22.1
W 21 x 83	21.4	8.36	0.515	0.835	24.3	83	1830	81.4	171	19.5
W 21 x 73	21.2	8.3	0.455	0.74	21.5	73	1600	70.6	151	17
W 21 x 68	21.1	8.27	0.43	0.685	20	68	1480	64.7	140	15.7
W 21 x 62	21	8.24	0.4	0.615	18.3	62	1330	57.5	127	13.9
W 21 x 57	21.1	6.56	0.405	0.65	16.7	57	1170	30.6	111	9.4
W 21 x 50	20.8	6.53	0.38	0.535	14.7	50	984	24.9	94.5	7.6
W 21 x 44	20.7	6.5	0.35	0.45	13	44	843	20.7	81.6	6.4

W 18 x 119	19	11.27	0.655	1.06	35.1	119	2190	253	231	44.9
W 18×106	18.7	11.2	0.59	0.94	31.1	106	1910	220	204	39.4
W 18 x 97	18.6	11.15	0.535	0.87	28.5	97	1750	201	188	36.1
W 18 x 86	18.4	11.09	0.48	0.77	25.3	86	1530	175	166	31.6
W 18 x 76	18.2	11.04	0.425	0.68	22.3	76	1330	152	146	27.6
W 18 x 71	18.5	7.64	0.495	0.81	20.8	71	1170	60.3	127	15.8
W 18 x 65	18.4	7.59	0.45	0.75	19.1	65	1070	54.8	117	14.4
W 18 x 60	18.2	7.56	0.415	0.695	17.6	60	984	50.1	108	13.3
W 18 x 55	18.1	7.53	0.39	0.63	16.2	55	890	44.9	98.3	11.9
W 18 x 50	18	7.5	0.355	0.57	14.7	50	800	40.1	88.9	10.7
W 18 x 46	18.1	6.06	0.36	0.605	13.5	46	712	22.5	78.8	7.4
W 18 x 40	17.9	6.02	0.315	0.525	11.8	40	612	19.1	68.4	6.4
W 18 x 35	17.7	6	0.3	0.425	10.3	35	510	15.3	57.6	5.1

W 16×100	16.97	10.425	0.585	0.985	29.4	100	1490	186	175	35.7
W 16 x 89	16.75	10.365	0.525	0.875	26.2	89	1300	163	155	31.4
W 16 x 77	16.52	10.295	0.455	0.76	22.6	77	1100	138	134	26.9
W 16 x 67	16.33	10.235	0.395	0.665	19.7	67	954	119	117	23.2
W 16 x 57	16.43	7.12	0.43	0.715	16.8	57	758	43.1	92.2	12.1
W 16 x 50	16.26	7.07	0.38	0.63	14.7	50	659	37.2	81	10.5
W 16 x 45	16.13	7.035	0.345	0.565	13.3	45	586	32.8	72.7	9.3
W 16 x 40	16.01	6.995	0.305	0.505	11.8	40	518	28.9	64.7	8.3
W 16 x 36	15.86	6.985	0.295	0.43	10.6	36	448	24.5	56.5	7
W 16 x 31	15.88	5.525	0.275	0.44	9.12	31	375	12.4	47.2	4.5
W 16 x 26	15.69	5.5	0.25	0.345	7.68	26	301	9.6	38.4	3.5

W 14 x 132	14.66	14.725	0.645	1.03	38.8	132	1530	548	209	74.5
W 14 x 120	14.48	14.67	0.59	0.94	35.3	120	1380	495	190	67.5
W 14×109	14.32	14.605	0.525	0.86	32	109	1240	447	173	61.2
W 14 x 99	14.16	14.565	0.485	0.78	29.1	99	1110	402	157	55.2
W 14 x 90	14.02	14.52	0.44	0.71	26.5	90	999	362	143	49.9
W 14 x 82	14.31	10.13	0.51	0.855	24.1	82	882	148	123	29.3
W 14 x 74	14.17	10.07	0.45	0.785	21.8	74	796	134	112	26.6
W 14 x 68	14.04	10.035	0.415	0.72	20	68	723	121	103	24.2
W 14 x 61	13.89	9.995	0.375	0.645	17.9	61	640	107	92.2	21.5
W 14 x 53	13.92	8.06	0.37	0.66	15.6	53	541	57.7	77.8	14.3
W 14 x 48	13.79	8.03	0.34	0.595	14.1	48	485	51.4	70.3	12.8
W 14 x 43	13.66	7.995	0.305	0.53	12.6	43	428	45.2	62.7	11.3
W 14 x 38	14.1	6.77	0.31	0.515	11.2	38	385	26.7	54.6	7.9
W 14 x 34	13.98	6.745	0.285	0.455	10	34	340	23.3	48.6	6.9
W 14 x 30	13.84	6.73	0.27	0.385	8.85	30	291	19.6	42	5.8
W 14 x 26	13.91	5.025	0.255	0.42	7.69	26	245	8.9	35.3	3.5
W 14 x 22	13.74	5	0.23	0.335	6.49	22	199	7	29	2.8

W 12 x 136	13.41	12.4	0.79	1.25	39.9	136	1240	398	186	64.2
W 12 x 120	13.12	12.32	0.71	1.105	35.3	120	1070	345	163	56
W 12×106	12.89	12.22	0.61	0.99	31.2	106	933	301	145	49.3
W 12 x 96	12.71	12.16	0.55	0.9	28.2	96	833	270	131	44.4
W 12 x 87	12.53	12.125	0.515	0.81	25.6	87	740	241	118	39.7
W 12 x 79	12.38	12.08	0.47	0.735	23.2	79	662	216	107	35.8
W 12 x 72	12.25	12.04	0.43	0.67	21.1	72	597	195	97.4	32.4
W 12 x 65	12.12	12	0.39	0.605	19.1	65	533	174	87.9	29.1
W 12 x 58	12.19	10.01	0.36	0.64	17	58	475	107	78	21.4
W 12 x 53	12.06	9.995	0.345	0.575	15.6	53	425	95.8	70.6	19.2
W 12 x 50	12.19	8.08	0.37	0.64	14.7	50	394	56.3	64.7	13.9
W 12 x 45	12.06	8.045	0.335	0.575	13.2	45	350	50	58.1	12.4
W 12 x 40	11.94	8.005	0.295	0.515	11.8	40	310	44.1	51.9	11
W 12 x 35	12.5	6.56	0.3	0.52	10.3	35	285	24.5	45.6	7.5
W 12 x 30	12.34	6.52	0.26	0.44	8.8	30	238	20.3	38.6	6.2
W 12 x 26	12.22	6.49	0.23	0.38	7.7	26	204	17.3	33.4	5.3
W 12 x 22	12.31	4.03	0.26	0.425	6.5	22	156	4.7	25.4	2.3
W 12 x 19	12.16	4.005	0.235	0.35	5.6	19	130	3.8	21.3	1.9
W 12 x 16	11.99	3.99	0.22	0.265	4.7	16	103	2.8	17.1	1.4
W 12 x 14	11.91	3.97	0.2	0.225	4.2	14	88.6	2.4	14.9	1.2

W 10 x 112	11.36	10.415	0.755	1.25	32.9	112	716	236	126	45.3
W 10×100	11.1	10.34	0.68	1.112	29.4	100	623	207	112	40
W 10 x 88	10.84	10.265	0.605	0.99	25.9	88	534	179	98.5	34.8
W 10 x 77	10.6	10.19	0.53	0.87	22.6	77	455	154	85.9	30.1
W 10 x 68	10.4	10.13	0.47	0.77	20	68	394	134	75.7	26.4
W 10 x 60	10.22	10.08	0.42	0.68	17.6	60	341	116	66.7	23
W 10 x 54	10.09	10.03	0.37	0.615	15.8	54	303	103	60	20.6
W 10 x 49	9.98	10	0.34	0.56	14.4	49	272	93.4	54.6	18.7
W 10 x 45	10.1	8.02	0.35	0.62	13.3	45	248	53.4	49.1	13.3
W 10 x 39	9.92	7.985	0.315	0.53	11.5	39	209	45	42.1	11.3
W 10 x 33	9.73	7.96	0.29	0.435	9.71	33	170	36.6	35	9.2
W 10 x 30	10.47	5.81	0.3	0.51	8.84	30	170	16.7	32.4	5.8
W 10 x 26	10.33	5.77	0.26	0.44	7.6	26	144	14.1	27.9	4.9
W 10 x 22	10.17	5.75	0.24	0.36	6.5	22	118	11.4	23.2	4
W 10 x 19	10.24	4.02	0.25	0.395	5.6	19	96.3	4.3	18.8	2.1
W 10 x 17	10.11	4.01	0.24	0.33	5	17	81.9	3.6	16.2	1.8
W 10 x 15	9.99	4	0.23	0.27	4.4	15	68.9	2.9	13.8	1.5
W 10 x 12	9.87	3.96	0.19	0.21	3.5	12	53.8	2.2	10.9	1.1

W 8 x 67	9	8.28	0.57	0.935	19.7	67	272	88.6	60.4	21.4
W 8 x 58	8.75	8.22	0.51	0.81	17.1	58	228	75.1	52	18.3
W 8 x 48	8.5	8.11	0.4	0.685	14.1	48	184	60.9	43.3	15
W 8 x 40	8.25	8.07	0.36	0.56	11.7	40	146	49.1	35.5	12.2
W 8 x 35	8.12	8.02	0.31	0.495	10.3	35	127	42.6	31.2	10.6
W 8 x 31	8	7.995	0.285	0.435	9.1	31	110	37.1	27.5	9.3
W 8 x 28	8.06	6.535	0.285	0.465	8.3	28	98	21.7	24.3	6.6
W 8 x 24	7.93	6.495	0.245	0.4	7.1	24	82.8	18.3	20.9	5.6
W 8 x 21	8.28	5.27	0.25	0.4	6.2	21	75.3	9.8	18.2	3.7
W 8 x 18	8.14	5.25	0.23	0.33	5.3	18	61.9	8	15.2	3
W 8 x 15	8.11	4.015	0.245	0.315	4.4	15	48	3.4	11.8	1.7
W 8 x 13	7.99	4	0.23	0.255	3.8	13	39.6	2.7	9.9	1.4
W 8×10	7.89	3.94	0.17	0.205	2.9	10	30.8	2.1	7.8	1.1

W 6 x 25	6.38	6.08	0.32	0.455	7.3	25	53.4	17.1	16.7	5.6
W 6 x 20	6.2	6.02	0.26	0.365	5.9	20	41.4	13.3	13.4	4.4
W 6 x 16	6.28	4.03	0.26	0.405	4.7	16	32.1	4.4	10.2	2.2
W 6 x 15	5.99	5.99	0.23	0.26	4.4	15	29.1	9.3	9.7	3.1
W 6 x 12	6.03	4	0.23	0.28	3.6	12	22.1	3	7.3	1.5
W 6 x 9	5.9	3.94	0.17	0.215	2.7	9	16.4	2.2	5.6	1.1

W 5 x 19	5.15	5.03	0.27	0.43	5.5	19	26.2	9.1	10.2	3.6
W 5 x 16	5.01	5	0.24	0.36	4.7	16	21.3	7.5	8.5	3

W 4 x 13	4.16	4.06	0.28	0.345	3.8	13	11.3	3.9	5.5	1.9

Features

Characteristics

A992

Most commonly used structural steel in construction. Weldable, high corrosion resistance.

ASTM

A992 / A572-50 / A529-50

Specifications

CHEMICAL COMPOSITION
Element	Percentage
C	0.23
Mn	0.5 - 1.6
Si	0.4
V	0.15
Co	0.05
P	0.035
S	0.045

MECHANICAL INFORMATION
	Imperial	Metric
Ultimate Tensile Strength	65,000psi	448 MPa
Yield Tensile Strength	50,000psi	345 MPa

The chemical composition and mechanical properties provided above are general approximations. Please contact our sales manager to obtain a material test report.

Features

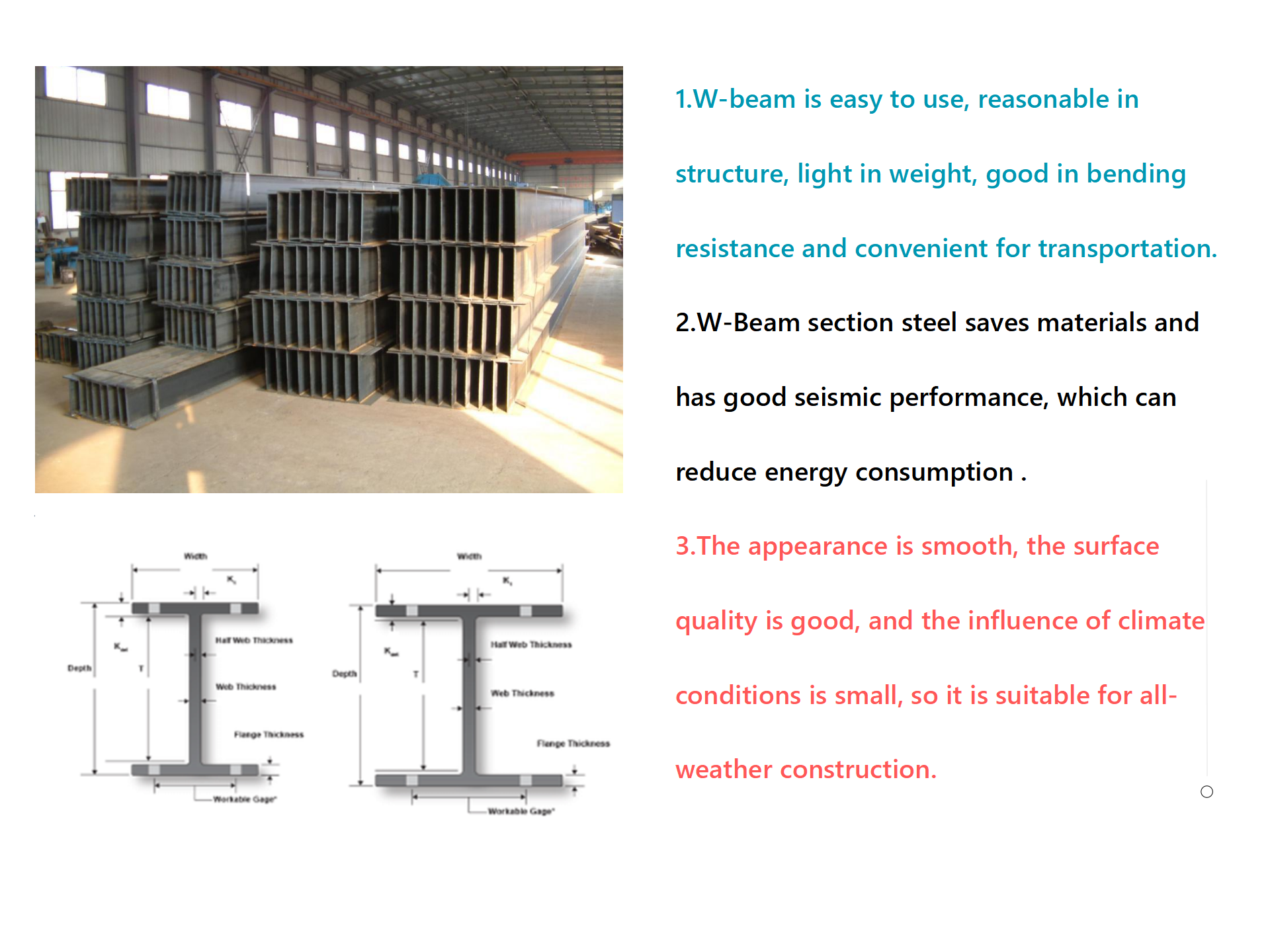

W Beam Steel is an economical profile with a cross-section shape similar to the capital Latin letter h, also known as universal steel beams, wide flange I-beams or parallel flange I-beams. The section of H-shaped steel usually includes two parts: web and flange, also called waist and edge. The web thickness of H-shaped steel is less than that of ordinary I-beams with the same web height, and the flange width is greater than that of ordinary I-beams with the same web height, so it is also called wide flange I-beams.

Application

w beams, due to their high efficiency and cost-effectiveness, have become a core material for modern steel structures and are widely used in:

Construction: Industrial plants, high-rise building frames, and large-span venues (such as airports and stadiums);
Bridge Engineering: Main beams and piers for railway and highway bridges, particularly large-span steel structures;
Machinery Manufacturing: Heavy equipment frames, crane track beams, ship keels, etc.;
Energy and Chemical Industries: Steel platforms, towers, piers, and other industrial facilities.

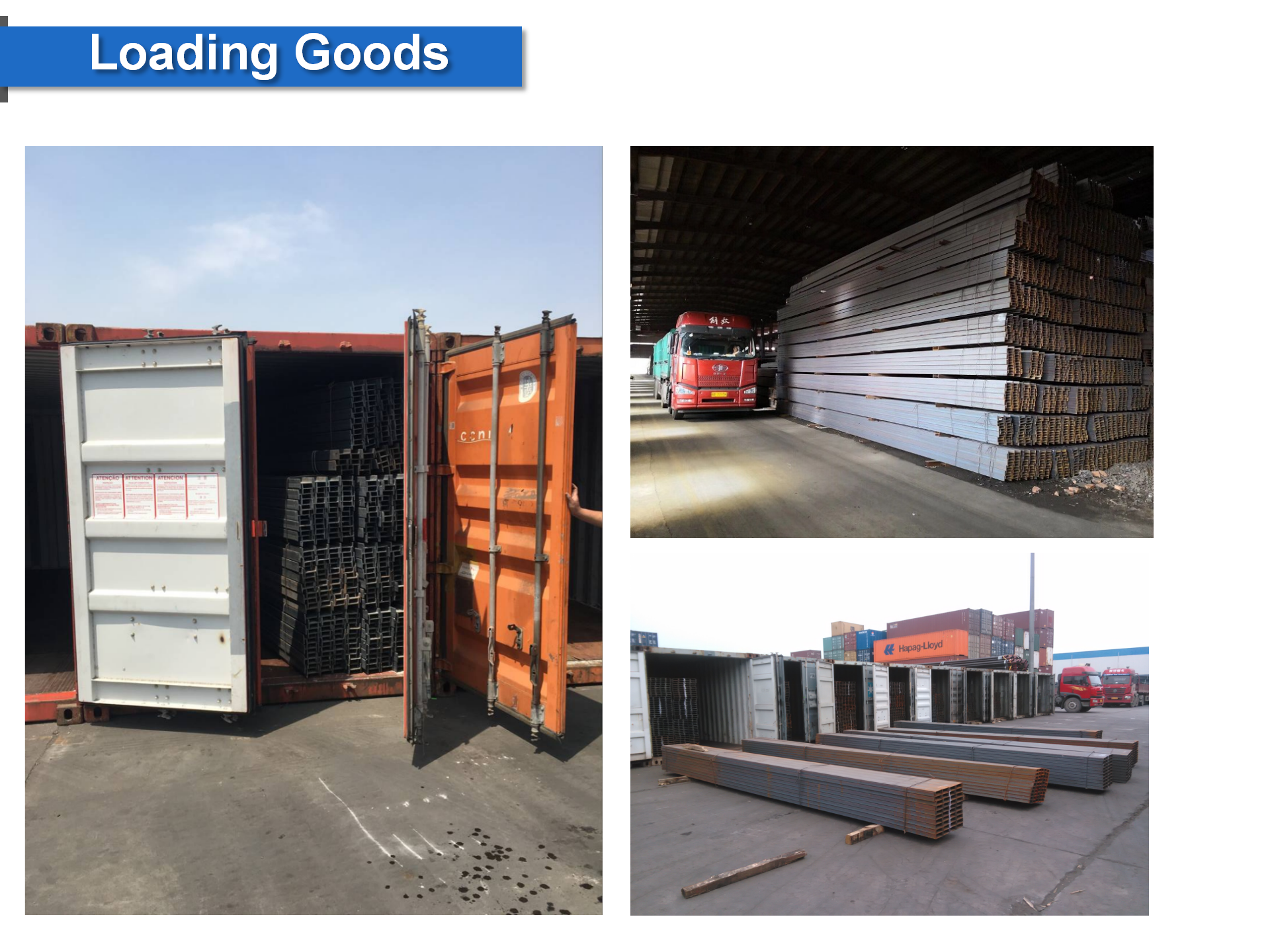

Loading & Shipping

FAQ

1. What are your prices?

Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact

us for further information.

2. Do you have a minimum order quantity?

Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website

3. Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

4. What is the average lead time?

For samples, the lead time is about 7 days. For mass production, the lead time is 5-20 days after receiving the deposit payment. The lead times become effective when

(1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

5. What kinds of payment methods do you accept?

30% in advance by T/T, 70% will be before shippment basic on FOB; 30% in advance by T/T, 70% against the copy of BL basic on CIF.
