ASTM A572 Grade 60 Steel Plate – High-Strength Structural Steel for Heavy-Duty Applications
ASTM A572 Grade 60 steel plate is a high-strength, low-alloy structural steel designed for demanding construction and industrial applications where higher strength and structural performance are required.
With a minimum yield strength of 415 MPa and a tensile strength of 520–690 MPa, A572 Gr 60 provides a strong combination of strength, durability and weight-saving potential compared with conventional structural steel grades.
Royal Steel Group supplies ASTM A572 Grade 60 steel plates in a wide range of thicknesses, widths and lengths, with customized cutting, processing, inspection and export packaging available according to project requirements.
Need an Immediate Project Estimate?
| Item | Specification |
| Product Name | ASTM A572 Grade 60 Steel Plate |
| Steel Grade | A572 Grade 60 / A572 Gr 60 |
| Applicable Standard | ASTM A572 / A572M |
| Minimum Yield Strength | ≥415 MPa |
| Tensile Strength | 520–690 MPa |
| Standard Thickness | 3/8"–1" (9.53–25.40 mm) |
| Standard Width | 48"–120" (1220–3048 mm) |
| Standard Length | 96"–480" (2438–12192 mm) |
| Maximum Length | Up to 1020" (25910 mm), subject to production capability |
| Surface | Mill finish / customized |
| Processing | Cutting, drilling, beveling and other fabrication services |
| Applications | Structural construction, heavy equipment, industrial structures |
| Element | Standard Content (% - Max) | Technical Description |
| Carbon (C) | ≤0.26% | Provides fundamental strength; strictly controlled to ensure excellent weldability. |
| Manganese (Mn) | ≤1.35% | Increases hardenability and tensile strength; a minimum of ≥0.80% is required for plates thicker than 10 mm. |
| Silicon (Si) | ≤0.40% | Serves as a deoxidizer and contributes to solid solution strengthening. |
| Phosphorus (P) | ≤0.040% | Residual impurity; strictly restricted to prevent cold brittleness in steel. |
| Sulfur (S) | ≤0.050% | Residual impurity; strictly limited to ensure excellent lamellar tearing resistance and toughness. |
| Copper (Cu) | ≥0.20% (Optional) | Optional Element: Added only when specified by the buyer to enhance atmospheric corrosion resistance. |
Click the Button on The Right
Find out the latest hot-rolled steel plate inventory specifications and sizes.

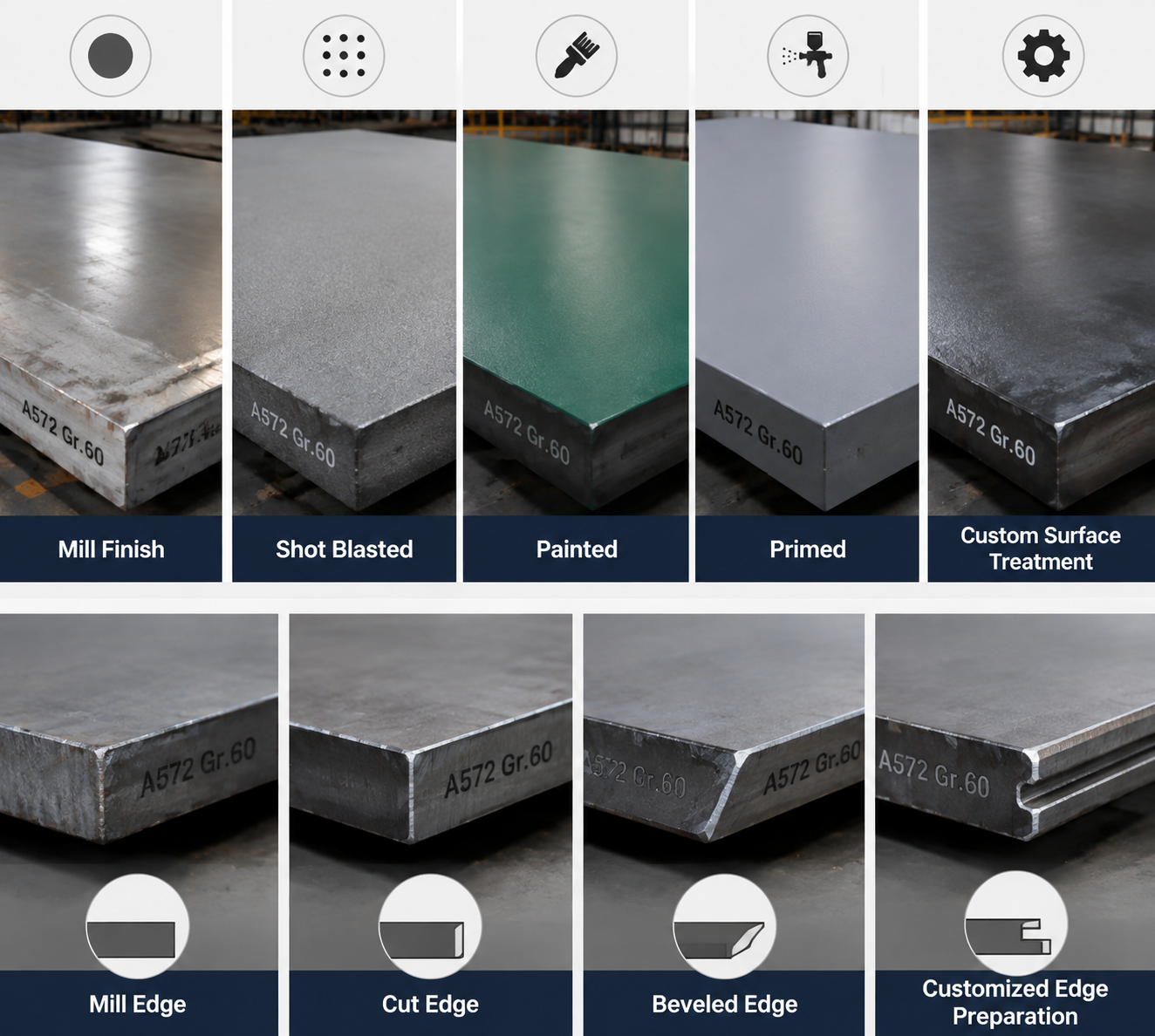

A572 Grade 60 steel plates can be supplied with different surface and edge conditions according to the application.
Surface options:
Mill finish
Shot blasted surface
Painted surface
Primed surface
Customer-specified surface treatment
Edge options:
Mill edge
Cut edge
Beveled edge
Customized edge preparation
Specific surface treatment requirements should be confirmed when placing the order.
1. Superior Yield Strength
A572 Grade 60 steel features a minimum yield strength of 415 MPa. It is well suited for structural components under heavy loads and harsh working conditions, delivering stable and reliable structural support for long-term service.
2. Excellent Tensile Performance
This steel grade offers a tensile strength ranging from 520 MPa to 690 MPa. With outstanding load-bearing capacity, it serves as an ideal material for heavy-duty engineering structures and industrial facilities that require robust load resistance.
3. Effective Weight Reduction
Thanks to its exceptional high strength, A572 Grade 60 enables engineers to refine structural designs effectively. It helps cut down overall steel consumption and reduce structural weight while fully ensuring construction safety, bringing remarkable cost optimization for engineering projects.
4. Ideal for Heavy-Duty Structural Applications
It is highly applicable for building structures and industrial equipment that demand high standards of strength, durability and consistent mechanical performance. The steel maintains stable comprehensive properties and extends the service life of structural systems.
5. Flexible Processing Capability
We provide custom-sized steel plates and support full-process fabrication services based on client drawings, including cutting, drilling, beveling and customized processing. It can perfectly meet personalized construction and installation requirements for diverse projects.
6. Globally Recognized Standard
Complying with the authoritative ASTM A572/A572M standard for structural steel, A572 Grade 60 enjoys wide international recognition. It is fully applicable to global construction and cross-border industrial projects with great versatility and compatibility.
Royal Steel Group offers comprehensive value-added processing solutions for ASTM A572 Grade 60 steel plates. We tailor all fabrication services strictly according to clients’ design drawings and specific project requirements to deliver finished products ready for installation.
Our full range of processing capabilities covers:
Plasma cutting, flame cutting, laser cutting and CNC precision cutting
Drilling and hole fabrication
Edge beveling and plate profiling
Professional welding and custom fabrication
Surface treatment and finishing
Full dimensional inspection & quality verification
We provide steel plates in custom dimensions as well as pre-fabricated steel components. This one-stop processing service effectively minimizes on-site secondary processing, saves construction time and lowers overall project costs for our clients.
A572 Gr 60 is a go‑to high‑strength structural steel for many demanding real‑world projects. Typical application areas are shown below:
Heavy Structural Construction
It is widely deployed for high‑load structural members, industrial building frameworks and large‑scale steel‑built structures.
Heavy Equipment
Works well for structural members and custom‑fabricated components fitted onto heavy‑duty machinery and industrial equipment.
Industrial Facilities
Finds frequent use across production workshops, processing sites, warehouses and various types of industrial steel structures.
Infrastructure Projects
Fit for selected parts of bridges, working platforms and support frameworks, provided the project design approves the use of this material grade.
Machinery & Fabrication
Ideal for custom‑built structural parts that call for elevated strength together with flexible dimensional options.
Commercial & Industrial Buildings
Design teams may adopt A572 Grade 60 within building assemblies when its mechanical characteristics satisfy the project’s design criteria.
Quality control is performed throughout the production and supply process to help ensure that the delivered steel meets the agreed specification.
Our inspection process can include:
Raw Material Inspection → Chemical Analysis → Mechanical Testing → Dimensional Inspection → Surface Inspection → Ultrasonic Testing → Final Inspection → MTC Issuance
Depending on project requirements, third-party inspection services can also be arranged.
Inspection Documents
Typical documentation may include:
Mill Test Certificate (MTC)
Material inspection report
Mechanical test report
Chemical composition report
Dimensional inspection report
Third-party inspection report, when required
Packing list
Commercial invoice
Certificate of Origin
1. International Steel Supply History
We supply structural steel products to international construction and manufacturing clients and have a proven track record in multiple market countries.
2. Wide Product Range
In addition to A572 60 grade steel, we can also supply structural steel conforming to various standards such as ASTM, EN, JIS, and GB, depending on project specifications.
3. Custom Processing
We can cut steel plates according to customer-provided drawings and sell a variety of processed steel products.
4. Strict Quality Control
We can conduct material inspection, ISO certification, and mechanical property testing according to relevant specifications or procurement requirements.
5. Export Documentation
We can provide Material Inspection Certificates (MTC), packing lists, commercial invoices, certificates of origin, and any other documents required for your international shipment.
1) Branch Office - Spanish-speaking support, customs clearance assistance, etc.
2) Over 5,000 tons of stock in stock, with a wide variety of sizes
3) Inspected by authoritative organizations such as CCIC, SGS, BV, and TUV, with standard seaworthy packaging
Royal Steel Group uses export-friendly packaging to ensure the steel plates are properly protected during loading, sea transport, and unloading.
Standard Packaging: Secure stacking of steel plates; steel strapping; waterproof protection; protective materials; steel plate interlayering where necessary; appropriate marking and labeling; suitable storage/transport temperature; export standard packaging suitable for containers or bulk carriers. Shipping Methods:
We can arrange:
Full Container Load (FCL); Bulk Carrier Shipping; Less-than-Truckload (LTL) Shipping; Truck Shipping; Multimodal Transport.
Packaging and shipping time for steel plates can be customized based on thickness, order size, and port of destination.
Q1: What is ASTM A572 60 grade steel?
ASTM A572 60 grade steel is a high-strength, low-alloy structural steel in the ASTM A572/A572M standard. Its yield strength is 415 MPa, and its tensile strength is 520–690 MPa.
Q2: What is the yield strength of A572 60 grade steel?
The austenitic yield strength is 415 MPa.
Q3: What is the tensile strength of A572 60 grade steel?
The nominal tensile strength is 520 to 690 MPa.
Q4: What is the thickness range?
The typical thickness range for this material is 3/8 inch to 1 inch (9.53–25.40 mm). Other sizes are available based on production capacity and project requirements.
Q5: Can A572 60 grade steel plates be cut to the required dimensions?
Yes. We offer professional cutting, drilling, chamfering, and other machining services to help you turn your project drawings into reality.
Q6: Can you provide a Material Testing Certificate (MTC)?
Yes. We can issue a factory test certificate with the materials according to relevant standards and order specifications.
Q7: Is A572 60 grade steel plate suitable for heavy machinery?
Yes. As long as the equipment manufacturer's requirements for the material are met, this strength of steel plate is still suitable for many heavy equipment and industrial structures.
Q8: Can third-party inspection be arranged?
Yes. We can arrange third-party inspection according to your requirements and the inspection plan agreed upon by both parties.
Q9: Can A572 60 grade steel plate be shipped worldwide?
Yes. Royal Steel Group is responsible for export packaging and documentation, and international transportation is carried out via container ships, bulk carriers, or other suitable modes of transport.
