Wholesale ASTM A36 Structural Wide Flange H Beam Manufacturer and Supplier

ASTM A36 Structural Wide Flange H Beam

Short Description:

ASTM A36 Structural Wide Flange H Beam is a rolled steel beam which has a H-shape cross section with wide flanges, it has very good load bearing capacity and structural stability. It meets the ASTM A36 specification and provides good weldability, machinability and performance in steel buildings, warehouses, bridges, industrial facilities, columns and heavy duty structures. Custom sizes and cut-to-length services available.

Place of Origin: China

Brand Name: Royal Steel

Model Number: RY-H2510

Payment & Shipping Terms: Minimum Order Quantity: 5 tons

Price: USD650-USD880

Packaging Details: Export Waterproof Packaging & Bundling and Securing

Delivery Time: In stock or 10-25 working days

Payment Terms: T/T, Western Union

Supply Ability: 5000 tons Per Month

Send email to us Whatsapp

Product Detail

Product Tags

Product Introduction

Material Standard	A36 Grade 50	Yield Strength	≥345MPa
Dimensions	W6×9, W8×10, W12×30, W14×43, etc.	Length	Stock for 6 m & 12 m, Customized Length
Dimensional Tolerance	Conforms to GB/T 11263 or ASTM A6	Quality Certification	ISO 9001, SGS/BV Third-Party Inspection Report
Surface Finish	Hot-dip galvanizing, paint, etc. Customizable	Applications	Industrial plants, warehouses, commercial buildings, residential buildings, bridges

Technical Data

ASTM A36 W-beam (or Steel H Beam) Chemical Composition

Steel grade	Carbon, max,%	Manganese, %	Phosphorus, max,%	Sulfur, max,%	Silicon, %
A36	0.26	--	0.04	0.05	≤0.40
NOTE:Copper content is available when your order is specified.

ASTM A36 W-beam (or H-beam) Mechanical Property

Steel Grade		Tensile strength, ksi[MPa]	Yield pointmin, ksi[MPa]	Elongation in 8 in.[200 mm],min,%	Elongation in 2 in.[50 mm],min,%
A36		58-80 [400-550]	36[250]	20.00	21

ASTM A36 Wide Flange H-beam Sizes - W Beam

Designation	Dimensions					Static Parameters
Designation	Dimensions					Moment of Inertia		Section Modulus
Imperial (in x lb/ft)	Depthh (in)	Widthw (in)	Web Thicknesss (in)	Sectional Area(in2)	Weight(lb/ft)	Ix(in4)	Iy(in4)	Wx(in3)	Wy(in3)
W 27 x 178	27.8	14.09	0.725	52.3	178	6990	555	502	78.8
W 27 x 161	27.6	14.02	0.660	47.4	161	6280	497	455	70.9
W 27 x 146	27.4	14	0.605	42.9	146	5630	443	411	63.5
W 27 x 114	27.3	10.07	0.570	33.5	114	4090	159	299	31.5
W 27 x 102	27.1	10.02	0.515	30.0	102	3620	139	267	27.8
W 27 x 94	26.9	10	0.490	27.7	94	3270	124	243	24.8
W 27 x 84	26.7	9.96	0.460	24.8	84	2850	106	213	21.2
W 24 x 162	25	13	0.705	47.7	162	5170	443	414	68.4
W 24 x 146	24.7	12.9	0.650	43.0	146	4580	391	371	60.5
W 24 x 131	24.5	12.9	0.605	38.5	131	4020	340	329	53.0
W 24 x 117	24.3	12.8	0.55	34.4	117	3540	297	291	46.5
W 24 x 104	24.1	12.75	0.500	30.6	104	3100	259	258	40.7
W 24 x 94	24.1	9.07	0.515	27.7	94	2700	109	222	24.0
W 24 x 84	24.1	9.02	0.470	24.7	84	2370	94.4	196	20.9
W 24 x 76	23.9	9	0.440	22.4	76	2100	82.5	176	18.4
W 24 x 68	23.7	8.97	0.415	20.1	68	1830	70.4	154	15.7
W 24 x 62	23.7	7.04	0.430	18.2	62	1550	34.5	131	9.8
W 24 x 55	23.6	7.01	0.395	16.2	55	1350	29.1	114	8.3
W 21 x 147	22.1	12.51	0.720	43.2	147	3630	376	329	60.1
W 21 x 132	21.8	12.44	0.650	38.8	132	3220	333	295	53.5
W 21 x 122	21.7	12.39	0.600	35.9	122	2960	305	273	49.2
W 21 x 111	21.5	12.34	0.550	32.7	111	2670	274	249	44.5
W 21 x 101	21.4	12.29	0.500	29.8	101	2420	248	227	40.3
W 21 x 93	21.6	8.42	0.580	27.3	93	2070	92.9	192	22.1
W 21 x 83	21.4	8.36	0.515	24.3	83	1830	81.4	171	19.5
W 21 x 73	21.2	8.3	0.455	21.5	73	1600	70.6	151	17.0
W 21 x 68	21.1	8.27	0.430	20.0	68	1480	64.7	140	15.7
W 21 x 62	21	8.24	0.400	18.3	62	1330	57.5	127	13.9
W 21 x 57	21.1	6.56	0.405	16.7	57	1170	30.6	111	9.4
W 21 x 50	20.8	6.53	0.380	14.7	50	984	24.9	94.5	7.6
W 21 x 44	20.7	6.5	0.350	13.0	44	843	20.7	81.6	6.4

Click the Button on The Right

Download the Latest W beam Specifications and Dimensions.

Click Here

Surface Finish

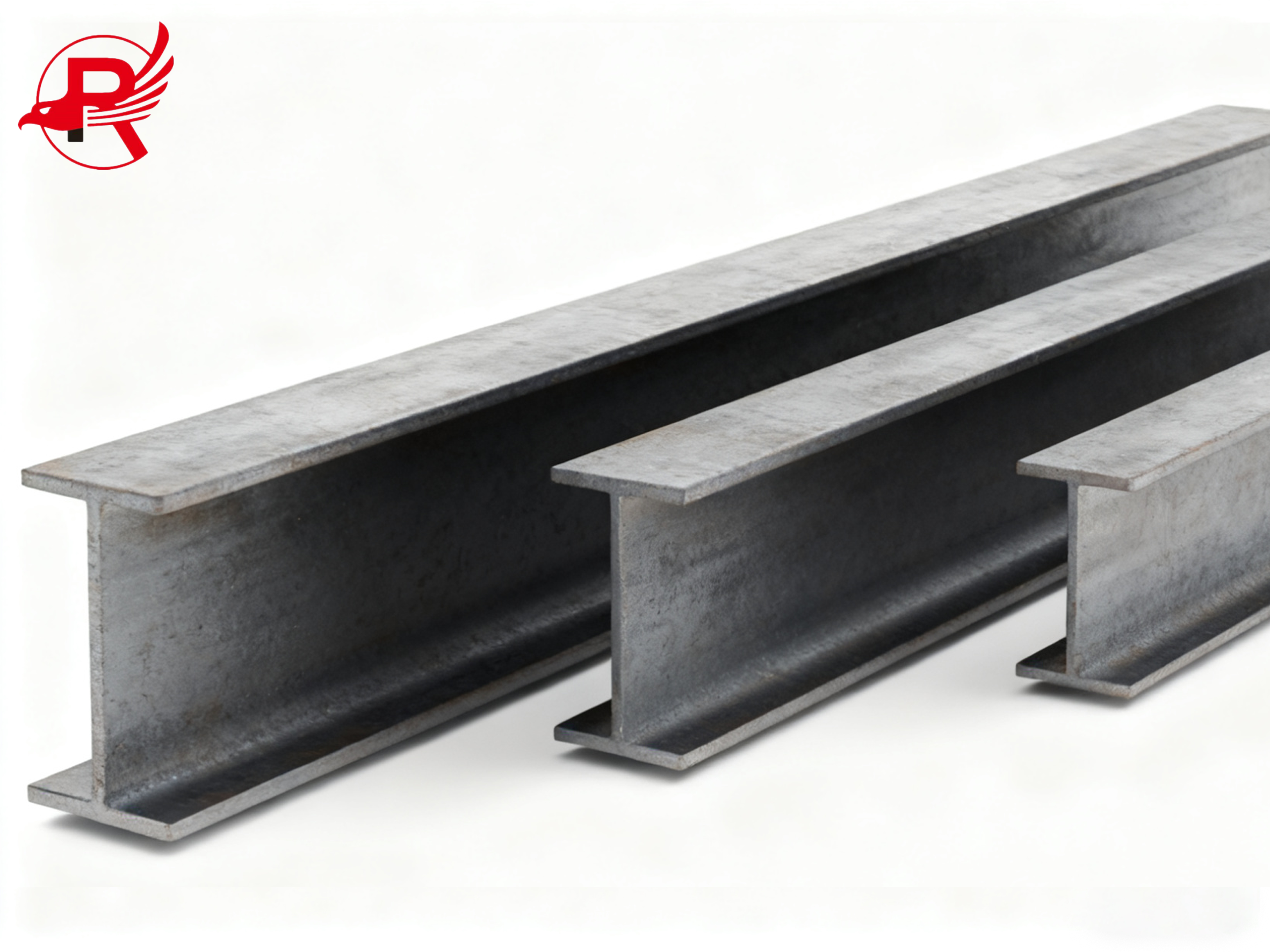

Ordinary Surface

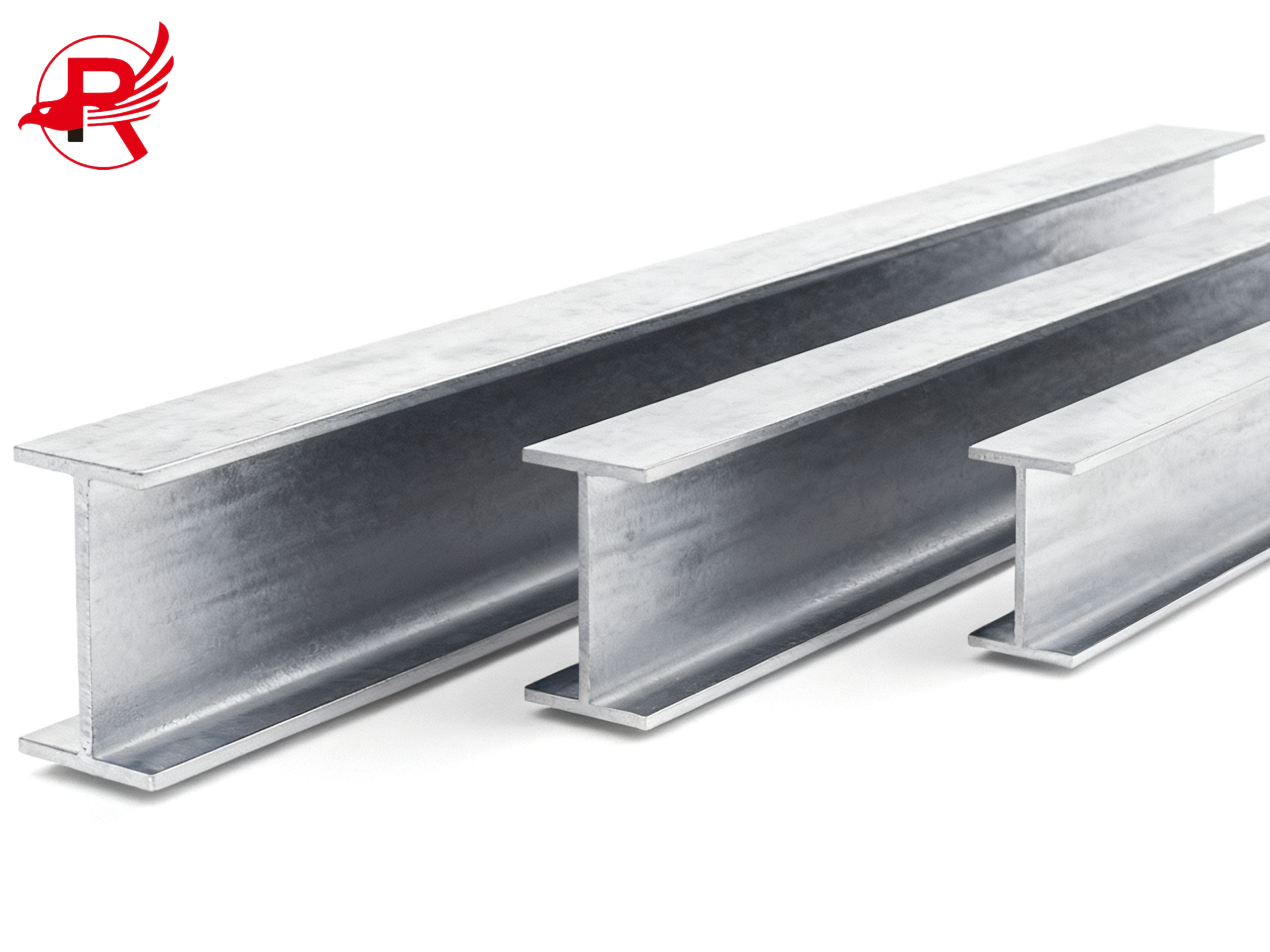

Galvanized Surface (hot-dip galvanizing thickness ≥ 85μm, service life up to 15-20 years),

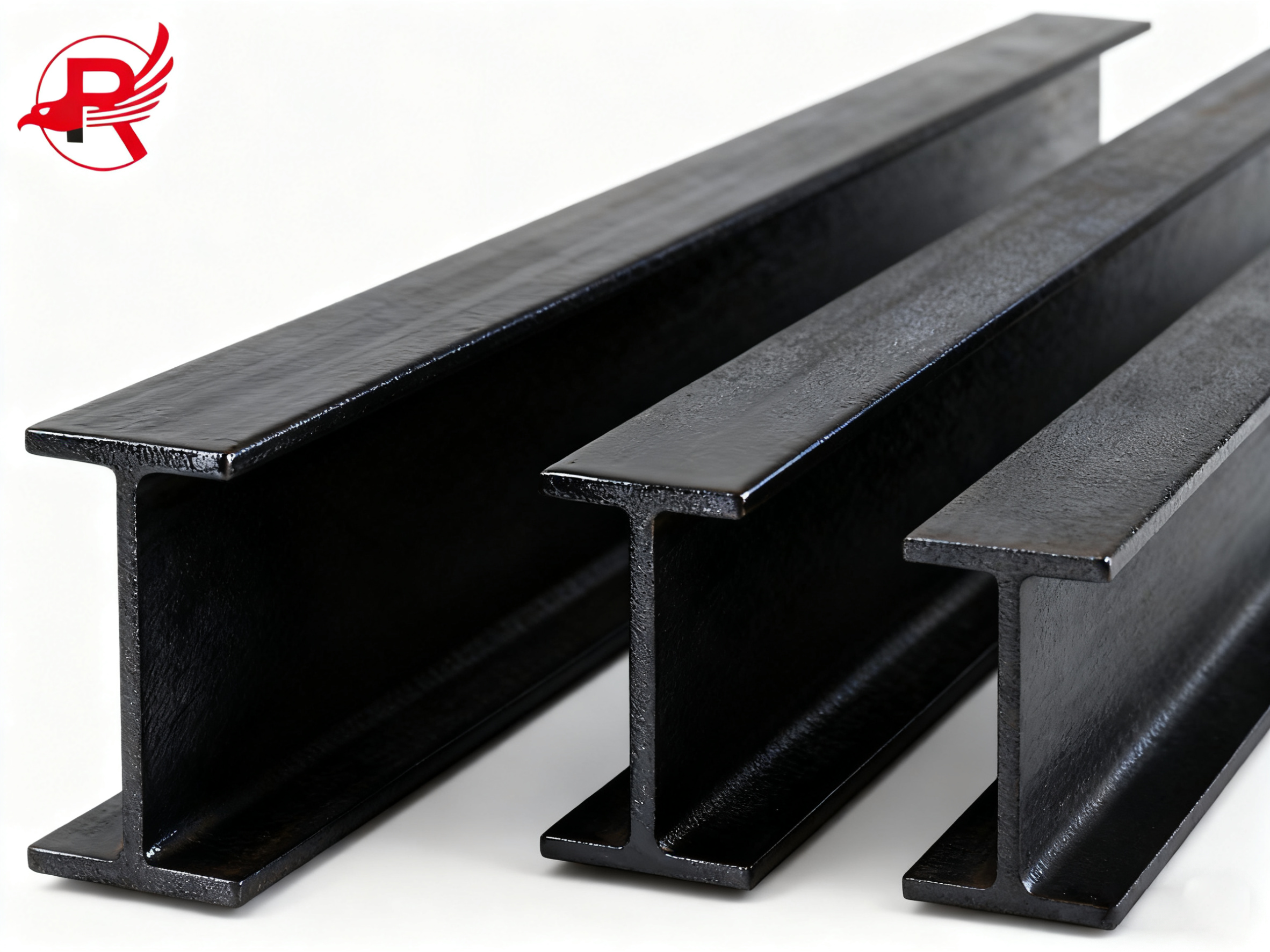

Black Oil Surface

Main Application

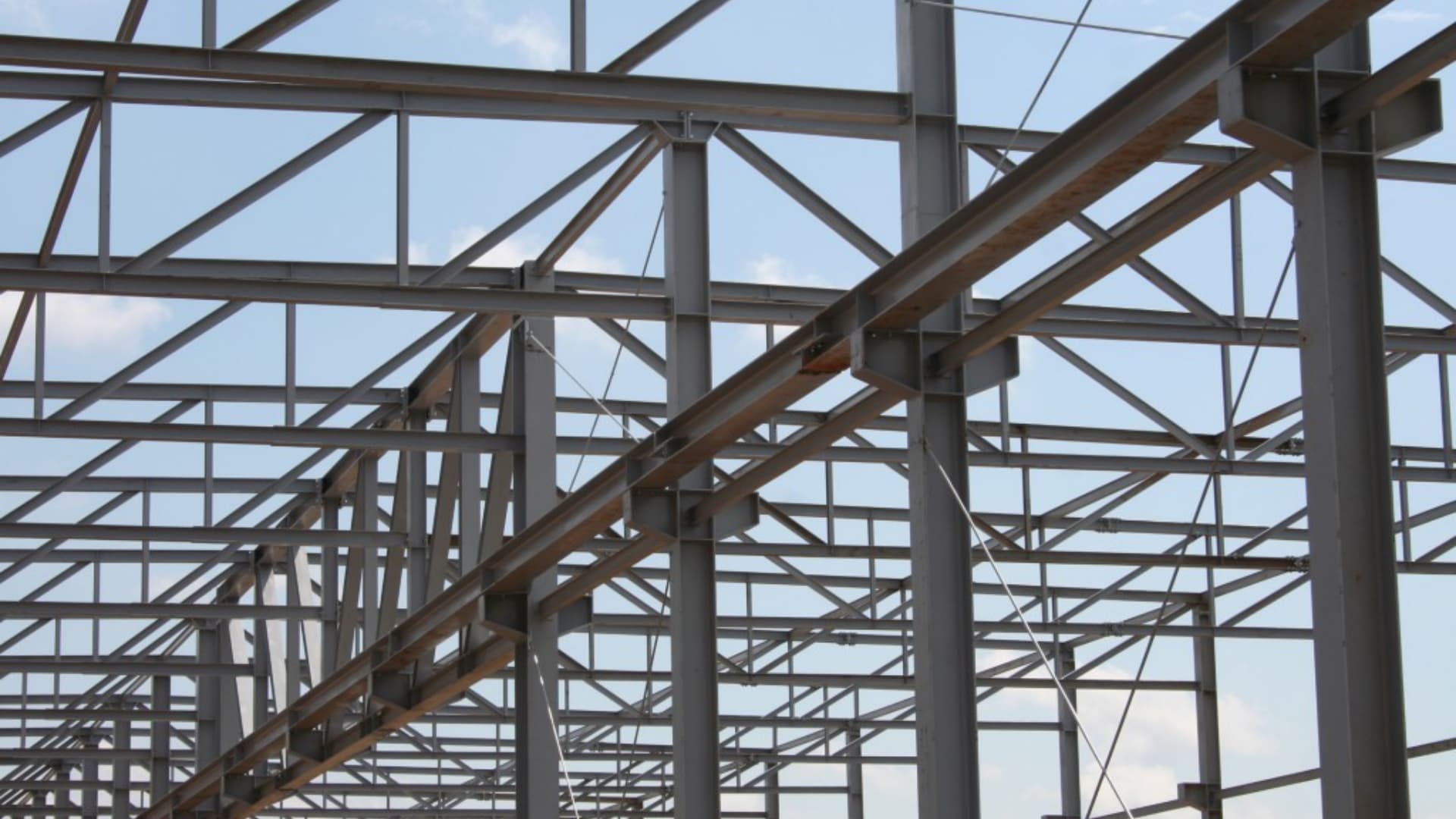

Building Steel Structures: Frame steel beams and columns for high-rise office buildings, residential buildings, shopping malls and the like; primary frameworks and crane beams for factories;

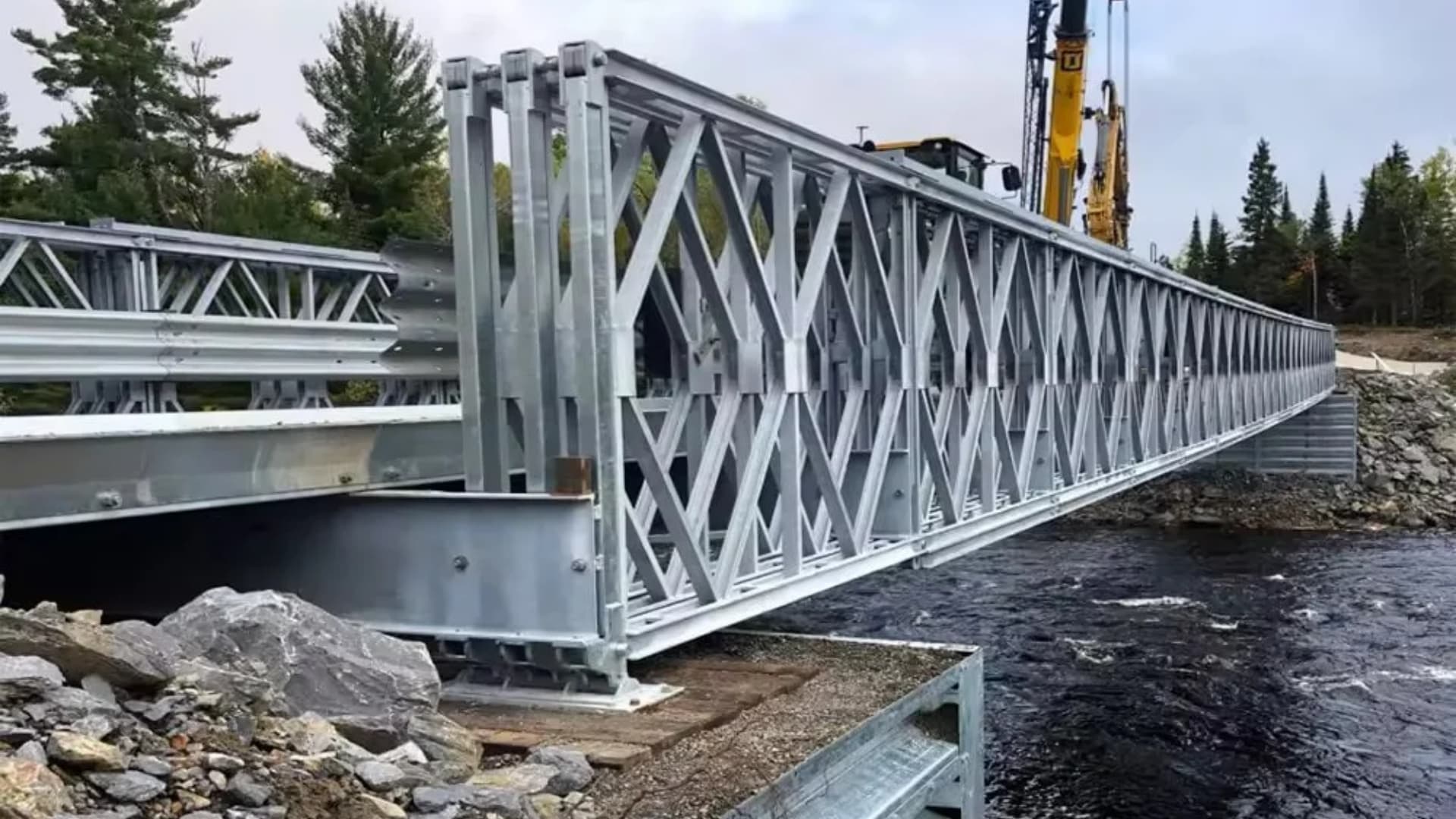

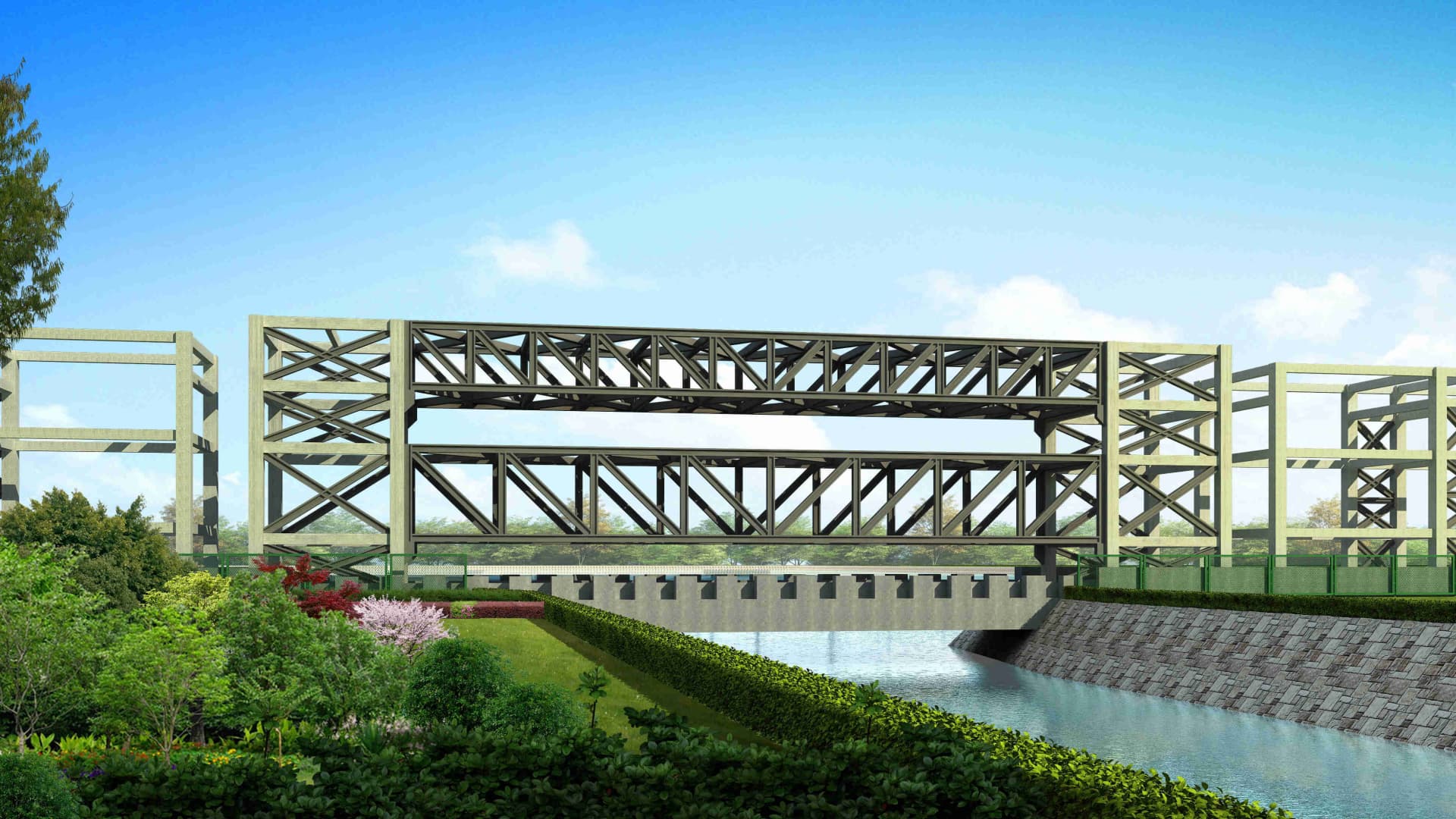

Bridge engineering: Deck systems and railing support systems for small and medium-span highway and railway bridges;

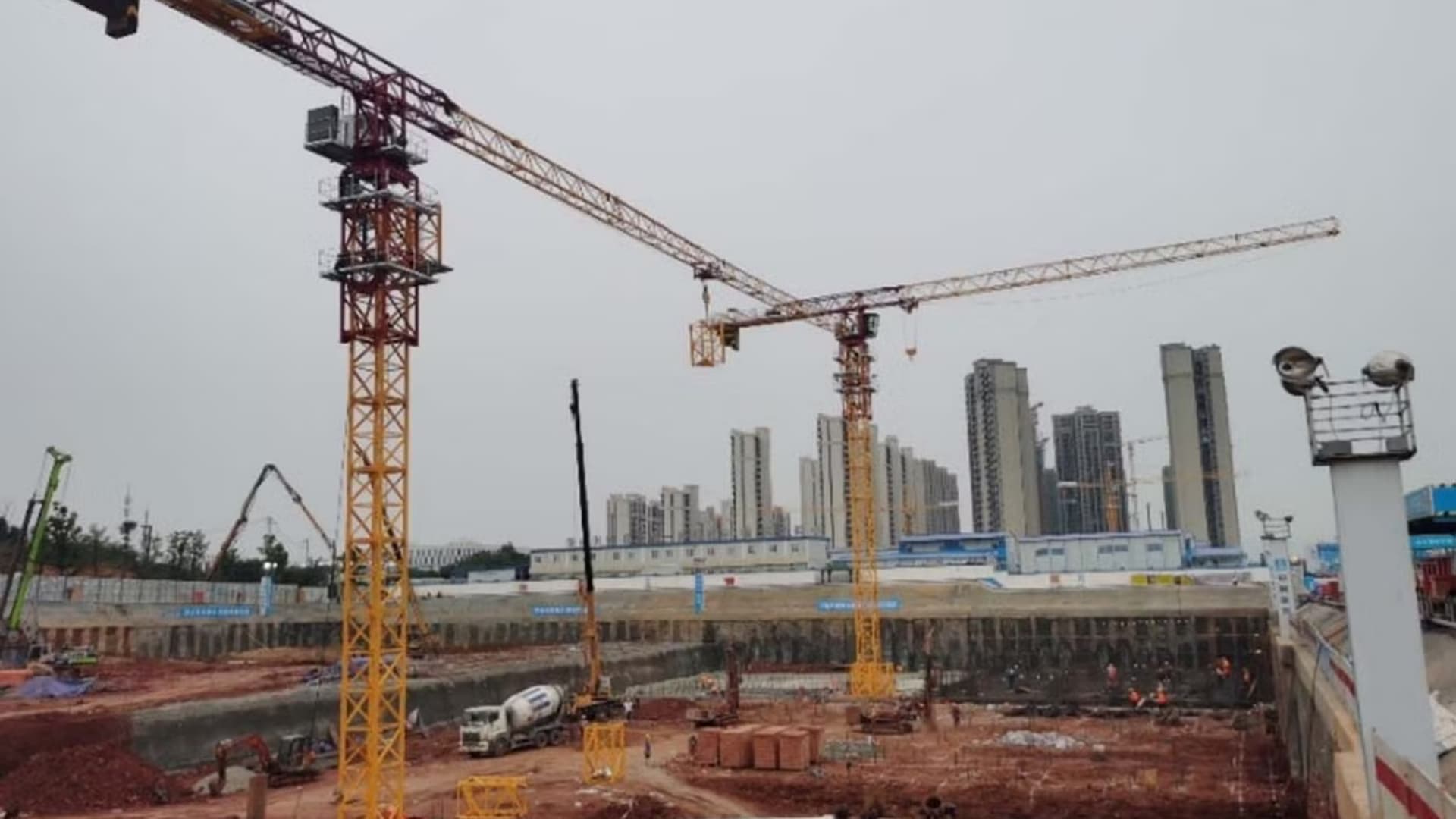

Municipal and Special Engineering: Steel construction for subways stations, urbans pipeline corridor supports; tower crane foundations, and temporary construction supports;

International Projects: Our steel constructions are designed to meet North American and other international recognised steel structure design standards (for example the AISC standards) they have successfully been implemented as steel structure solutions on multi national projects.

Municipal and Special Engineering: Steel structures for subway stations, urban pipeline corridor supports, tower crane foundations, and temporary construction supports;

Overseas Engineering: Our steel structures comply with North American and internationally recognized steel structure design codes (such as AISC codes) and are widely used as steel structural components in multinational projects.

astm a992 a572 h beam application royal steel group (2)

astm a992 a572 h beam application royal steel group (4)

astm a992 a572 h beam application royal steel group (3)

astm a992 a572 h beam application royal steel group (1)

Royal Steel Group Advantage（Why Royal Group Stands Out for Americas Clients?）

1) Branch Office - Spanish-speaking support, customs clearance assistance, etc.

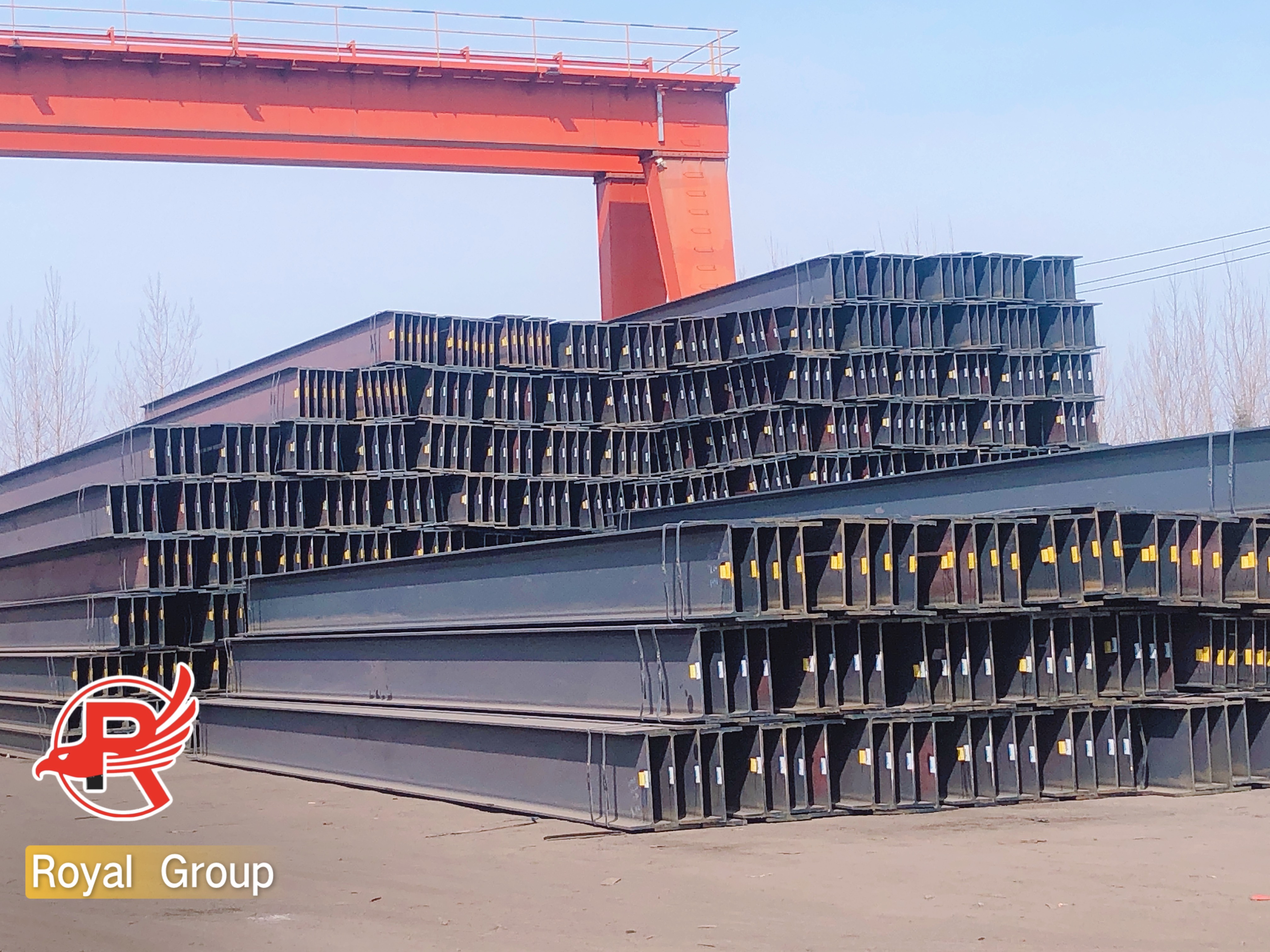

2) Over 5,000 tons of stock in stock, with a wide variety of sizes

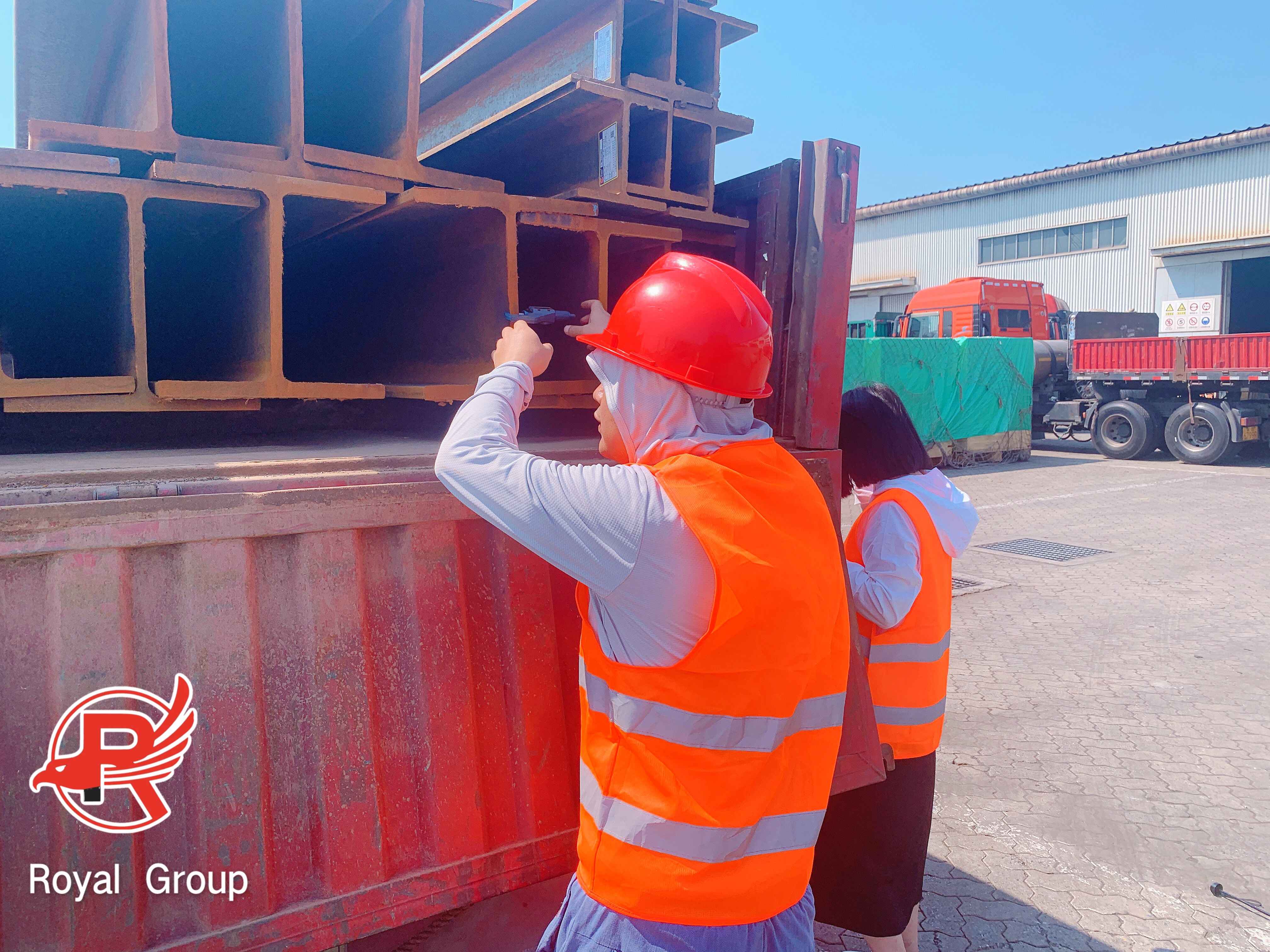

3) Inspected by authoritative organizations such as CCIC, SGS, BV, and TUV, with standard seaworthy packaging

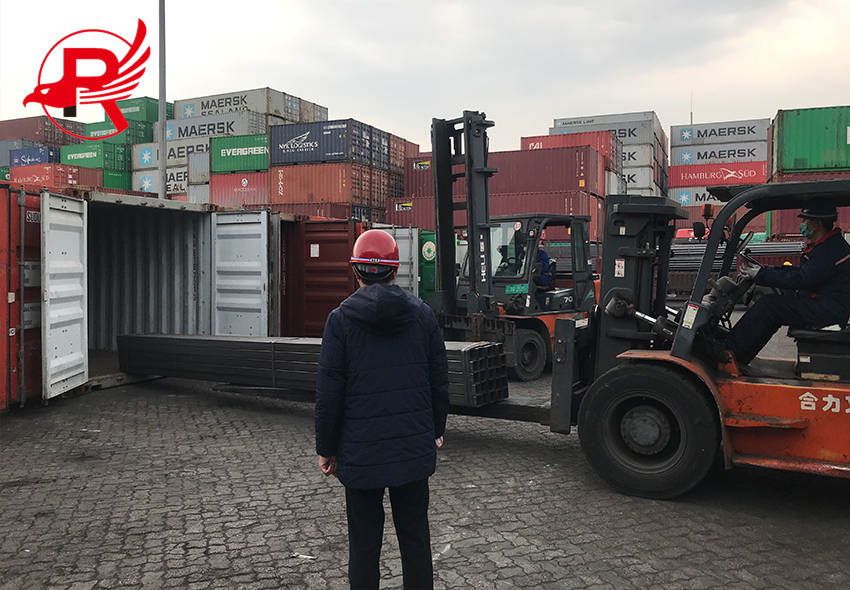

Packing And Delivery

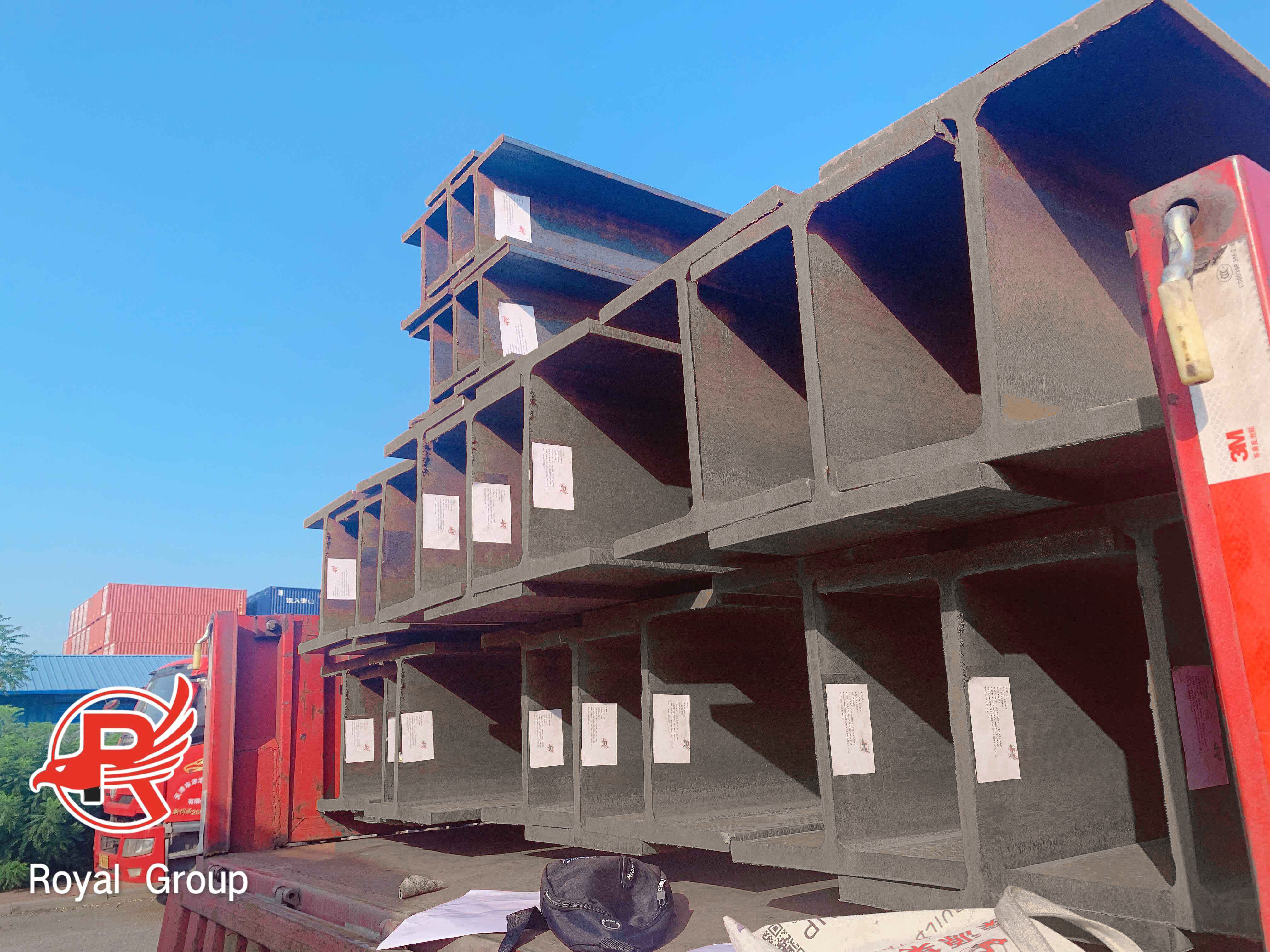

ASTM A36 Structural Wide Flange H Beams are processed in such a way as to ensure that they will be safe for transportation internationally without deformation, surface damage, or risk of handling.

Bundling: Beams are bundled tightly together using steel straps to facilitate loading and unloading.

Protection: During transportation, spoilage-proofing materials can be utilized.

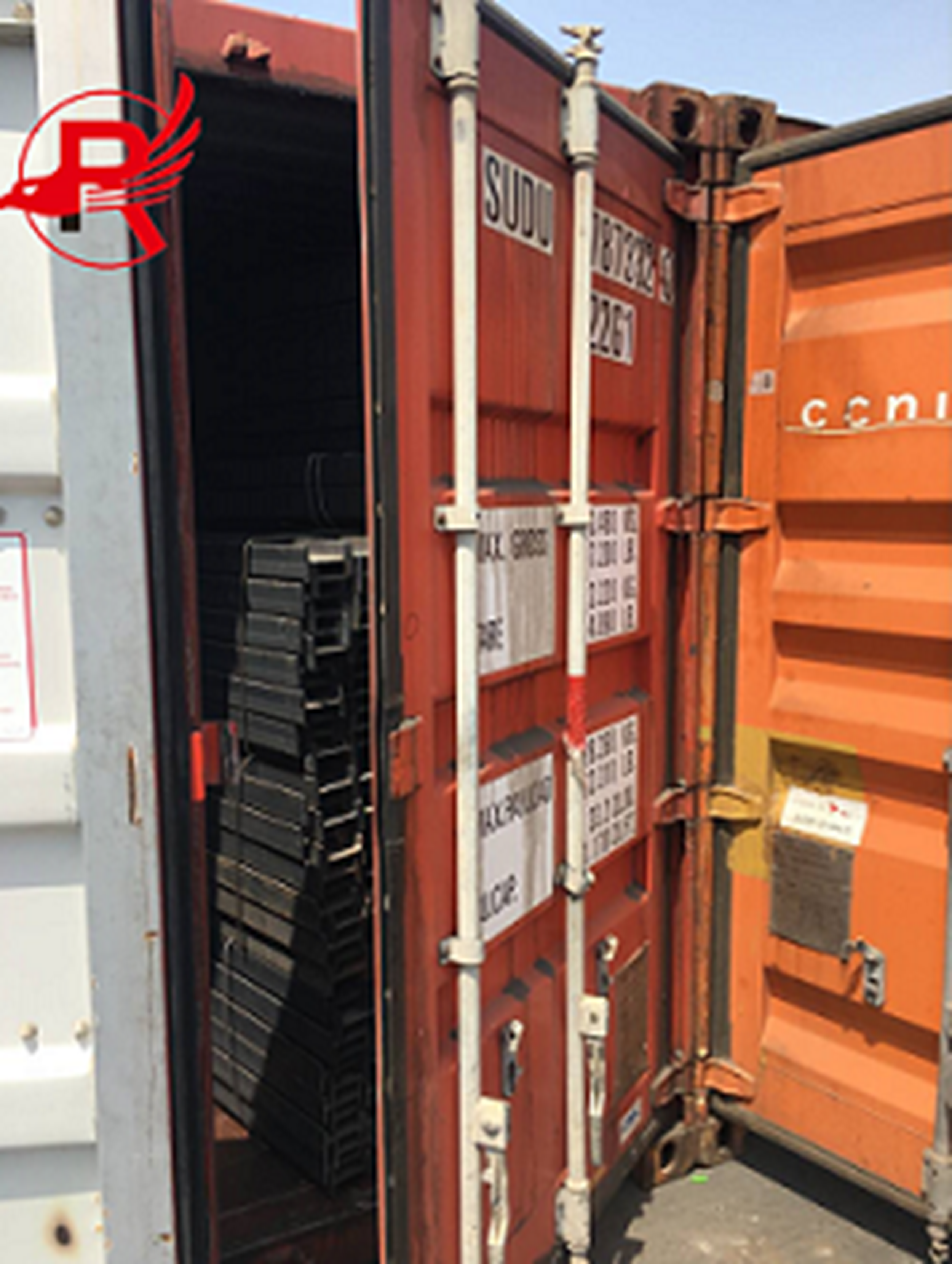

Loading: Container / Bulk Vessel / Flat Rack Shipment: Beam size and order quantity are the determinant factors.

Customized Length: The beams can be provided in standard length or cut-to-length as per project specifications.

Export Documents: It is possible to provide the commercial invoice, packing list, MTC and other necessary documentation.

Delivery: The customer's destination port, order size, beam size and delivery schedule (if needed) will be used to arrange shipping.

FAQ

1. What is ASTM A36 H Beam?
ASTM A36 is a plain carbon structural steel that is well known for its good weldability and formability, which is used in the manufacturing of building frames, bridges, and industrial structures.

2. What sizes can I get?
Wide flange H beam sections are offered in heights from 100–900 mm, flange widths from 100–300 mm, and lengths from 6–18 m, or will be tailored to your project requirements.

3. What are the mechanical performances of it?
Yield strength: 250 Mpa
Tensile strength: 400–550 Mpa
The good ductility makes it more reliable to be used in heavy load situation.

4. Can ASTM A36 H beam be cut or welded?
A36 is simple to cut, drill, and weld, so it lends itself nicely to fabricated steel building components and assembly on the building site.

5. What about the supply and shipment?
Factory direct supply with mill test reports, fast delivery (usually 7~15 days), and available rust-proof or customized packaging to ensure safe shipping.
