ASTM A252 Grade 3 Steel Pipe Piles – SSAW & LSAW/EFW Welded Structural Foundation Pipes for Marine & Heavy Construction
| Item | Specification Details |
| Material Standard | ASTM A252 Grade 3, for structural and piling pipe applications |
| Yield Strength | ≥310 MPa, with reliable compression and load-bearing performance |
| Outer Diameter | 219mm – 3000mm, customizable for non-standard sizes |
| Wall Thickness | 6mm – 40mm, with custom thickness options available |
| Length | Standard 6m / 12m stock lengths; custom cut-to-length service |
| Manufacturing Process | SSAW, LSAW and EFW welding, ensuring stable welds and solid structural integrity |
| Dimensional Tolerance | Compliant with ASTM A252 standards for high precision and easy field installation |
| Quality Certification | ISO 9001 certified; SGS/BV third-party inspection reports available |

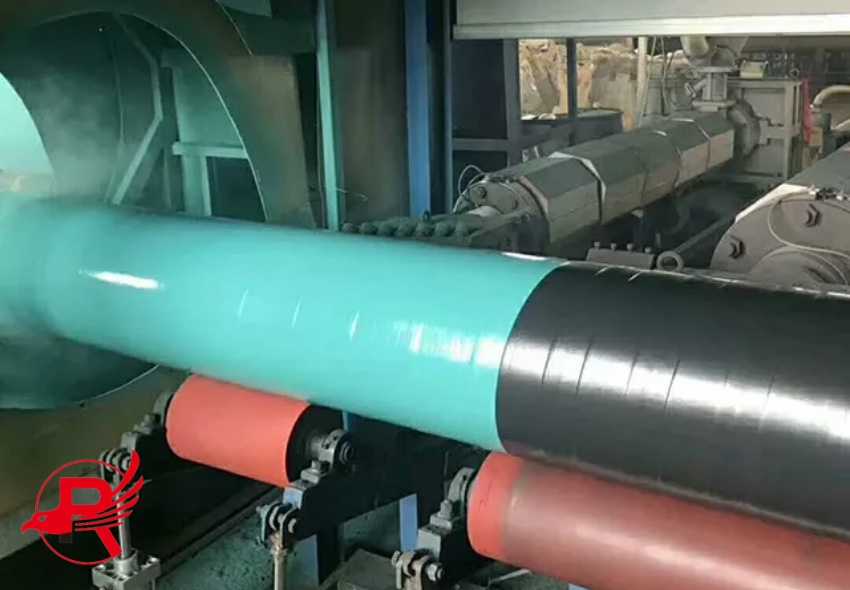

| Surface Finish | Black steel, hot-dip galvanized, painted and custom protective coatings |
| Applications | Building foundations, bridges, ports, offshore wind farms, coastal and heavy civil engineering projects |
Technical Data
ASTM A252 Steel Pipe Piles Chemical Composition
| Element | Content (%) |
| Carbon (C) | 0.26 max |
| Manganese (Mn) | 0.85 – 1.60 |
| Phosphorus (P) | 0.04 max |
| Sulfur (S) | 0.05 max |
| Silicon (Si) | 0.10 – 0.35 |
| Copper (Cu) | 0.20 – 0.30 (optional for corrosion resistance) |
ASTM A252 Steel Pipe Piles Mechanical Property
| Property | Requirement / Value |
| Yield Strength (Min) | 207 MPa (30 ksi) |
| Tensile Strength | 345 – 455 MPa (50-66 ksi) |
| Elongation (in 200 mm) | ≥20 % |
| Impact Test (Charpy V-Notch) | Not mandatory for all sizes; optional for low-temperature or offshore projects |
| Hardness | Typical Brinell: 110–180 HB |
| Property | Grade 1 | Grade 2 | Grade 3 |
| Minimum Yield Strength | 30,000 psi (207 MPa) | 35,000 psi (241 MPa) | 45,000 psi (310 MPa) |
| Minimum Tensile Strength | 50,000 psi (345 MPa) | 60,000 psi (415 MPa) | 66,000 psi (455 MPa) |
| Minimum Elongation (2-inch gauge) | 18% | 14% | 20% |
| Common Export Specifications (Grade 3 Most Popular) | |||||
| NPS | OD (mm) | Wall Thickness | Weight (kg/m) | Typical Schedule | Primary Application |
| 16" | 406.4 | 0.375" (9.52mm) | 92.5 | STD | Port terminals, general construction |
| 16" | 406.4 | 0.500" (12.70mm) | 121.8 | 40 | Offshore wind foundations, bridge piers |
| 18" | 457 | 0.500" (12.70mm) | 137.4 | 40 | Heavy industrial structures, deep foundations |
| 24" | 609.6 | 0.500" (12.70mm) | 183.2 | 40 | Large diameter piles, marine structures |
| 24" | 609.6 | 0.750" (19.05mm) | 271.8 | XS | Ultra-heavy load applications, rock driving |
| 30" | 762 | 0.625" (15.88mm) | 287.5 | 40 | Offshore platforms, LNG terminal foundations |
| 36" | 914.4 | 0.750" (19.05mm) | 392.3 | 40 | Mega-projects, cross-sea bridges |
| Manufacturing Process vs. Size Capabilities | |||||
| Process | Max OD (mm) | Max WT (mm) | Length Range (m) | Cost Efficiency | Best For |
| SSAW (Spiral) | 3200 | 30 | 6-18 | Highest | Large diameter, medium wall thickness (16"-48") |
| LSAW (JCOE) | 1422 | 50 | 6-15 | High | Ultra-thick wall (≥1.0"), high strength requirements |
| ERW | 660 | 25 | 6-12 | Medium | Small to medium diameter, standard wall thickness |
| Seamless | 1016 | 100 | 6-12 | Lowest | Critical applications, corrosive environments |
Click the Button on The Right

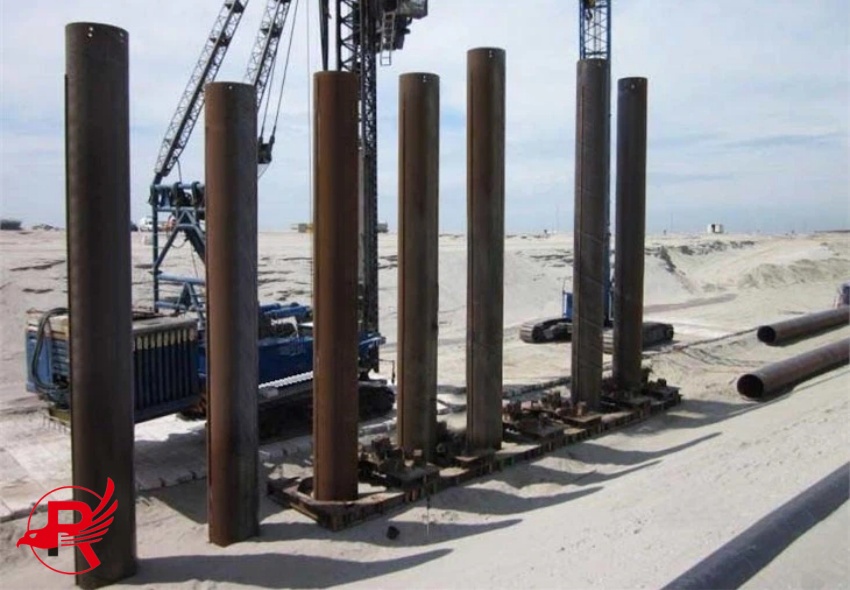

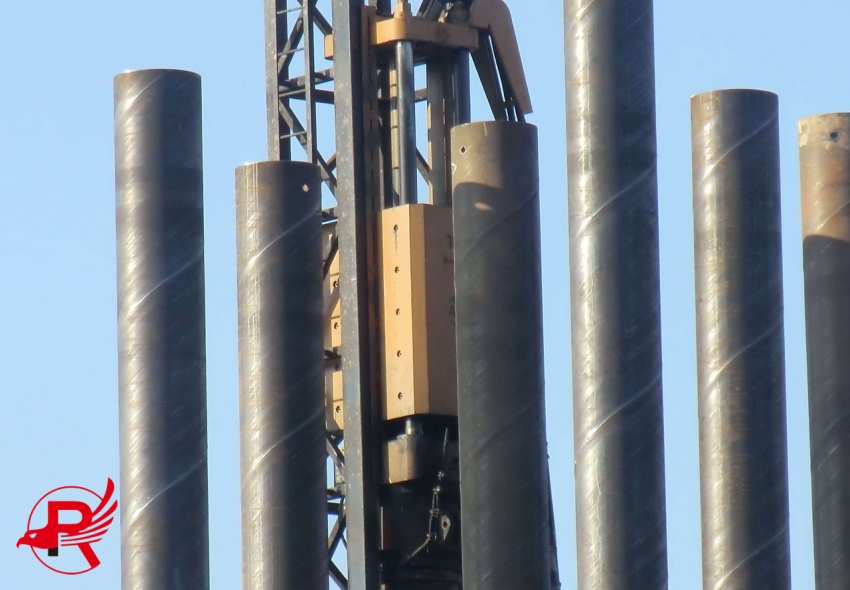

1. Basement Wall Foundations: Deep foundations for high-rise buildings, factories, warehouses, commercial and residential buildings.Pile foundations (suitable for all building types).
2. Bridge Pile Foundations: Load-bearing foundations for highway bridges, railway bridges, and urban viaducts.Pile foundations for river, lake, and sea-crossing bridges.
3. Port Construction: Load-bearing foundations for port terminals, shipyards, and dock platforms.Heavy equipment and port cargo handling facilities.
4. Offshore Wind Power and Marine Engineering Projects: Foundations for offshore wind turbines.Support design for offshore platforms, offshore pipelines, seawalls, etc. Tide resistance, wave resistance, and marine corrosion resistance.
5. Large-Scale Civil Engineering: Deep foundations with large-diameter piles for large-scale civil engineering projects (such as dams, underground stations, and tunnels).Support for industrial machinery and structural loads.
1) Branch Office - Spanish-speaking support, customs clearance assistance, etc.
2) Over 5,000 tons of stock in stock, with a wide variety of sizes
3) Inspected by authoritative organizations such as CCIC, SGS, BV, and TUV, with standard seaworthy packaging

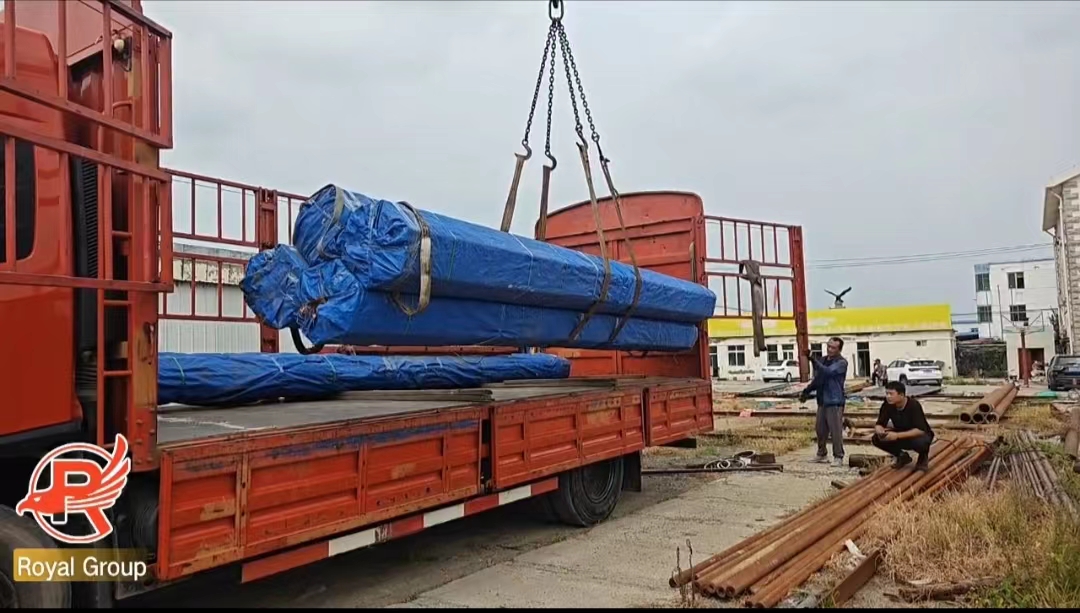

1. Packaging: Steel strapping for easy handling.
Wooden blocks or dunnage are placed between the piles to prevent damage during transport.
Surface protection (optional): Black paint, rust-preventive oil, or rolls of plastic film.
Hot-dip galvanized piles may have a temporary protective film to prevent surface scratches.
Custom packaging is available upon request.
2. Delivery: Standard stock lengths: 6 meters and 12 meters. Custom lengths are available to meet your project requirements.
Suitable for sea, rail, or road transport.
Delivery time is typically 15-30 days after payment confirmation, depending on quantity and specifications.
Suitable for worldwide export, with a full set of documentation (inspection certificate, packing list, bill of lading).
3. Handling Precautions: Use a crane or forklift equipped with slings or slings to prevent pipe deformation.
Store in a cool, dry, well-ventilated place to prevent rusting before installation.
For oversized/overweight shipments, please comply with local shipping regulations.
1. What is the ASTM A252 Grade 3 steel pipe piles?
ASTM A252 grade 3 steel pipe piles are welded structural steel pipes for application as deep foundation support under buildings, bridges, ports, and offshore engineering. There are two welding processes for these pipes: helical submerged arc welding pipe (SSAW) or the longitudinal submerged arc welding pipe (LSAW/EFW).
2. What sizes and lengths are available?
We offer outer diameters ranging from 219 mm to 3000 mm, covering large and extra-large diameter specifications to suit heavy-duty project needs. Wall thickness options span 6 mm to 40 mm. Standard factory lengths of 6 meters and 12 meters are kept in regular stock, while custom cut lengths can be tailored to match specific project demands.
3. What are the material standards and mechanical properties?
Our pipe piles strictly follow the ASTM A252 Grade 3 industry standard. The mechanical performance meets rigorous engineering requirements: minimum yield strength of 345 MPa, tensile strength ranging from 455 MPa to 620 MPa, and a minimum elongation rate of 20%, delivering stable and reliable structural performance.
4. Can I get quality certification and inspection reports?
Absolutely. All our steel pipe piles are manufactured under ISO 9001 quality management systems. We can provide complete official documentation, including third-party inspection certificates issued by SGS, BV and other internationally recognized authoritative institutions to guarantee product quality.
5. How are the steel pipe piles packaged?
All pipe piles are securely bundled with steel straps and separated by wooden blocks during packing to prevent collision and surface damage during transit. We also provide professional outer wrapping and protective coating solutions based on shipping conditions. Custom packaging schemes are acceptable to meet diverse export and transportation requirements.
6. What is the delivery time?
Our general delivery cycle is 15 to 30 days after order confirmation. The exact lead time varies according to order quantity, product specifications and destination port.
7. Is it possible to custom sizes?
Yes, full customization is supported. We can adjust outer diameters and wall thicknesses precisely in line with clients’ unique design and construction specifications to fit different engineering scenarios.
