Why API 5L Steel Pipe Remains Essential for Oil & Gas Pipelines

With the rapid changes in the global energy structure, many countries in Latin America have begun to continuously increase their efforts in developing local oil and gas resources and investing in some supporting infrastructure. As a result, the safety, stability and cost-effectiveness of oil and gas pipeline projects have once again received significant attention from the relevant industries. It is well known that the local geological conditions in Central and South America are complex and variable, and there is a large temperature difference, which leads to a relatively harsh transportation environment. API 5L steel pipes (pipeline pipes produced according to the API 5L standard) have a relatively strong pressure-bearing capacity, good anti-corrosion performance, and unified product quality standards. Therefore, they remain an indispensable core pipe material for the main energy transmission pipelines in Latin America to this day.

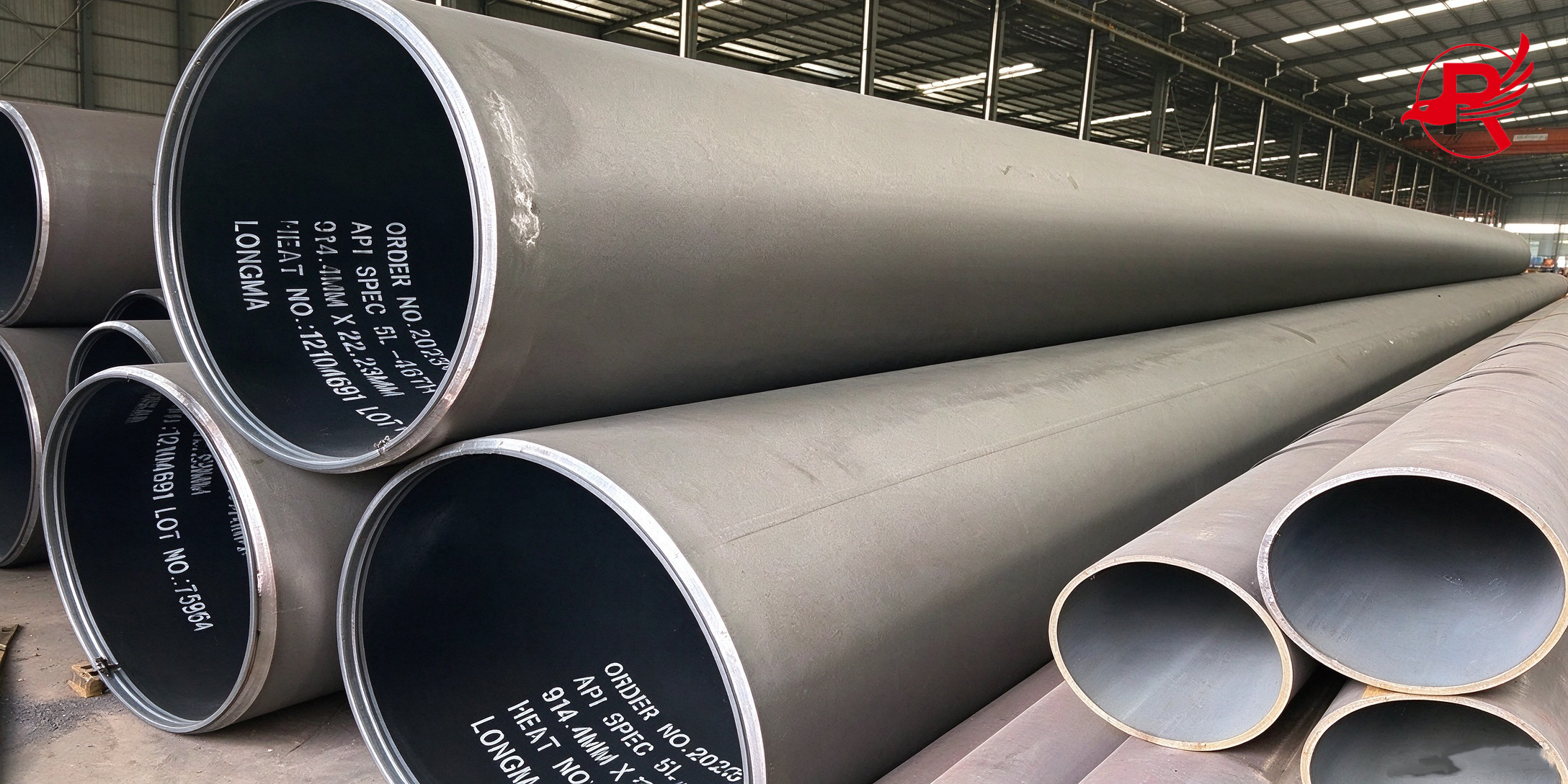

API 5L 1

1. Why does API 5L steel pipe dominate in the oil and gas projects in Central and South America?

API 5L is a global standard for oil and gas pipeline systems established by the American Petroleum Institute (API). The geographical environment in Central and South America is extremely diverse and challenging, ranging from high-altitude and high-geological stress areas of the Andes Mountains, to high-humidity and high-salt fog environments in tropical rainforests and coastal areas, all of which pose challenges to the comprehensive mechanical properties of pipeline materials.

Extremely high yield strength and toughness: API 5L covers multiple grades from basic Grade B to high-strength X70, X80, etc., capable of withstanding high-pressure transportation of up to several hundred atmospheres, effectively avoiding the risk of pipeline rupture caused by geological landslides or earthquakes.

Excellent acid resistance and corrosion resistance: In response to the medium characteristics of some oil and gas fields in Central and South America, which are rich in hydrogen sulfide (H₂S) and carbon dioxide (CO₂), the acid-resistant API 5L steel pipe, combined with 3LPE (three-layer polyethylene) or FBE (fused epoxy powder) anti-corrosion coating, can maintain a design service life of up to several decades in highly corrosive soil and extreme swampy wetlands.

Mature process coverage and high reliability: The API 5L standard also specifies seamless steel pipes and welded steel pipes (such as LSAW straight seam submerged arc welding, SSAW spiral seam submerged arc welding, ERW resistance welding). Seamless pipes, with their homogeneous structure without welds, perform exceptionally well in high-pressure, small-diameter complex joints, while large-diameter LSAW and SSAW provide an economically efficient transportation solution for long-distance main lines.

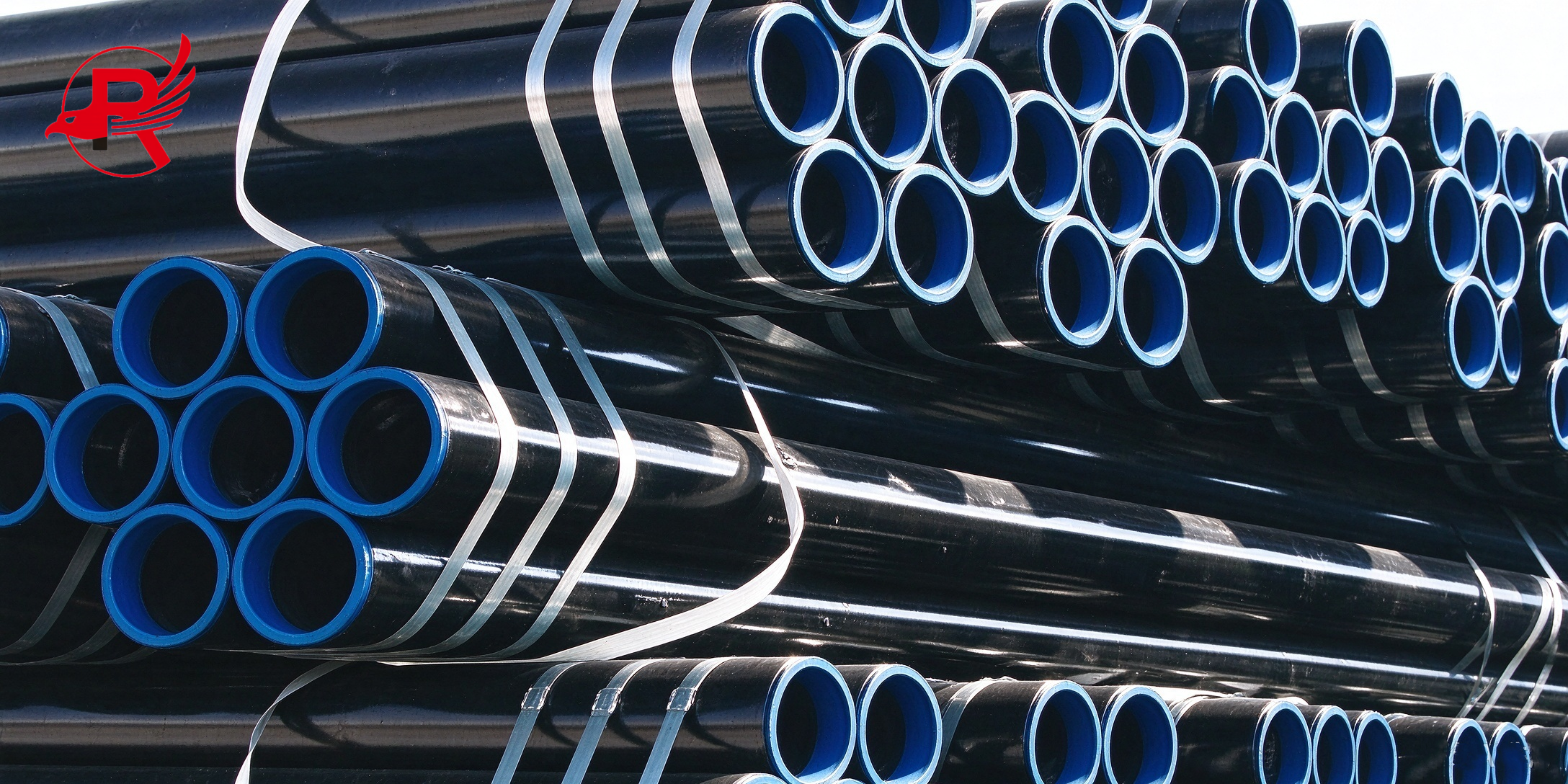

API 5L 2

2. List of common specifications and classifications of API 5L steel pipes

In response to different engineering climates, geological conditions and pressure requirements in Central and South America, API 5L steel pipes are divided into various grades (Grades) and product specification levels (PSL1 and PSL2). The table below summarizes the core specifications, process types and typical application scenarios of this series of steel pipes in the Latin American region:

Steel Pipe Grade Manufacturing Type Specification Level Typical Applications (Latin America)
API 5L Grade B / X42 Seamless (SMLS) / ERW PSL1 / PSL2 Medium and low pressure gathering lines, urban natural gas distribution networks, short distance onshore oil transportation
API 5L X52 / X60 Seamless / LSAW PSL2 Onshore medium and high pressure natural gas trunk lines, mountain and river crossing sections, high geological stress areas
API 5L X65 / X70 LSAW / SSAW PSL2 Large diameter transnational gas pipelines (such as Latin America integration pipeline projects), deep sea oil pipelines
API 5L Sour Service Seamless / LSAW PSL2 (NS / QS / MS) Sour and acidic high corrosion oil and gas fields (such as coastal and tropical rainforest complex environments)

3. Coordinated Construction of Pipelines and Steel Structures and Profiles

In the actual construction of large-scale oil and gas projects, relying solely on the API 5L Steel Pipe main pipeline is insufficient to ensure the stable operation and safety protection of the entire pipeline network. To ensure the structural integrity of the pipeline when crossing canyons, rivers, and harsh terrains, the project construction heavily relies on the coordinated support of various supporting steel structures and profiles:

Pipeline Support and Crossing Projects: When crossing the Andes Mountains or traversing rivers and swamps, the engineering team extensively uses high-strength H-shaped steel, I-beams, and equilateral angle steel and other structural profiles to build sturdy pipeline crossing bridges, suspension supports, and fixed pipe racks, effectively dispersing the stress generated by the pipeline's own weight and fluid impact.

Station Construction and Valve Well Protection: The construction of booster stations, metering stations, pigging stations, and key valve wells along the route requires the extensive use of customized steel structures (such as high-pressure flange connectors, seismic reinforcement sleeves, valve protection steel covers, and steel sheet piles for station foundations), providing comprehensive mechanical protection and foundation reinforcement for the core control nodes of the pipeline network.

The experience of several key oil and gas projects in Central and South America in recent years indicates that engineering contractors tend to integrate API 5L Steel Pipe and its supporting structural profiles and a for overall procurement. This bundled procurement model can ensure the dimensional tolerance and material compatibility between the pipe material and the supporting structure, significantly reducing the cumbersome secondary processing procedures on site, thereby effectively shortening the construction period and reducing logistics allocation costs.



4. Looking Forward to the Future

With the acceleration of energy transformation in Central and South America and the deep advancement of interconnection plans for cross-border pipelines between regions, the market demand for high-strength, high-toughness, and environmentally resistant API 5L pipeline steel products will continue to grow strongly. Whether it is responding to the construction of long-distance high-pressure natural gas pipelines or considering technological upgrades for future hydrogen blending and transition to low-carbon energy, API 5L Steel Pipe and its supporting steel structure engineering solutions will continue to safeguard energy security and infrastructure construction in Latin America and globally.
