News - The Ultimate Steel Channel Buyer’s Guide: Complete Sizes, Grades & Applications

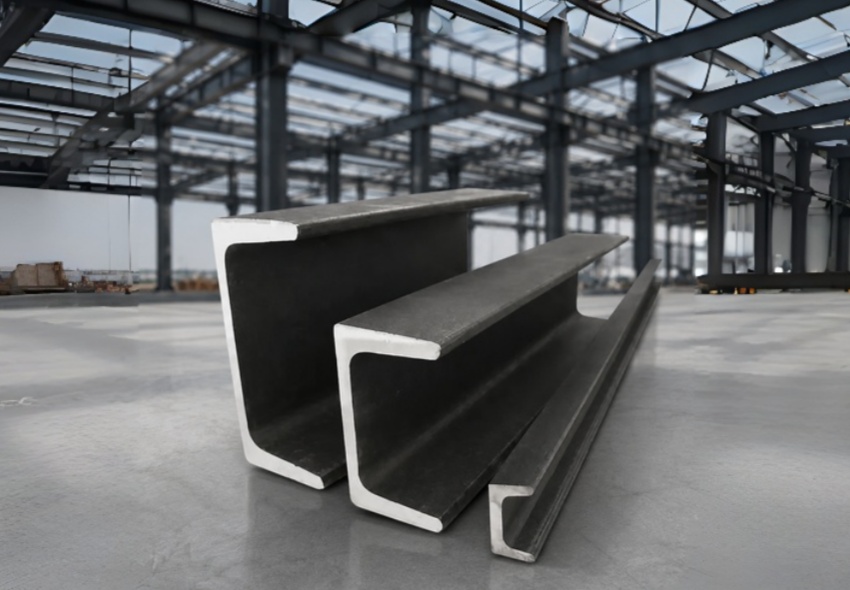

Steel channels are C-shaped structural steel profiles favoured across the construction, fabrication and infrastructure sectors. Featuring flat mounting faces and stable load-bearing performance, they deliver dependable structural support for a wide range of commercial and industrial projects.

Main Steel Channel Profile Types

Steel channels are categorized by profile design and dimensions to suit different load requirements and application scenarios:

Standard ASTM C-Channel: The mainstream structural specification for North American projects. It features tapered flanges and is sized by nominal depth and weight per foot, with typical markings such as C6×8.2.

MC Channel: A non-standard custom profile with wider flanges than standard C-channels, designed for specialised framing and bespoke structural applications.

Bar Channel: A lightweight mini channel with a depth below 3 inches, primarily used for decorative trim, small mounting brackets and light-duty framing work.

Standard ASTM C-Channel Common Sizes

Below are the most widely adopted standard C-channel specifications covering light to heavy structural applications:

Designation	Depth (in)	Weight (lb/ft)	Typical Application
C3×4.1	3	4.1	Small mounting brackets, light-duty frame structures
C6×8.2	6	8.2	Trailer frame fabrication, general metal structural works
C8×11.5	8	11.5	Building roof purlins, mechanical equipment support frames
C10×15.3	10	15.3	Mezzanine floor framing, industrial platform supports
C12×20.7	12	20.7	Heavy-load structural framing, crane runway systems

Steel Grade Performance & Application Comparison

Different steel grades offer distinct yield strength and environmental adaptability. The following comparison matches ASTM standard grades with equivalent EN European specifications for global project compatibility:

ASTM Grade	Equivalent EN Grade	Min. Yield Strength	Core Use Case
A36	S235JR	36,000 psi (250 MPa)	General structural fabrication, conventional building frameworks
A572 Grade 50	S355JR	50,000 psi (345 MPa)	High-load bearing structures, weight-sensitive and long-span projects
A588 (Corten)	S355J2WP	50,000 psi (345 MPa)	Outdoor exposed structures requiring weather and corrosion resistance
304 / 316 Stainless	1.4301 / 1.4401	–	Corrosive environments, marine engineering and food processing facilities

Key Applications & Professional Selection Guidelines

Steel channels are widely used for building purlins, wall lintels, vehicle trailer frames, stair stringers, equipment mounting brackets and structural base plates across industrial and construction fields.

Grade selection by load demand: Opt for A572 Grade 50 steel for long-span structures and heavy-load scenarios. Its higher strength allows smaller section sizes, saving material costs while ensuring structural safety.

Environmental adaptability: For outdoor installations, humid or corrosive working conditions, choose galvanized steel, weathering Corten steel or stainless steel to extend service life.

Specification compliance check: Verify consistency between ASTM and EN standard specifications before procurement to ensure full compatibility with on-site construction requirements.

Royal Steel Group provides a full spectrum of carbon steel and stainless steel channels. We offer custom cutting, bending and forming services, plus global shipping support. Get tailored project quotations and complete mill test certificates from our professional team today.
