Steel Structure Warehouses: Design, Selection and Cost — A Buyer’s Guide for Industrial Projects

Building a warehouse today is harder and more expensive than it used to be. E-commerce keeps growing, logistics networks are getting tighter, and more companies are moving toward automated storage. Those systems share one requirement: a large, open floor with no columns in the way. Steel frames deliver exactly that, which is why steel has become the default choice in most of these projects.

This guide covers what a steel structure warehouse is, how the design process really works, what drives the final cost, and the questions buyers should ask before committing. It's written for project owners, procurement teams and importers planning a new facility, from a 2,000 m² distribution center to a 50,000 m² manufacturing plant.

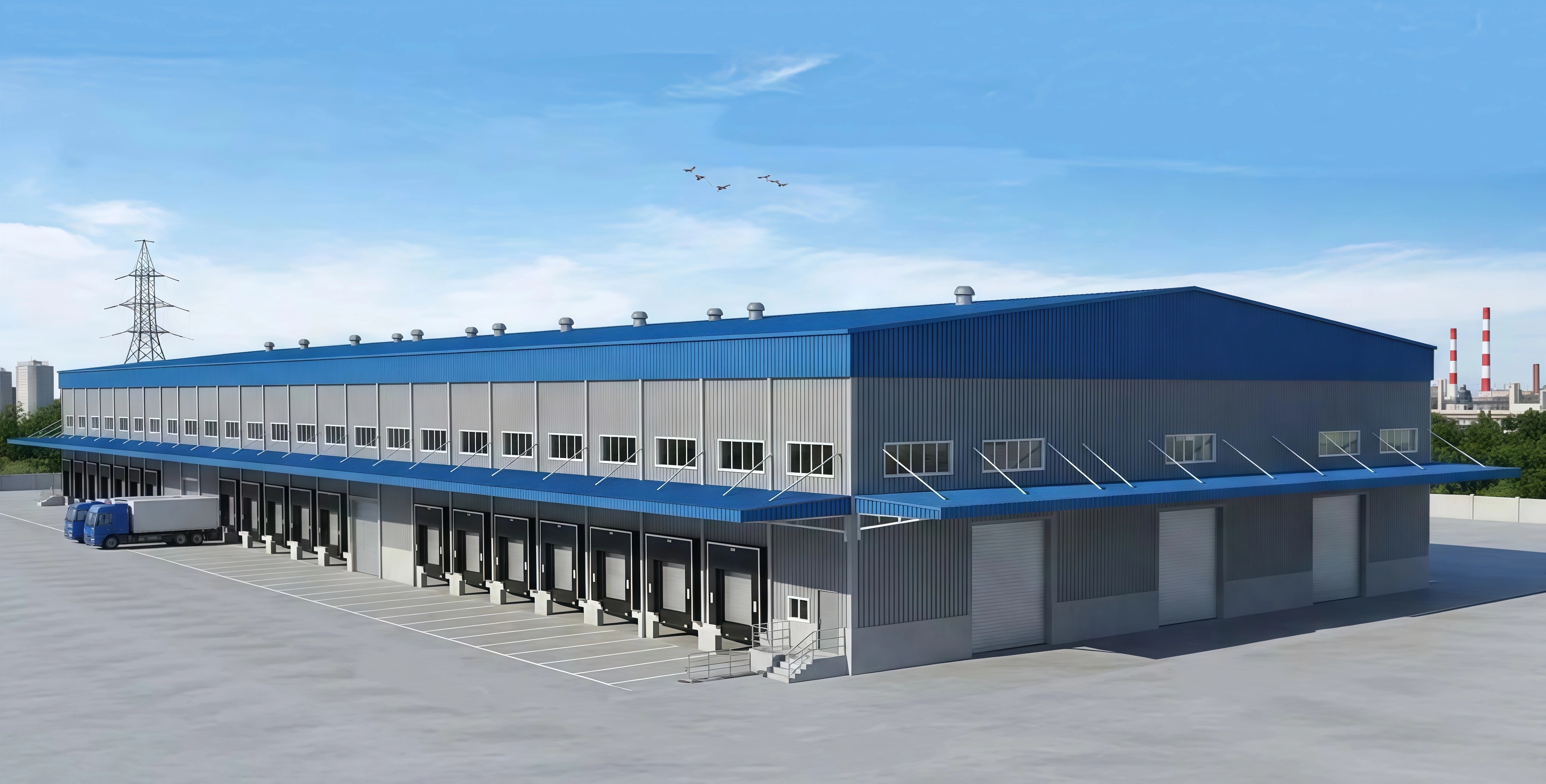

What Is a Steel Structure Warehouse?

A steel structure warehouse is a load-bearing frame made of prefabricated steel parts: columns, beams, trusses, purlins and the wall cladding system. Every component is engineered and manufactured in a factory, using CNC cutting, automatic welding and 3D modeling software like Tekla or STAAD.Pro. The parts are then shipped to site and bolted together.

Working in a controlled environment means the steel is cut and welded to tight tolerances, so on-site assembly is fast, clean and predictable. Weather rarely becomes an issue: rain or freezing temperatures can stop a concrete pour in its tracks, but they barely affect a steel erection schedule.

A typical building has three layers:

Primary framing: columns and beams that form the skeleton

Secondary framing: purlins, girts and bracings that support the roof and walls

Enclosure system: roof panels, wall cladding and insulation that complete the envelope

steel structure buliding royalsteelgroup
Learn More About Royal Steel Group Steel Structure Building

Steel Structure vs. Concrete: What the Comparison Actually Looks Like

Factor Steel Structure Warehouse Concrete / Brick Warehouse
Construction speed 30–50% faster, prefabricated assembly Slower; curing time and weather delays
Lifecycle cost Lower maintenance, longer service life Higher labor and upkeep costs
Clear span Up to 80–100 m without interior columns Limited by column spacing
Foundation Lightweight, lower foundation cost Heavy, needs stronger foundations
Environmental impact Steel is recyclable, lower carbon footprint Cement production is energy-intensive
Maintenance Minimal with proper anti-corrosion coating Frequent repairs and repainting

The two differences buyers notice most in practice are speed and usable space.

Four Reasons Buyers Choose Steel

1. More usable floor space.

A steel frame carries load efficiently, so it can span 80–100 meters or more with no columns in between. That matters when you're installing high-rack storage, automated guided vehicles, or a production line that needs a wide, unobstructed zone. Every square meter you don't give up to a column is a square meter you can actually put to work.

2. Faster construction, earlier revenue.

While foundations are being poured on site, the steel is being fabricated back at the factory. The two tracks run in parallel, and the payoff is a schedule that typically comes in 30–50% faster than an equivalent concrete building. If you're paying rent on an old space or waiting to start operations, that time saving is often worth more than the building itself.

3. Durability under harsh conditions.

Hot-dip galvanizing and epoxy coatings protect steel against corrosion in humid and industrial environments. Wind and seismic loads are designed into the frame from the start, and fireproof paint systems help it meet international building codes.

4. Lower cost over the life of the building.

The upfront price of a steel warehouse is competitive, but the bigger savings show up later: less maintenance, better energy performance from insulated panels, and no recurring repair bills for cracked walls or settling foundations.

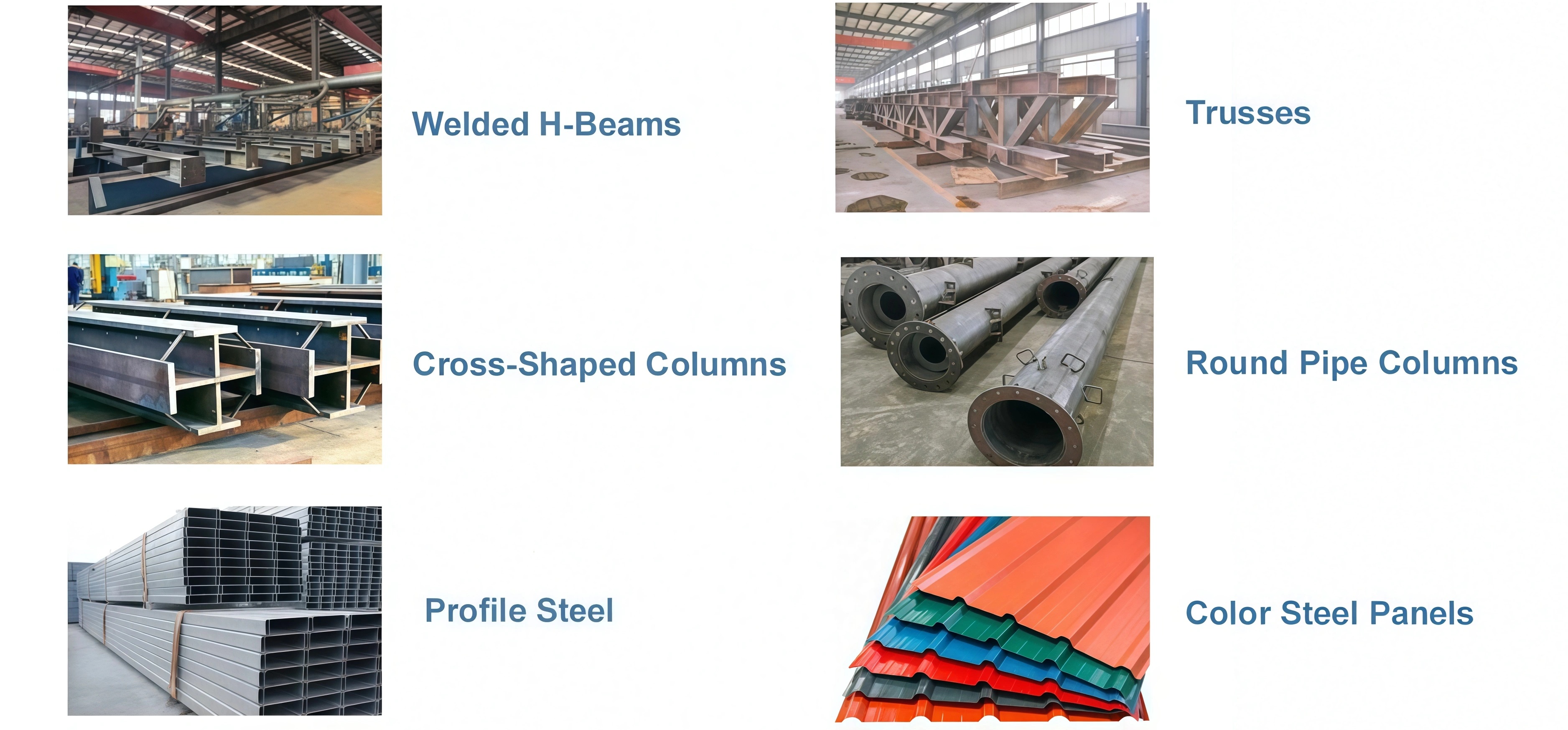

What a Steel Warehouse Is Made Of

Component Typical Section Job
Columns H-section or box columns Carry vertical loads to foundations
Beams Main and secondary beams Support roof and floor loads
Bracing Cross or K-type Resist wind and seismic forces
Roof purlins C or Z sections Support roof panels
Wall girts C or Z sections Support wall cladding
Roof / wall panels Color-coated or sandwich panels Weatherproofing, insulation
Get Quote Now! Send Inquiry in 2 Hours
steel structure buliding royalsteelgroup (1)

Design: What Actually Determines the Building

Before a single piece of steel is ordered, the design team has to settle three questions.

1. What loads will the building carry?

The building's own weight counts, and so does everything that goes inside: stored goods, racking, equipment, cranes, and in some regions snow and wind loads. Getting this wrong, or under-specifying it to cut costs, is the most expensive mistake a buyer can make.

2. How will the space be used?

A warehouse built for pallet storage doesn't look like one with an assembly line. Loading docks have to be placed so goods flow smoothly, forklift aisles need clear widths, and if automation is coming later, the space for it should be planned now rather than retrofitted.

3. Which codes apply?

Local building codes govern safety, fire protection and structural design. If the project is financed or insured internationally, the design may also need to comply with ISO, ASTM or EN standards. Check this before you get a quote, not after.

Good design work is cheap next to a building that doesn't fit the operation. That's why bringing an experienced fabricator in early pays off: the decisions that lock in cost, such as span, bay spacing, coating system and panel type, all get made in the first few weeks.

Types of Steel Warehouses: Which One Fits Your Operation

Type Best For
Single-story warehouse Manufacturing, bulk storage — large spans, high bays
Multi-story warehouse Urban logistics where land is limited
Heavy-duty warehouse Machinery, production bases — reinforced columns and beams
Cold storage warehouse Food, pharmaceuticals, chemicals — insulated panels, temperature control
Logistics distribution center E-commerce, freight consolidation — modular layout, multiple loading bays

All of these can be customized with mezzanines, skylights, overhead cranes and insulated cladding. It's worth designing the base building so these options can be added later — steel makes that practical, because bolted connections can be extended without major structural work.

A Practical Buying Checklist

Before you commit to a supplier, go through this list:

Site conditions. Soil bearing capacity, wind exposure and seismic zone classification set the foundation design and frame weight before anything else.

Functional requirements. Storage height, dock capacity, aisle widths, equipment layout. Write all of this down before you start talking to suppliers, not during.

Budget and lifecycle cost. Compare the total cost over 20–30 years, not just the price per square meter. Ask what the coating warranty covers and what insulation value the panels actually deliver.

Future expansion. A modular, bolted steel building is far easier to extend than a concrete one. If growth is on the horizon, mention it during design while changes are still cheap.

Standards compliance. Confirm which codes the design follows, whether ISO, ASTM, EN or local, and ask for the material certificates to back it up.

Supplier capability. Ask about their fabrication track record, delivery lead times and erection plan, and what happens if a shipment arrives damaged.

Choosing the Right Steel Structure Warehouse

There's no single "best" warehouse — there's the one that fits how you'll actually use it. A cold storage facility, a heavy manufacturing plant and a last-mile distribution center are all steel buildings, but they are designed, priced and detailed very differently. Define your requirements first, compare suppliers on lifecycle cost and capability rather than headline price, and make sure the design standards match your market.

Royal Steel Group supplies steel structures, structural sections and H-beams to industrial projects worldwide. If you're planning a warehouse and want a second opinion on design, material selection or budget — even if you don't have engineering drawings yet — talk to our team. We'll help you scope the project before you spend money on consultants.
