News - Steel Pipe Piles for Marine, Bridge & Infrastructure Projects

As investment in bridges, ports, offshore wind farms, industrial facilities, and transportation infrastructure continues to expand, steel pipe piles are increasingly used as deep-foundation solutions for projects requiring high load capacity, durability, and predictable installation performance.

For EPC contractors, foundation engineers, and project owners, however, steel pipe pile performance depends on more than steel grade and wall thickness. Coating acceptance, pile-end configuration, dimensional control, and field splicing can all affect installation efficiency and project schedules.

Royal Steel Group, a Chinese manufacturer and exporter of steel pipe piles, addresses these requirements through factory-controlled production, inspection, customized fabrication, and project-specific technical documentation.

Steel Pipe Piles Designed Around Project Requirements

Steel pipe piles are used to transfer structural loads through weak or variable soil layers into stronger bearing strata. Depending on the project, pile diameter, wall thickness, length, steel grade, end configuration, coating system, and connection method may all need to be customized.

Royal Steel Group works with customers to define these requirements before production, helping ensure that the delivered piles are suitable for transportation, handling, driving, coating, and field installation.

The company supplies LSAW, SSAW, ERW, and seamless steel pipes for piling applications, with customized dimensions and fabrication options available according to engineering drawings and project specifications.

Marine Projects: Clear Coating Requirements for Steel Pipe Piles

Marine and coastal foundations expose steel piles to seawater, moisture, chloride, and changing wet-dry conditions. The splash zone can be particularly demanding because repeated exposure to seawater and air can accelerate corrosion.

To support project-specific corrosion protection requirements, Royal Steel Group can provide coating systems including:

Hot-Dip Galvanizing (HDG)
Fusion-Bonded Epoxy (FBE)
3PE coating
Customized protective coating systems

Coating inspection can include dry-film-thickness (DFT) measurements, holiday testing, surface inspection, and repair verification according to the agreed project specification.

For projects with defined coating acceptance criteria, the inspection and repair requirements can be established before production. This gives contractors and inspectors a clear reference for coating inspection when the steel pipe piles arrive on site.

Port and Dock Construction: Defined Pile-End Configurations

Port, dock, and marine piling projects may involve dense sand, gravel, cobbles, hard soil layers, or rock. These conditions can place additional demands on the pile toe during installation.

Royal Steel Group can manufacture steel pipe piles with different end configurations according to the engineering requirements, including:

Open-end pipe piles
Closed-end pipe piles
Reinforced pile toes
Rock shoes
Reinforcement rings
Customized end preparations

Controlling pile-end squareness, toe geometry, and dimensional consistency helps provide more predictable pile installation and supports consistent performance across the supplied batch.

Highway and Railway Projects: Dimensional Control for Efficient Installation

Linear infrastructure projects such as highways, railways, viaducts, and bridge foundations may require large quantities of steel pipe piles with consistent dimensions.

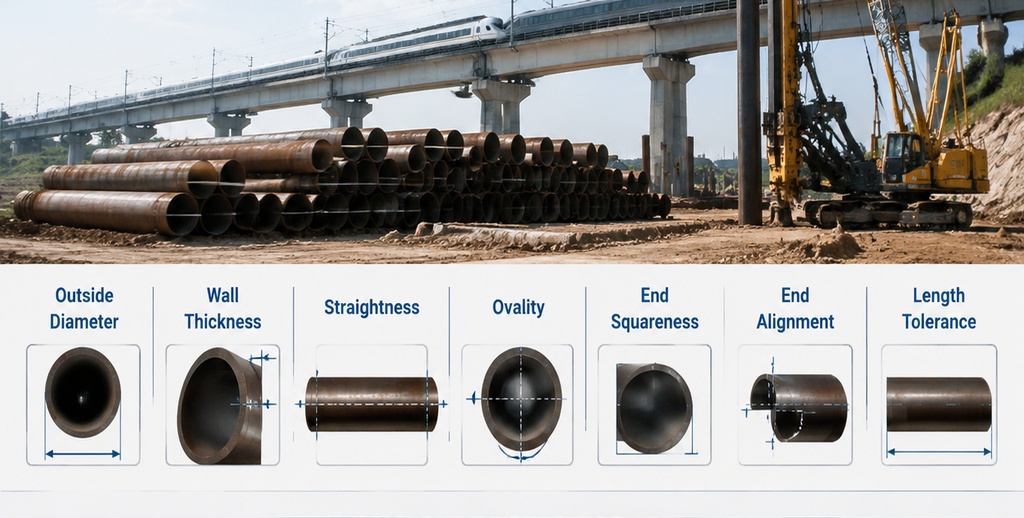

Even relatively small dimensional variations can complicate pile handling, positioning, driving, and segment connection. For this reason, Royal Steel Group places emphasis on key dimensional characteristics such as:

Outside diameter
Wall thickness
Straightness
Ovality
End squareness
End alignment
Length tolerance

For segmented piles, the company can also provide segment identification and alignment markings to help installation teams organize pile sections and prepare field connections efficiently.

Splicing and Welding: Preparing Piles for Field Installation

Long foundation piles are often supplied in multiple sections because of transportation, handling, or site installation requirements. Field welding and splicing can therefore become an important part of the construction schedule.

Inconsistent bevels, non-square pipe ends, excessive ovality, or poor fit-up can increase welding and inspection time.

Royal Steel Group can control bevel geometry, end preparation, roundness, and dimensional consistency to support repeatable field fit-up. Welding procedures and non-destructive testing (NDT) requirements can also be defined according to project specifications.

Depending on the project, inspection requirements may include visual inspection, ultrasonic testing, radiographic testing, or other applicable NDT methods.

Steel Pipe Pile Manufacturing and Product Range

Royal Steel Group supplies steel pipe piles in a range of manufacturing processes and specifications to meet different foundation and infrastructure requirements.

Available manufacturing processes include:

LSAW Steel Pipe
SSAW Steel Pipe
ERW Steel Pipe
Seamless Steel Pipe

Typical pipe pile diameters: 508 mm–1,626 mm

Wall thickness: Customized according to engineering requirements

Length: Standard and project-specific lengths available

Commonly requested standards and grades include:

ASTM A252 Grade 1, Grade 2, Grade 3
ASTM A53 Grade B
ASTM A500 Grade B/C
EN 10219 S275J0H
EN 10219 S355J2H
API 5L Grade B
API 5L X42
API 5L X52

Actual material selection, dimensions, tolerances, coating requirements, and testing procedures are confirmed according to the customer's project specifications and applicable standards.

Quality Inspection and Certification

Quality control is an important part of steel pipe pile procurement because foundation products are difficult and costly to replace after installation.

Royal Steel Group can provide project documentation including Mill Test Certificates (MTC) according to EN 10204 3.1, covering applicable material and mechanical test information.

Depending on the order requirements, inspection documentation may include:

Chemical composition
Mechanical properties
Dimensional inspection
Visual inspection
Welding inspection
Coating thickness records
Non-destructive testing results
Heat number traceability
Packing and shipment records

Third-party inspection services can also be arranged through internationally recognized inspection companies according to project requirements.

Applications of Steel Pipe Piles

Royal Steel Group's steel pipe piles are suitable for a wide range of foundation and infrastructure applications, including:

Bridge Foundations – Deep foundations for bridges, viaducts, and elevated transportation structures.

Port and Marine Engineering – Piles for docks, wharves, terminals, marine platforms, and coastal structures.

Offshore Wind Projects – Steel foundation components for offshore renewable energy infrastructure.

Oil and Gas Facilities – Foundation and structural piling for energy-related facilities.

Industrial Buildings – Deep foundations for factories, warehouses, processing plants, and heavy industrial structures.

Transportation Infrastructure – Piling solutions for highways, railways, municipal transportation systems, and other large-scale civil engineering projects.

Why Choose Royal Steel Group for Steel Pipe Piles?

Royal Steel Group combines steel pipe manufacturing, customized fabrication, quality inspection, and international logistics to provide an integrated supply solution for infrastructure contractors and engineering companies.

Key services include:

Factory-direct steel pipe pile supply
LSAW, SSAW, ERW, and seamless production
Customized diameter, wall thickness, and length
Multiple coating options
Customized pile-end configurations
Welding and fabrication support
MTC and inspection documentation
Third-party inspection coordination
Export packaging and international shipping
Technical support before and during procurement

By defining important technical requirements before production, Royal Steel Group helps customers reduce uncertainty during transportation, pile driving, field splicing, and inspection.

Serving Global Infrastructure Projects

Royal Steel Group supplies steel pipe piles and foundation steel products to customers in North America, Latin America, Southeast Asia, the Middle East, Africa, and Europe.

The company's product solutions support bridge construction, port expansion, offshore wind, marine engineering, oil and gas facilities, industrial plants, highways, railways, and municipal infrastructure projects.

For projects requiring customized steel pipe piles, customers can provide drawings, technical specifications, required standards, pile dimensions, coating requirements, and estimated quantities for a project-specific quotation.

About Royal Steel Group

Founded in 2012 and headquartered in Tianjin, China, Royal Steel Group is a manufacturer and exporter of steel pipe piles, steel sheet piles, structural steel, steel pipes, and related construction materials.

The company supports international customers with manufacturing, quality inspection, customized fabrication, packaging, logistics, and export documentation services.

For more information about steel pipe piles, LSAW steel pipe, SSAW steel pipe, ASTM A252 pipe piles, marine piling solutions, and customized foundation steel products, contact Royal Steel Group.
