In global energy transmission, municipal infrastructure and heavy industrial construction, submerged arc welded (SAW) steel pipes form the backbone of reliable fluid conveyance systems. Two of the most widely specified product lines are LSAW (Longitudinal Submerged Arc Welded) and SSAW (Spiral Submerged Arc Welded) pipes. While both leverage the proven integrity of submerged arc welding technology, their fundamental differences in forming method and weld orientation create distinct gaps in mechanical performance, dimensional control, defect resistance, cost profile and suitable application scenarios. For procurement specialists, pipeline engineers and project developers, a clear understanding of these distinctions is critical to selecting the optimal product that aligns with operating conditions, regulatory requirements and total lifecycle costs.

What is LSAW Pipe?

LSAW steel pipe, short for Longitudinal Submerged Arc Welded pipe and also referred to as SAWL pipe, is manufactured from discrete heavy-gauge steel plates. Most commercial production follows the JCOE forming route: raw plates first undergo precision edge milling, then are progressively cold-formed into a cylindrical profile through sequential J-forming, C-forming and O-forming stages, before receiving double-sided internal and external submerged arc welding. Post-weld finishing includes sizing, mechanical straightening, end beveling and full-line quality verification.

This plate-based, straight-seam design delivers inherent advantages in weld uniformity, mechanical property consistency and structural integrity. The weld seam runs parallel to the pipe axis, with a short total weld length per fixed pipe section, which minimizes the cumulative statistical risk of weld defects.

LSAW Pipe Specifications & Performance

Outer diameter range: Standard production spans from 16 inches (406 mm) up to 60 inches (1,524 mm), with custom sizing available for specialized engineering projects.

Wall thickness capability: Supports heavy-wall production to meet high-strength, high-pressure requirements, with thickness limits far exceeding those of ERW and spiral welded alternatives.

Key performance strengths: Excellent internal pressure resistance, superior low-temperature toughness, tight roundness and straightness tolerances, and dependable leak-tightness under cyclic loading.

Primary Applications of LSAW Pipe

LSAW pipe is the industry standard for critical oil and gas transmission trunklines, particularly long-haul routes crossing densely populated urban areas, inland waterways, marine environments and ecologically protected zones. Per API 5L pipeline design specifications, it is fully approved for Class 1 and Class 2 location classes where public safety and operational reliability are non-negotiable.

Beyond the energy sector, it is widely specified for heavy-duty structural and utility use cases, including load-bearing bridge piling, bulk water transmission mains, thermal power plant process piping and industrial systems that demand high structural strength and decades of service life.

What is SSAW Pipe?

SSAW pipe, or Spiral Submerged Arc Welded pipe – also known as HSAW (Helical Submerged Arc Welded) pipe – is produced through a continuous coil-fed forming process. A hot-rolled steel strip is fed into the forming mill at a precisely controlled helix angle, rolling into a cylindrical shape while the spiral seam is welded simultaneously on both internal and external surfaces via submerged arc welding.

A defining economic advantage of this process is its production flexibility: a single width of steel strip can be fabricated into pipes of multiple outer diameters simply by adjusting the forming angle. This improves overall material utilization and reduces tooling changeover costs for large-diameter, high-volume orders.

SSAW Steel Pipe Specifications & Features

Outer diameter range: Standard production covers 20 inches (508 mm) up to 100 inches (2,540 mm), serving an extremely wide range of large-bore applications.

Design characteristics: The helical weld distributes operational stress across an angled seam, reducing the normal stress load perpendicular to the weld line under internal pressure. However, the total length of the weld seam is significantly longer than that of an equivalent LSAW pipe, which increases the statistical probability of weld imperfections.

Quality considerations: Common manufacturing challenges in spiral welding include porosity, slag inclusions, incomplete fusion and uneven residual stress distribution, requiring comprehensive non-destructive testing (NDT) along the full weld length to verify compliance.

Primary Applications of SSAW Pipe

In oil and gas systems, SSAW pipe is primarily specified for Class 3 and Class 4 locations per API standards, including field gathering lines, regional distribution networks and low-pressure transmission routes. It is also a dominant product in municipal and civil engineering projects, such as potable water supply, stormwater and sewage drainage, district heating pipelines, and foundation piling for buildings and port infrastructure. For moderate-pressure, non-critical applications, it delivers a strong balance of structural performance and cost efficiency.

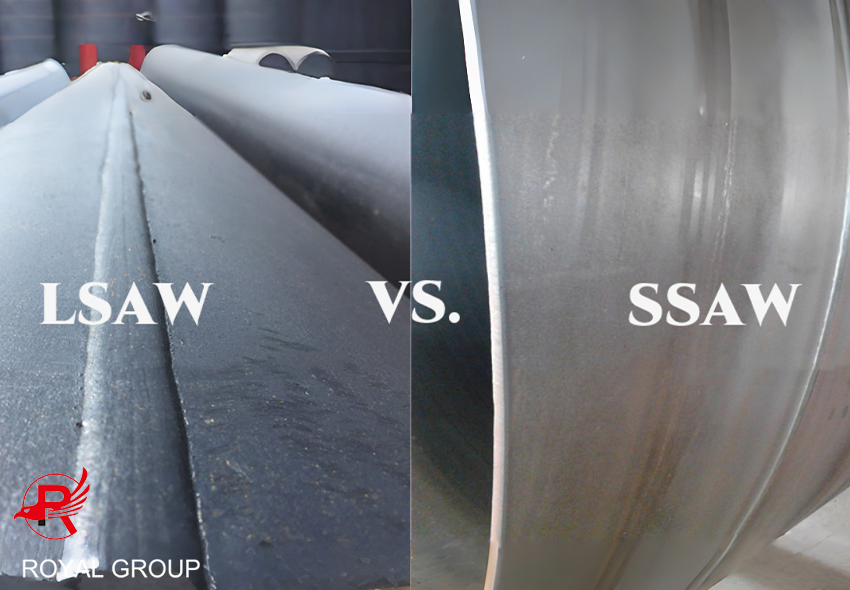

Core Differences Between LSAW and SSAW Pipes

A side-by-side comparison helps align product selection with project priorities:

Weld Quality and Defect Risk

LSAW pipes feature a short, straight longitudinal seam with fewer forming variables, resulting in highly consistent weld microstructure and lower inherent defect rates. SSAW pipes have a longer helical weld with more interrelated process parameters to control, leading to a higher baseline risk of imperfections such as inclusions and incomplete fusion.

Pressure Bearing Capacity

Thanks to superior weld integrity and thicker wall capability, LSAW pipes deliver significantly higher burst pressure and long-term fatigue resistance, making them suitable for high-pressure, high-stakes service. While the angled spiral seam reduces stress concentration on the weld itself, the overall pressure rating of SSAW pipe is constrained by weld quality consistency and wall thickness limits.

Dimensional Accuracy

LSAW pipes manufactured from precision-cut steel plates offer tighter tolerances on outer diameter, roundness and straightness, simplifying on-site joint fit-up and installation alignment. SSAW pipes produced via continuous coil forming have wider dimensional tolerances, which can increase installation labor and adjustment time on large-scale projects.

Production Economics

SSAW production is a continuous, high-output process with higher material utilization, giving it a clear cost advantage in large-diameter, medium-wall orders. LSAW production involves more discrete forming and finishing steps, resulting in higher unit costs but premium, predictable quality and performance.

Regulatory and Operator Acceptance

Major pipeline codes and international oil & gas operators universally accept LSAW pipe for the most critical, high-safety pipeline routes. SSAW pipe has narrower acceptance in high-pressure trunkline applications and is predominantly approved for lower-risk location classes and non-energy infrastructure.

How to Select the Right Pipe Type

There is no universally “superior” product — the optimal choice depends on a holistic evaluation of project-specific parameters:

Select LSAW pipe if: Your project involves high-pressure long-distance transmission, operates in low-temperature environments, crosses Class 1/2 populated or environmentally sensitive areas, or requires maximum long-term reliability with minimal maintenance risk.

Select SSAW pipe if: You need large-diameter pipe for low-to-medium pressure applications, are working within a constrained capital budget, and the project falls under Class 3/4 locations or municipal/structural use cases where cost optimization is a core priority.

Your Trusted Welded Steel Pipe Supplier: Royal Steel Group

At Royal Steel Group, we manufacture and supply both LSAW and SSAW steel pipes built to stringent international standards including API 5L, ASTM A53, ASTM A252 and ISO 3183. Our production facilities implement full-process quality control, from raw material mill test traceability to in-line NDT, hydrostatic pressure testing and optional third-party inspection, ensuring every pipe meets specified mechanical properties and dimensional tolerances.

Our technical sales team works closely with clients to analyze project conditions, recommend cost-effective material solutions, and support full-cycle project execution. Whether you require high-performance LSAW pipe for critical energy infrastructure or cost-efficient SSAW pipe for municipal and structural projects, we deliver products that balance operational safety, long service life and budget objectives.
