TIANJIN, CHINA – With worldwide infrastructure requirements trending toward long-lasting and environmental-friendly construction materials, Royal Steel Group announces the introduction of its high-performance Hot-Dip Galvanized Steel Grating series. The new line, which meets the most rigorous industrial standards, is intended for use on oil and gas platforms, power plants and major mining projects in the Middle East, Southeast Asia, the Americas and beyond.

Premium Material Selection: The Foundation of Strength

In the center of our new designs is the top quality Carbon Steel Q235B, which has good weldability and the good property of the structure.

Steel Grades: Although Q235A is available for normal applications, our standard range is Q235B which is tested for impact at 20°C and suitable for use in varying climates.

Special Options: In extremely corrosive chemical environment, Royal Steel Group can supply Stainless Steel Grating (SS304/SS316) as the superior option.

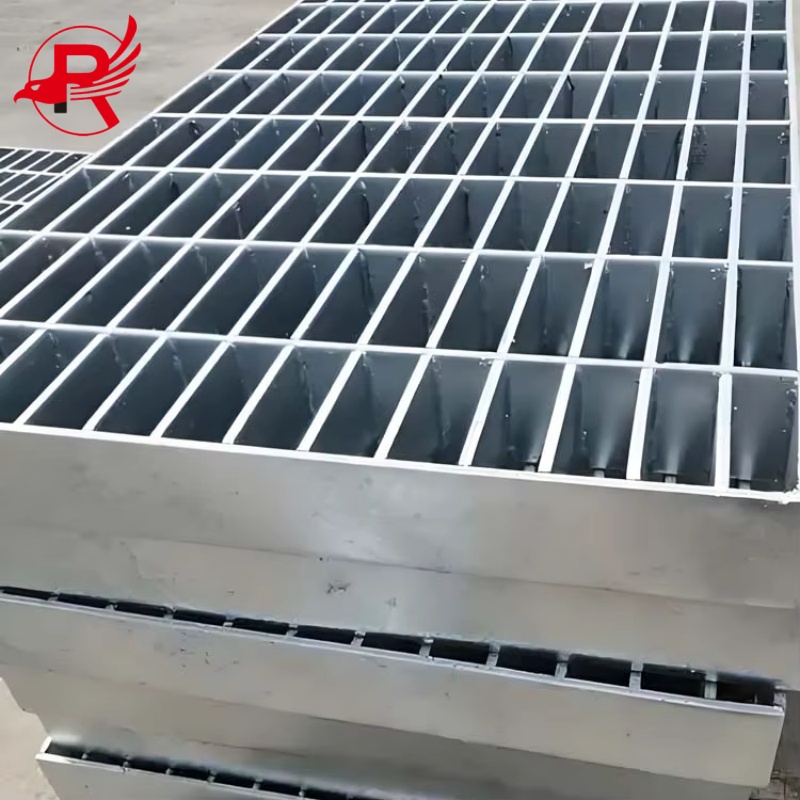

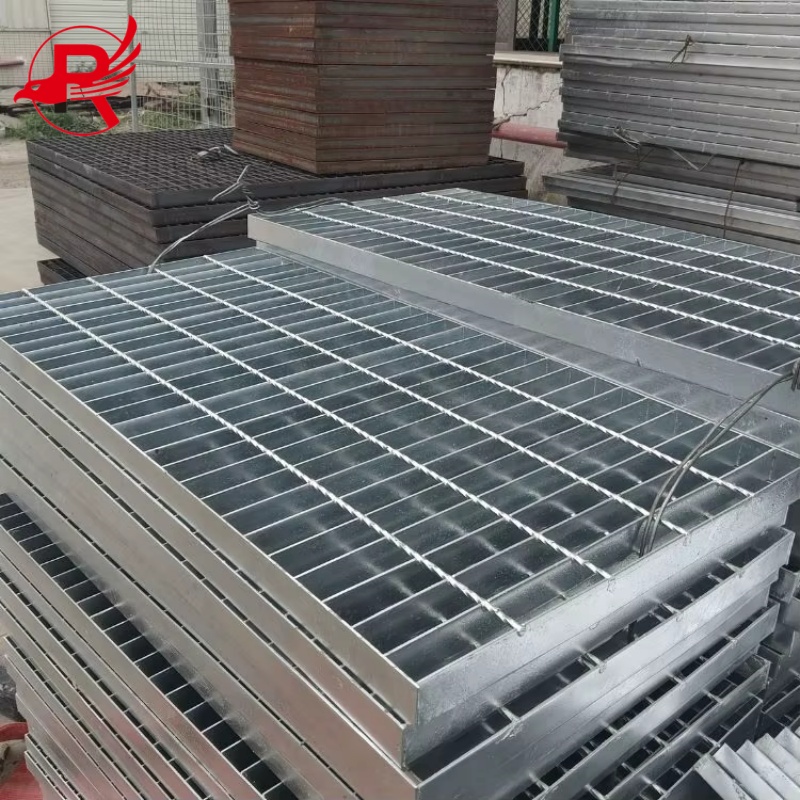

Royal Steel Group High-Quality Galvanized Steel Grating for Industrial Platforms

Advanced Types and Custom Configurations

Bearing in mind that no two projects in the industry are identical, this new range includes the most sought after and requested types of grating:

Serrated Steel Grating: With a “toothed” surface for maximum anti-slip safety, perfect for offshore rigs and oily walkways.
Plain Steel Grating: A staple for the pedestrian and light vehicular traffic.

Heavy-Duty Grating: The use of thicker bearing bars ( 50X5mm, 60X10mm, etc) in heavy load applications including cargo terminals and warehousing.

Normal Spacing: Our Series 1 (30mm pitch) and Series 2(40mm pi t ch) comply with international safety standards by not allowing small items to pass through the openings while still providing for good ventilation.

High-Tech Manufacturing and HDG Process

Royal Steel Group employs advanced pressure welding technology to securely connect load-bearing reinforcing bars to beams at intersections, achieving maximum rigidity.

A highlight of this release is our ASTM A123/ISO 1461 certified hot-dip galvanizing (HDG) process. Immersing the steel in molten zinc creates a metallurgical bond, providing:

Rust protection: Over 20 years of outdoor service life.

Self-healing: The zinc coating is cathodic relative to the steel, protecting the DAC (Direct Contact Counterweight) even with surface scratches.

Rigorous Quality Control and Testing

To maintain our reputation for excellence, every batch of grating from our 5 production bases undergoes a comprehensive Quality Assurance (QA) protocol:

Test Type	Metric / Standard	Purpose
Dimensional Check	YB/T 4001.1	Ensures precise panel size and span direction.
Load Testing	Deflection & Yield Strength	Verifies the grating can support the specified KPa/UDL.
Zinc Coating Test	Coating Mass ≥ 610g/m²	Guarantees long-term anti-rust performance.
Weld Integrity	Visual & Ultrasonic	Ensures no cold joints or weak fusion points.

Why Partner with Royal Steel Group?

Royal Steel Group is not just a distributor, we are your project partner; with a monthly turnover of 20,000 tons and a strategic location in USA, Guatemala and Dubai, Royal Steel Group will meet your needs. Our 8 strategically located warehouses mean that your project will stay on schedule from the time you place your order to delivering materials to your site.

"This launch is our way of saying that we are behind the 'Green Building' movement," says the Marketing Director of the Royal Steel Group. "Increasing the durability of our galvanized solutions is one way we reduce the carbon footprint of global infrastructure, because longer-lasting materials mean less frequent replacements."

About Royal Steel Group

Established in 2012 and headquartered in Tianjin, Royal Steel Group is a global leader in the export of steel pipe, steel plate, steel coil and structural steel. Specializing in H-beams, sheet piles, and customized steel grating, the group serves over 30 countries with a focus on technical precision and social responsibility.
