For large pipeline and infrastructure projects, choosing the right steel pipe involves much more than selecting a diameter and wall thickness. Manufacturing method, steel grade, pressure requirements, corrosion conditions, inspection standards, and project specifications all need to be considered before an order is placed.
Large diameter steel pipe is widely used in oil and gas transmission, water infrastructure, piling, marine construction, and heavy industrial projects. The right pipe type depends largely on how the pipe will be installed and what conditions it will face during service.
Royal Steel Group supplies large diameter steel pipe for industrial and infrastructure projects in North America, the Middle East, Africa, Europe, and other international markets. Here are the main points buyers should review before purchasing.
What Is Considered Large Diameter Steel Pipe?
There is no single definition used across every pipe standard or manufacturing facility. In general commercial practice, pipe with an outside diameter above approximately 16 inches (406–457 mm) is often considered large diameter.
Common project sizes range from 20 inches to 60 inches, while certain LSAW and SSAW production lines can manufacture considerably larger diameters.
The available diameter range depends on the production process:
| Pipe Type | Typical Diameter Range | Common Applications |
| ERW / HFW | Up to around 24" (610 mm) | Structural pipe, water and general industrial service |
| LSAW | Approx. 20"–100" (508–2,540 mm) | Oil & gas pipelines, water transmission, piling |
| SSAW | Approx. 20"–100" (508–2,540 mm) | Water pipelines, drainage, low-pressure applications |
| Hot-Expanded Seamless | Approx. 16"–28"+ (406–711+ mm) | High-pressure and specialized industrial service |
Actual size availability varies by mill, specification, wall thickness, steel grade, and production route.
LSAW, SSAW, or Seamless: Which Pipe Should You Choose?
For large diameters, welded pipe is widely used because it provides a practical and economical way to produce large outside diameters and heavy wall thicknesses.
The two most common welded options are LSAW pipe and SSAW pipe.
LSAW, or Longitudinal Submerged Arc Welded pipe, is manufactured by forming steel plate into a cylindrical shape and welding the longitudinal seam.
LSAW pipe is commonly selected for:
Oil and gas transmission pipelines
Water transmission systems
Structural piling
Offshore and marine projects
Large-diameter pressure pipelines
Because the weld runs longitudinally, LSAW pipe can offer tight dimensional control and is frequently specified for demanding pipeline applications.

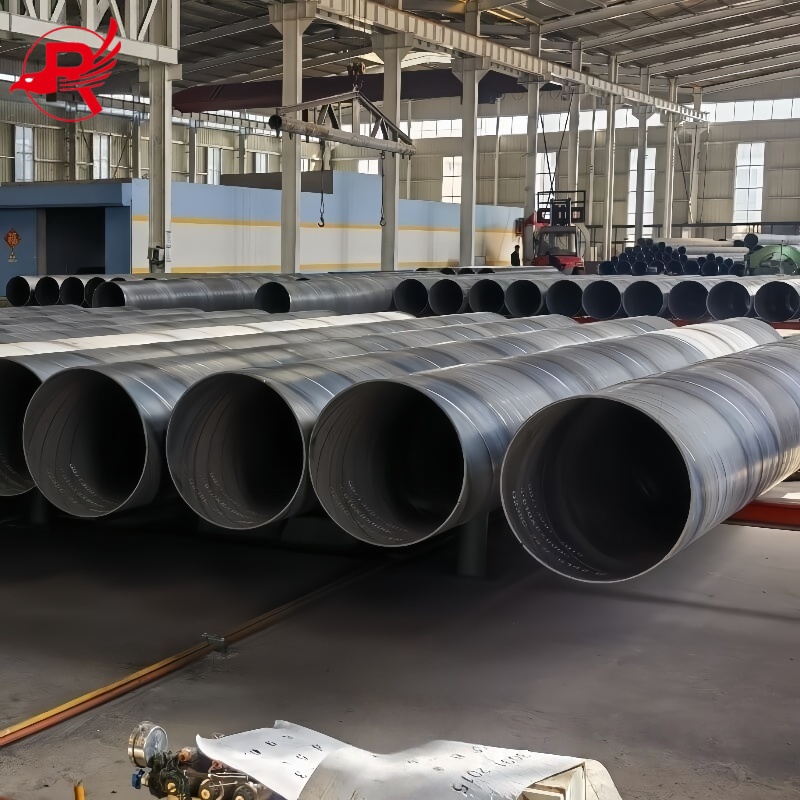

SSAW, also known as spiral submerged arc welded pipe, is produced by forming steel strip or plate into a spiral tube and welding the helical seam.
Its major advantages include efficient production and a broad diameter range. SSAW pipe is frequently used for:
Water transmission
Drainage systems
Municipal pipelines
Piling
Low- to medium-pressure applications
General structural projects
For applications where extreme pressure or stringent pipeline specifications are involved, the project engineer may specify LSAW or seamless pipe instead.
Large diameter seamless pipe is manufactured without a longitudinal weld. Depending on the size and specification, production may involve hot rolling, piercing, expansion, or other specialized processes.
Hot expanded seamless pipe is one method used to achieve larger diameters from a smaller starting tube. The pipe is heated and mechanically expanded to the required outside diameter.
Seamless pipe is often considered for applications where the absence of a welded seam is an important project requirement. However, the choice should always be based on the applicable standard, design code, operating conditions, and purchaser specification rather than diameter alone.
Understanding API 5L and Other Material Standards
Material selection should start with the service conditions and applicable project standard.
For pipeline applications, API 5L line pipe is one of the most widely recognized specifications. Common grades include:
API 5L Grade B
API 5L X42
API 5L X52
API 5L X56
API 5L X60
API 5L X65
API 5L X70
API 5L X80
Higher-strength grades can reduce wall thickness in certain designs, but the final selection depends on pressure, temperature, fracture toughness, welding requirements, transportation conditions, and the applicable pipeline code.
Other commonly specified materials include:

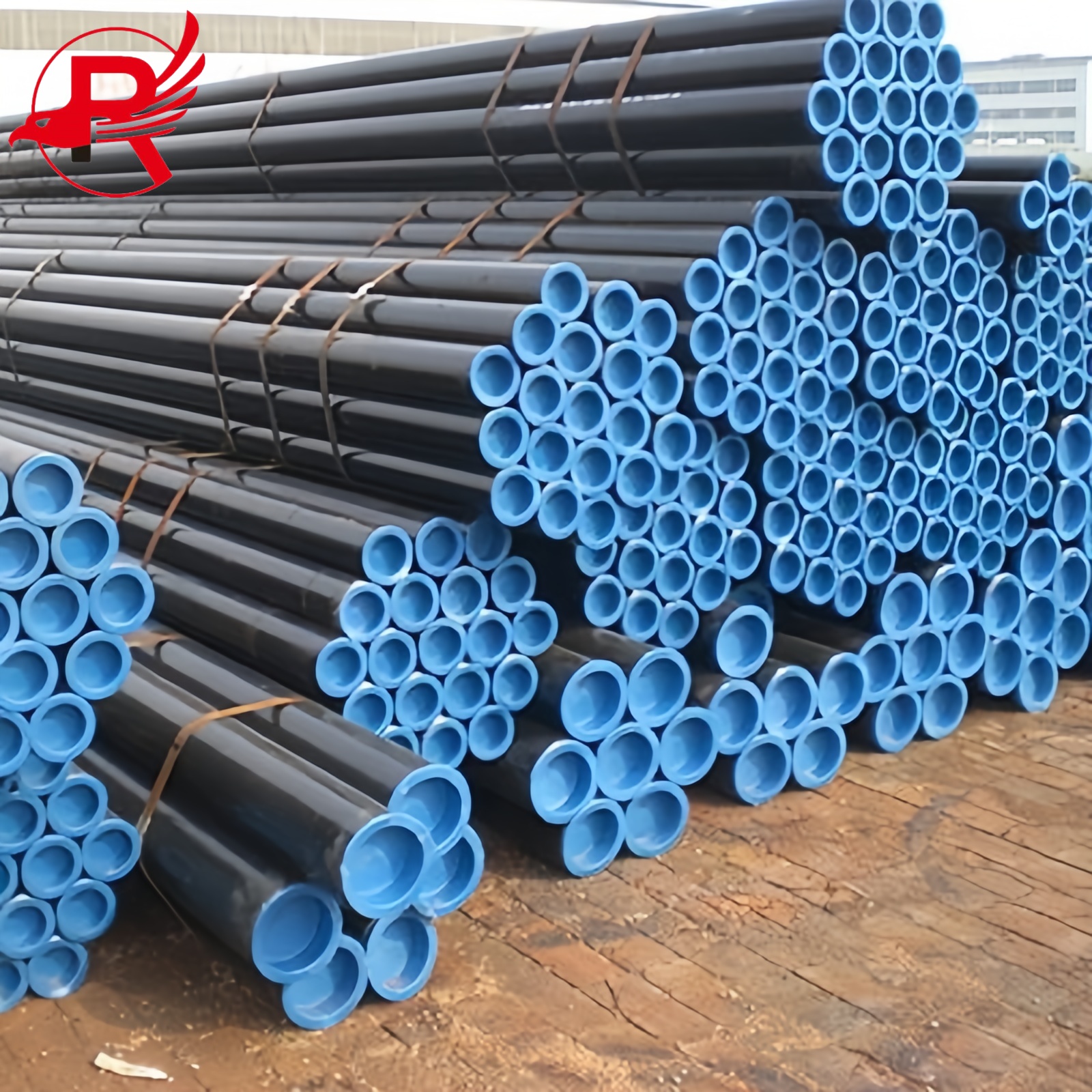

ASTM A53
ASTM A53 carbon steel pipe is commonly used for water, air, structural, and general industrial applications. It is not normally the first choice for high-strength transmission pipeline service where API 5L is specified.
ASTM A252
ASTM A252 is widely used for steel pipe piles in foundations, bridges, marine structures, ports, and other civil engineering projects.
ASTM A106
ASTM A106 seamless carbon steel pipe is designed for high-temperature service and is frequently used in industrial piping systems.
ASTM A671, A672 and A691
These specifications cover various electric-fusion-welded carbon and alloy steel pipe products for pressure and high-temperature applications. The appropriate grade and class should be selected according to the design conditions.
Large Diameter Stainless Steel Pipe
Large diameter stainless steel pipe is used where corrosion resistance is a major requirement.
Typical applications include:
Chemical processing
Desalination plants
Water treatment
Food and beverage facilities
Marine systems
Architectural structures
Process piping
Common stainless grades include:
304 / 304L / 304H
316 / 316L / 316H
310S / 310H
321 / 321H
347 / 347H
904L
For stainless steel pipe, buyers should check not only the grade but also corrosion conditions, operating temperature, welding procedure, surface requirements, and applicable ASTM or EN standards.
Four Checks Before Ordering Large Diameter Seamless Pipe
A large pipe order should be evaluated from both the technical and quality-control sides. Before signing off on production, buyers should pay particular attention to the following points.
1. Verify the Manufacturing Method
If the purchase specification calls for seamless pipe, the mill documentation should clearly identify the product as seamless.
Review the MTC and production documentation rather than relying only on the appearance of the pipe. A properly supplied certificate should identify the applicable standard, grade, dimensions, heat number, mechanical properties, and manufacturing information required by the specification.
2. Check Diameter, Wall Thickness and Roundness
Large pipe needs to meet dimensional requirements throughout the entire order.
Important measurements include:
Outside diameter
Wall thickness
Ovality
Straightness
Length
End squareness
Bevel dimensions
Dimensional accuracy becomes particularly important when the pipe is used with flanges, fittings, field welding, mechanical connections, or automated installation equipment.
For API 5L projects, the purchaser should verify the dimensional requirements against the specific edition and product specification level stated in the contract.
3. Review Hydrostatic Testing and NDT Requirements
Pressure testing and non-destructive examination are important parts of quality control for pipeline products.
Depending on the specification and project requirements, inspection may include:
Hydrostatic testing
Ultrasonic testing (UT)
Radiographic testing (RT)
Magnetic particle testing (MT)
Visual inspection
Dimensional inspection
Chemical composition analysis
Mechanical testing
For welded pipe, particular attention should be paid to weld inspection and the required NDT coverage.
The exact testing method and acceptance criteria should come from the applicable standard and purchase specification.
4. Consider the Operating Environment
The pipe must be suitable for the environment in which it will operate.
For example, different requirements may apply to:
Arctic and low-temperature pipelines
Desert environments
Offshore pipelines
Subsea applications
Sour-service systems
High-temperature process lines
Buried water pipelines
For sour-service applications, material selection, hardness, toughness, welding procedures, and corrosion-control requirements need careful review because hydrogen sulfide can create specific risks for steel pipelines.
How Much Does Large Diameter Steel Pipe Cost?
There is no fixed price for large diameter steel pipe. The final quotation depends on several variables, including:
Outside diameter
Wall thickness
Steel grade
Pipe manufacturing process
Quantity
Length
Coating requirements
Testing requirements
End finish
Inspection requirements
Shipping destination
In many general applications, SSAW pipe can be a cost-effective option for large diameters. LSAW pipe is often selected where tighter manufacturing control or more demanding pipeline specifications are required.
Seamless pipe generally carries a higher manufacturing cost because of its production process and the limitations associated with producing large diameters.
Rather than comparing pipe prices by ton alone, buyers should compare the complete delivered cost, including testing, coating, transportation, documentation, and any required third-party inspection.
Common Applications of Large Diameter Steel Pipe
Large diameter steel pipe is used across a wide range of industries.
Oil and Gas
API 5L line pipe is widely used for transmission pipelines, gathering systems, and energy infrastructure.
Water Transmission
Large diameter pipe is suitable for municipal water mains, industrial water systems, desalination facilities, irrigation, and wastewater projects.
Structural Piling
Large diameter welded pipe is commonly used for foundation piles, bridge construction, port structures, offshore foundations, and heavy-load support systems.
Marine and Offshore Construction
Applications include offshore structures, marine piling, subsea pipelines, risers, and other heavy-duty components.
Shipbuilding
Large steel pipe can be used in structural systems, ballast lines, marine utilities, and other shipbuilding applications.
Chemical and Process Industries
Stainless and alloy steel pipe can be selected for corrosive or high-temperature process environments where carbon steel may not provide sufficient service life.
What Should Be Included in a Pipe Purchase Order?
A clear purchase specification can prevent many problems later in production.
Before requesting a quotation, prepare the following information:
Pipe type: seamless, LSAW, SSAW, ERW, etc.
Outside diameter: for example, 24", 36", or 48"
Wall thickness: in mm or inches
Steel grade: such as API 5L X52 or ASTM A252 Grade 3
Pipe length: fixed length or random length
Quantity: tons or pieces
End finish: plain, beveled, threaded, flanged, etc.
Coating: 3PE, FBE, epoxy, or bare
Inspection: mill inspection or third-party inspection
Delivery terms: FOB, CFR, CIF, or another agreed Incoterm
Providing these details at the quotation stage allows the supplier to calculate a more accurate price and confirm production feasibility.
Why Choose Royal Steel Group for Large Diameter Steel Pipe?
Royal Steel Group supplies carbon steel, alloy steel, and stainless steel pipe for pipeline, construction, marine, piling, and industrial projects.
Our large diameter steel pipe solutions can be supplied according to API, ASTM, EN, and other international specifications, depending on project requirements.
Available services may include:
Cut-to-length
Pipe beveling
Threading
3PE coating
FBE coating
End protection
Custom packing
Mill testing
Third-party inspection
Mill test certificates can be supplied according to the applicable order requirements, with EN 10204 3.1 / 3.2 documentation available for qualifying projects. Third-party inspection by organizations such as SGS, BV, TÜV, or Lloyd's can also be arranged when required.
From production coordination to export documentation and shipping, our team works with buyers to prepare pipe according to the project's technical and logistics requirements.
Final Thoughts
Choosing large diameter steel pipe is not simply a matter of finding the lowest price per ton. The manufacturing method, steel grade, dimensions, testing requirements, coating system, and service environment all affect the long-term performance of the pipeline.
For some water and structural projects, SSAW may provide an efficient solution. For demanding pipeline applications, LSAW or seamless pipe may be specified. The right choice should always follow the engineering design, applicable standard, and project specification.
If you are sourcing large diameter steel pipe, LSAW pipe, SSAW pipe, or API 5L line pipe, send us your required diameter, wall thickness, grade, length, quantity, and delivery destination.
Royal Steel Group can help you review the specification and prepare a quotation based on your project requirements.
