Marine engineering construction is widely recognised as one of the most challenging sectors in civil engineering, due to its extremely harsh operating environments. Multiple complex marine and geological conditions, including continuous seawater erosion, periodic tidal variations, repeated wave impacts, hydrostatic pressure and corrosive soil strata, all exert a significant impact on the structural stability and long-term service lifespan of marine retaining works.

Against this backdrop, the selection of steel sheet piles for marine construction cannot rely solely on the comparison of raw material prices. Engineering designers and construction contractors are required to conduct comprehensive evaluations covering multiple critical dimensions. Key considerations include structural bearing capacity, anti-corrosion performance, cross-sectional profile of sheet piles, on-site installation conditions, design service life and the total lifecycle cost of the entire project.

Steel sheet piles are extensively adopted in diverse marine facilities, ranging from seawalls, quay walls and construction cofferdams to port infrastructures and waterfront retaining structures. Scientific and reasonable selection of sheet piles can deliver reliable and cost-effective solutions for soil retention and water control in marine projects. This article summarises the core influencing factors for sheet pile selection to adapt to the rigorous working conditions of marine engineering scenarios.

Understand the Marine Environment First

Before kicking‑off any steel sheet‑pile marine project, your very first step is to thoroughly analyze the surrounding working environment.

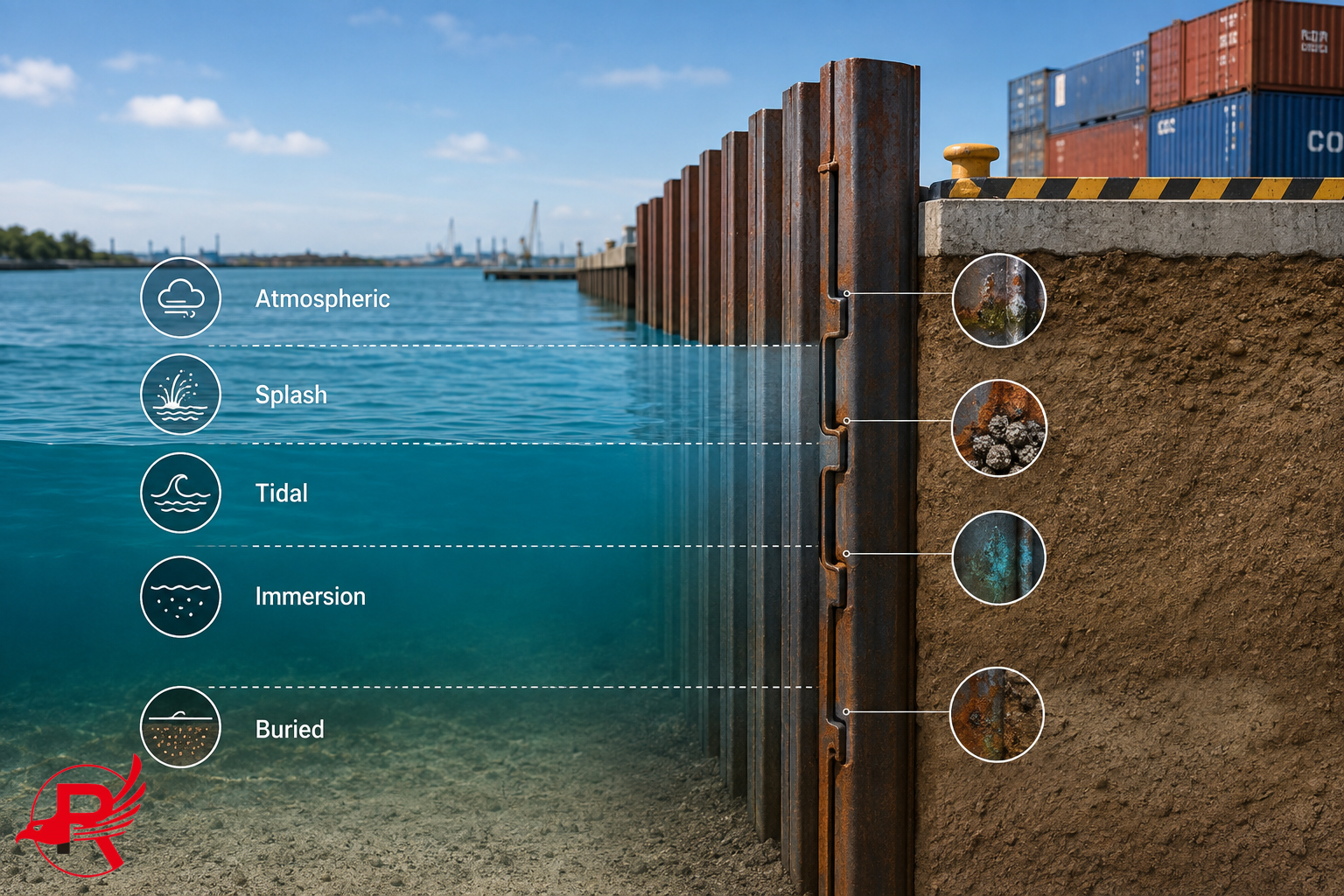

Marine construction differs greatly from inland building work. A single sheet‑pile section often passes through multiple distinct corrosion zones. Common categories include the atmospheric zone, splash zone, tidal zone, fully‑submerged immersion zone, and underground buried‑soil zone.

Corrosion risks vary noticeably from one zone to another. The splash zone and low‑tide areas are especially high‑risk spots. Constant cycles of wetting and drying, abundant oxygen supply, plus direct contact with saltwater, speed up localized corrosion damage on steel.

When designing sheet‑pile seawalls or quay walls, engineers must assess real‑world site exposure conditions. It is not safe to assume uniform corrosion rates across the whole length of a pile.

A clear grasp of local marine conditions also guides you to decide on extra anti‑corrosion measures. These options include adding a corrosion allowance, applying protective surface coatings, installing cathodic‑protection systems, or choosing corrosion‑resistant special steel grades.

Select the Right Sheet Pile Profile

After completing an in-depth analysis of on-site marine environmental conditions, the next key step is to select a suitable sheet pile profile tailored to project demands.

In practical marine construction, U-type and Z-type sheet piles are the two mainstream profile configurations, each with unique structural features and applicable scenarios.

U Type Sheet Piles

U-shaped sheet piles are a versatile structural solution widely applied in seawall construction, river slope protection, temporary cofferdams, quay structures and various conventional retaining works. Thanks to their specialized interlocking joints, individual U-type piles can be tightly connected to form an integral continuous retaining wall. This type of pile stands out for its excellent flexibility in structural design, on-site installation and transportation handling, making it ideal for projects that require adaptable construction solutions.

Z Type Sheet Piles

Z-shaped sheet piles feature interlocks arranged on the neutral axis of the overall wall structure. This optimized structural design gives full play to the mechanical properties of steel materials and delivers superior structural performance. With outstanding bending resistance, Z-type sheet piles are the preferred option for heavy-duty and permanent marine facilities, including deep-buried retaining walls, large-scale quay walls and port infrastructure projects.

In practice, the selection between U-type and Z-type sheet piles should never be determined merely by their structural shapes. Engineers need to conduct comprehensive judgment based on multiple core indicators, including the required section modulus, design bending moment, wall structural dimensions, on-site installation environment and specific project technical specifications.

hot rolled z type steel sheet piles royal steel group (1)

Choose an Appropriate Steel Grade

The steel grade adopted directly governs the overall structural strength and operational performance of sheet pile retaining walls.

For projects implemented in accordance with ASTM standards, ASTM A328/A328M serves as the core specification for carbon steel sheet piles of structural grade. This standard applies widely to marine engineering facilities including dock walls, seawall structures and construction cofferdams.

In accordance with specific engineering design demands, high-strength structural steel or custom special-grade steel can be adopted as alternatives. Regardless of the selection, the chosen steel grade must deliver qualified yield strength and tensile performance, while fully complying with all applicable industry and project standards.

It is worth noting that higher steel strength does not equate to superior practical performance in marine construction scenarios. The selection of steel grade requires comprehensive cross-checking with multiple key parameters, including actual corrosion exposure conditions, pile section thickness, design load criteria and the project’s targeted service life.

Calculate Section Modulus and Required Thickness

Once the optimal sheet pile material and grade are confirmed, designers must verify whether the selected pile section can fully withstand all loads acting on the retaining wall throughout the project lifecycle.

Practical sheet pile design requires comprehensive analysis of a full set of on-site conditions and mechanical parameters, with key considerations listed below:

Lateral earth pressure from retained soil
Static hydrostatic pressure
Fluctuating tidal water levels
Dynamic wave impact loads
Surface surcharge loads
Maximum excavation depth
In-situ soil density
Soil internal friction angle
Field groundwater distribution conditions
Anchor tension and bearing loads
Design bending moment
Minimum required section modulus
Pile embedment depth

The designed thickness of steel sheet piles must deliver sufficient structural bearing capacity to maintain stable performance during the entire service period.

For permanent marine retaining structures, long-term corrosion degradation is a non-negotiable design factor. Engineers need to reserve adequate corrosion margin during the design phase. That is to say, the initial sheet pile thickness should not only satisfy structural safety requirements upon installation but also accommodate gradual material loss caused by long-term marine corrosion, ensuring reliable structural performance in the decades of operation ahead.

The professional design team of Royal Steel Group can provide customized and precise structural design solutions for diverse marine sheet pile projects. ↓

Get a Free Design Proposal

Evaluate Corrosion Protection and Service Life

Once you specify steel sheet piles for seawalls and other waterfront facilities, corrosion risk ranks among your top‑priority design concerns.

Engineers can adopt one or multiple anti‑corrosion solutions according to local site conditions and the targeted design‑life of the marine project.

Corrosion Allowance
Extra steel thickness is built into the sheet‑pile section. This added material offsets metal loss that will gradually occur from corrosion over the structure’s working lifespan.

Protective Coatings
High‑performance coating layers create a barrier that keeps seawater away from bare‑steel surfaces. When picking a coating system, designers need to weigh up factors including saltwater immersion, surface abrasion, ultraviolet radiation and on‑site installation constraints.

Cathodic Protection
Sacrificial‑anode systems or impressed‑current setups are common corrosion‑control choices for components that stay fully underwater on a permanent basis.

Corrosion‑Resistant Steel
Custom steel grades with improved corrosion performance are another viable option, particularly for projects aiming for extended service life and lower long‑term maintenance work.

There is no universal anti‑corrosion solution. Your final plan should match site exposure levels, desired service life, future maintenance schedules and overall project budget.

Pay Special Attention to the Splash and Low-Water Zones

When planning corrosion protection strategies for steel sheet piles, a frequently overlooked yet critical detail is that corrosion damage is rarely distributed uniformly along the entire length of the pile.

Sections of the pile located in the splash, tidal, and low-water zones are repeatedly exposed to seawater, oxygen, and alternating wet-dry conditions. These dynamic environmental factors significantly increase the risk of localized corrosion, a factor that must be fully addressed during the design process.

When designing long-term steel sheet pile seawalls, engineers must analyze corrosion risks for each exposed section of the structure. Relying on a single, uniform corrosion rate for the design—without a comprehensive assessment of actual site conditions—entails significant risk.

This principle is particularly important for port development projects, offshore facilities, coastal flood defense works, and other permanent waterfront infrastructure.

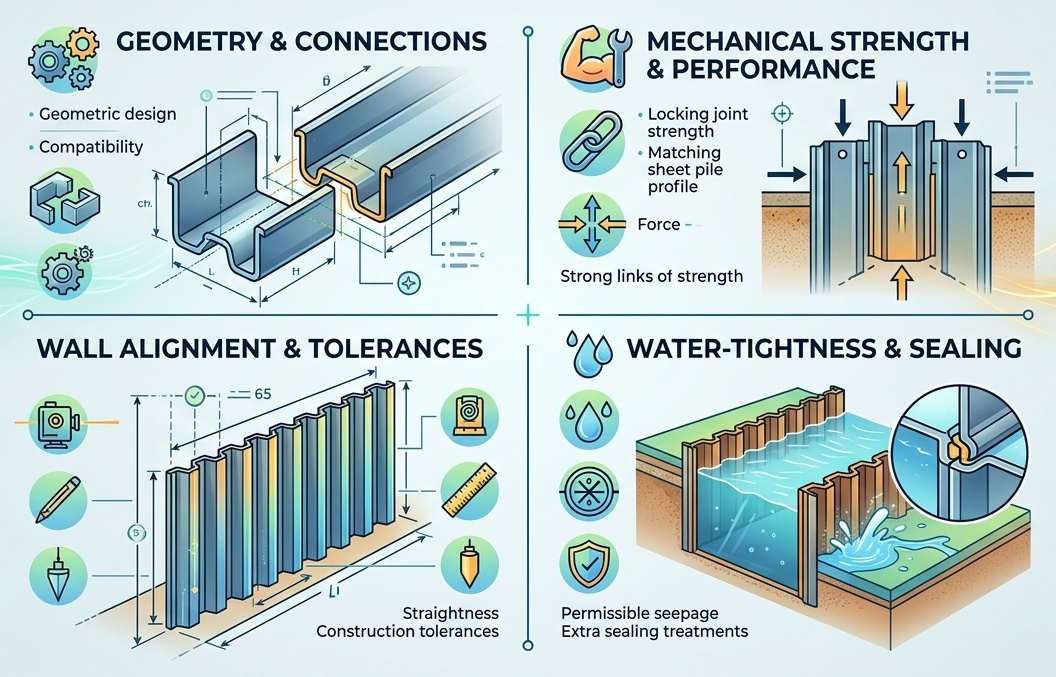

Check Interlock Performance and Water Tightness

Interlocks serve as a vital component for every sheet‑pile retaining wall system.

Separate steel sheet piles connect to one another through these locking joints to build up a seamless, continuous wall. Before placing your procurement order, project teams need to check the following key items carefully:

Interlock geometric design
Mechanical strength of locking joints
Cross‑piece connection compatibility
Straightness and alignment of the finished wall
Construction installation tolerances
Permissible seepage and water‑tightness standards
Ground driving and penetration conditions
Matching performance with the chosen sheet‑pile profile

Extra sealing treatments are often necessary for cofferdams and other water‑retaining structures, to enhance watertight performance along the interlocked joints.

When you select hot‑rolled sheet piles, joint performance should be evaluated at the same time as section strength and overall pile dimensions, rather than treated as an afterthought.

Check Interlock Performance and Water Tightness

Consider Ground Conditions and Installation Method

Even with a perfectly engineered sheet‑pile design, on‑site troubles can still arise if the chosen steel sections cannot be driven smoothly at your work location.

Contractors need to carry out a full‑site assessment before finalizing steel sheet‑pile orders, covering these key factors:

Local soil and bedrock characteristics
Required pile penetration depth
Underground utilities and existing buried structures
On‑site workspace limitations
Capacity of the vibratory hammer
Impact‑hammer driving specifications
Availability of press‑in installation machinery
Local noise‑level regulations
Vibration‑control restrictions
Water‑borne access conditions for marine construction

Vibratory hammers represent the most common installation technique for sheet‑pile projects. Impact hammers or silent press‑in systems can be adopted instead, based on ground properties and environmental constraints.

For this reason, sheet‑pile shape and finished length should always be chosen in coordination with your planned construction installation method.

Determine the Correct Sheet Pile Length

The required steel sheet pile length depends on the overall wall design rather than simply the visible wall height.

Factors such as soil resistance, groundwater level, water pressure, excavation depth, wall stability, and anchoring conditions determine the necessary embedment depth.

A pile that is too short may provide insufficient passive resistance and wall stability. On the other hand, unnecessarily long piles increase material consumption, transportation costs, handling requirements, and installation time.

For this reason, pile length should be established through structural and geotechnical calculations before procurement.

Determine the Correct Sheet Pile Length

Buying steel sheet piles purely based on the lowest per‑ton rate will not always deliver the most cost‑effective outcome for your project.

A thorough, realistic cost evaluation needs to take all of these factors into consideration:

Specified steel grade
Required section modulus
Unit weight of the sheet pile
Wall‑section thickness
Custom pile length
Built‑in corrosion allowance
Surface‑coating specifications
Interlock joint quality and performance
On‑site installation productivity
Overland and marine transportation expenses
Costs for driving and construction machinery
Future maintenance demands
Designed‑for service life

As one typical example, high‑strength sheet piles can cut down overall steel consumption. Meanwhile, a robust anti‑corrosion package helps you save substantial long‑term maintenance spending.

When sourcing sheet piles for marine projects, decisions should center on full‑lifecycle value and total project expenditure, instead of focusing solely on upfront material costs.

GET A QUITE

Conclusion

Selecting suitable steel sheet piles for marine‑based construction calls for a well‑rounded evaluation covering structural capability, anti‑corrosion performance, on‑site build‑up conditions, material specifications and long‑run economic costs.
U type sheet piles and Z type sheet piles are both proven retaining options for seawalls, quay walls, cofferdams, port facilities, harbors and coastal‑defense schemes, provided they are engineered to match project‑specific demands.

The optimal sheet‑pile solution is rarely the thickest section or the lowest‑cost alternative on offer. Rather, it is a carefully matched combination of pile profile and steel grade that delivers adequate structural strength, tailored corrosion protection, dependable interlock sealing, smooth field installation and your target design life — all while keeping overall project expenses competitive.

By reviewing every key factor well ahead of material procurement, construction teams can minimize installation‑related hazards, boost long‑term structural durability, and finalize a sheet pile wall system fully adapted to the tough operating conditions found in marine environments.
