News - H Beam vs W Beam vs S Beam: Differences, Uses & Steel Beam Selection Guide

Structural steel beams are one of the most important components in modern construction and engineering projects. From commercial buildings and warehouses to bridges, industrial facilities, and heavy equipment structures, steel beams provide the strength and stability required to support large loads.

Among the many types of structural steel sections available in the market, H beams, W beams, and S beams are three commonly used profiles, especially in North American construction projects. Although they may look similar at first glance, their designs, mechanical properties, and typical applications are different.

Understanding the differences between H Beam, W Beam, and S Beam can help engineers, contractors, and steel buyers select the right structural steel product for their projects.

Download our product specification sheet with ease.

Which beam sections are suitable for your commercial project? Royal Steel Group is a full-range metal material supplier and service center. We are pleased to offer beam sections in various grades and sizes. Download our specification sheet to view Royal Steel Group’s regular stock list.

Steel Specification Sheet

What Are H Beams, W Beams, and S Beams?

Steel beams are designed with a vertical section called the web and two horizontal sections called flanges. This unique I-shaped or H-shaped cross-section allows the beam to resist bending forces and heavy loads efficiently.

According to the standards established by the American Institute of Steel Construction (AISC), structural beams are classified mainly based on their shape, dimensions, and performance characteristics.

The letters in beam names describe their structural design:

W Beam – “W” stands for Wide Flange Beam
S Beam – “S” stands for American Standard Beam
H Beam – Refers to a heavier H-shaped structural section, often used for high-load applications

While all three beams provide excellent structural support, their differences in flange design, dimensions, and strength make them suitable for different applications.

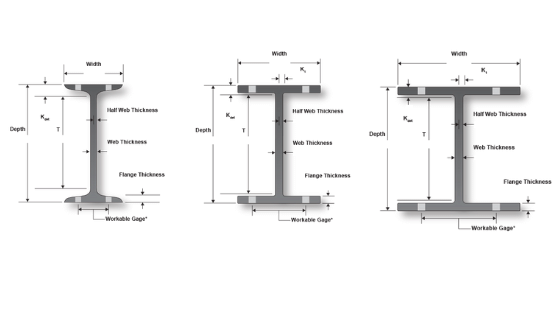

Main Components of Structural Steel Beams

A structural steel beam consists of two primary parts:

1. Web

The vertical section in the center of the beam.
The web mainly resists shear forces and helps maintain the overall stability of the beam.

2. Flanges

The horizontal sections at the top and bottom of the beam.
The flanges provide resistance against bending stress and carry most of the load during structural applications.

The relationship between the web and flanges determines the beam’s strength, weight capacity, and application range.

S Beam: Traditional American Standard Beam

S beams, also known as American Standard Beams, are one of the earliest structural steel beam designs used in construction.

The main characteristics of S beams include:

Tapered flange design
Sloped inner flange surface
Narrower flange width compared with W beams
Rounded connection between the web and flange

The tapered flange allows the beam to achieve good load-bearing performance while maintaining a traditional structural design.

However, compared with modern wide flange beams, S beams generally offer fewer size options and are less commonly used in large-scale commercial construction today.

Common Applications of S Beams:

Residential and commercial structures
Bridges
Shipbuilding projects
General structural frameworks

W Beam: The Most Widely Used Structural Beam

The W beam, also called a Wide Flange Beam, is currently one of the most popular structural steel sections in North America.

Unlike S beams, W beams feature:

Parallel flange surfaces
Wider flange dimensions
Uniform flange thickness
Better resistance against bending forces

The wider flange provides improved structural efficiency, allowing W beams to support heavier loads with less material weight.

Because of their excellent strength-to-weight ratio and wide range of available sizes, W beams are commonly selected for modern construction projects.

Common Applications of W Beams:

Steel building frames
Industrial warehouses
High-rise buildings
Bridges
Equipment support structures
Commercial construction projects

Royal Steel Group supplies high-quality ASTM A992, ASTM A572, and ASTM A36 W beams for global construction and engineering applications.

H Beam: Heavy-Duty Structural Steel for High Load Applications

H beams are designed for projects requiring exceptional strength and load capacity.

Compared with standard W beams, H beams typically feature:

Wider and thicker flanges
Equal or nearly equal flange width and beam depth
Uniform thickness throughout the section
Higher load-bearing capability

Due to their heavy-duty structure, H beams are often used as primary load-supporting members in large infrastructure projects.

Common Applications of H Beams:

High-rise building foundations
Heavy industrial plants
Steel structures
Bridge construction
Piling and foundation support

H beams are also widely known as bearing piles or HP sections when used in foundation engineering.

H Beam vs W Beam vs S Beam: Key Differences

Feature	S Beam	W Beam	H Beam
Flange Design	Tapered flange	Parallel flange	Parallel flange
Flange Width	Narrow	Wide	Very wide
Load Capacity	Medium	High	Very High
Size Range	Limited	Extensive	Heavy-duty sizes
Main Use	Traditional structures	Modern construction	Heavy structures & foundations

How to Choose the Right Steel Beam for Your Project?

Selecting the correct structural steel beam depends on several factors:

1. Load Requirements

Determine the weight and forces the beam needs to support.

2. Structural Design

Consider span length, connection method, and building requirements.

3. Steel Grade

Different projects require different material grades, such as:

ASTM A36 Carbon Steel
ASTM A572 Grade 50 Steel
ASTM A992 Structural Steel

4. Project Environment

For outdoor, industrial, or infrastructure projects, corrosion resistance and durability should also be considered.

Why Choose Royal Steel Group Structural Steel Beams?

Royal Steel Group is a professional global steel supplier providing high-quality structural steel products for construction, infrastructure, and industrial projects.

Our structural steel beams are manufactured according to international standards and are available in various sizes, grades, and specifications.

We provide:

✔ ASTM standard structural steel beams
✔ Competitive factory-direct pricing
✔ Customized sizes and processing services
✔ Reliable quality inspection
✔ Worldwide shipping solutions

Whether you need W beams, H beams, or S beams, Royal Steel Group can provide the right steel solution for your project.

H beams, W beams, and S beams all play important roles in structural engineering, but their designs and applications are different.

For most modern construction projects, W beams are the preferred choice due to their wide availability and excellent strength-to-weight performance. For heavy-duty applications such as foundations and large infrastructure projects, H beams provide superior load capacity. Meanwhile, S beams remain valuable for specific traditional structural applications.

Choosing the right steel beam ensures better performance, safety, and cost efficiency for your construction project.
