News - Galvanized Pipe: What It Does Well, Where It Falls Short, and Where to Use It

Galvanized steel pipe — usually called GI pipe — is steel pipe with a zinc coating applied to fight corrosion. It's been around a long time and still shows up on plenty of job sites, but it's not the answer for every application. Before you specify it, it's worth understanding both sides of the story.

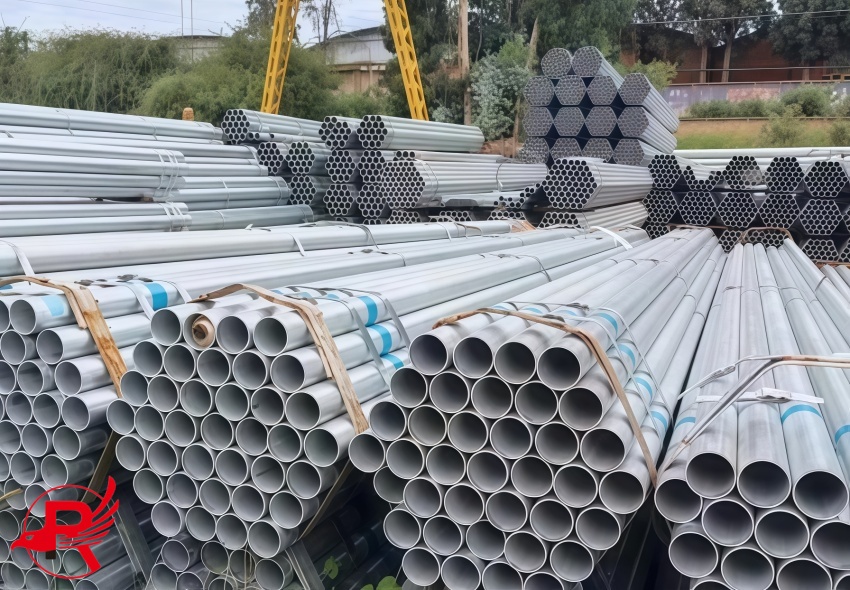

galvanized steel pipe royalsteelgroup (2)

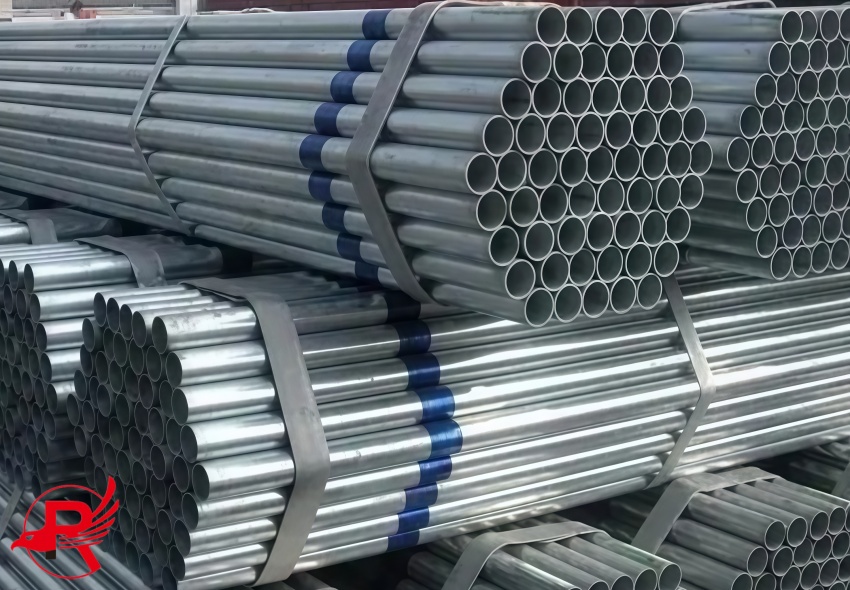

galvanized steel pipe royalsteelgroup (1)

Advantages

Lower cost than paint systems. Hot-dip galvanizing generally costs less than applying paint or other protective coatings. For projects where the budget is tight, that's a real advantage.

Long service life. A proper hot-dip galvanized coating comes out smooth, uniformly thick, and well bonded — no missed spots, no drips. In most environments it can last 50 years or more without maintenance. In coastal or heavily industrial areas, where the air carries more salt and pollutants, you can still expect roughly 20 years before the zinc needs attention.

The zinc actually bonds with the steel. This isn't a layer sitting on top — it's a metallurgical bond, which means the coating becomes part of the steel surface itself. That's why it holds up better than paint that can chip or peel.

Tough enough for real-world handling. The galvanized layer has a distinct crystalline structure that resists scratches and dents during shipping, unloading, and installation.

Coverage everywhere, even the hard spots. When a pipe is dipped, zinc reaches every surface — inside corners, sharp edges, areas you can't easily reach with a brush. Paint rarely matches that level of coverage.

Ready to install, no on-site coating needed. Galvanizing happens at the mill. Once the pipe arrives, it's ready to go — no waiting for paint to dry on site.

Disadvantages

Not all galvanized pipe is the same. Cold-galvanized (electroplated) pipe has a much thinner zinc layer that sits on top of the steel rather than alloying with it. It peels easily, corrodes quickly, and is actually prohibited for water supply lines in new construction in many jurisdictions.

Even quality hot-dip galvanized pipe has real limitations:

Corrosion eventually wins. The zinc is sacrificial — it corrodes over time, and that process speeds up in humid, acidic, or high-salt environments. Once the zinc is gone, the underlying carbon steel is exposed and rusts fast. In harsh settings, it's not unusual to see red rust, pinholes, and leaks within 5 to 10 years. Stainless steel or PVC typically lasts longer under the same conditions. And if the pipe carries acidic, alkaline, or chlorinated liquids — pool water, chemical wastewater — the corrosion rate is dramatically faster.

Scaling and blockages are common. As the zinc wears, particles can flake off and settle in low points of the system, causing clogs. This is especially problematic in small-diameter pipe (DN50 and under). In hard-water areas, calcium and magnesium scale builds up on the inner wall over time, reducing flow by as much as 30%. That scale also harbors bacteria, which is a concern for water quality. This is a major reason galvanized pipe is no longer recommended for drinking water systems — anyone who's dealt with low water pressure in an older building has probably seen this firsthand.

Welding creates problems. When you weld galvanized pipe, the zinc vaporizes and produces zinc oxide fumes. Workers exposed to these fumes can develop metal fume fever, so proper ventilation and respiratory protection are mandatory. The zinc also causes porosity and cracking in the weld itself, which means you usually need to grind the coating off first — adding time and labor cost. Where welding is required, seamless steel pipe (such as ASTM A106) or flange connections are often the better choice.

Heavy and slower to install. For the same diameter, GI pipe weighs about three times as much as PPR and roughly 1.5 times as much as stainless steel. That means more manpower for handling and installation. Threaded or flanged connections are also slower than the heat-fusion joints used with plastic pipe, and leaks at joints are more common. The material may be cheap, but labor and maintenance costs can erase that savings over the life of the project.

Not ideal for drinking water. Older galvanized systems can leach zinc ions into the water, which react with chlorine to form zinc chloride — giving the water a metallic taste. The rough, corroded inner surface also creates a breeding ground for pathogens like Legionella.

Temperature limits. Sustained temperatures above 60°C — think solar water heating systems — accelerate zinc degradation and weaken the steel. Below freezing, the galvanized coating can crack, making it unsuitable for conveying frozen liquids. For high-temperature service, A106 Gr.B seamless pipe is a better fit; for low-temperature service, A333 Gr.6 is the standard.

Where It Still Makes Sense

Fire protection systems. Most fire water supply lines are still galvanized pipe, often painted red on the outside for visibility. The system sits idle most of the time, and the zinc handles standby water well enough.

Steel structures and fabrication. Many prefab buildings and sheds used to be built with bare welded pipe that needed regular painting to prevent rust. Galvanized pipe skips that step — it's ready to erect and lasts longer with less maintenance.

Agriculture. Greenhouse frames, trellises, and support posts for crops are common uses. The zinc coating handles outdoor exposure well enough for these applications.

Practical Guidance

Galvanized pipe is a reasonable choice for short-term temporary projects and for fire protection pipelines in non-corrosive environments. For drinking water systems, HVAC, chemical pipelines, and high- or low-temperature medium transport, other materials are almost always the better call.

Storage Tips

Store galvanized pipe in a clean, well-drained area, away from factories or mines that produce corrosive fumes or dust. Clear the ground of weeds and debris. Don't stack it alongside acids, alkalis, salts, cement, or other corrosive materials. Different sizes and types should be kept separate to avoid mixing and contact corrosion.

Large, heavy items — steel beams, rails, plates, large-diameter pipe — can be stored outdoors. Smaller or thinner-walled products, cold-rolled and galvanized items, and expensive corrosion-sensitive materials belong in a closed warehouse with a roof, solid walls, tight doors and windows, and ventilation.
