When sourcing steel for building or mechanical and electrical engineering projects, you might be confused by C-channel steel and U-channel steel—are they just different names, or are they fundamentally different? The answer is no. Although both have a channel-shaped cross-section, these two products differ significantly in manufacturing methods, dimensions, load-bearing capacity, fittings, and applications. Choosing the wrong steel can increase project costs, cause installation delays, and even worse, create safety hazards. This guide covers the basic engineering principles to help you choose the right product the first time.

GET A QUOTE

strut c channel royal steel group (1) (1)

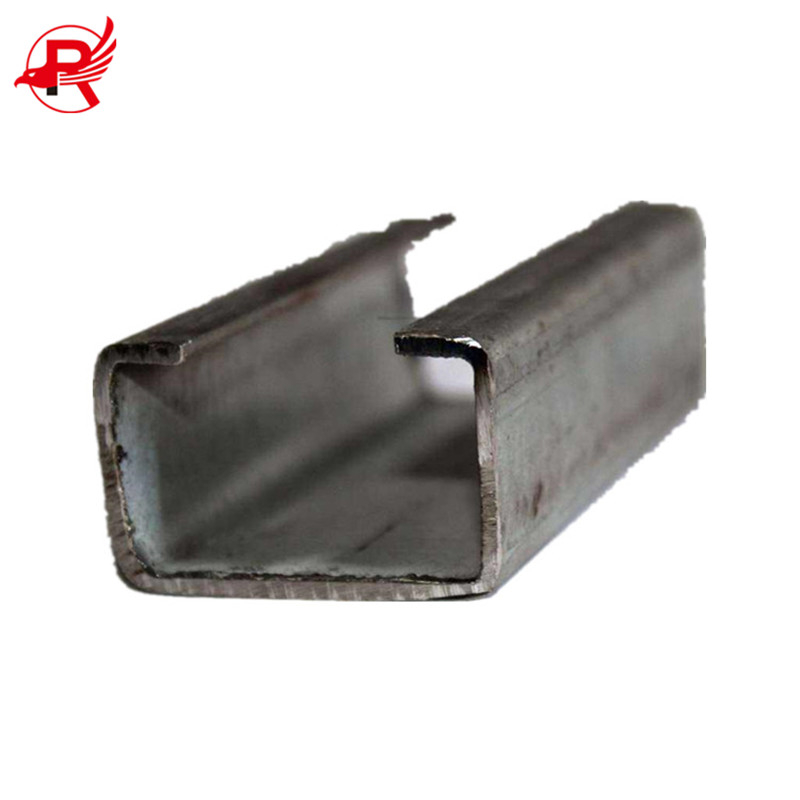

What Is a C Strut Channel?

C-channel steel (also known as channel steel, slotted channel steel, or metal frame channel steel) is a profile formed by cold rolling of steel strip or coil. The most common cross-sectional size is 41×41 mm (1-5/8 inch × 1-5/8 inch), with other standard sizes including 41×21 mm, 41×62 mm, and 41×82 mm. Wall thickness typically ranges from 1.0 mm to 2.5 mm, and standard lengths are 3 meters and 6 meters.

The most distinctive feature of C-channel steel is the slotted grooves stamped on its web, allowing nuts, bolts, and other hardware to be secured in any position. Therefore, it is ideally suited for modular support systems: HVAC duct hangers, cable trays, pipe supports, seismic bracing, and solar panel mounting frames are just a few examples of the many common uses of C-channel steel. It can be finished uncoated, pre-galvanized, hot-dip galvanized (HDG), or powder-coated, and the material can be low-carbon steel, stainless steel, or aluminum.

What Is a U Steel Channel?

U-shaped steel channels, also known as U-shaped channel steel, U-section, or UPN channel steel, are hot-rolled structural profiles made by directly rolling steel billets at high temperatures. Their cross-section is U-shaped, with a flat web and two parallel flanges, but no back edge or notch. The height is typically 80 mm to 400 mm (UPN 80 to UPN 400), the flange width is 41 mm to 100 mm, and the web thickness is 4.5 mm to 12 mm.

U-shaped steel channels are manufactured using a hot-rolling process. As structural load-bearing components, they can withstand greater loads and are therefore used as primary or secondary structural steel, such as beams and columns, machine frames, bridge supports, crane rails, and heavy equipment foundations. Typical grades are S235JR, S275JR, or S355JR conforming to EN 10025, ASTM A36/A572, Q235/Q345, and SS400. UPN channel steel dimensions conform to EN 10034 / EN 10365 standards, and are available in sizes of 5.8 meters, 6 meters, 9 meters, 11.8 meters and 12 meters.

C Strut Channel vs U Steel Channel: Key Differences

The table below summarizes the main differences between the two products across every dimension that matters for selection.

Comparison Point	C Strut Channel	U Steel Channel
Manufacturing process	Cold-formed / roll-formed from steel strip	Hot-rolled from steel billet
Cross section	C-shape with inward return lips; slotted or solid web	U-shape with flat web and open parallel flanges
Standard sizes	41 × 21, 41 × 41, 41 × 62, 41 × 82 mm	UPN 80 – UPN 400 (height 80 – 400 mm)
Wall thickness	1.0 – 2.5 mm (light gauge)	4.5 – 12 mm (heavy structural)
Material grades	Q235, Q345, SS400, stainless steel, aluminum	S235JR / S275JR / S355JR, ASTM A36 / A572, SS400
Load capacity	Light to medium support loads	High structural loads
Typical application	MEP supports, cable trays, pipe brackets, solar mounting	Beams, columns, machine frames, bridge support
Accessories	Complete modular fitting system (nuts, brackets, bolts)	Limited; connected mainly by welding or bolting

In short, the differences are reflected in the following five points:

Details: C-shaped channel steel is cold-formed, while U-shaped channel steel is hot-rolled.

C-shaped channel steel has inwardly flanged edges and grooves on both sides; U-shaped channel steel has a flat web and two open flanges.

Load Capacity: U-shaped channel steel is used to bear structural loads, while C-shaped channel steel is used to bear light to medium-sized equipment loads.

Dimensions: Channel steel is based on a 41 mm series; UPN channel steel has a height range of 80 mm to 400 mm.

Assembly Method: Channel steel uses a modular connection system; U-shaped channel steel is connected by welding or bolting.

Get Quote Now! Send Inquiry in 2 Hours

How to Choose: C Strut Channel or U Steel Channel?

Need to suspend pipes, cables, ducts, or light equipment? Choose C-channel steel and its modular fittings for quick and flexible installation.

Looking for key structural members to support heavy loads and long spans? Choose hot-rolled structural grade U-channel steel (UPN).

Outdoor, coastal, or corrosive environments? For maximum service life, specify hot-dip galvanized channel steel or hot-dip galvanized U-channel steel.

Unsure which section is right for your span and load? Send your application, span, and load information to Royal Steel Group's email address—our engineers will recommend the appropriate section and grade.

Royal Steel Group: Your Professional Steel Channel Supplier

Royal Steel Group is a well-known Chinese steel producer and exporter that can offer both product lines from one factory — hot-rolled U steel channel (UPN 80- UPN 400) and cold-formed C strut channel (41 × 21 to 41 × 82 mm). So you get the advantage of multiple components of your bill of materials from a single, trusted source under one quality umbrella.

Full standards compliance: EN 10034 / EN 10365, EN 10025 (S235JR / S275JR / S355JR), ASTM A36 / A572, ASTM A123 galvanized, JIS and GB standards.

Quality approved: ISO 9001 certified production, with SGS / BV third party inspection reports are available upon request.

Treatment and customization: drilling, hole cutting, end processing, prefabricated welding, painting/epoxy coating and hot-dip galvanizing.

Supply flexible: MOQ 20 tons, standard lengths 5.8m/6m/9m/11.8m/12m, and customized cuts according to your drawing.

International export experience: professional packing for container and on-time shipment to North America, Europe, Middle East, Africa and Southeast Asia.
