An In-Depth Analysis of the Core Parameters and Properties of Hot-Rolled Steel Coil: From Production to Application

Within the vast steel industry, hot-rolled steel coil serves as a foundational material, widely used in fields such as construction, machinery manufacturing, and the automotive industry. Carbon steel coil, with its excellent overall performance and cost-effectiveness, has become a mainstream material in the market. Understanding its core parameters and properties is not only crucial for purchasing decisions but also fundamental to maximizing the value of the material.

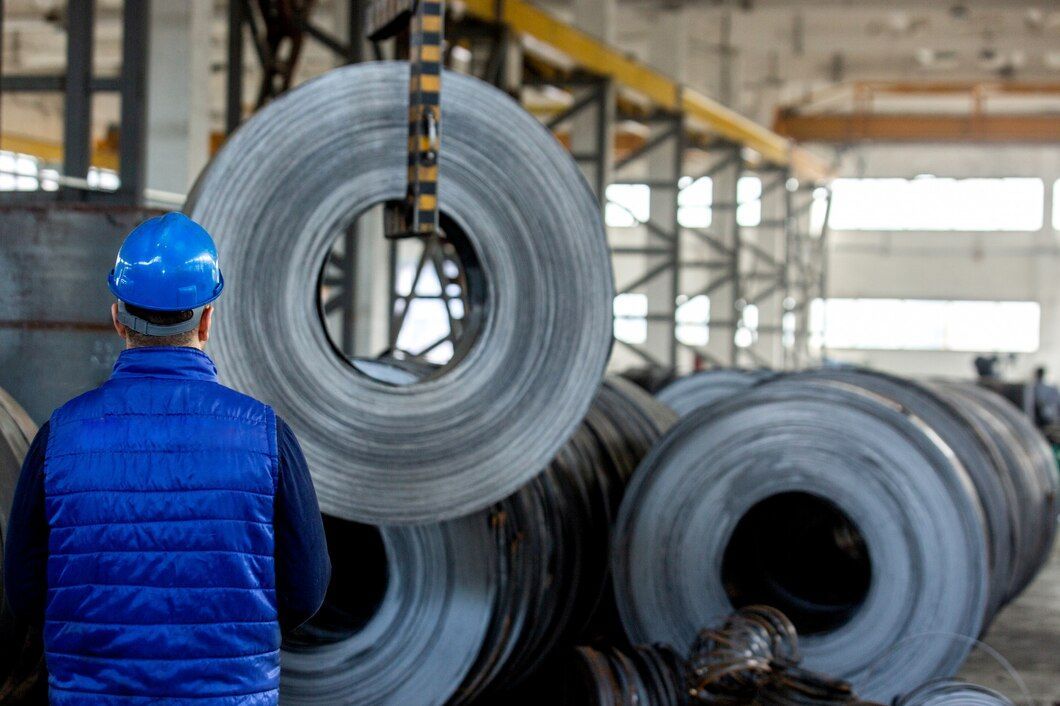

In a factory work scenario, a staff member wearing a blue safety helmet and a blue vest is intently watching a hot-rolled steel coil being lifted by a crane. Surrounding them are neatly stacked multiple hot-rolled steel coils. The massive steel coils and the orderly factory environment demonstrate the solidity and standardization of the steel production and processing 环节，highlight the important position of hot-rolled steel coils as a basic material in industrial production, and also convey a rigorous and orderly atmosphere during factory operations.

ASTM A36 Steel Coil

Carbon steel coil production begins at the carbon steel coil factory, where billets are processed into coils of specific specifications through a high-temperature rolling process. For example, ASTM A36 steel coil is a commonly used steel grade specified by the American Society for Testing and Materials (ASTM) standards and is highly sought after in the construction and structural engineering fields. ASTM A36 coil boasts a yield strength of ≥250 MPa and a tensile strength of 400-550 MPa, along with excellent ductility and weldability, meeting the load-bearing and connection requirements of large structures such as bridges and factory frames. Its chemical composition typically keeps the carbon content below 0.25%, effectively balancing strength and toughness while avoiding the embrittlement associated with excessive carbon content.

From a parameter perspective, thickness, width, and coil weight are essential indicators for evaluating the performance of hot-rolled steel coils. Common thicknesses range from 1.2 to 25.4 mm, while widths can exceed 2000 mm. Coil weight is customizable, typically ranging from 10 to 30 tons. Precise dimensional control not only impacts processing efficiency but also directly affects the precision of the final product. For example, the thickness tolerance of hot-rolled steel coils used in automotive manufacturing must be strictly controlled within ±0.05 mm to ensure consistent dimensions of stamped parts.

Core Parameters of A36 Hot Rolled Steel Coil

Parameter Category	Specific Parameters	Parameter Details
Standard Specifications	Implementation Standard	ASTM A36 (American Society for Testing and Materials Standard)
Chemical Composition	C	≤0.25%
	Mn	≤1.65%
	P	≤0.04%
	S	≤0.05%
Mechanical Properties	Yield Strength	≥250MPa
	Tensile Strength	400-550MPa
	Elongation (200mm Gauge Length)	≥23%
General Specifications	Thickness Range	Common 1.2-25.4mm (customizable)
	Width Range	Up to 2000mm (customizable)
	Roll Weight	General 10-30 tons (customizable)
Quality Characteristics	Surface Quality	Smooth surface, uniform oxide scale, free of cracks, scars, and other defects
Quality Characteristics	Internal Quality	Dense internal structure, standard grain size, free of inclusions and segregation
Performance Advantages	Key Characteristics	Excellent ductility and weldability, suitable for load-bearing and connecting structures
Performance Advantages	Application Areas	Building structures (bridges, factory frames, etc.), machinery manufacturing, etc.

Performance Requirements of Hot-rolled Steel Coils in Different Industries

The performance requirements for hot-rolled steel coils vary significantly across industries. The construction industry prioritizes strength and weather resistance, while the machining industry prioritizes machinability and surface finish. Therefore, carbon steel coil manufacturers must adapt their production processes to customer needs. For example, controlled rolling and cooling techniques can be used to optimize grain structure, or alloying elements can be added to enhance specific properties. For example, for coils used in high-humidity environments, the addition of elements such as phosphorus and copper can enhance atmospheric corrosion resistance.

From the carbon steel coil manufacturer's production process to the end-user's application requirements, the core parameters and properties of hot-rolled steel coil are intertwined throughout the supply chain. Whether purchasing steel coils in bulk or selecting specific ASTM A36 coils, a deep understanding of material properties is crucial for achieving the optimal balance between performance and cost, laying a solid foundation for high-quality development across various industries.

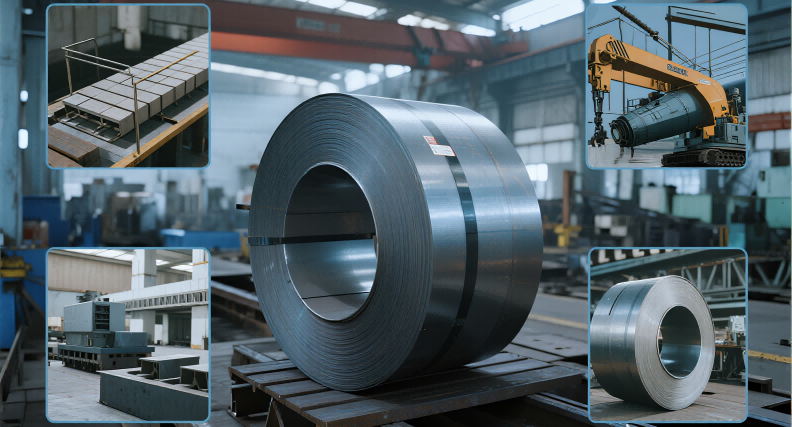

Multiple scenes show different application scenarios of hot-rolled steel coils
