Download the Latest Strut C Channel Specifications and Dimensions.
Heavy-Duty Hot-Dip Galvanized Strut C Channel | S235/S355 Steel | 41×41–152x41mm | Cable Trays, Racking & Industrial Supports
Royal Steel Group is a leading manufacturer of Strut C Channel, which has a diverse range of application in construction, electrical and industrial suspension system. Our channels are made from high strength S235JR or S355JR steel with a hot-dip galvanization for a long-lasting protection against corrosion, which makes them perfect for use in tropical or marine environments.
From 41x41mm up to 152x41mm in the standard sizes these channels offer ideal solutions for cable trays, racking systems, pipelines, and supports for frames.
| Designation | Material | Width (mm) | Height (mm) | Thickness (mm) | Surface Finish | Typical Applications |
| SC-41x41 | S235JR | 41 | 41 | 2.5 | Hot-dip galvanized | Electrical supports, cable trays |
| SC-41x41 | S355JR | 41 | 41 | 3 | Hot-dip galvanized | Industrial racking, frameworks |
| SC-100x41 | S235JR | 100 | 41 | 3 | Hot-dip galvanized | Pipe supports, construction frameworks |
| SC-152x41 | S355JR | 152 | 41 | 4 | Hot-dip galvanized | Heavy-duty industrial supports |
Note: Custom lengths and thicknesses can be provided according to your project requirements.
Technical Data
Strut C Channel Chemical Composition
| Grade | C (Max) | Si (Max) | Mn (Max) | P (Max) | S (Max) | N (Max) |
| S235JR | 0.22 | 0.35 | 1.4 | 0.045 | 0.045 | 0.012 |
| S355JR | 0.24 | 0.55 | 1.6 | 0.035 | 0.035 | 0.012 |
Strut C Channel Mechanical Property
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) | Impact Test |
| S235JR | ≥235 | 360–510 | ≥26 | 27J @ 20°C |
| S355JR | ≥355 | 470–630 | ≥22 | 27J @ 20°C |
Notes
S235JR: Suitable for general structural and light-duty applications.
S355JR: Higher strength, ideal for heavy industrial frames/equipment, machinery, and large-scale structural engineering.
These products are widely used in supporting C-channels, steel channels, building supports, and cable tray systems.
Strut C Channel (also called Unistrut Channel / Steel Strut Channel) is widely used in electrical supports, cable tray systems, pipe supports, solar mounting structures, and industrial frameworks.

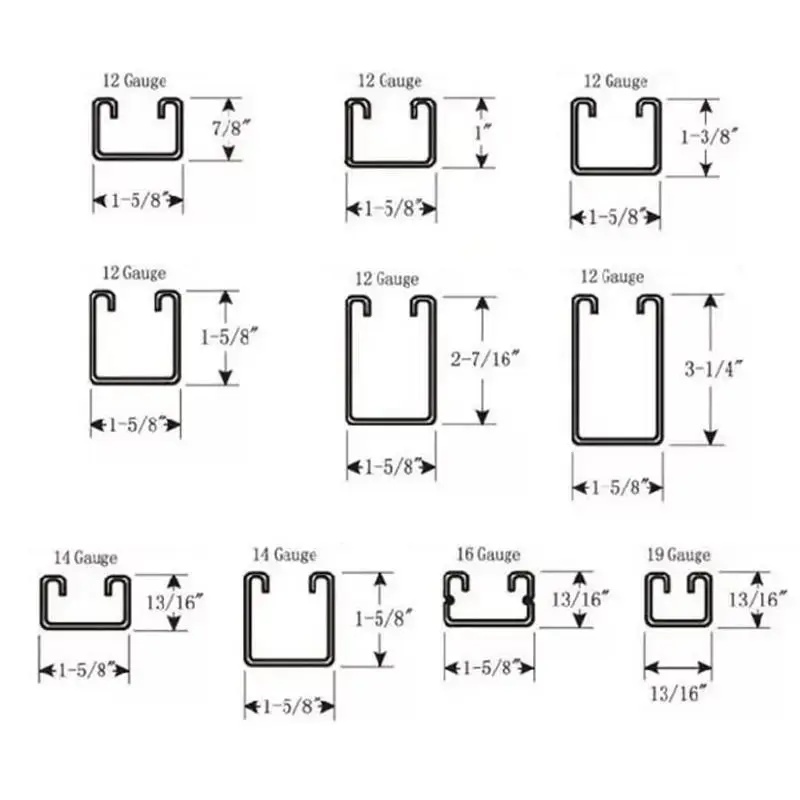

Below are the most commonly used sizes for international construction and industrial projects.
| Size (mm) | Width (mm) | Height (mm) | Thickness (mm) | Weight (kg/m) | Typical Application |
| 41 × 21 | 41 | 21 | 1.5 – 2.0 | 1.3 – 1.8 | Light electrical supports |
| 41 × 41 | 41 | 41 | 2.0 – 2.5 | 2.4 – 3.2 | Cable trays, conduit support |
| 41 × 62 | 41 | 62 | 2.0 – 2.5 | 3.0 – 3.8 | Medium structural supports |
| 41 × 82 | 41 | 82 | 2.5 – 3.0 | 3.8 – 4.8 | Pipe supports |
| 41 × 124 | 41 | 124 | 2.5 – 3.0 | 5.2 – 6.5 | Industrial frameworks |
| 41 × 152 | 41 | 152 | 3.0 – 4.0 | 6.8 – 8.5 | Heavy-duty equipment support |
Click the Button on The Right

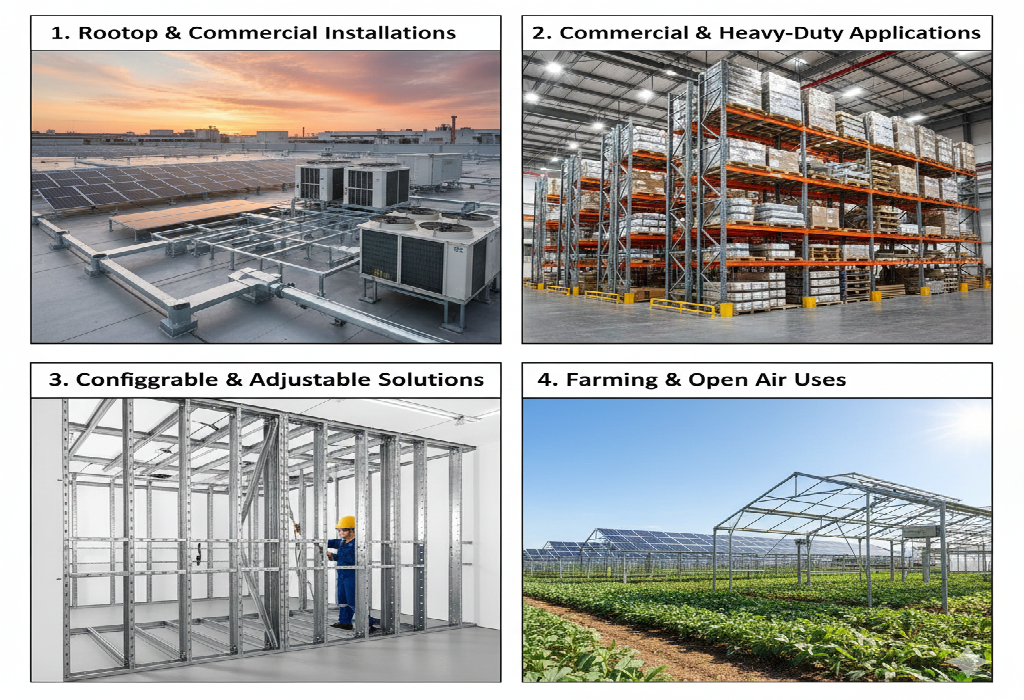

Strut C channels have become one of the most common and most versatile building materials utilized in the construction, electrical and manufacturing industries, and for good reasons like its strength, flexibility and ease of use.
Electrical Cable Trays and Conduits: Strut channel also offers a robust and modular system for supporting cable trays, conduits, and wiring systems in commercial or industrial applications. Thanks to their slotted design, you can make quick modifications or mount electrical parts.
Industrial and Warehouse Racking Systems Storage: Strut C channel provides an excellent medium for building support structures for industrial & warehouse hard shelve racks, pallet racks, and bin racks that are easily adjustable and modular making them perfect for any warehouse or distribution center storage needs.
Pipe & Duct Supports: Strut channel is also widely utilized in plumbing, HVAC ductwork, and piping systems applications in residential, commercial, and industrial settings. Their high carrying capacity makes them long lasting stability and safe.
Structural Frames for Factory & Workshop: They are used as the backbone for bolting down machinery, workbenches, mezzanine floors and security fences, providing a robust and versatile platform for manufacturing and automotive applications.
Solar Panel Mount and Industrial Equipment Supports: Strut channel is perfect for Solar panel arrays, industrial lighting and heavy machinery. With corrosion-resistant finish (hot-dip galvanized or powder coated) they can be used outdoors, by the sea, and in humid environments.
Load Requirements: Choose S355JR for heavier loads.
Environmental Conditions: Hot-dip galvanized channels for coastal or tropical areas.
Application Type: Cable trays, racking, or pipe supports.
Size & Thickness: Determine based on span and weight requirements.
Our engineers can help select the right Strut C Channel for your project, ensuring structural safety and cost efficiency.
As one of the top steel profile producers in the market, we offer:
Hot-dip galvanized Strut C Channel in s235jr and s355jr steel
Custom lengths and sizes available for worldwide projects
Delivery to Indonesia, Philippines, Malaysia, Mexico, and around the world
Consultation and quotation services available 24 hours

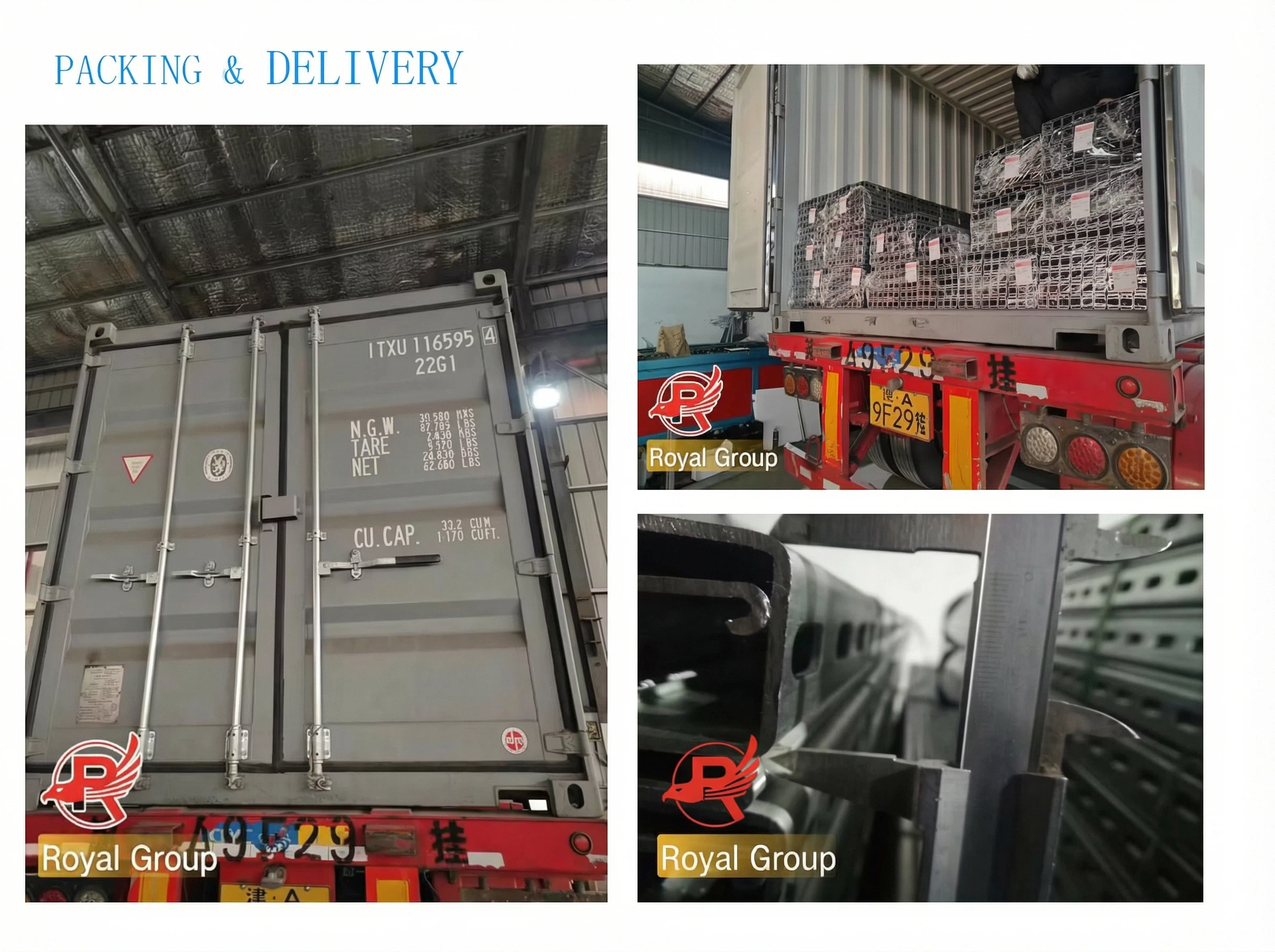

Packaging:
Strapped with steel or plastic straps and tagged with specification.
End caps and anti-rust wrapping protect surfaces.
Palletized for easy handling, special packaging is available on request.
Delivery:
Time:15–25 days after order confirmation.
Transportation: Sea, Road, Rail, Container Loading Maximized.
Full export documentation available.
Stable cooperation with shipping companies such as MSK, MSC, COSCO efficiently logistics service chain, logistics service chain are we to your satisfaction.
We follow the standards of quality management system ISO9001 in all procedure, and have strict control from packaging material purchase to transport vehicle scheduling.
Q1: What are the materials for Strut C Channel?
A: We supply hot-dip galvanized S235JR and S355JR steel for the weathering protection.
Q2: Is it possible to get custom lengths?
A: Yes, we can provide you with custom length and thickness as per your project requirement.
Q3: Do you make these channels for tropical marine environment?
A: Yes, Hot dip galvanization (thickness of zinc layer≥100μm) plus epoxy coating can be used in tropical and coastal area.
Q4: How soon can I have a quotation?
A: Our consultation services and quotations are available for you around the clock, globally.
