H Beam Products

H Beam (Wide Flange Beam) is a high-strength structural steel profile with good load force property.

Our H beams are manufactured according to international standards such as ASTM, EN and GB, with a wide selection of material grades to meet diverse structural requirements.

Standard & Material

Our H Beam products are mainly classified according to standards into GB H Beam,ASTM W Beam and EN HEA HEB Beam:

Category	Standard	Material Grade	Common Name	Size Range	Main Market
ASTM	ASTM A36	A36	ASTM A36 H Beam	H: 100–900mm · B: 100–300mm · Length: 6–12m	America, Middle East, Southeast Asia
	ASTM A572	Gr.50 / Gr.60	ASTM A572 H Beam	H: 150–900mm · B: 100–300mm · Length: 6–12m	America, Middle East, Southeast Asia
	ASTM A992	A992	ASTM A992 H Beam	H: 150–1000mm · B: 100–350mm · Length: 6–12m	America, Middle East, Europe
EN	EN 10025	S235JR	S235JR H Beam	H: 100–1000mm · B: 96–300mm · Length: 6–12m	Europe, Southeast Asia
	EN 10025	S275JR	S275JR H Beam	H: 100–1000mm · B: 100–300mm · Length: 6–12m	Europe, Middle East
	EN 10025	S355JR	S355JR H Beam	H: 100–1000mm · B: 100–300mm · Length: 6–12m	Europe, Middle East, Africa
GB	GB/T 700	Q235B	Q235B H Beam	H: 100–900mm · B: 100–300mm · Length: 6–12m	Southeast Asia, Africa, Middle East
GB	GB/T 1591	Q355B	Q355B H Beam	H: 150–900mm · B: 100–300mm · Length: 6–12m	Southeast Asia, Middle East, Africa

ASTM Standard W Beam

EN Standard HEA HEB Beam

GB Standard H Beam

Click the right-side button to explore complete product details and pricing.

Get a Quote

Chemical Composition

Standard	Material Grade	C (%)	Mn (%)	P (%)	S (%)	Si (%)
ASTM	A36	0.25	0.80–1.20	0.04	0.05	0.4
	A572 Gr.50 / Gr.60	0.23	1.35	0.04	0.05	0.4
	A992	0.23	1.35	0.04	0.05	0.4
EN	S235JR	0.17	1.4	0.035	0.035	0.55
	S275JR	0.2	1.5	0.035	0.035	0.55
	S355JR	0.22	1.6	0.035	0.035	0.55
GB	Q235B	0.2	1.4	0.045	0.045	0.35
GB	Q355B	0.2	1.6	0.045	0.045	0.35

Mechanical Properties

Standard	Material Grade	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)
ASTM	A36	250	400–550	20
	A572 Gr.50	345	450–620	18
	A572 Gr.60	420	485–650	16
	A992	345	450–620	18
EN	S235JR	235	360–510	26
	S275JR	275	410–560	23
	S355JR	355	470–630	20
GB	Q235B	235	375–500	26
GB	Q355B	355	470–630	20

Click the right-side button to explore complete product details and pricing.

Get a Quote

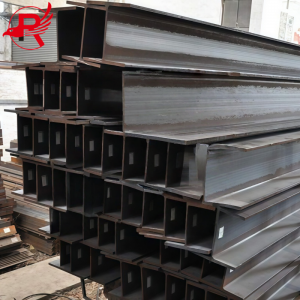

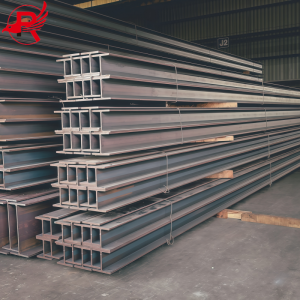

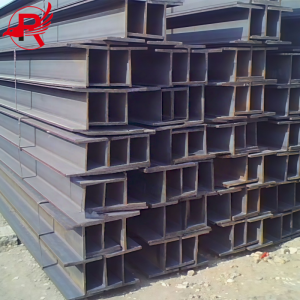

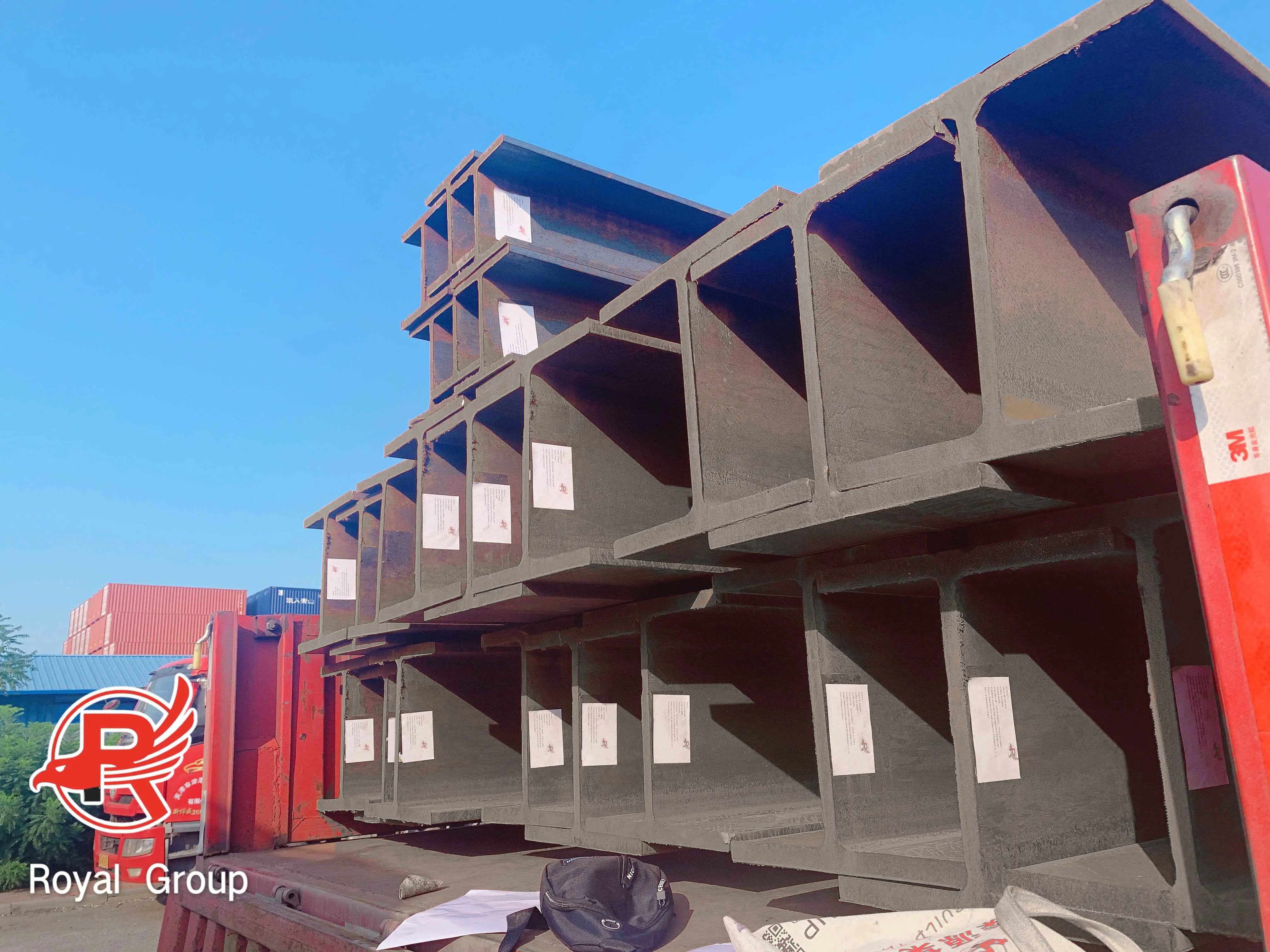

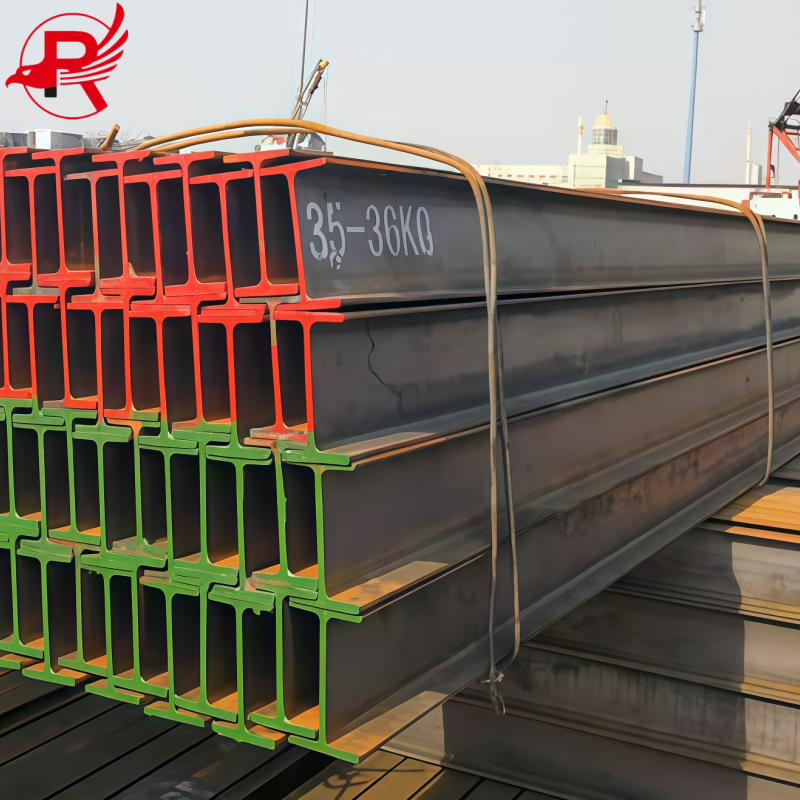

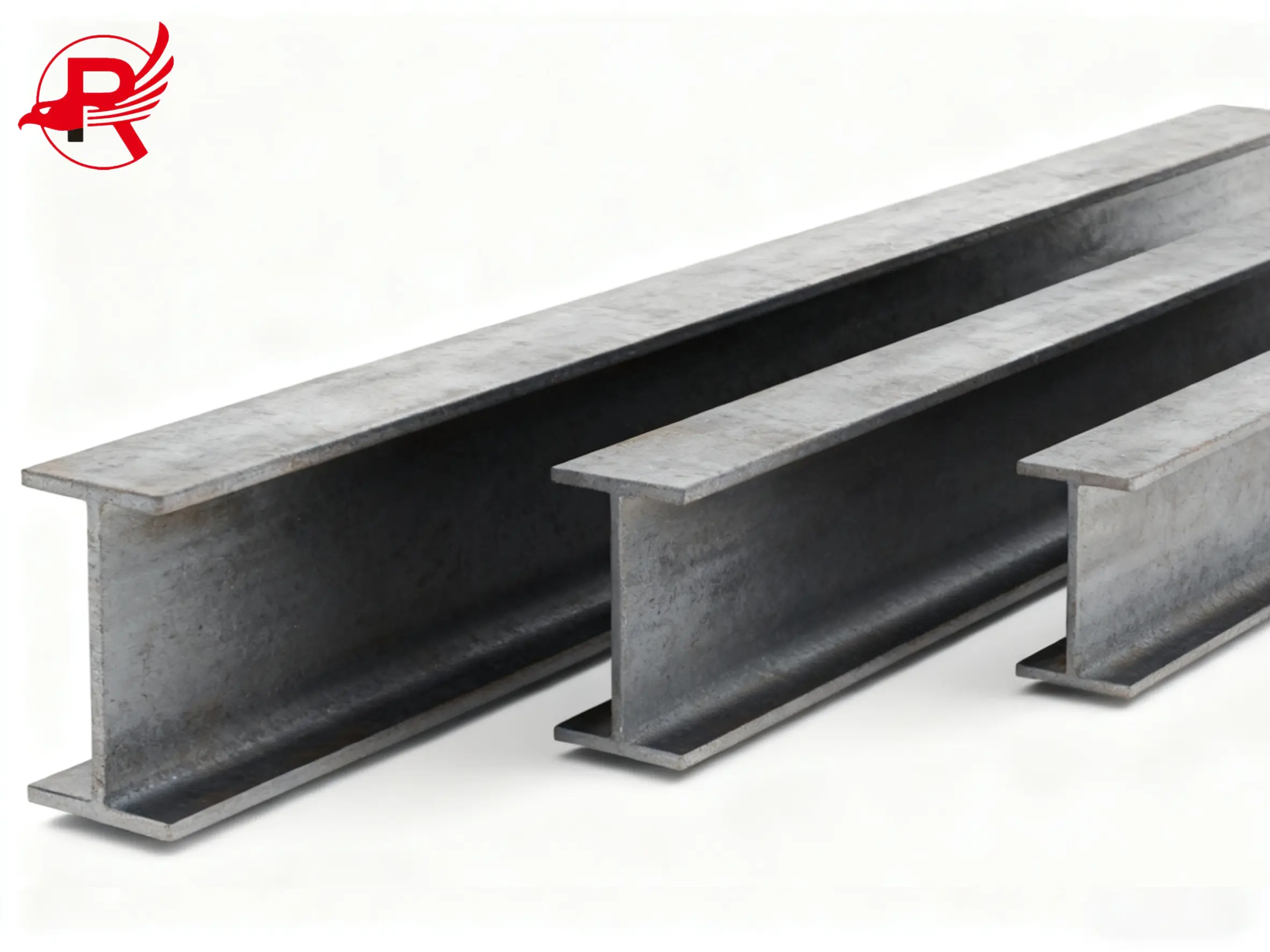

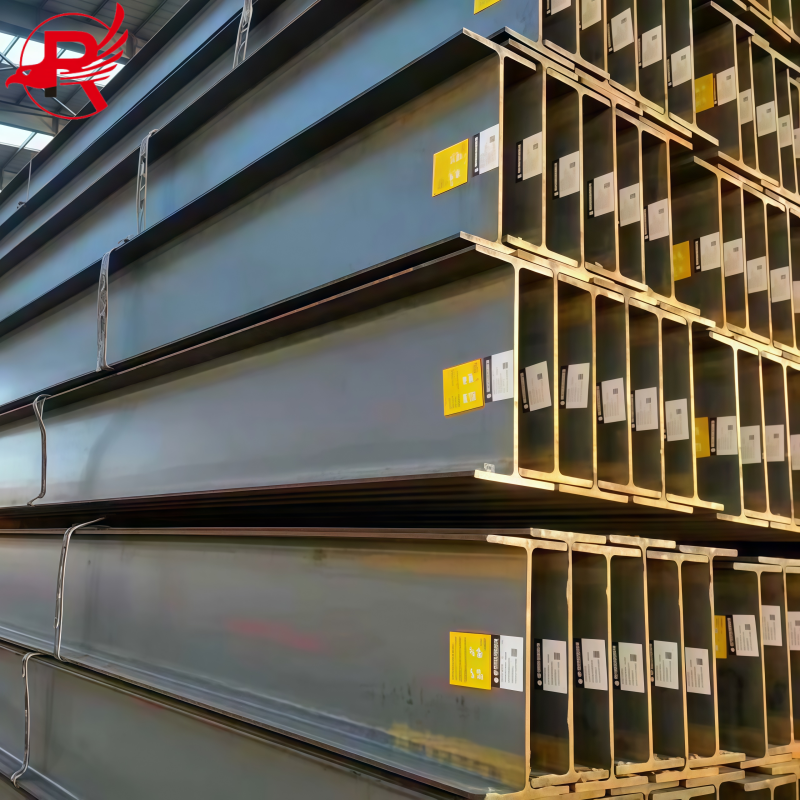

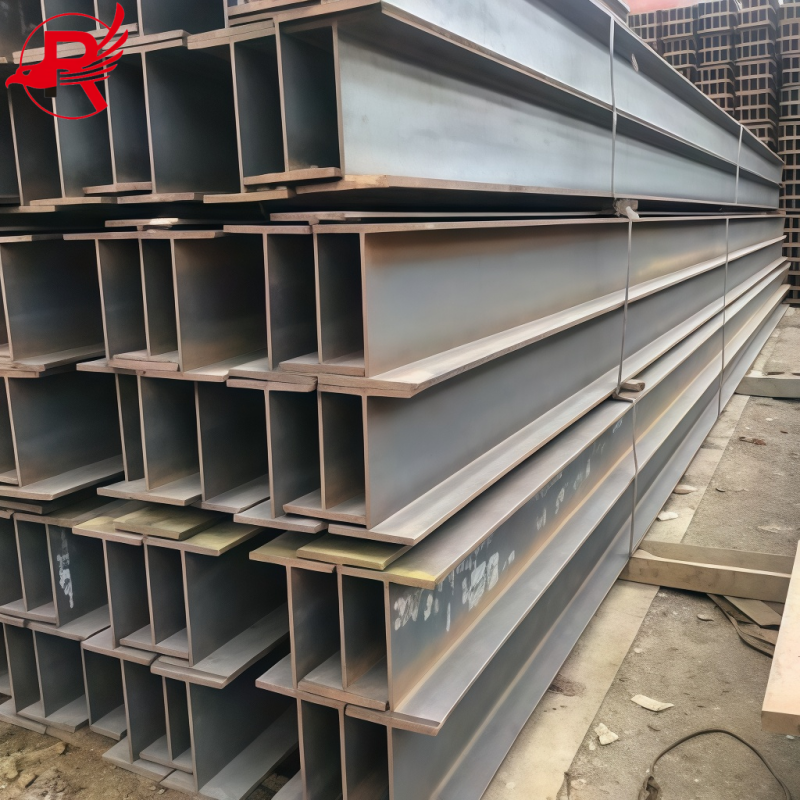

Our H Beam Products

Surface Finish

Ordinary Surface

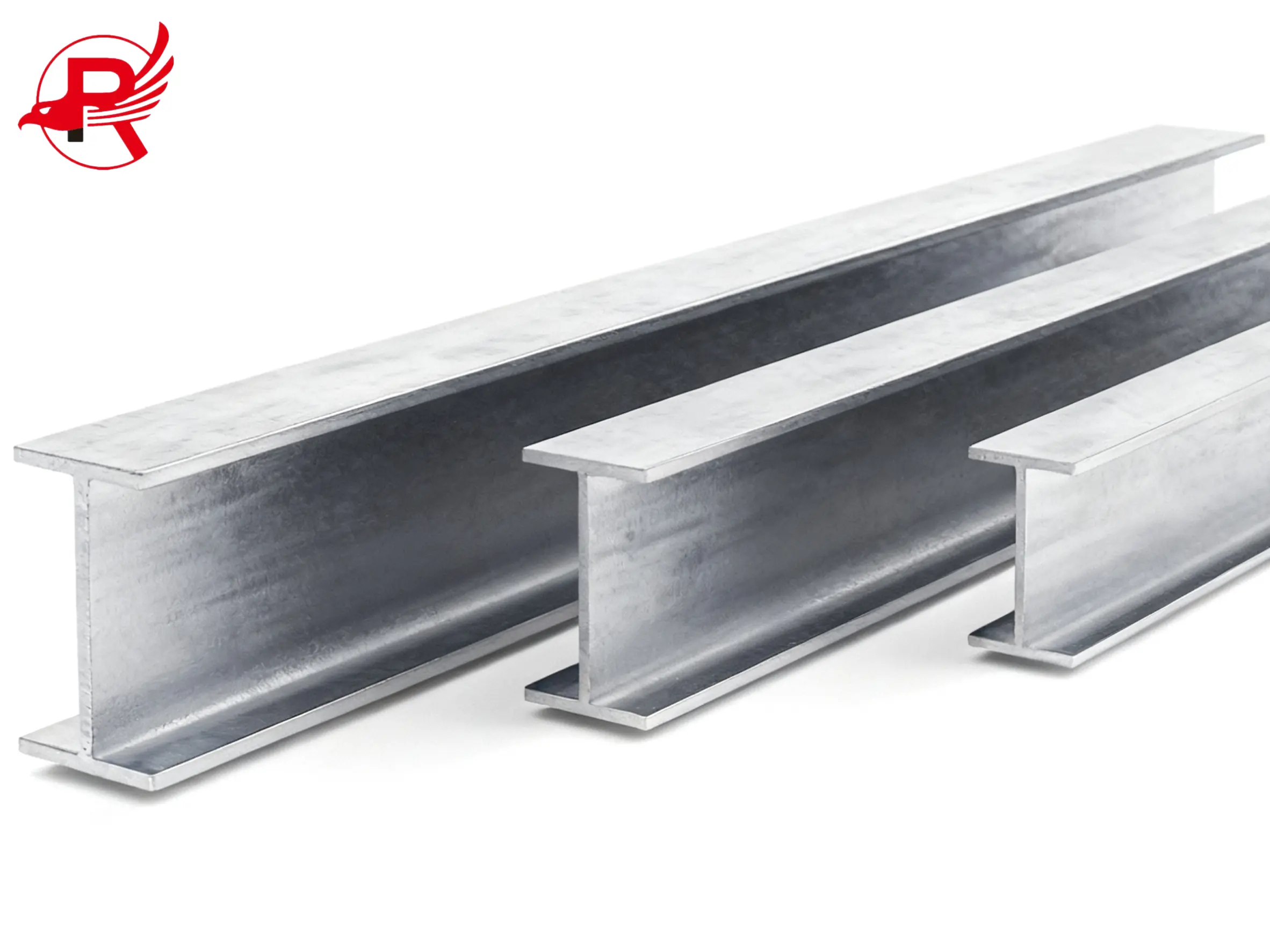

Galvanized Surface(hot-dip galvanizing thickness ≥ 85μm, service life up to 15-20 years)

Black Oil Surface

Application

Building Structures: Columns, beams, and frames used in homes, office buildings and skyscrapers.

Bridges and Les infrastructures: composants structurels des ponts, des autoroutes et des usines industrielles.

Heavy machinery and equipment: Structures and support systems for factories and warehouses.

Tailored Engineering Solutions: Unique engineered solutions based on your specific H Beam size and grade requirements for the specific shape to meet your structural or safety needs.

Click the right-side button to explore complete product details and pricing.

Get a Quote

astm-a992-a572-h-beam-application-royal-steel-group-2

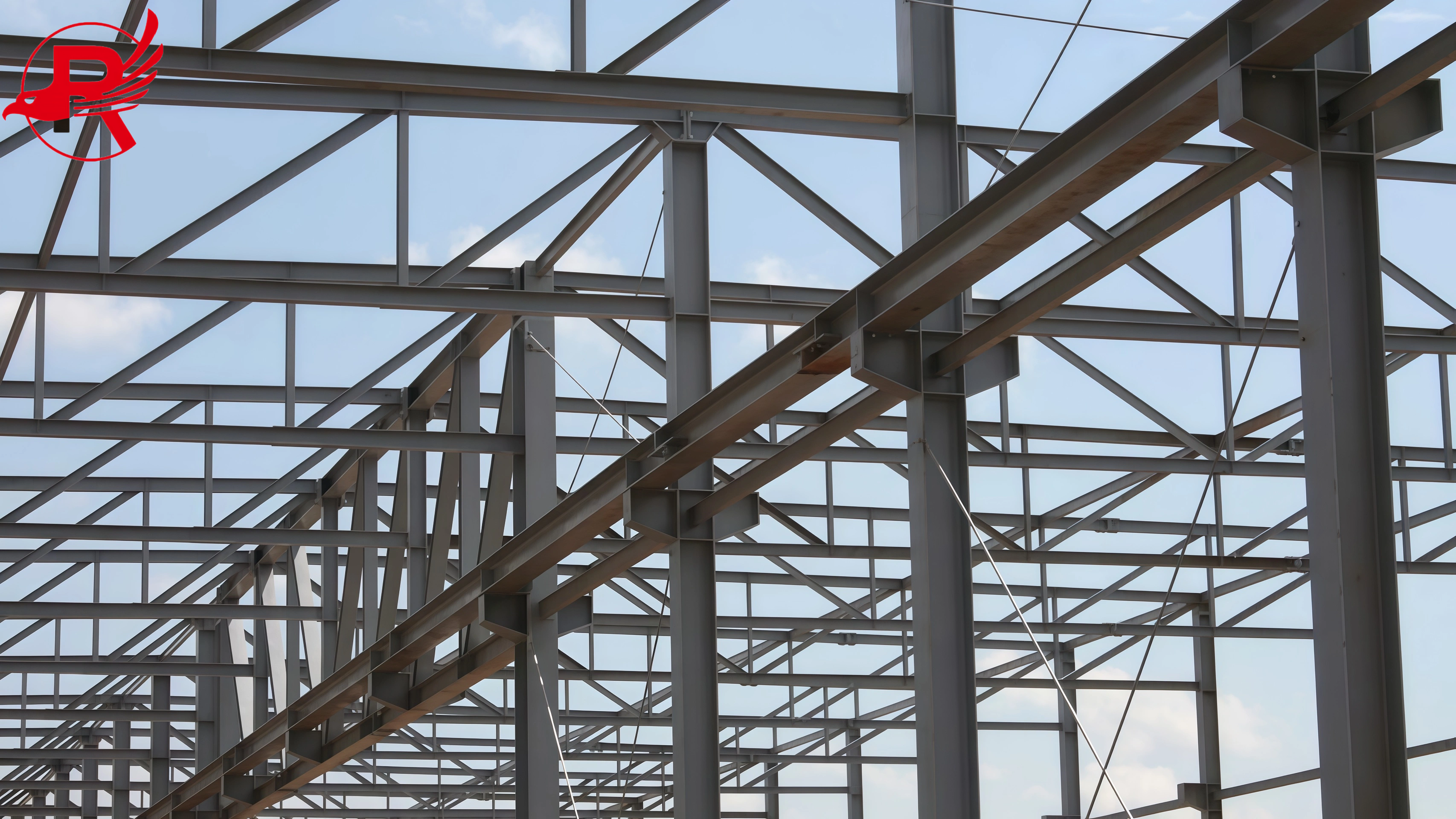

Building Structures

astm-a992-a572-h-beam-application-royal-steel-group-3

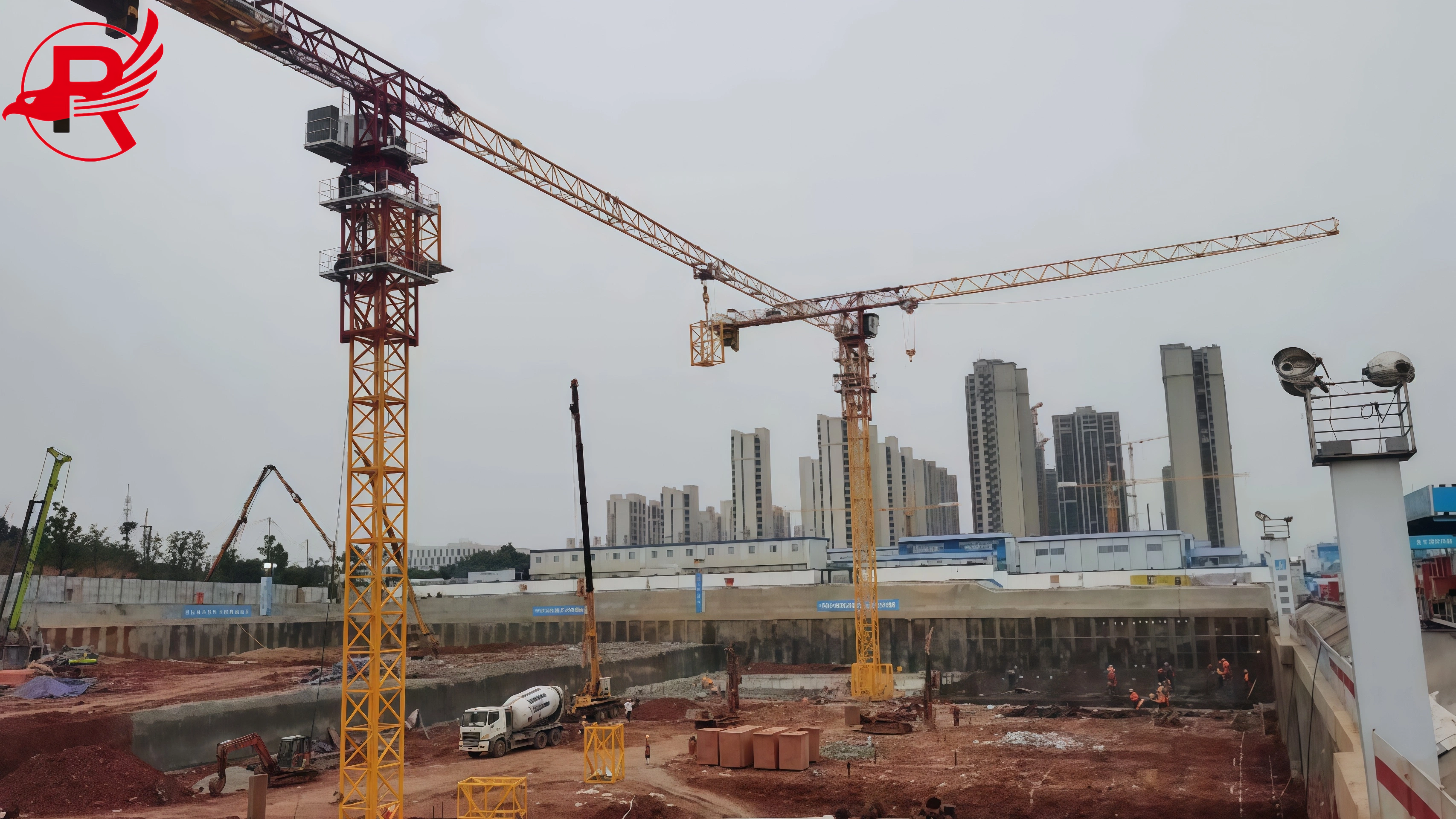

Bridges and Les infrastructures

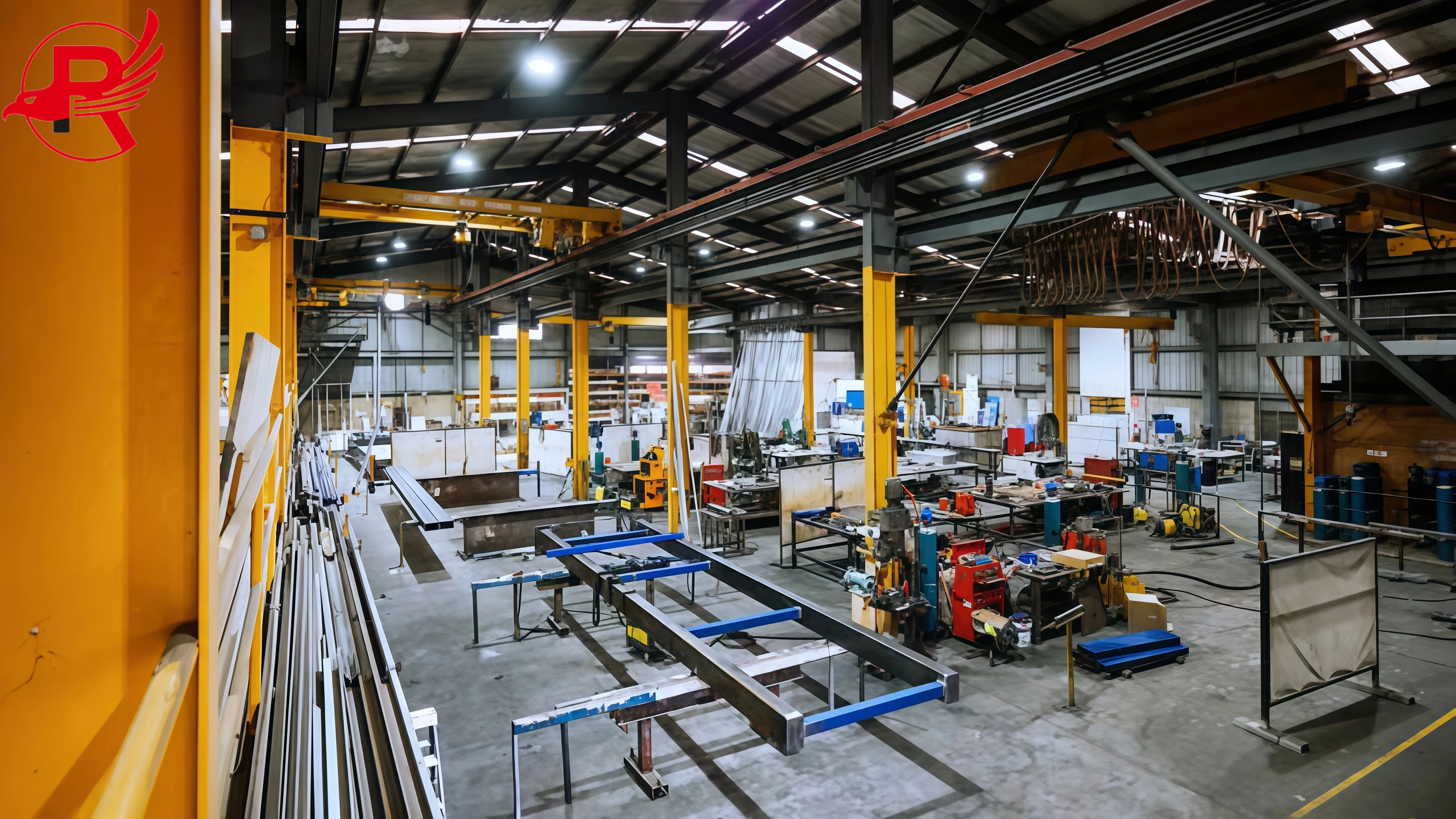

Heavy machinery and equipment

astm-a992-a572-h-beam-application-royal-steel-group-4

Tailored Engineering Solutions

Royal Steel Group Advantage（Why Choose Royal Group）

1.We have offices in the United States and Guatemala, and offer Spanish-language support.

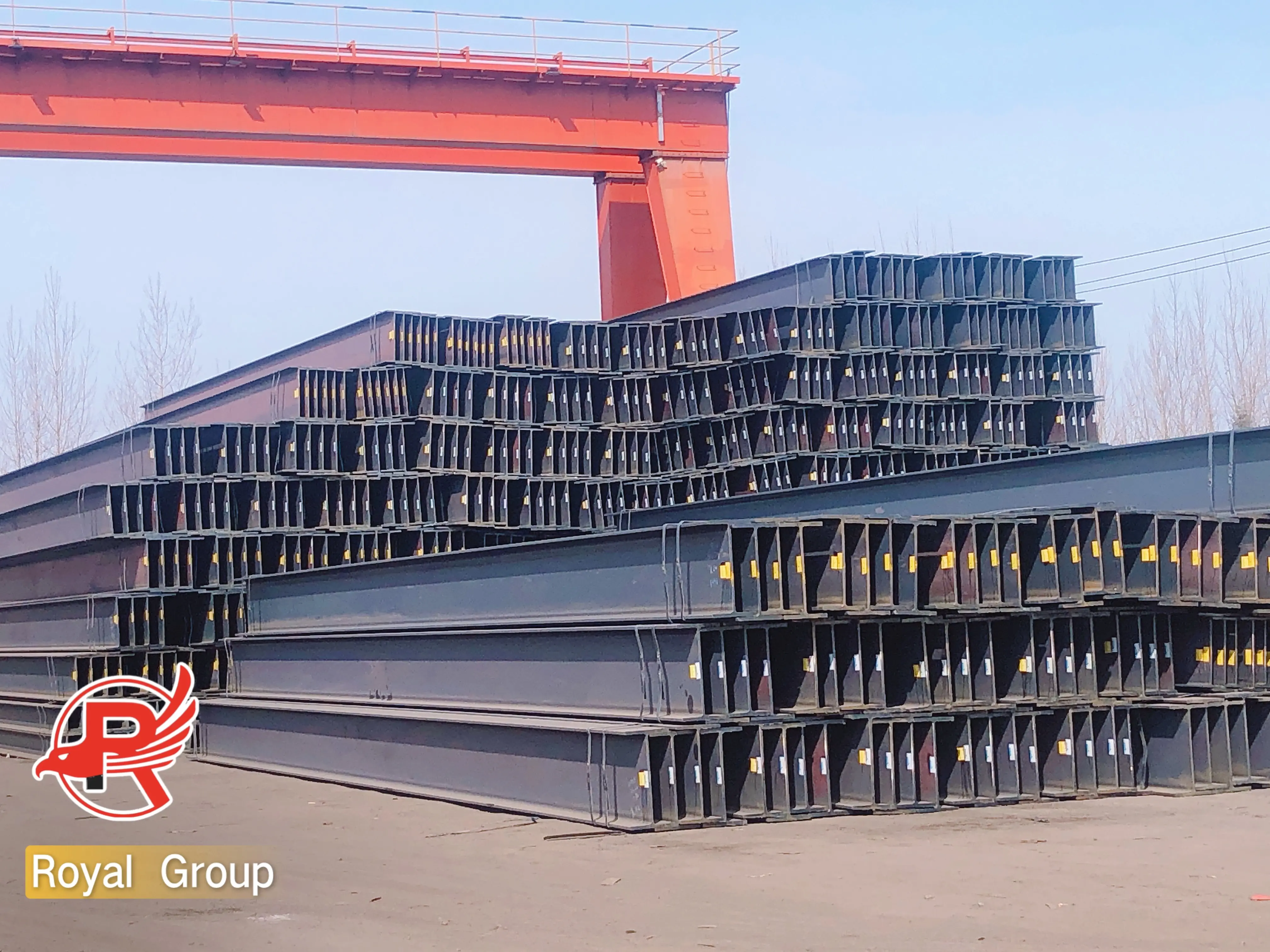

2.There is a stock of 5,000 tons of H Beam.

3. Inspected by authoritative organizations such as CCIC, SGS, BV, and TUV, with standard seaworthy packaging
