Download the Latest GI Steel Roofing Sheet Specifications and Dimensions.
Export Quality SGCC SGCH Galvanized Steel Roofing Sheet for Construction Projects
| Specification | Item | Description / Notes |
| Material Standard | JIS G 3302 | Hot-dip galvanized steel sheets and strips |
| Steel Grade | SGCC / SGCH | Commercial quality / higher strength option |
| Base Material | Cold-rolled steel substrate | As specified in JIS G 3302 |
| Thickness | 0.25 – 1.20 mm | Customizable according to requirement |
| Width | 600 – 1250 mm | Effective width can be customized |
| Length | 1 – 12 m | Standard or cut-to-length available |
| Zinc Coating | Z12 – Z27 | Zinc coating mass, total both sides |
| Coating Type | Hot-Dip Galvanized (GI) | Continuous hot-dip galvanizing |
| Surface Finish | Regular Spangle / Zero Spangle | Uniform zinc coating appearance |
| Profile Type | Corrugated / Trapezoidal / Ribbed | Standard roofing & cladding profiles |
| Yield Strength | ≥ 230 MPa (SGCC) / higher for SGCH | Grade dependent |
| Dimensional Tolerance | Conforms to JIS G 3302 | Ensures proper fit and installation |
| Applications | Roofing & Wall Cladding | Industrial, commercial, residential buildings |
| Processing Service | Cutting, roll forming, punching | Custom profiles available |
| Quality Certification | ISO 9001, SGS / BV inspection | Third-party quality assurance |
| Packing | Seaworthy export packing | Suitable for long-distance shipment |
Technical Data
SGCC SGCH Galvanized Steel Roofing Sheet Chemical Composition
| (Typical / Reference Values, JIS G 3302) | |||||
| Element | C (%) | Si (%) | Mn (%) | P (%) | S (%) |
| SGCC | ≤ 0.15 | ≤ 0.03 | ≤ 0.60 | ≤ 0.05 | ≤ 0.05 |
| SGCH | ≤ 0.20 | ≤ 0.05 | ≤ 1.40 | ≤ 0.05 | ≤ 0.05 |
Chemical composition values are typical reference ranges, not mandatory limits
Final composition is controlled to meet mechanical property requirements of JIS G 3302
SGCH contains higher Mn content to achieve increased strength compared with SGCC
Zinc coating (Z12–Z27) is applied after cold rolling, composition refers to base steel only
SGCC SGCH Galvanized Steel Roofing Sheet Sizes
Standard Size Range
| Item | Specification |
| Thickness | 0.25 – 1.20 mm |
| Coil Width | 600 – 1250 mm |
| Sheet Length | 1,000 – 12,000 mm |
| Length Tolerance | As per JIS G 3302 |
| Edge Type | Mill edge / Slit edge |
| Supply Form | Coils / Cut-to-length sheets / Profiled sheets |
Roofing Profile Sizes (Typical)
| Profile Type | Effective Width (mm) | Overall Width (mm) |

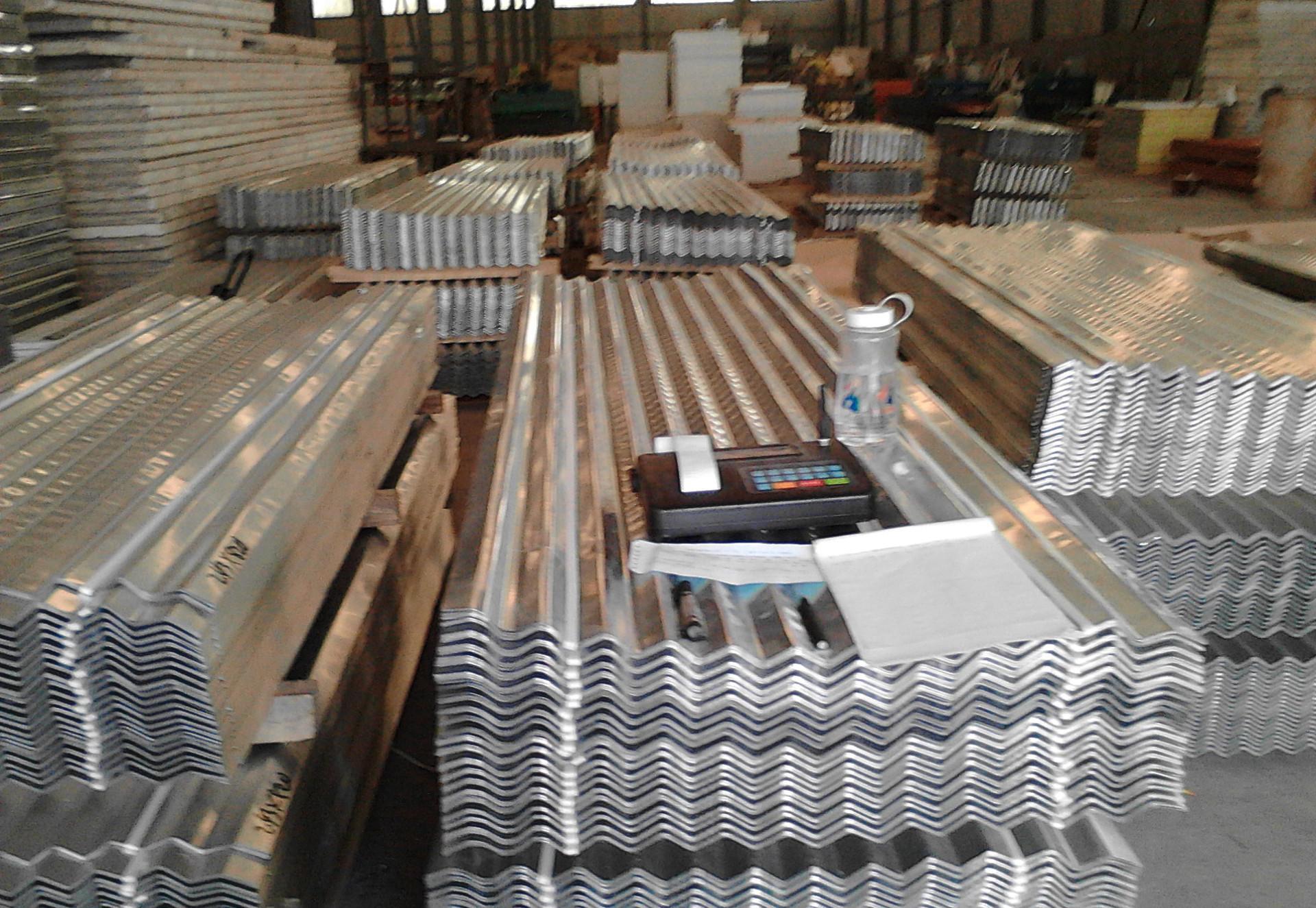

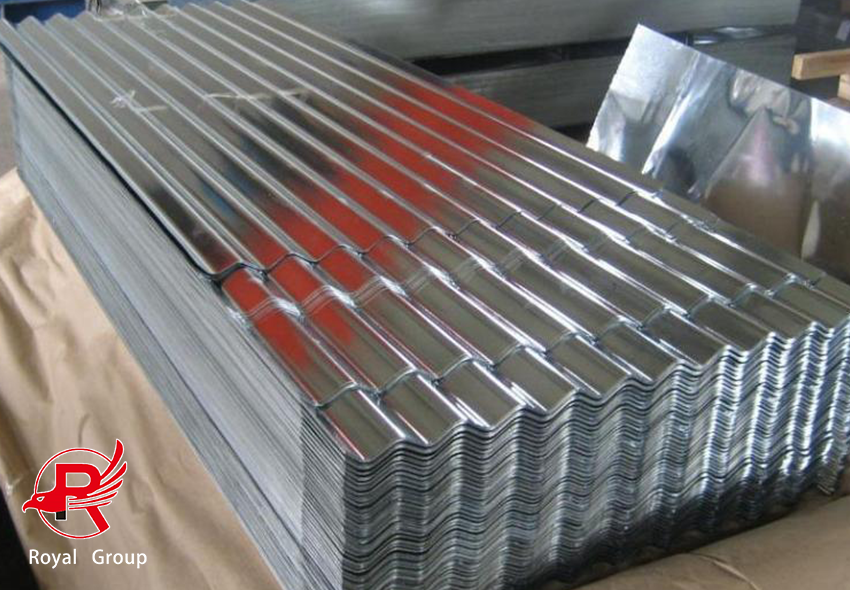

| Corrugated | 762 / 914 / 1000 | 800 – 1100 |
| Trapezoidal | 840 / 900 / 1025 | 950 – 1200 |
| Ribbed / Custom | As required | As required |
Click the Button on The Right
Main Applications
Industrial Buildings – Factories and manufacturing plants, workshops
Warehouses and Logistical Centers – Storage, distribution
Commercial Buildings – Shopping malls, office buildings, car parks
Residential Roofing: House roofs, villas, low-rise residential building roofs
Agricultural buildings such as farmhouses, shelter for animals
Temporary Structures – Office-space, prefab homes, construction field sheds
Secondary Applications
Wall cladding & Side paneling
Canopies and Car Ports
Shelters and Patio Covers
Suitable Environments
Typical urban areas
Industrial Areas
Regions of high humidity (for zinc-coated products with the thickness class Z180–Z275)
1) Branch Office - Spanish-speaking support, customs clearance assistance, etc.
2) Over 5,000 tons of stock in stock, with a wide variety of sizes
3) Inspected by authoritative organizations such as CCIC, SGS, BV, and TUV, with standard seaworthy packaging

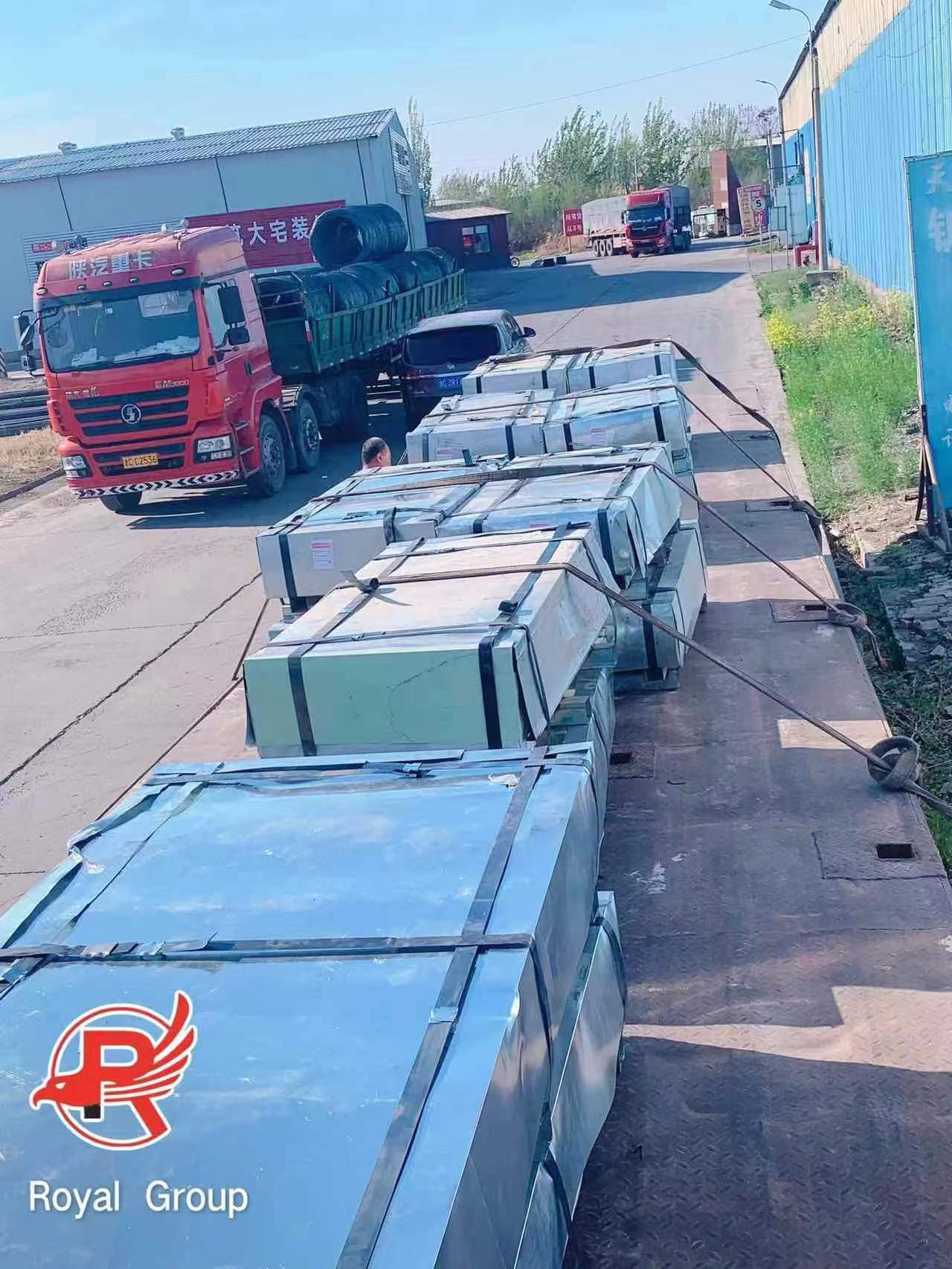

Packing
Outer Packing:
Tighten steel banding to bundler
Wooden pallets or steel frames (optional)
Prevent edge damage with corner protector
Export Packing:
Normal seaworthy export packing
Container and bulk shipment are available
Packing can be tailored to customers' needs.
Delivery
Delivery Time:
Standard sizes: 7-15 days after confirmation of order
Customized profiles or sizes 15-25 days.
Shipping Methods:
20GP / 40GP / 40HQ containers
Break bulk shipment for over sized roofing sheets

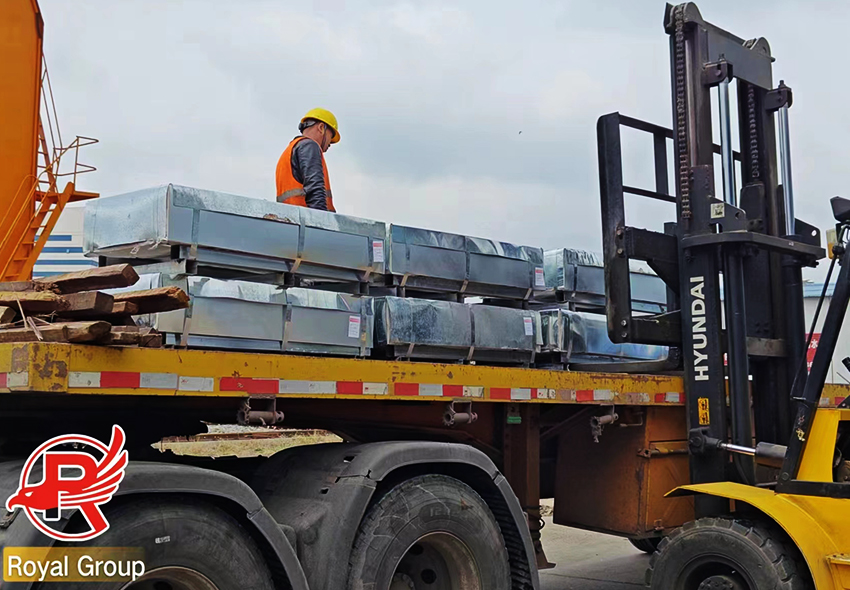

Loading Method:
Horizontal stacking with protection
Fasten securely to prevent shifting during transport
Stable cooperation with shipping companies such as MSK, MSC, COSCO efficiently logistics service chain, logistics service chain are we to your satisfaction.
We follow the standards of quality management system ISO9001 in all procedure, and have strict control from packaging material purchase to transport vehicle scheduling. This guarantees the H-beams from the factory all the way to the project site, helping you build on a solid foundation for a trouble free project!
Q1: What’s the difference between SGCC and SGCH?
SGCC is a warm rolled galvanized steel with the commercial quality balance good for forming and processing, which is used for the general roofing and siding applications. SGCH has a higher strength, which makes it more suitable for applications where higher load and possibly larger span roof deck is needed.
Q2: What is the standard of SGCC / SGCH Galvanized Steel Roof Sheet?
SGCC and SGCH meet the requirements of JIS G 3302 - the Japanese Industrial Standard for Hot-dip Galvanized Steel Sheets and Strips. Popular versions are JIS G 3302:2019 & 2022.
Q3: What are the common zinc coating masses?
Typical zinc coating masses are in the range of Z12 to Z27 Zinc coating masses: Z12 Z18 Z22 and Z27 correspond to the total weight of zinc on two sides of a steel sheet 1 g.m-2 equals a layer thickness of 0.54 micron of zinc.
Q4: What are the available sizes & profiles?
SGCC / SGCH galvanized steel roofing sheets could be customized in thickness from 0.25 to 1.20 mm and width, we also supply cut to length services. The most common profiles are: corrugated, trapezoidal and ribbed, but we can make the profiles you require.
Q5: Can I use SGCC / SGCH roof sheets in outdoor and seaside environments?
Yes. With proper zinc coating selection (ex. Z22 or Z27) and good installation, SGCC / SGCH Galvanized Steel Roof Sheet can achieve good corrosion resistance for outdoor use, expectant in not too harsh sea environment.
Q6: Is it available to supply the SGCC / SGCH roofing sheet in coil or panel? Can I get Your SGCC (or SGCH) sheet in coil or in panels?
Yes the material can be provided in Galv. Coils Sheets in roll formed roofing panels based upon project requirement.
A7: How about quality control and inspection?
The products are produced in ISO 9001 quality management system and can be third party eg SGS, BV and others to check before shipment on request.
Q8: How products are packed for export?
SGCC / SGCH galvanized steel roofing tiles are packed with standard seaworthy export package, including moisture protection and material strapping to fasten the package, ensuring the safe long distance transportation.
Q9: Do we need SGCH for all roof work?
Not necessarily. SGCC is fine for regular roof sheeting and everything like that. SGCH should be used where higher strength is needed, such as in high wind-load or long-span roof.
Q10: Can you customize the specifications?
Yes you can. Customized width, thickness, zinc coating, profile design and length could be offered as per your project and market demand.
