Custom S235JR Hot Rolled Steel Angle Bar – EN 10025 Compliant Structural Steel for Construction & Engineering
| Material | S235JR Hot Rolled Steel Angle Bar - EN 10025 Compliant Structural Steel |
| Size | Customized, Equal & Unequal Angle Steel Available (Standard Sizes: 20×20mm to 200×200mm, Thickness 3-20mm) |
| Length | 1m-12m or as requirement |
| Standard | EN 10025 |
| Grade | S235JR |
| Section Shape | Equal angle steel and unequal angle steel |
| Technique | Hot rolled |
| Packing | Bundle, Sea-worthy Export Package |
| MOQ | 1 Tons, more quantity price will be lower |
| Surface Treatment | 1. Galvanized (Hot-dip Galvanized for anti-corrosion) |
| 2. Transparent oil, anti-rust oil | |
| 3. According to clients requirement | |
| Product Application | 1. Various building structures, house beams, bridges, transmission towers, warehouse shelves |
| 2. Engineering structures, such as lifting and transportation machinery, ships, industrial furnaces, reaction towers, vessel racks, cable trench supports | |
| 3. Various metal structures | |
| Origin | Tianjin China |
| Certificates | ISO9001-2008, SGS, BV, TUV, Mill Test Certificate (MTC) Available |
| Delivery Time | Usually within 7-15 days after receipt of advance payment |
Chemical Composition (EN 10025 S235JR)
| Element | Typical % Range |
| Carbon (C) | 0.17 max |
| Manganese (Mn) | 0.50 – 1.50 |
| Phosphorus (P) | 0.035 max |
| Sulfur (S) | 0.035 max |
| Silicon (Si) | 0.35 max |
| Nitrogen (N) | 0.012 max |
Note: The chemical composition may vary slightly depending on the supplier and exact rolling process.
Mechanical Properties
| Property | Value |
| Yield Strength (ReH) | ≥ 235 MPa |
| Tensile Strength (Rm) | 360 – 510 MPa |
| Elongation (A) | ≥ 26% for thickness ≤ 16 mm |
| Hardness (Brinell) | ~120 – 160 HB |
Key Notes
S235JR is a non-alloy structural steel, widely used in construction and fabrication.
Hot rolled angle bars offer good weldability and formability.
“JR” grade indicates impact test at room temperature (20°C).

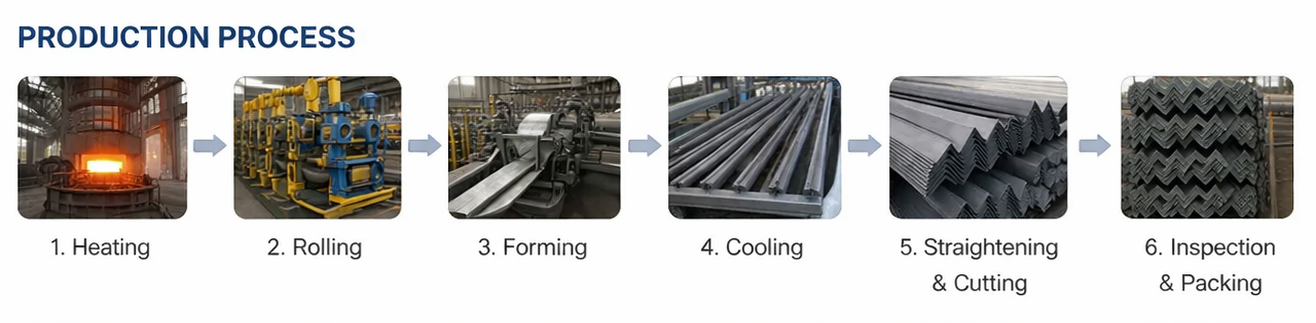

Our steel angle bars are produced under strict quality control: high-quality raw materials are pre-inspected and then heated and rolled at 1200-1300°C into equal/unequal L-shaped profiles. After controlled cooling and straightening, the products are cut into standard 6/9/12-meter lengths. The surface is cleaned and treated with anti-corrosion coatings. Each batch undergoes comprehensive chemical, mechanical, and dimensional inspections to meet relevant standards. Finally, secure strapping/pallet packaging ensures safe global transport.

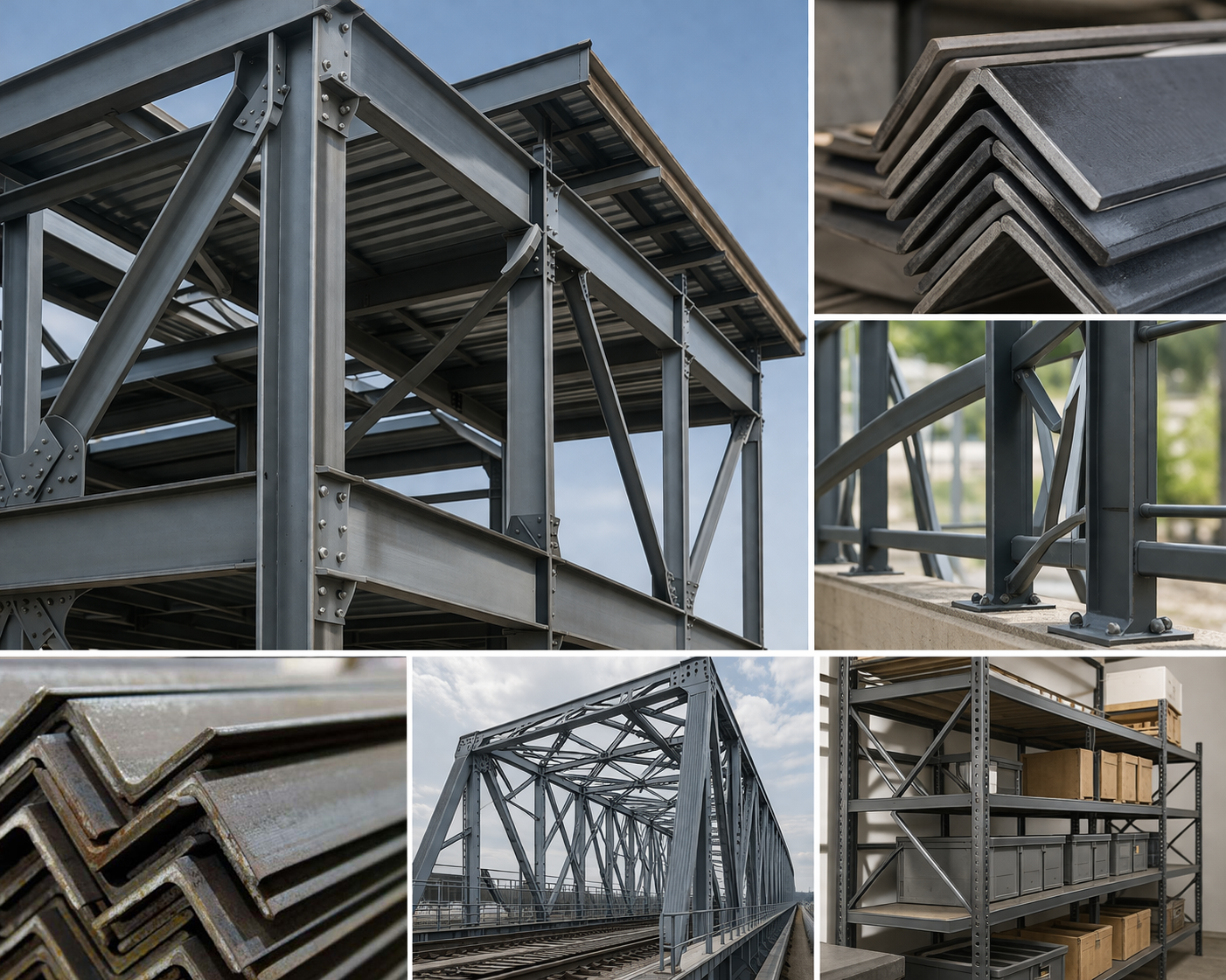

High-quality hot rolled steel angle bars are widely used across construction, industrial, and fabrication projects due to their excellent weldability, formability, and cost-effectiveness.
Key Applications:
Construction & Structural Use:
Building frames, roof trusses, and bracing
Bridges, towers, and civil engineering structures
Scaffolding, walkways, and platforms
Industrial & Machinery:
Equipment frames, support brackets, and machine bases
Industrial racks, shelving, and material handling structures
Transportation & Shipbuilding:
Vehicle frames, trailers, and railcars
Ship hull reinforcements, deck stiffeners, and marine structures
General Fabrication:
Custom welded assemblies and metal fabrications
Fences, gates, and decorative structural elements
hot-rolled steel angle bars are versatile, cost-effective, and ideal for a wide range of structural and industrial applications. Their advantages include:
Excellent weldability
Easy to weld with other steel components, forming robust and durable assemblies.
Good formability and machinability
Can be cut, bent, and shaped to meet various processing requirements without cracking.
Cost-effective material
Offers strength and durability at an economical price compared to other structural steels.
Stable mechanical properties
Reliable yield strength, tensile strength, and elongation ensure stable and reliable performance.
A variety of sizes and thicknesses available
Equal and unequal angle bars are available from 20×20mm to 200×200mm, with thicknesses from 3-20mm and lengths of 6/9/12m to meet a variety of project requirements.
Durable
Abrasion resistant, suitable for indoor and outdoor applications with appropriate surface treatment.
Wide range of applications
It is ideal for use in structural frames, mechanical equipment, warehouse racks, bridges, towers, etc.
Packaging is generally naked, steel wire binding, very strong.
If you have special requirements, you can use rust proof packaging, and more beautiful.
Transportation: Express (Sample Delivery), Air, Rail, Land, Sea shipping (FCL or LCL or Bulk)
S235JR steel is a general-purpose structural steel with good weldability; "JR" indicates that it has undergone a Charpy impact test at 20°C.
Dimensions: Equal angle steel: 20×20–200×200 mm; Unequal angle steel: 30×20–200×150 mm; Thickness: 3–20 mm; Standard lengths: 6, 9, 12 m.
Mechanical properties: Yield strength ≥ 235 MPa; Tensile strength 360–510 MPa; Minimum elongation 26%.
Chemical composition: C ≤ 0.17%, Mn 0.5–1.5%, P ≤ 0.035%, S ≤ 0.035%, Si ≤ 0.35%.
Applications: Structural frames, machinery supports, bridges and towers, material handling racks; excellent weldability and machinability.
