ASTM A992 Hot Rolled Steel Plate – High Strength Structural Steel for Construction

Short Description:

ASTM A992 (High-Strength Low-Alloy Structural Steel) - Steel plate for buildings, bridges, and industrial projects


  • Standard: ASTM A992
  • Thickness: 6 mm – 100 mm
  • Width: 1,500 mm – 3,000 mm
  • Length: 3,000 mm – 12,000 mm
  • Certificate: ISO 9001:2015, SGS / BV / TUV / Intertek, MTC + Chemical & Mechanical Report
  • Product Detail

    Product Tags

    ASTM A992 Hot Rolled Steel Plate Product Introduction

    Material Standard Yield Strength
    ASTM A992 Hot Rolled Steel Plate
    ≥345 MPa
    Dimensions Length
    Thickness: 6 mm – 100 mm, Width: 1,500 mm – 3,000 mm, Length: 3,000 mm – 12,000 mm Available in stock; customized lengths available
    Dimensional Tolerance Quality Certification
    Thickness: ±0.15 mm – ±0.30 mm, Width: ±3 mm – ±10 mm ISO 9001:2015, SGS / BV / Intertek Third-Party Inspection Report
    Surface Finish Applications
    Hot rolled, pickled, oiled; optional anti-rust coating Construction, bridges, pressure vessels, structural steel



    ASTM A992 Hot Rolled Steel Plate– Chemical Composition (Hot Rolled Steel Plate)

    Element Typical Range Notes
    Carbon (C) 0.23 max Provides strength and hardness
    Manganese (Mn) 0.50–1.50 Improves toughness and tensile strength
    Phosphorus (P) 0.035 max Low P reduces brittleness
    Sulfur (S) 0.04 max Low S improves ductility
    Silicon (Si) 0.40 max Strength and oxidation resistance
    Copper (Cu) 0.20 max Improves corrosion resistance (optional)
    Nickel (Ni) 0.20 max Optional, for toughness
    Chromium (Cr) 0.20 max Optional, enhances strength
    Vanadium (V) 0.05 max Microalloying element, improves strength
    Titanium (Ti) 0.02–0.05 Optional, refines grain structure



    ASTM A992 Hot Rolled Steel Plate – Mechanical Properties (Hot Rolled Steel Plate)

    Property Typical Value Notes
    Yield Strength (YS) 345 MPa (50 ksi) min Stress at which steel begins to deform plastically
    Tensile Strength (TS) 450–620 MPa (65–90 ksi) Maximum stress steel can withstand before breaking
    Elongation 18–21% Measured over 200 mm or 50 mm gauge length, indicates ductility
    Modulus of Elasticity 200 GPa Standard for carbon/low-alloy steels
    Hardness (Brinell) 130–180 HB Approximate range for hot rolled steel



    Notes:

    • Hot rolled plate ensures uniform thickness and good surface quality.
    • Suitable for structural, construction, fabrication, and industrial applications.
    • Weldable and formable, making it versatile for engineering projects.



    Click the Button on The Right

    Find out the latest hot-rolled steel plate inventory specifications and sizes.

    Main Application

    Application Area Typical Uses
    Construction Engineering Structural frames, beams, columns, floor decks, building supports
    Bridge Engineering Bridge structural components, connection plates, reinforcing plates
    Steel Structure Fabrication H-beams, angle steel, channels, steel plates and profiles
    Machinery Manufacturing Machine bases, frames, support components
    Engineering Processing Steel plate cutting, bending, welding, stamping
    Industrial Equipment Industrial platforms, equipment housings, brackets
    Infrastructure Projects Highway, railway, and municipal engineering structures
    Shipbuilding & Containers Ship structural parts, container frames and flooring

    Royal Steel Group Advantage(Why Royal Group Stands Out for Americas Clients?)

    ROYAL GUATEMALA

    1) Branch Office - Spanish-speaking support, customs clearance assistance, etc.

    Royal Steel Group Premier Manufacturer of High-Quality Steel Sheets and Plates

    2) Over 5,000 tons of stock in stock, with a wide variety of sizes

    Australia steel plate shipment
    Mild Carbon S235JR Hot Rolled Steel Sheet Plate Width 300 mm - 5000 mm  - royal steel group

    3) Inspected by authoritative organizations such as CCIC, SGS, BV, and TUV, with standard seaworthy packaging

    Packing And Delivery

    1️⃣ Bulk Cargo (Steel Plates)

    Suitable for large-volume shipments of steel plates. The plates are typically stacked flat or bundled and loaded directly onto vessels. Wooden sleepers or anti-slip pads are placed at the bottom, with wooden battens or separators between plate layers. The bundles are secured with steel straps, and the surface is protected using rain-proof covers or rust-preventive oil to minimize corrosion during transportation.

    Pros:
    High payload capacity
    Lower transportation cost per ton
    Notes:
    Specialized lifting equipment such as cranes, forklifts, or magnetic lifters is required
    Condensation, surface scratches, and deformation must be avoided during handling and haulage

    2️⃣ Containerized Cargo (Steel Plates)

    Ideal for medium to small shipments or steel plates with higher surface requirements. The plates are packed in bundles, each treated with waterproof and anti-rust protection, and fixed on wooden pallets or frames. Desiccants can be placed inside the container to reduce moisture.

    Advantages:
    Superior protection against moisture and mechanical damage
    Easier and safer handling
    Drawbacks:
    Higher shipping cost
    Reduced loading efficiency due to container size limitations

    Stable cooperation with shipping companies such as MSK, MSC, COSCO efficiently logistics service chain, logistics service chain are we to your satisfaction.

    We follow the standards of quality management system ISO9001 in all procedure, and have strict control from packaging material purchase to transport vehicle scheduling. This guarantees the H-beams from the factory all the way to the project site, helping you build on a solid foundation for a trouble free project!

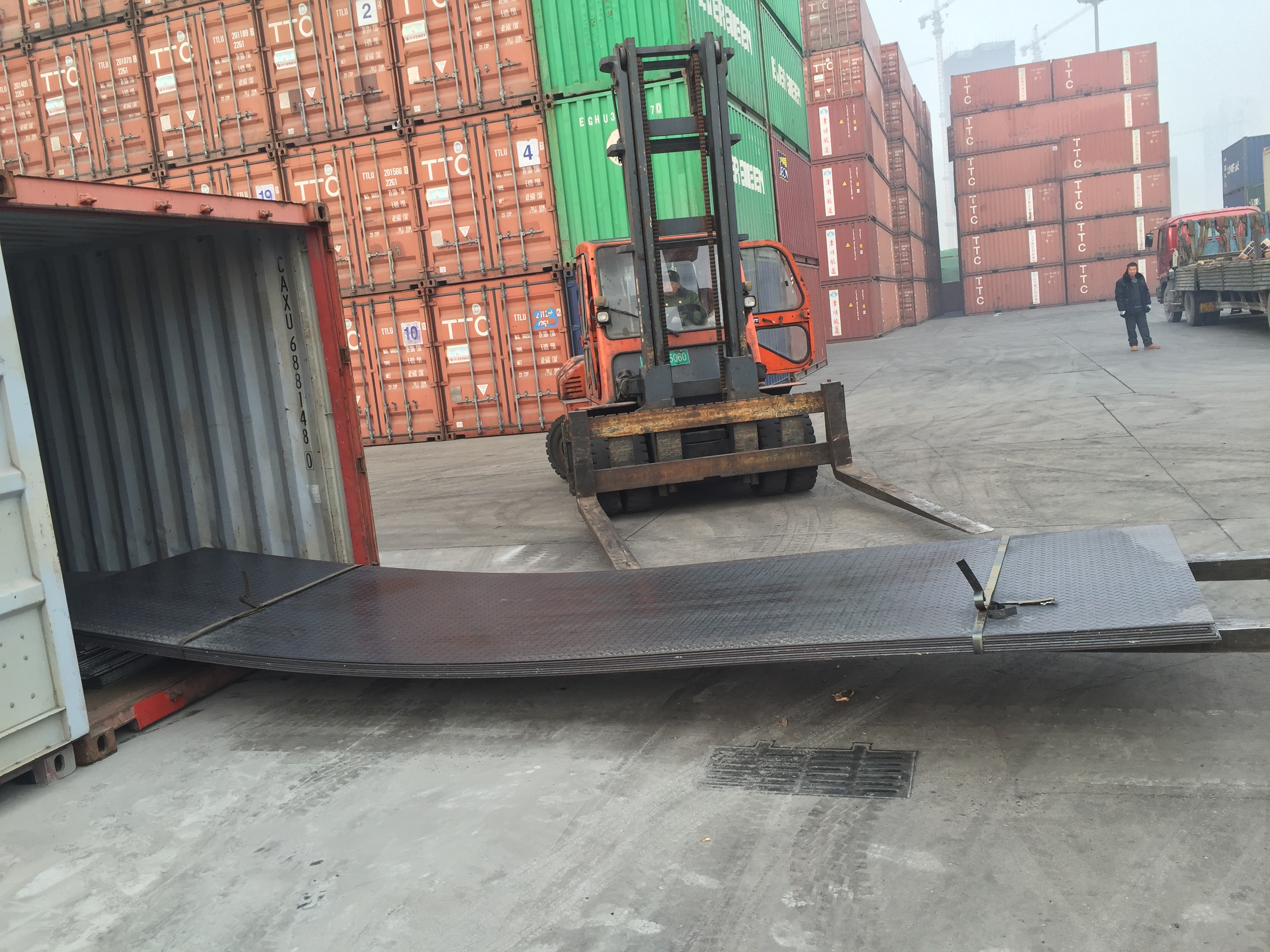

    12M steel plate delivery - ROYAL GROUP
