Download the Latest Scaffold Pipes Specifications and Dimensions.
ASTM A36 Steel Accessories and Scaffold Pipes – Trusted Choice Across North & South America
| Parameter | Specification / Description |
| Product Name | ASTM A36 Scaffolding Pipe / Carbon Steel Support Tube |
| Material Grade | Structural carbon steel per ASTM A36 |
| Standards | ASTM A36 compliant |
| Outer Diameter | 48–60 mm (standard range) |
| Wall Thickness | 2.5–4.0 mm |
| Pipe Length Options | 6 m, 12 ft, or custom lengths for project requirements |
| Pipe Type | Seamless or welded construction |
| Surface Finish Options | Black (untreated), Hot-Dip Galvanized (HDG), epoxy/paint coating optional |
| Yield Strength | ≥ 250 MPa |
| Tensile Strength | 400–550 MPa |
| Key Advantages | High load capacity, improved corrosion resistance (Galvanized), uniform dimensions, safe & easy installation and removal |
| Typical Uses | Scaffolding systems, industrial platforms, temporary structural supports, staging |
| Quality Certification | ISO 9001 and ASTM standard compliance |
| Payment Terms | T/T 30% deposit + 70% balance prior to shipment |
| Delivery Lead Time | Approx. 7–15 days depending on quantity |
| Outer Diameter (mm / in) | Wall Thickness (mm / in) | Length (m / ft) | Weight per Meter (kg/m) | Approx. Load Capacity (kg) | Notes |
| 48 mm / 1.89 in | 2.5 mm / 0.098 in | 6 m / 20 ft | 4.5 kg/m | 500–600 | Black steel, HDG optional |
| 48 mm / 1.89 in | 3.0 mm / 0.118 in | 12 m / 40 ft | 5.4 kg/m | 600–700 | Seamless or welded |
| 50 mm / 1.97 in | 2.5 mm / 0.098 in | 6 m / 20 ft | 4.7 kg/m | 550–650 | HDG coating optional |
| 50 mm / 1.97 in | 3.5 mm / 0.138 in | 12 m / 40 ft | 6.5 kg/m | 700–800 | Seamless recommended |
| 60 mm / 2.36 in | 3.0 mm / 0.118 in | 6 m / 20 ft | 6.0 kg/m | 700–800 | HDG coating available |
| 60 mm / 2.36 in | 4.0 mm / 0.157 in | 12 m / 40 ft | 8.0 kg/m | 900–1000 | Heavy-duty scaffolding |
| Customization Category | Options Available | Description / Range |
| Dimensions | Outer Diameter, Wall Thickness, Length | Diameter: 48–60 mm; Wall Thickness: 2.5–4.5 mm; Length: 6–12 m (adjustable per project) |
| Processing | Cutting, Threading, Prefabricated Fittings, Bending | Pipes can be cut to length, threaded, bent, or fitted with couplers and accessories according to project requirements |
| Surface Treatment | Black Steel, Hot-Dip Galvanized, Epoxy Coating, Painted | Surface treatment selected based on indoor/outdoor exposure and corrosion protection needs |
| Marking & Packaging | Custom Labels, Project Info, Shipping Method | Labels indicate pipe size, ASTM standard, batch number, test report info; packaging suitable for flatbed, container, or local delivery |
Click the Button on The Right

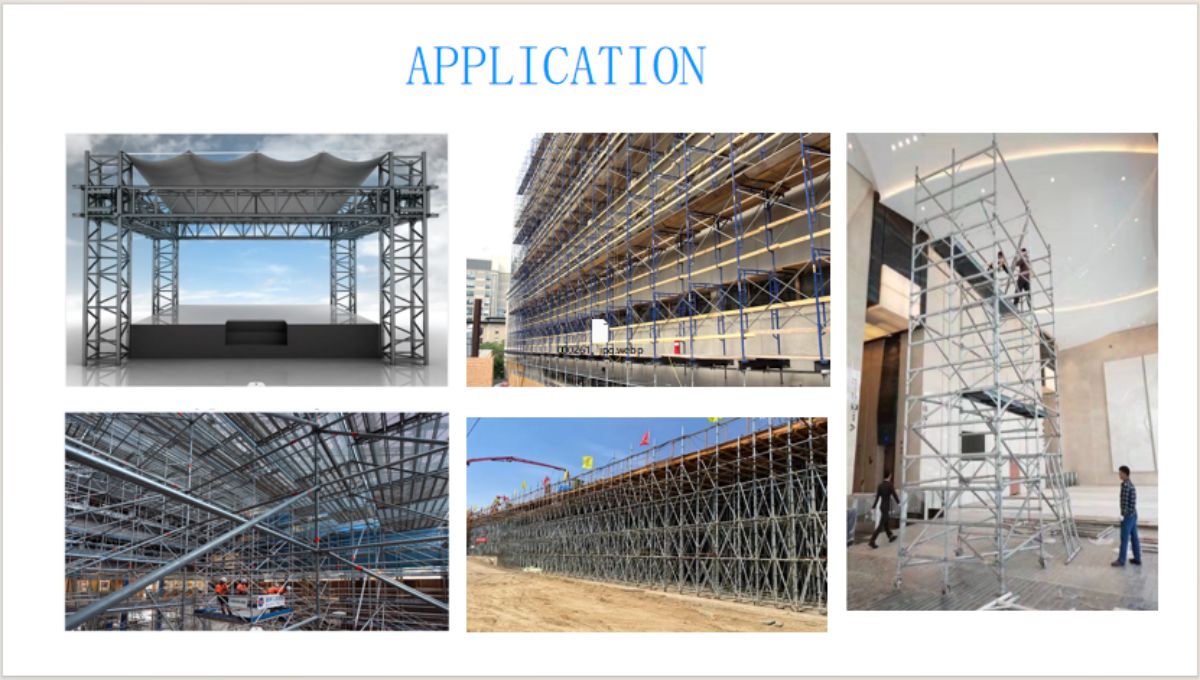

1. Construction & Building Scaffolding
Used in temporary support systems for buildings, bridges, and factories, these scaffolds provide a safe and reliable platform for workers and materials during construction projects.
2. Industrial Maintenance
Ideal for industrial maintenance platforms and access solutions in plants, warehouses, and other industrial facilities. Engineered for durability and high load-bearing capacity.
3. Temporary Support Structures
Folding steel props can be used to support formwork, shoring, and other temporary frameworks in construction projects, ensuring stability and safety.
4. Event Staging & Platforms
Perfect for temporary stages and platforms at concerts, festivals, and other events. Supports large crowds and equipment while providing a reliable foundation for outdoor or indoor setups.
5. Residential Projects
Suitable for small-scale scaffolding in homes, making repairs, renovations, and maintenance work safer and more efficient.
1) Branch Office - Spanish-speaking support, customs clearance assistance, etc.
2) Over 5,000 tons of stock in stock, with a wide variety of sizes
3) Inspected by authoritative organizations such as CCIC, SGS, BV, and TUV, with standard seaworthy packaging
Basic Protection: Each bale is wrapped with tarpaulin, 2-3 desiccant packs are put in each bale, then bale is covered with heat sealed waterproof cloth.
Bundling: The strapping is 12-16mm Φ steel strap, 2-3 tons / bundle for lifting equipment in American port.
Conformance Labeling: Bilingual labels (English + Spanish) are applied with a clear indication of material, spec, HS code, batch and test report number.
For large size h-section steel cross-section height ≥ 800mm), the steel surface is coated with industrial anti-rust oil and dried, then packed with tarpaulin.
Stable cooperation with shipping companies such as MSK, MSC, COSCO efficiently logistics service chain, logistics service chain are we to your satisfaction.
We follow the standards of quality management system ISO9001 in all procedure, and have strict control from packaging material purchase to transport vehicle scheduling. This guarantees the H-beams from the factory all the way to the project site, helping you build on a solid foundation for a trouble free project!
1. What material is used for your scaffold pipes?
Our scaffold pipes are made of high-quality ASTM A36 carbon steel, ensuring superior strength, durability, and long service life for construction and industrial applications.
2. Are your scaffolds customizable?
Yes, we can customize scaffolding systems according to your project requirements, including pipe length, diameter, wall thickness, platform size, and load-bearing capacity.
3. What types of scaffolding systems do you offer?
We provide a range of scaffolding solutions including frame scaffolds, tube-and-clamp scaffolds, modular scaffolds, and folding steel props for temporary support.
4. Can your scaffolds be used for industrial maintenance?
Absolutely. Our scaffolding systems are designed for industrial platforms, access platforms, and maintenance tasks in plants, warehouses, and other industrial facilities.
5. How safe are your scaffolds?
Safety is our top priority. All scaffolding components comply with international standards, and our design ensures stability, load-bearing capacity, and secure connections for workers and materials.
6. Can your scaffolds be used for residential projects or small-scale work?
Yes. Our lightweight and easy-to-assemble scaffolding solutions are ideal for residential construction, home renovations, and maintenance tasks.
7. Do you provide temporary staging solutions for events?
Yes. Our scaffold systems can be used for temporary stages, concert platforms, and event setups, providing reliable support for both equipment and crowds.
