Chinese Factories

13+ Years of Foreign Trade Export Experience

MOQ 25 Tons

Customized Processing Services

SSAW STEEL PIPE

SSAW pipe, or spiral seam submerged arc welded steel pipe, is made from coiled steel. After uncoiling, flattening, and edge milling, it is gradually rolled into a spiral shape using a forming machine. The internal and external seams are welded using an automatic double-wire, double-sided submerged arc welding process. The pipe then undergoes cutting, visual inspection, and hydrostatic testing.

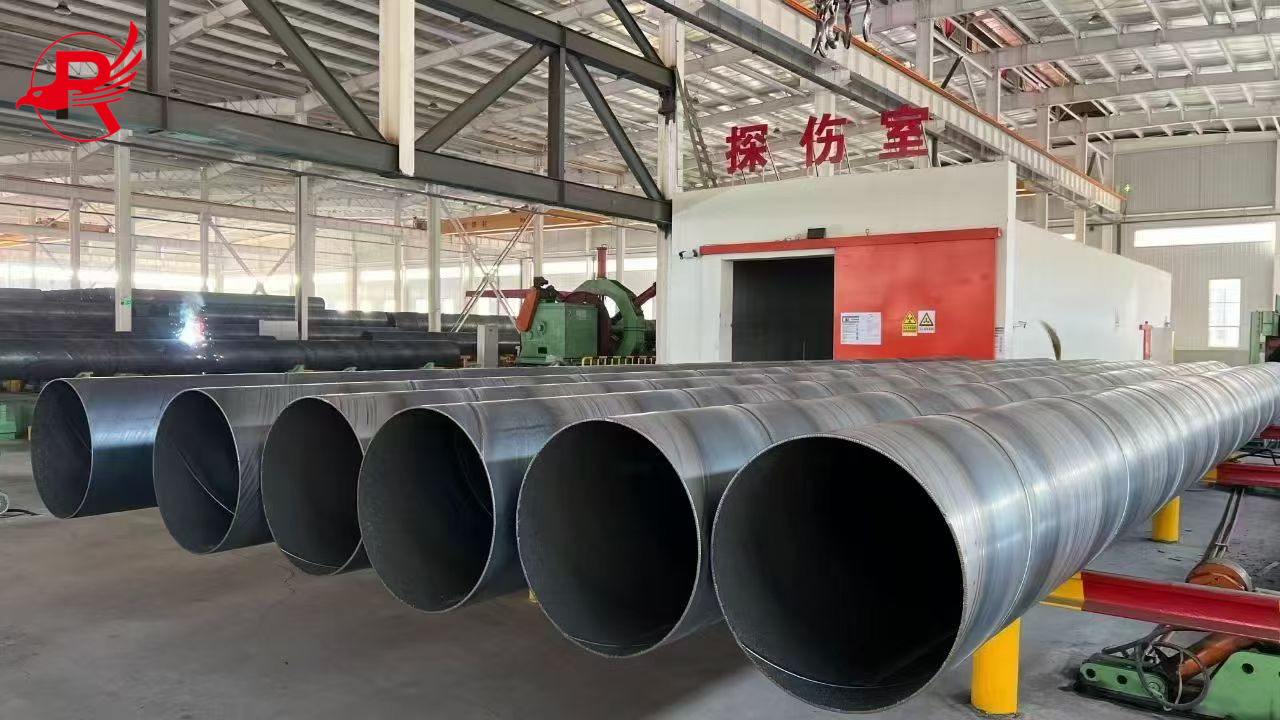

ssaw steel pipe -royal group (1)

Structure Pipe

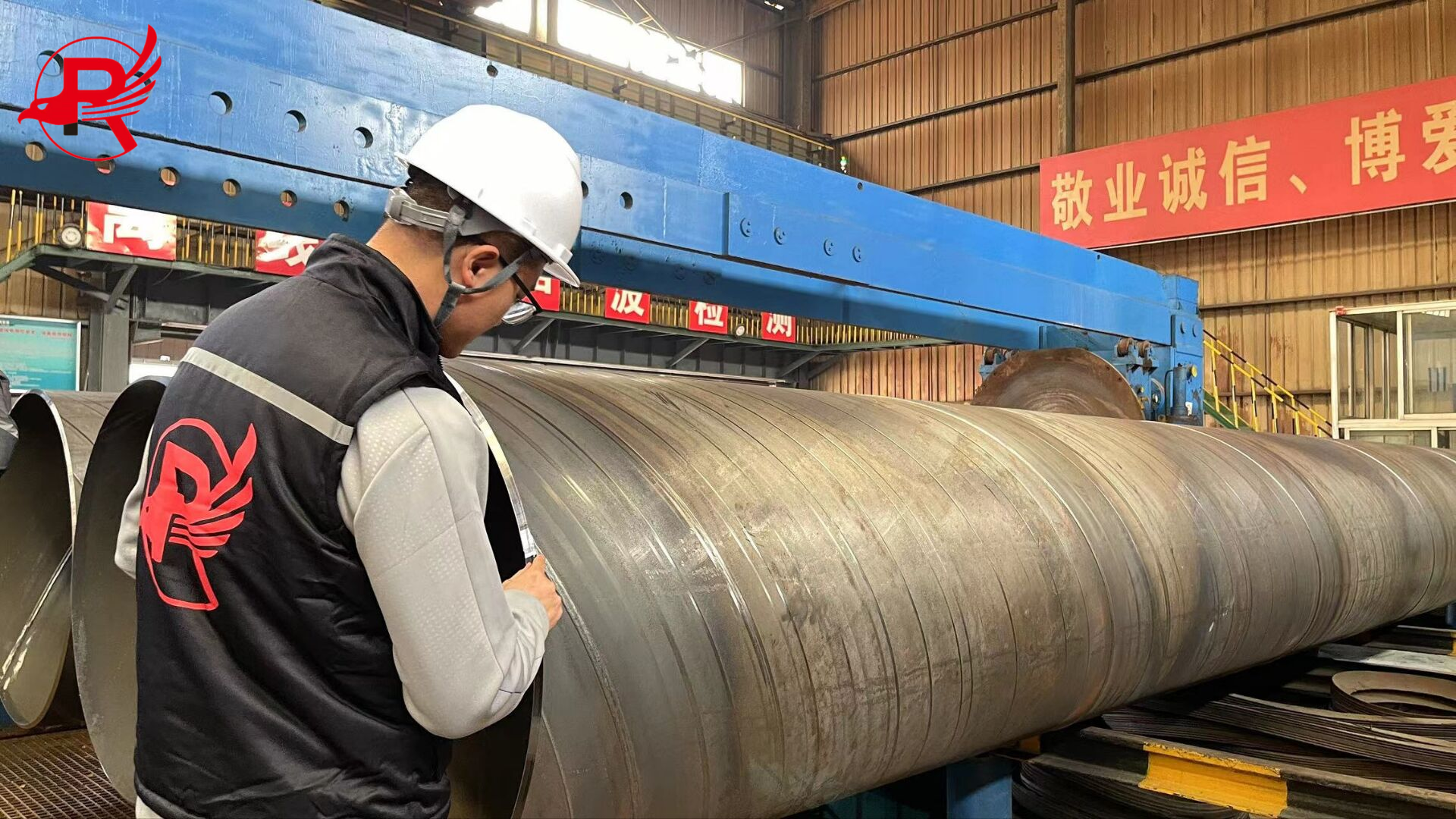

ssaw steel pipe -royal group (3)

Low Pressure Pipe

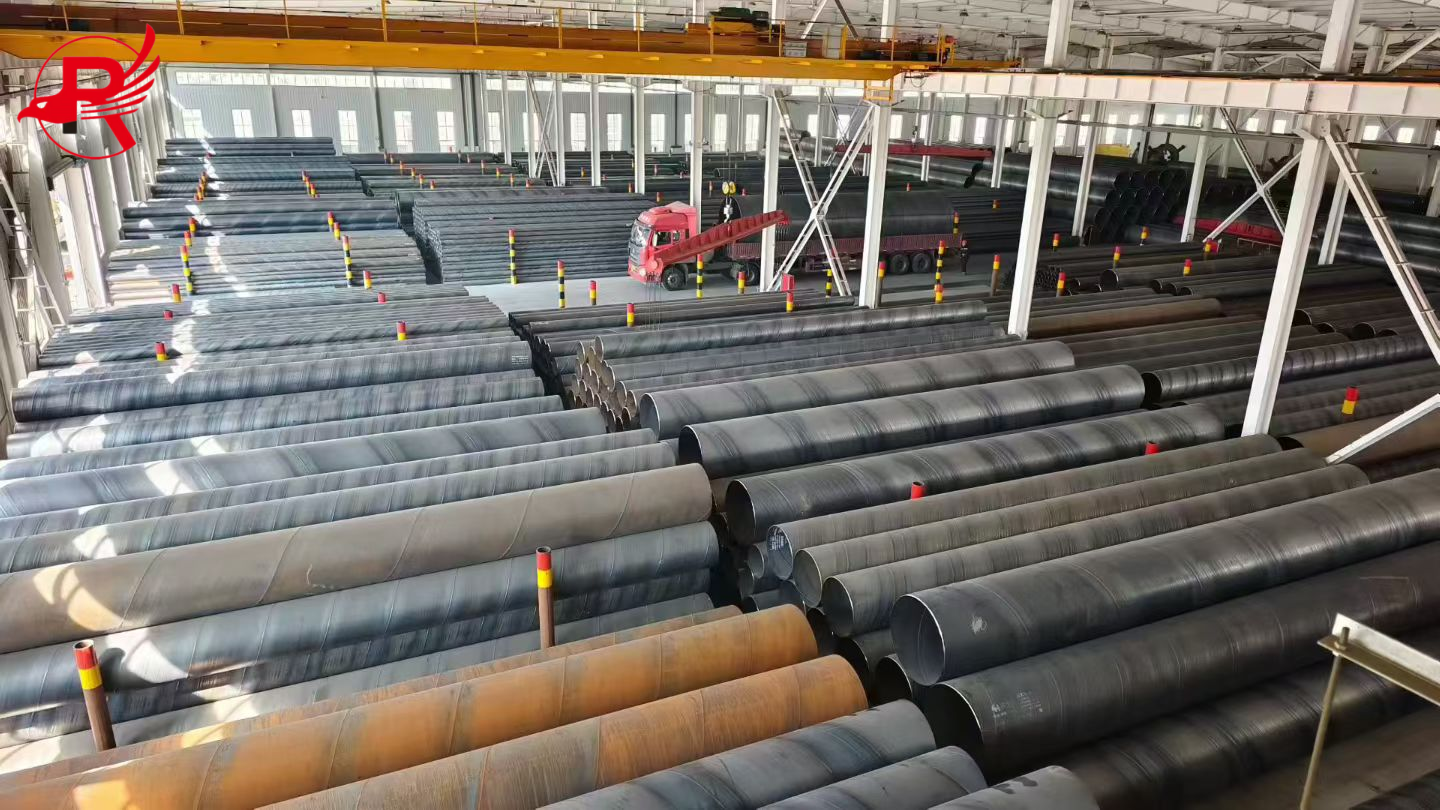

ssaw steel pipe -royal group (2)

Petroleum Line Pipe

Project Cases

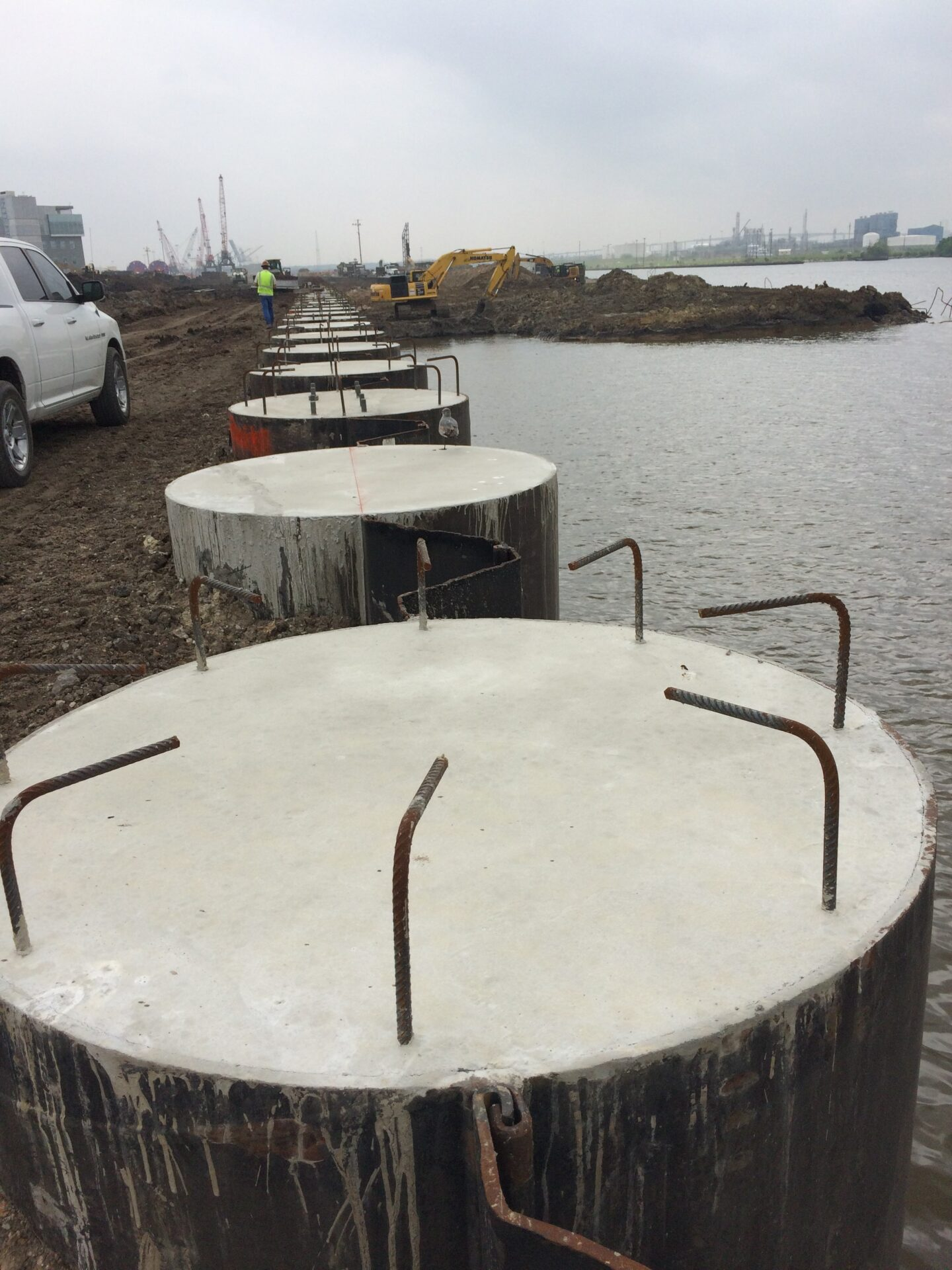

  • Pile Foundation Engineering

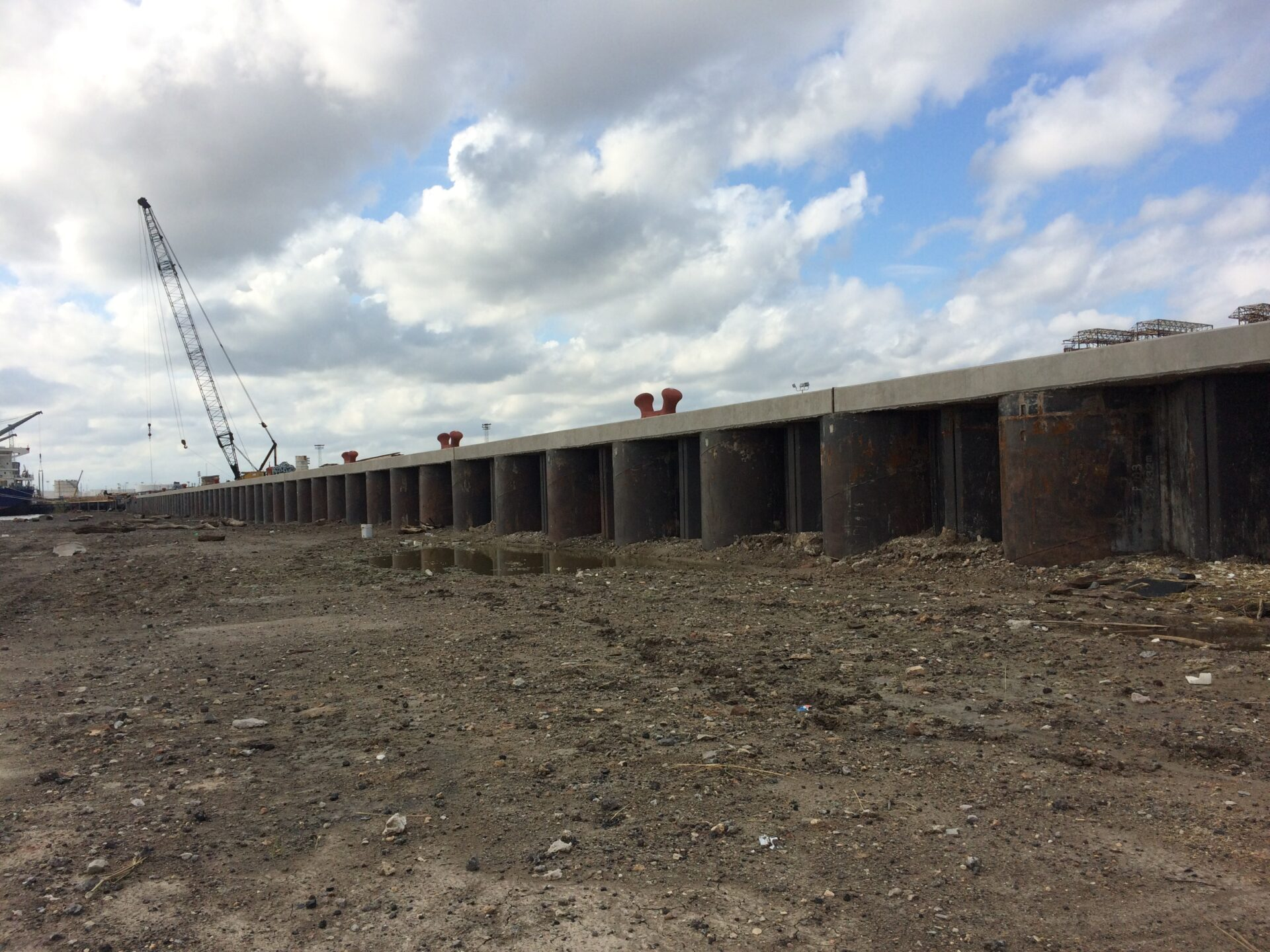

Pile Foundation Engineering - royal group (2)

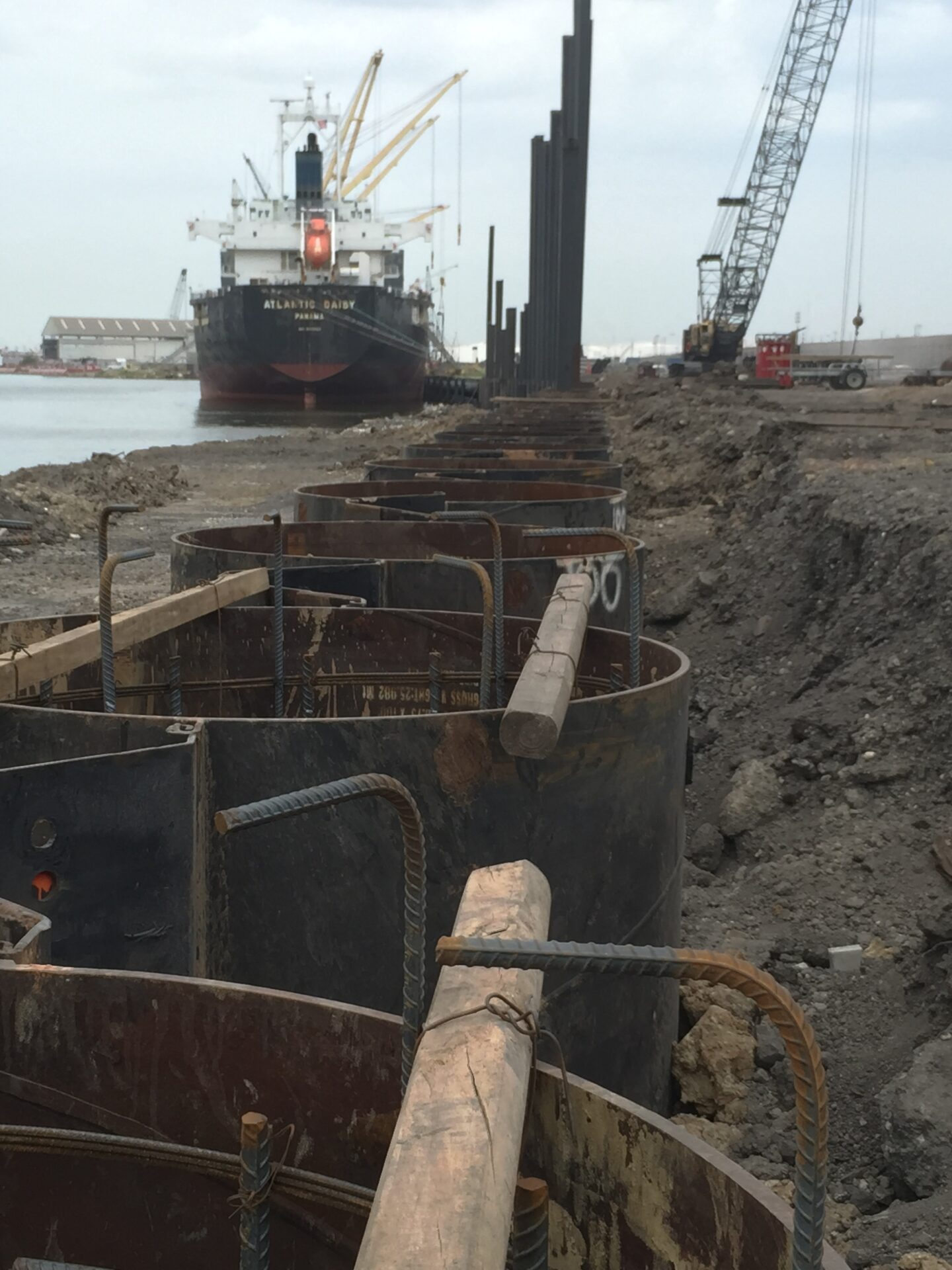

Pile Foundation Engineering - royal group (3)
Pile Foundation Engineering - royal group (4)

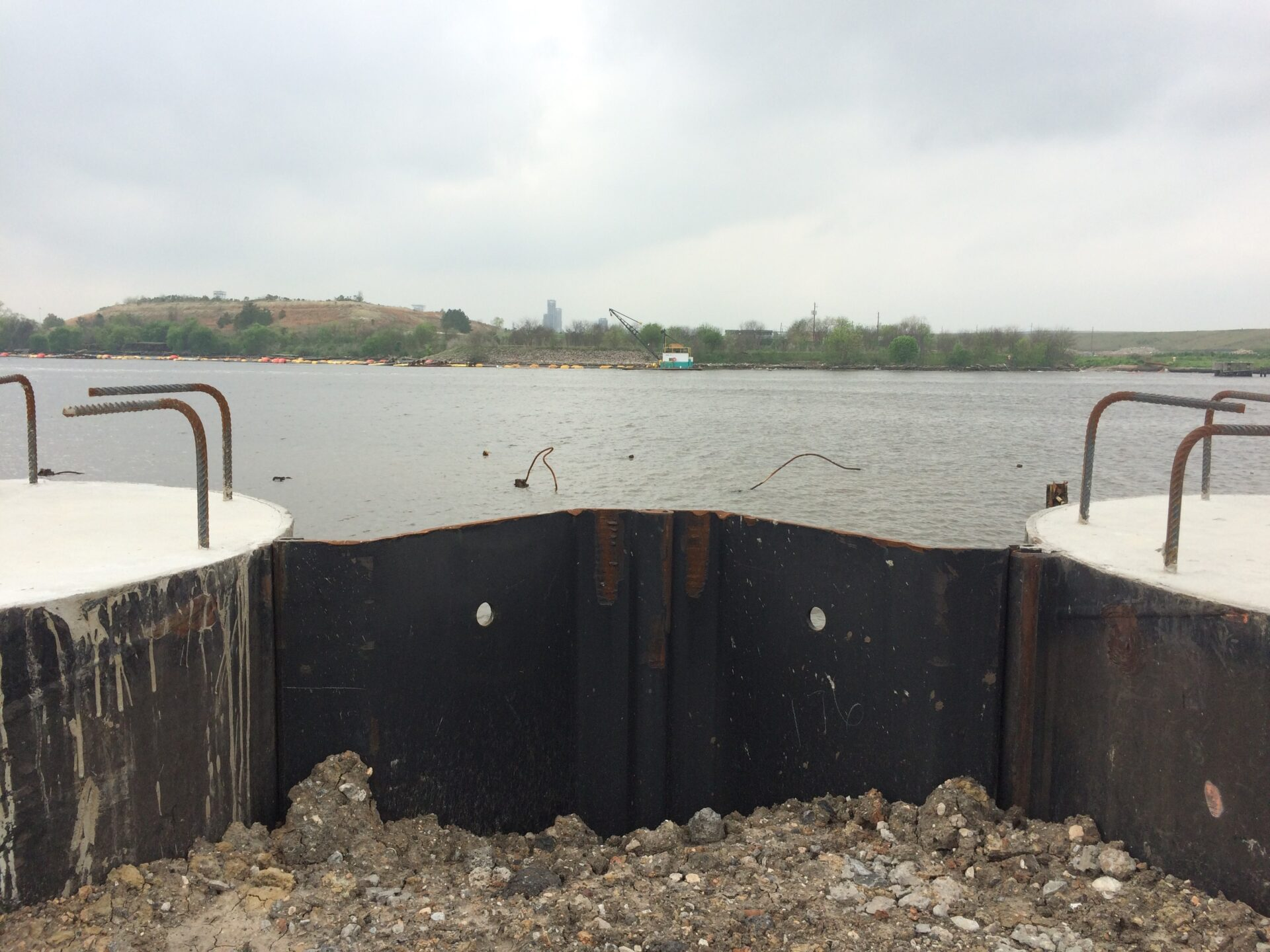

Pile Foundation Engineering - royal group (1)

Project Cases

  • Oil and Gas Transportation Engineering

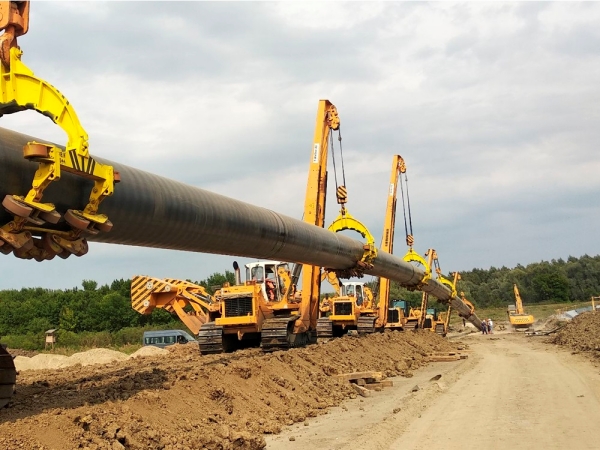

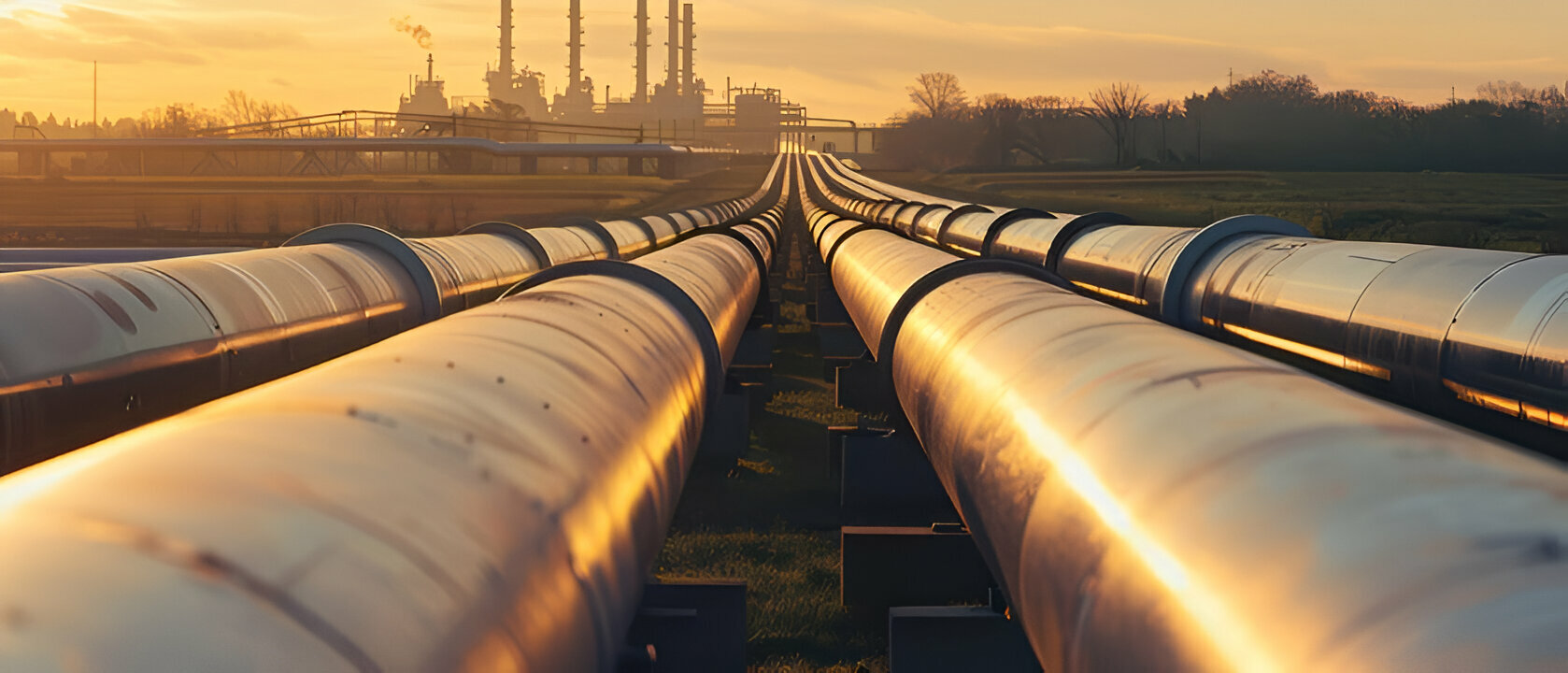

Oil and Gas Transportation Engineering-ROYAL GROUP
Oil and Gas Transportation Engineering

Application

SSAW Pipe, It is widely used in the oil and gas industry, such as in oilfields, natural gas extraction, and transportation. It is also suitable for the transportation of other liquids and gases, such as chemicals, water, and liquefied petroleum gas. It can also be used in building structures and pile foundation projects.

Description

Process: Spiral Submerged- Arc Welded Steel Pipe

Usage: Used for low pressure liquid transportation, such as water, gas, and oil; construction and piping

Certificate: EN10217, EN10219, API 5L PSL1/ PSL2, API 5CT

Out Diameter: 219.1 mm – 3048mm (8″-120″)

Wall Thickness: 4mm – 30mm

Standard: API 5L, API 5CT, ASTM A252, ASTM 53, EN10217, EN10219, BS 5950, ASTM A572 , JIS, IS

Steel Grade

API 5L: GR A, GR B, X42,X46, X56, X60,X65,X70

ASTM A252 GR 1, GR 2, GR 3

ASTM A53: GR A, GR B, GR C, GR D

ASTM A106: GR A, GR B, GR C, GR D

EN: S275, S275JR, S355JRH, S355J2H

GB: Q195, Q215.Q235.Q345

Surface：Fusion Bond Epoxy Coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil Coating As Per Customer’s Requirement

Length: 3 – 70 M

Steel Pipe Coating Surface

1. Black Oil:
Rust-proof. Use newly produced steel pipes for spray coating. Thickness is approximately 5-8 microns. Customers generally do not have specific requirements.
Process: Liquid spray coating

2. FBE:
Hot-dissolve epoxy. Bare pipes are placed on the production line and first derusted. Derusting process: SA2.5 (descaling process, sandblasting) / ST3 (manual derusting). The steel pipes are heated and FBE powder is applied. Single or double-layer FBE is used.

3. 3PE:
First layer: Epoxy resin powder (color adjustable), second layer: Adhesive (transparent), third layer: PE (spiral wrap).
Anti-crossing or non-anti-crossing

4. Epoxy Coal Tar Enamel Coating (ECTE Coating):
Suitable for underground and submerged installations. Lower cost, less pollution.

5. Fluorocarbon Coating:
Wharf pile foundations. UV-resistant. Two-component
Three-coat system: First coat: Epoxy primer, zinc-rich primer, or baseless zinc-rich primer; Second coat: Epoxy iron oxide intermediate coat; Third coat: Fluorocarbon topcoat/polyurethane topcoat
e.g., PVDF
Sigmacover – intermediate coat brand
Hempel – primer + intermediate coat

6. Internal coating for water pipelines:
IPN 8710-3, generally white

LSAW STEEL PIPE

LSAW STEEL PIPE (Longitudinally Submerged Arc Welding Pipe) is a straight seam submerged arc welded pipe. It uses medium and thick plates as raw materials. It is pressed (rolled) into a pipe blank in a mold or forming machine, and then double-sided submerged arc welding is used to expand the diameter.

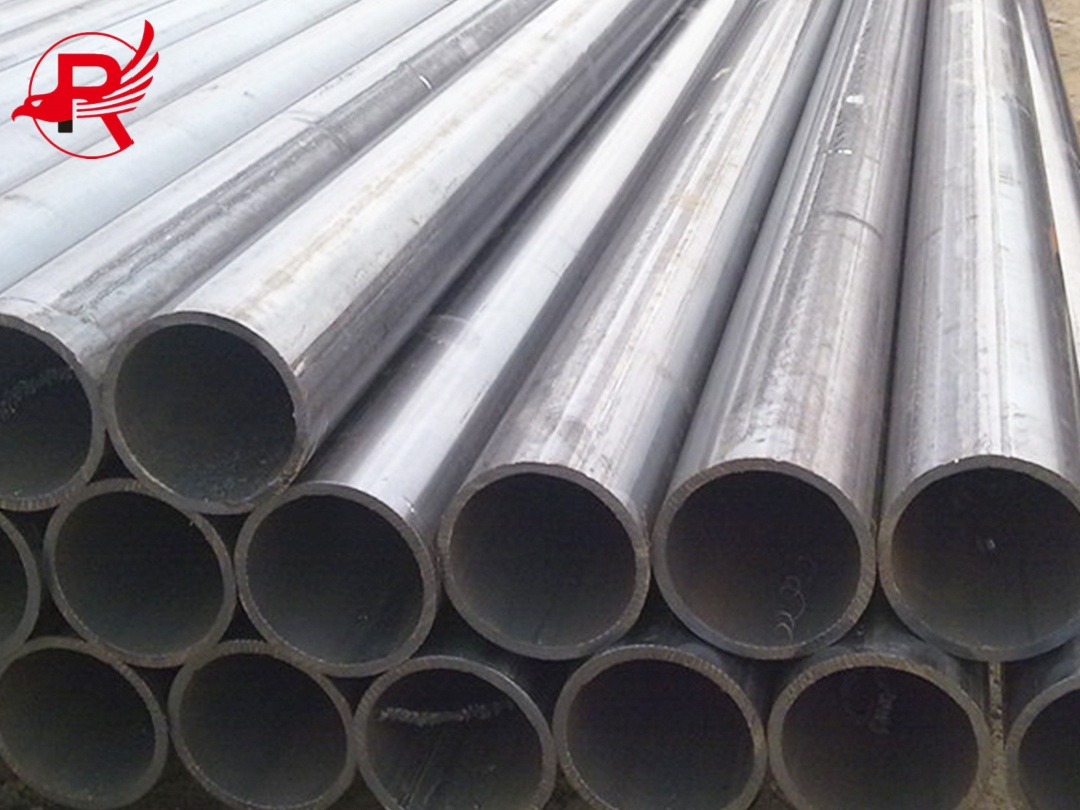

structure pipe 2

Structure Pipe

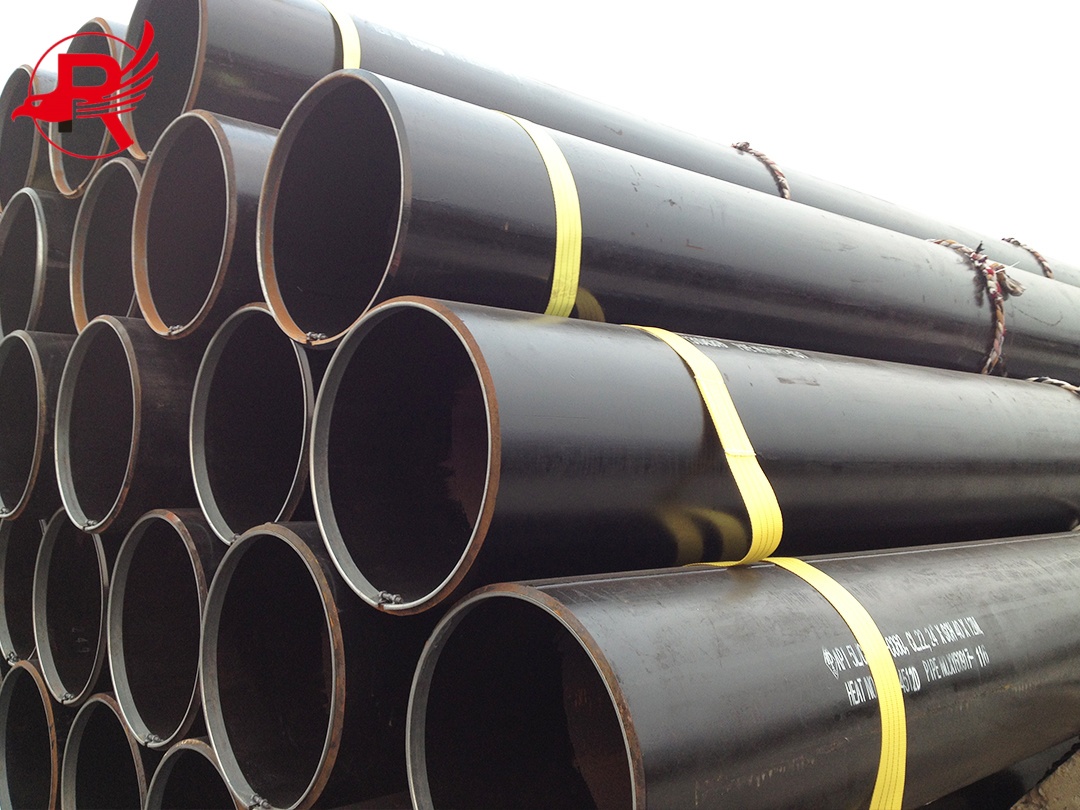

low pressure pipe2

Low Pressure Pipe

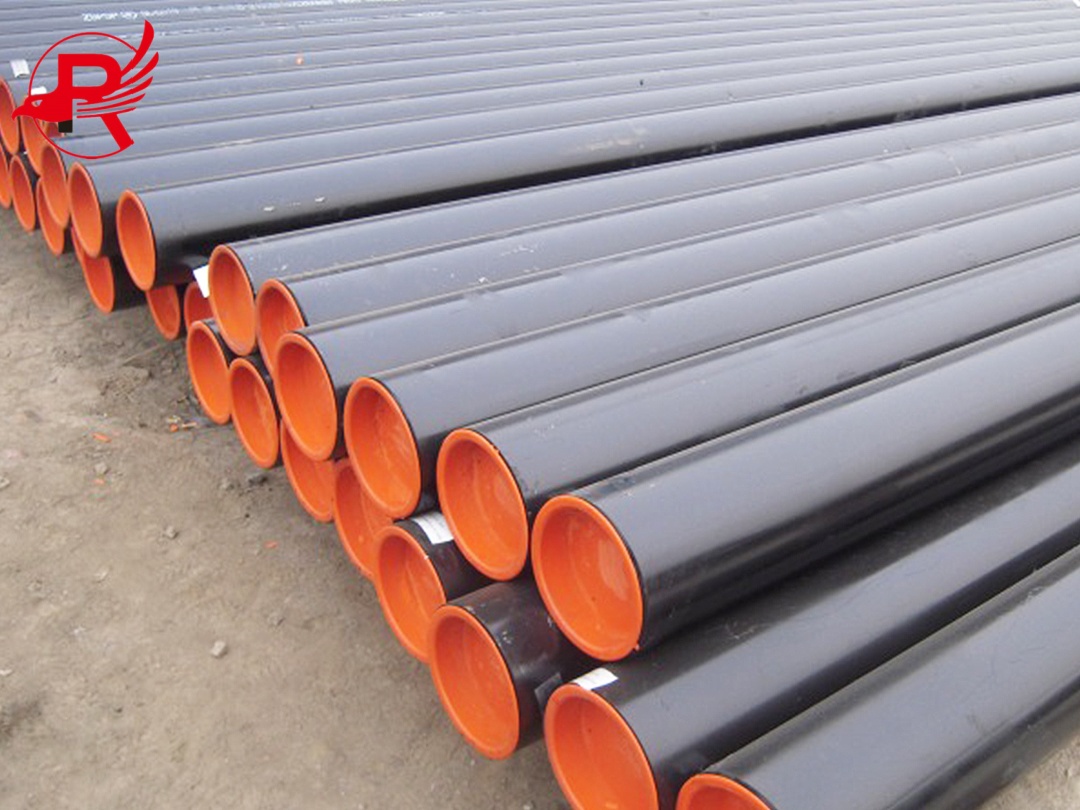

petroleum line pipe 2

Petroleum Line Pipe

Application

LSAW steel pipes are widely used in many fields. In the energy industry, they are the core material for oil and natural gas pipelines, and are especially suitable for oil and gas transportation in Class 1 and Class 2 areas such as high-altitude and submarine areas. In construction projects, they can be used for natural gas pipelines and scaffolding structures, as structural columns, and as key components such as piers, towers and beams in bridge construction. In the field of mechanical manufacturing, they can be used to manufacture precision pipes for components such as automobile chassis and exhaust pipes, as well as to produce pressure pipes and pressure vessels for transporting high-temperature steam and high-pressure liquids. At the same time, it is also widely used in other fields such as chemical industry, water conservancy and marine engineering.

Description

Process: LSAW – UO(UOE)、RB(RBE)、JCO(JCOE,COE)

DSAW-Double Submerged Arc Welded

Usage: Used for low pressure liquid delivery, such as water, gas, and oil.

Out Diameter: 355.6mm – 1820mm

Wall Thickness: 5.0 – 50mm

Length: 3 – 12.5m

Standard: API 5L, API 5CT, ASTM 53, EN10217, DIN 2458. IS 3589, GB/T3091, GB/T9711

Steel Grade

API 5L: GR B, X42,X46, X56, X60,X65,X70

ASTM A53: GR A, GR B, GR C

ASTM A106: GR A, GR B, GR C

EN: S275, S275JR, S355JRH, S355J2H

GB: Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555

Surface: Fusion Bond Epoxy Coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil Coating As Per Customer’s Requirement

Steel Pipe Coating Surface

1. Black Oil:
Rust-proof. Use newly produced steel pipes for spray coating. Thickness is approximately 5-8 microns. Customers generally do not have specific requirements.
Process: Liquid spray coating

2. FBE:
Hot-dissolve epoxy. Bare pipes are placed on the production line and first derusted. Derusting process: SA2.5 (descaling process, sandblasting) / ST3 (manual derusting). The steel pipes are heated and FBE powder is applied. Single or double-layer FBE is used.

3. 3PE:
First layer: Epoxy resin powder (color adjustable), second layer: Adhesive (transparent), third layer: PE (spiral wrap).
Anti-crossing or non-anti-crossing

4. Epoxy Coal Tar Enamel Coating (ECTE Coating):
Suitable for underground and submerged installations. Lower cost, less pollution.

5. Fluorocarbon Coating:
Wharf pile foundations. UV-resistant. Two-component
Three-coat system: First coat: Epoxy primer, zinc-rich primer, or baseless zinc-rich primer; Second coat: Epoxy iron oxide intermediate coat; Third coat: Fluorocarbon topcoat/polyurethane topcoat
e.g., PVDF
Sigmacover – intermediate coat brand
Hempel – primer + intermediate coat

6. Internal coating for water pipelines:
IPN 8710-3, generally white

ERW STEEL PIPE

ERW (Electric Resistance Welded) steel pipe is a type of steel pipe made by heating the edges of steel strips (or plates) to a molten state using resistance heat generated by high- or low-frequency currents, followed by extrusion and welding using pressure rollers. Due to its high production efficiency, low cost, and wide range of specifications, it has become one of the most widely used types of steel pipe worldwide, serving a wide range of industries, including oil and gas, water supply and drainage, and machinery manufacturing.

API 5L Pipe A Critical Pipeline for Energy Transportation

Casing Pipe

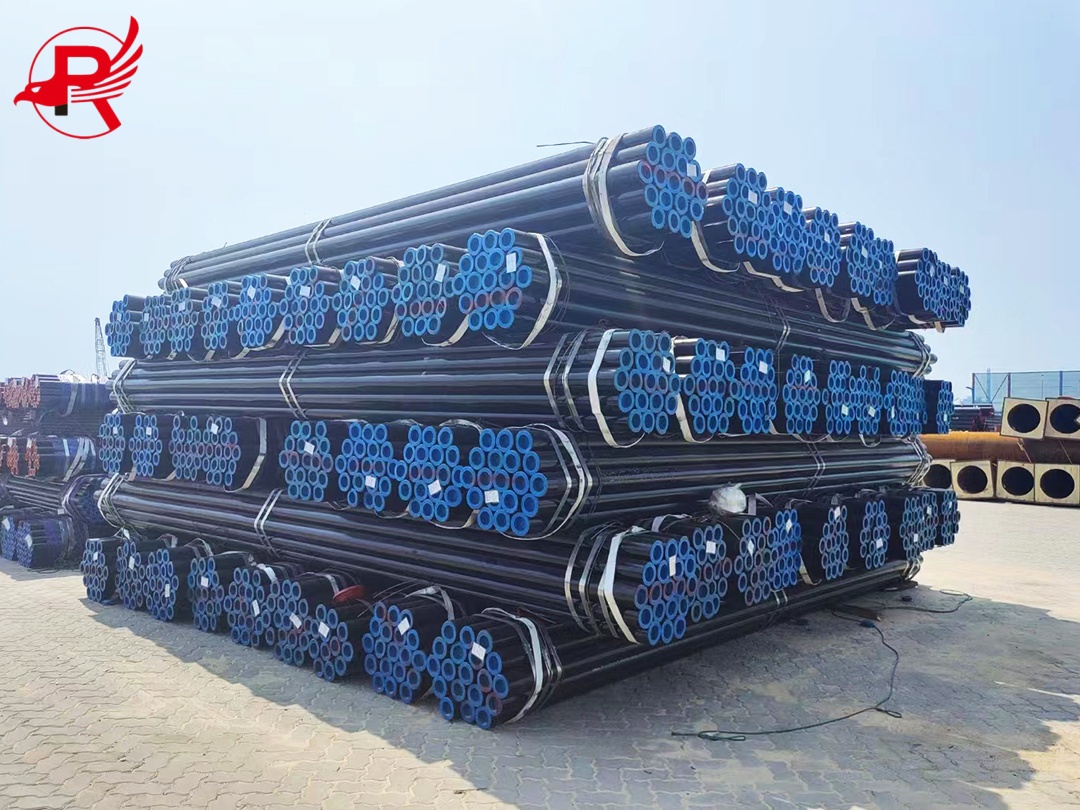

structure pipe

Structure Pipe

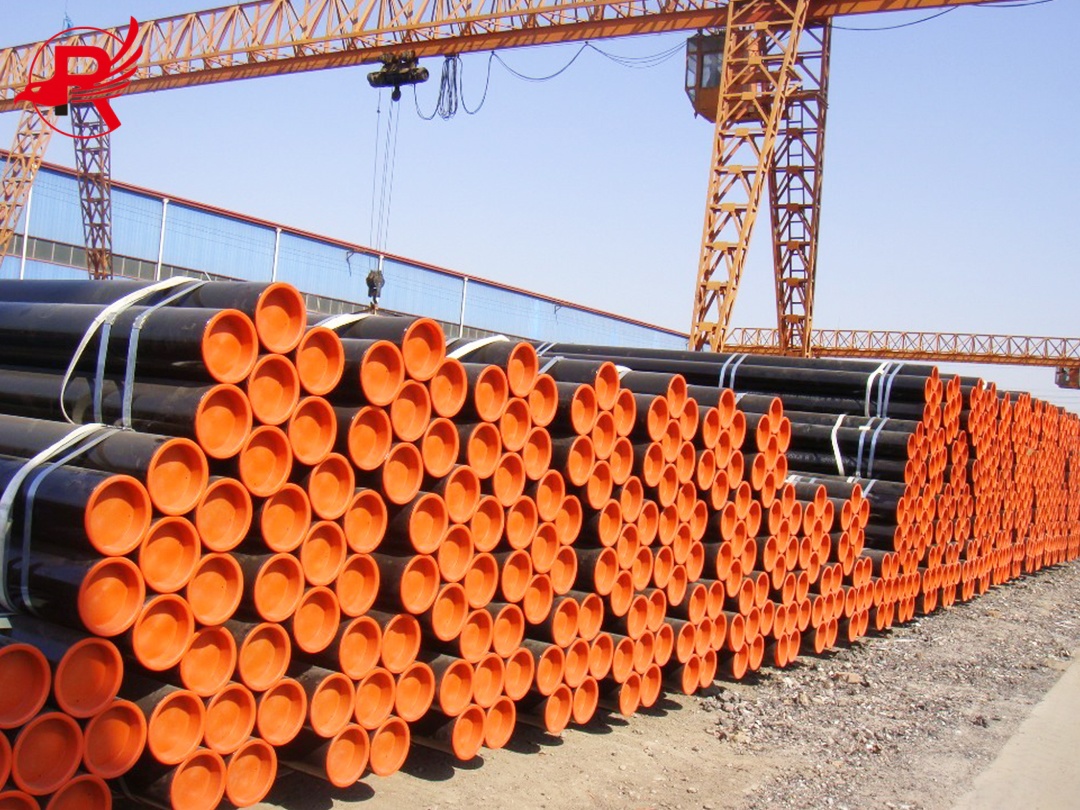

low pressure pipe

Low Pressure Pipe

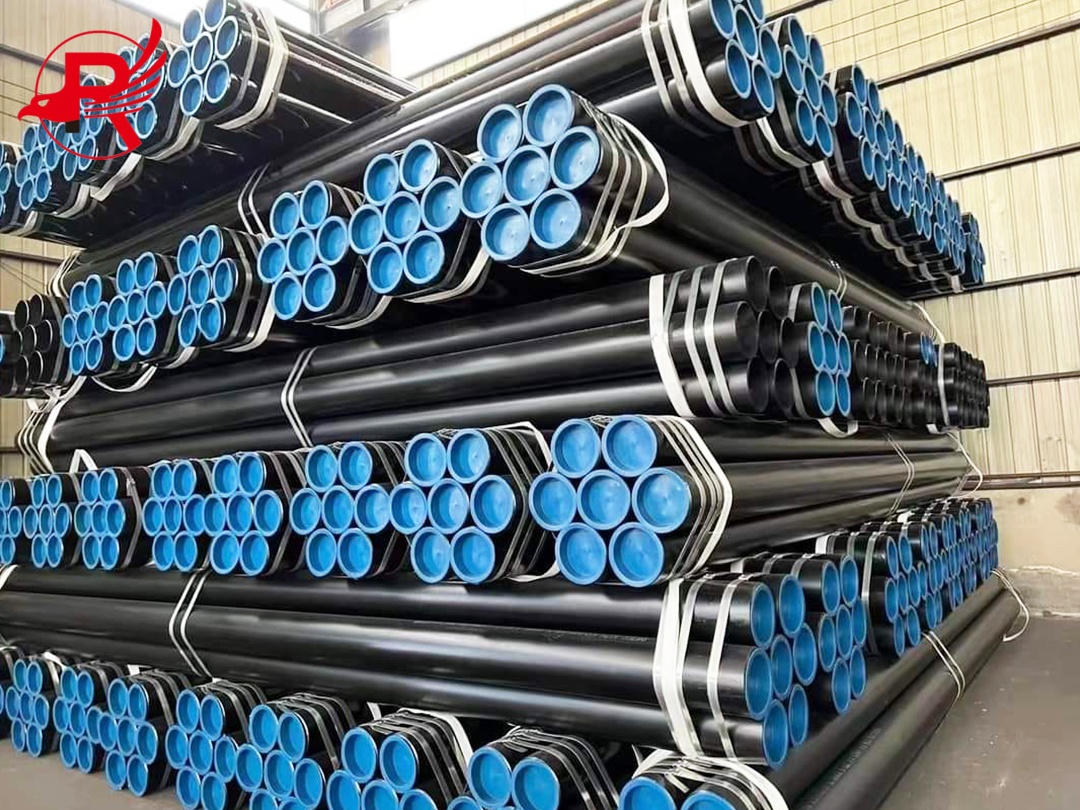

petroleum line pipe1

Petroleum Line Pipe

Application

ERW Pipe, They are primarily used for load-bearing piles, driven piles, modular walls, structural profiles, threaded micropile casings, signposts, towers and transmission lines, mining, underground garages, bridge abutments, dams, weatherproofing, horizontal pipelines, geological structure solutions, and solar energy solutions.

Description

Usage：Used for low pressure liquid transportation, such as water, gas, and oil. Oil drilling and machinery manufacturing, etc.

ERW：Electric Resistance Welded Pipe

HFI：High Frequency Induction Weld Pipe

EFW：Electric Fusion Welded Pipe

Out Diameter：21.3mm — 660.4mm(1/2″–26″)

Wall Thickness：1.5 – 22.2mm

Length：0.3 – 18 M

Standard: API 5L, API 5CT, ASTM 53, EN10217, DIN 2458. IS 3589, JIS G3452, BS1387

Steel Grade

API 5L : GR B, X42,X46, X56, X60,X65,X70

ASTM A53: GR A, GR B, GR C

ASTM A106: GR A, GR B, GR C

EN: S275, S275JR, S355JRH, S355J2H

GB: Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555

Surface：Fusion Bond Epoxy Coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil Coating  ( As Per Customer’s Requirement)

Steel Pipe Coating Surface

1. Black Oil:
Rust-proof. Use newly produced steel pipes for spray coating. Thickness is approximately 5-8 microns. Customers generally do not have specific requirements.
Process: Liquid spray coating

2. FBE:
Hot-dissolve epoxy. Bare pipes are placed on the production line and first derusted. Derusting process: SA2.5 (descaling process, sandblasting) / ST3 (manual derusting). The steel pipes are heated and FBE powder is applied. Single or double-layer FBE is used.

3. 3PE:
First layer: Epoxy resin powder (color adjustable), second layer: Adhesive (transparent), third layer: PE (spiral wrap).
Anti-crossing or non-anti-crossing

4. Epoxy Coal Tar Enamel Coating (ECTE Coating):
Suitable for underground and submerged installations. Lower cost, less pollution.

5. Fluorocarbon Coating:
Wharf pile foundations. UV-resistant. Two-component
Three-coat system: First coat: Epoxy primer, zinc-rich primer, or baseless zinc-rich primer; Second coat: Epoxy iron oxide intermediate coat; Third coat: Fluorocarbon topcoat/polyurethane topcoat
e.g., PVDF
Sigmacover – intermediate coat brand
Hempel – primer + intermediate coat

6. Internal coating for water pipelines:
IPN 8710-3, generally white

SMLS STEEL PIPE

SMLS pipe refers to seamless steel pipe, which is made of a whole piece of metal and has no joints on the surface. Made from a solid cylindrical billet, it is formed into a seamless tube by heating the billet and then stretching it on a mandrel or through processes such as piercing and rolling.

Product features: high strength, good corrosion resistance, high temperature resistance, and high dimensional accuracy.

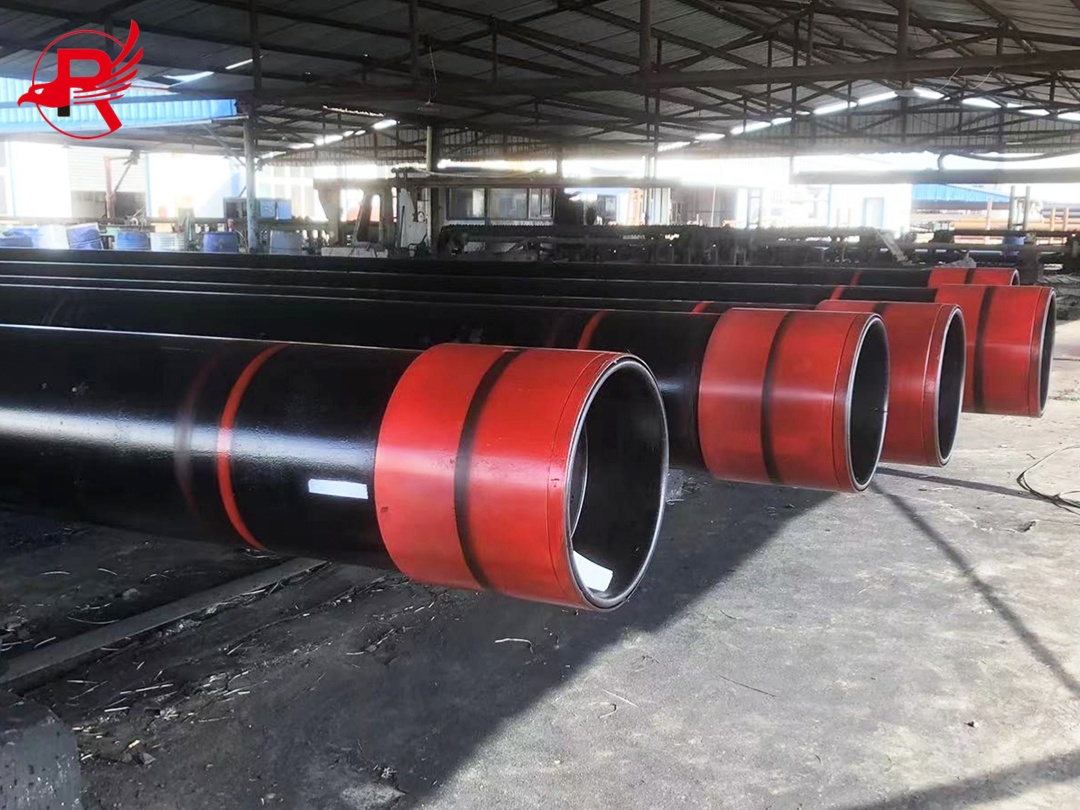

casing pipe 3

Casing Pipe

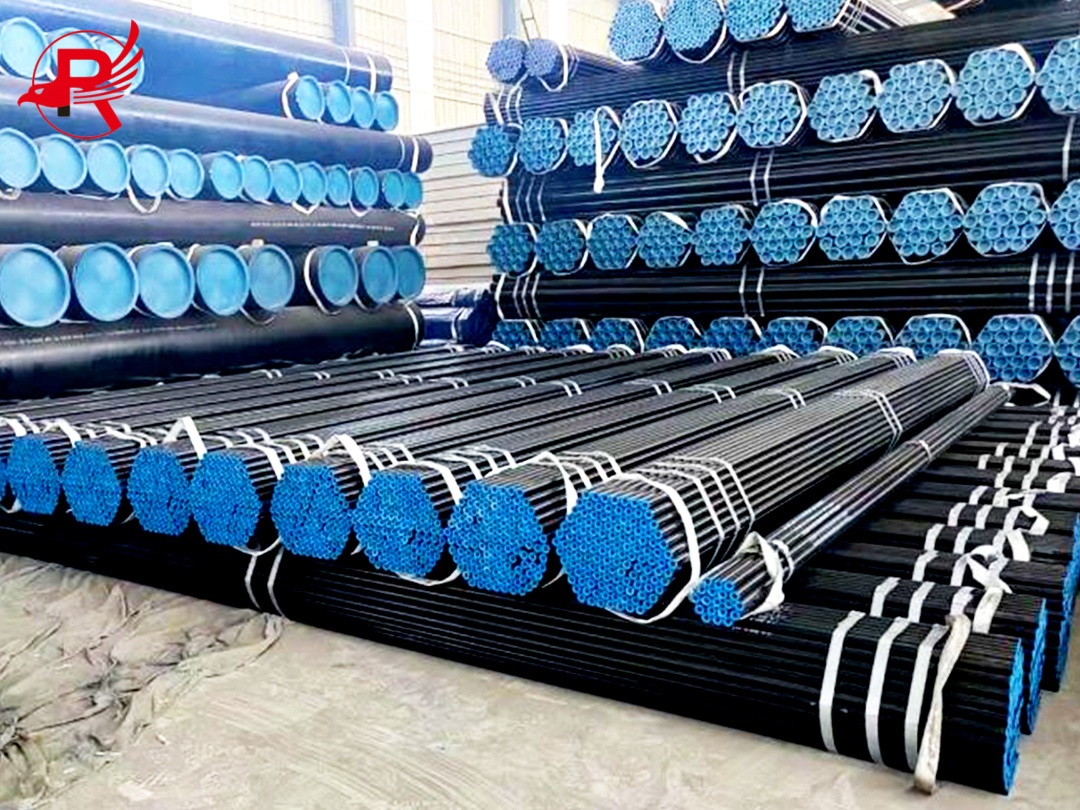

structure pipe 3

Structure Pipe

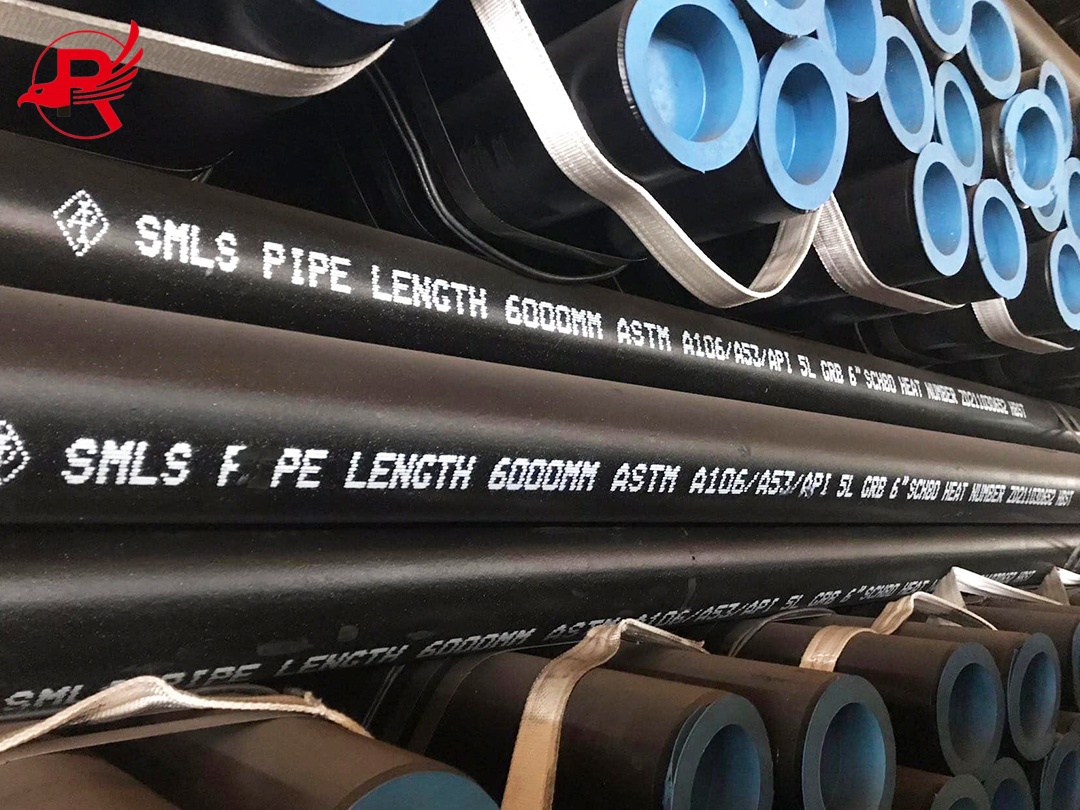

low pressure pipe 3

Low Pressure Pipe

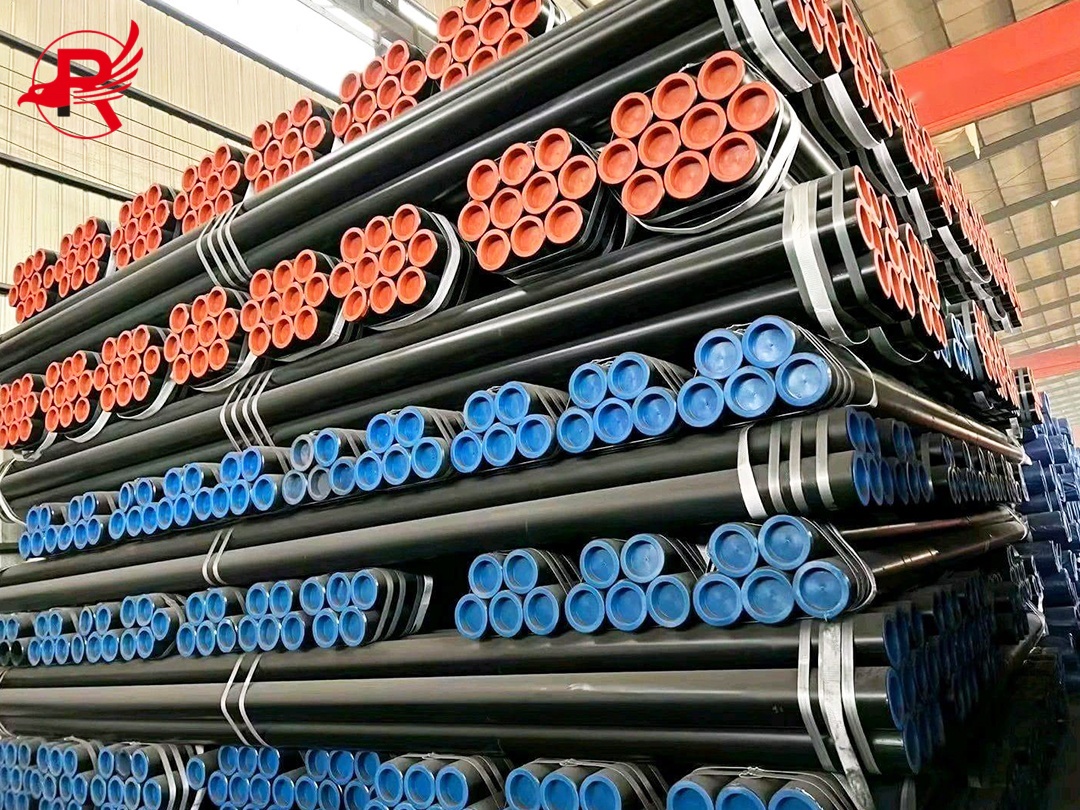

petroleum line pipe 3

Petroleum Line Pipe

Application

SMLS PIPE  is widely used in the oil and gas industry for transporting fluids and gases under high pressure and high temperature; it is also widely used in the power industry; at the same time, seamless steel pipes are also widely used in the chemical, pharmaceutical, food and other industries, as well as in building structures, machinery manufacturing and other fields due to their excellent performance.

Description

Usage: Applicable to the general structure, mechanical structure, water wall panel, economizer, super heater, boiler and heat exchanger with seamless steel tubes, and to transport liquid, gas, oil etc.

Certificate: ISO 9001-2008

Out Diameter: 10.3-914.4mm

Wall Thickness: 1.73-40mm

Standard: API 5L, API 5CT, ASTM A106/A53, ASTM A519, JIS G 3441, JIS G3444,JIS G3445 DIN 2391, EN10305, EN10210, ASME SA106, SA192, SA210, SA213,SA335, DIN17175, ASTM A179…

Steel Grade

API 5L: API 5L: GR B, X42, X46, X56, X60, X65, X70

ASTM A53/A106: GR A, GR B, GR CASME SA106: GR.A, GR.B, GR.CASME

Steel Pipe Coating Surface

1. Black Oil:
Rust-proof. Use newly produced steel pipes for spray coating. Thickness is approximately 5-8 microns. Customers generally do not have specific requirements.
Process: Liquid spray coating

2. FBE:
Hot-dissolve epoxy. Bare pipes are placed on the production line and first derusted. Derusting process: SA2.5 (descaling process, sandblasting) / ST3 (manual derusting). The steel pipes are heated and FBE powder is applied. Single or double-layer FBE is used.

3. 3PE:
First layer: Epoxy resin powder (color adjustable), second layer: Adhesive (transparent), third layer: PE (spiral wrap).
Anti-crossing or non-anti-crossing

4. Epoxy Coal Tar Enamel Coating (ECTE Coating):
Suitable for underground and submerged installations. Lower cost, less pollution.

5. Fluorocarbon Coating:
Wharf pile foundations. UV-resistant. Two-component
Three-coat system: First coat: Epoxy primer, zinc-rich primer, or baseless zinc-rich primer; Second coat: Epoxy iron oxide intermediate coat; Third coat: Fluorocarbon topcoat/polyurethane topcoat
e.g., PVDF
Sigmacover – intermediate coat brand
Hempel – primer + intermediate coat

6. Internal coating for water pipelines:
IPN 8710-3, generally white
