U-Channel And C-Channel

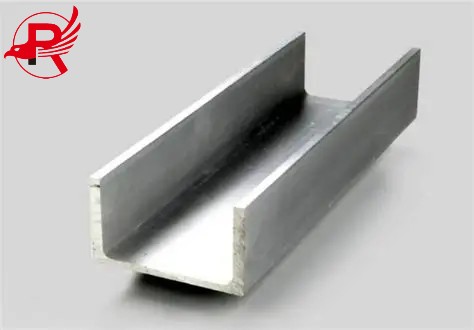

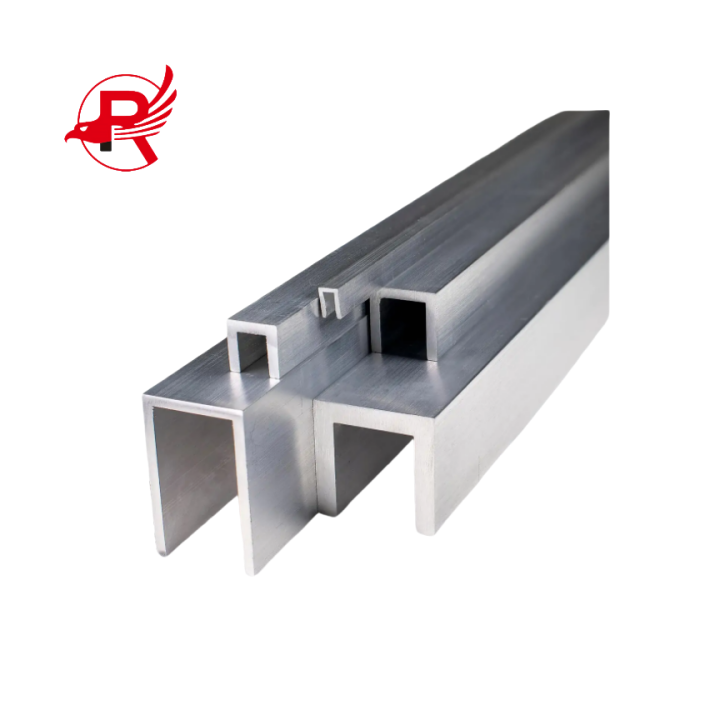

U-Shaped Channel Steel Introduction

U-Channel is a long steel strip with a "U"-shaped cross section, consisting of a bottom web and two vertical flanges on both sides. It has the characteristics of high bending strength, convenient processing and easy installation. It is mainly divided into two categories: hot-rolled (thick-walled and heavy, such as building structure support) and cold-bent (thin-walled and light, such as mechanical guide rails). The materials include carbon steel, stainless steel and galvanized anti-corrosion type. It is widely used in building purlins, curtain wall keels, equipment brackets, conveyor line frames and carriage frames. It is a key supporting and load-bearing component in industry and construction.

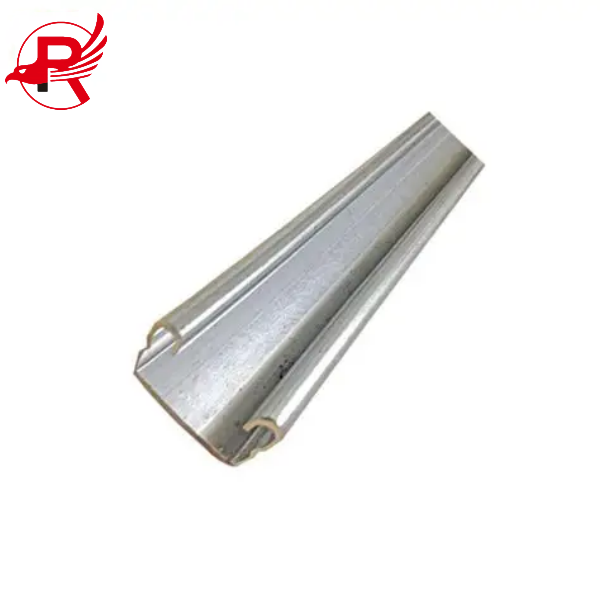

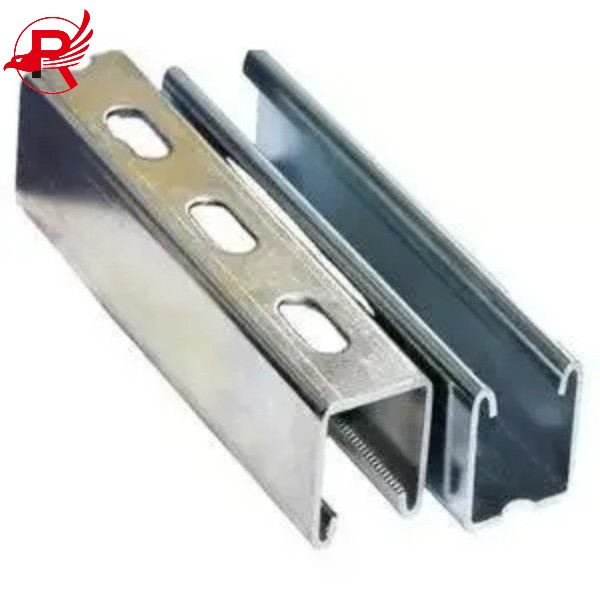

C-Shaped Channel Steel Introduction

C-Channel is a long steel strip with a cross section in the shape of the English letter "C". Its structure consists of a web (bottom) and flanges with inner curling on both sides. The curling design significantly improves its ability to resist deformation. It is mainly produced by cold-bending forming technology (thickness 0.8-6mm), and the materials include carbon steel, galvanized steel and aluminum alloy. It has the advantages of being lightweight, resistant to lateral distortion, and easy to assemble. It is widely used in building roof purlins, photovoltaic bracket rails, shelf columns, light partition wall keels and mechanical protective cover frames. It is a core component of efficient load-bearing and modular structure.

Advantages And Disadvantages

U-Channel Advantages

The core advantages of U-channel steel lie in its excellent bending resistance, efficient installation convenience and remarkable economy, making it an efficient solution for vertical load-bearing scenarios such as building purlins and mechanical bases.

C-Channel Advantages

The core advantages of C-shaped channel steel are its excellent torsion resistance, light weight and high strength combination, and modular installation efficiency. It is especially suitable for roof purlins with high wind pressure resistance requirements, large-span photovoltaic arrays and shelf systems.

U-Channel Disadvantages

Weak torsion resistance; hidden dangers in installation in specific scenarios; high-strength steel is prone to cracking during processing; and welding deformation is difficult to control.

C-Channel Disadvantages

The main disadvantages of C-channel steel include: weaker bending strength than U-profile; limited bolt installation; high-strength steel curling is prone to cracking; and hidden dangers of asymmetric cross-sections, so targeted reinforcement solutions need to be designed to ensure structural safety.

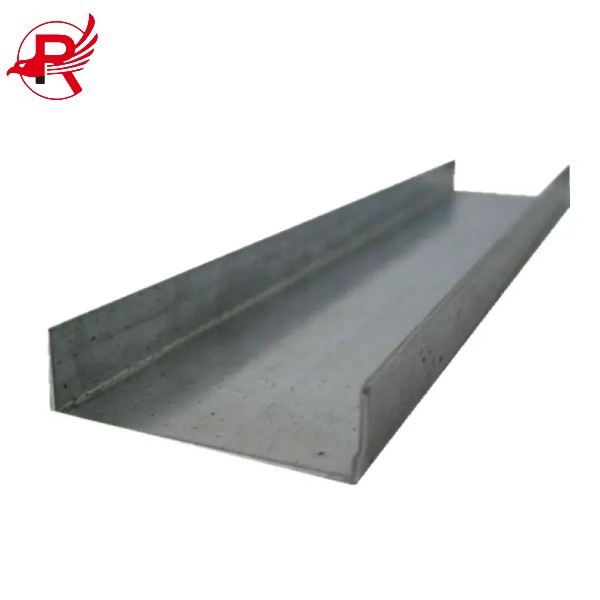

U-Shaped Channel Steel Application In Life

1.Construction: galvanized keels for high-rise curtain walls (wind pressure resistance), factory purlins (8m span to support the roof), U-shaped concrete troughs for tunnels (Ningbo subway foundation reinforcement);

2.Smart home: hidden cable ducts (integrated wires/pipes), smart equipment brackets (quick installation of sensors/lighting);

3.Transportation: impact-resistant layer for forklift door frames (life expectancy increased by 40%), lightweight longitudinal beams for trucks (weight reduction of 15%);

4.Public life: stainless steel guardrails for shopping malls (304 material is corrosion-resistant), load-bearing beams for storage shelves (single group of 8 tons), and farmland irrigation canals (concrete diversion trough molds).

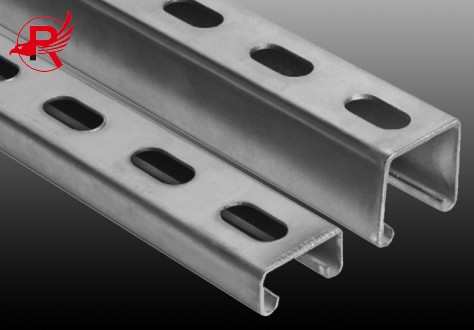

C-Shaped Channel Steel Application In Life

1.Building and Energy: As roof purlins (wind pressure resistant support span 4.5m), curtain wall keels (hot-dip galvanized weather resistant for 25 years), especially leading photovoltaic bracket systems (curling serrations for impact resistance, with Z-type clips to increase installation efficiency by 50%);

2.Logistics and warehousing: shelf columns (C100×50×2.5mm, load-bearing 8 tons/group) and forklift door frames (German standard S355JR material to ensure lifting stability and reduce equipment wear);

3.Industry and public facilities: billboard frames (wind and earthquake resistant), production line guide rails (cold-bent thin-walled and easy to process), greenhouse supports (lightweight and save 30% of building materials).
