H-Beam Dimensions & Weight Chart for Steel Structure Engineering

Steel H-beams are nowadays the necessity of the hour for structural engineering, building projects, etc. as they provide us with more durability, stability, and flexibility. Whether you're working on bridge building, industrial building, or high rise building, the H beam is a go-to for designers when it comes to high load bearing and structurally sound materials.

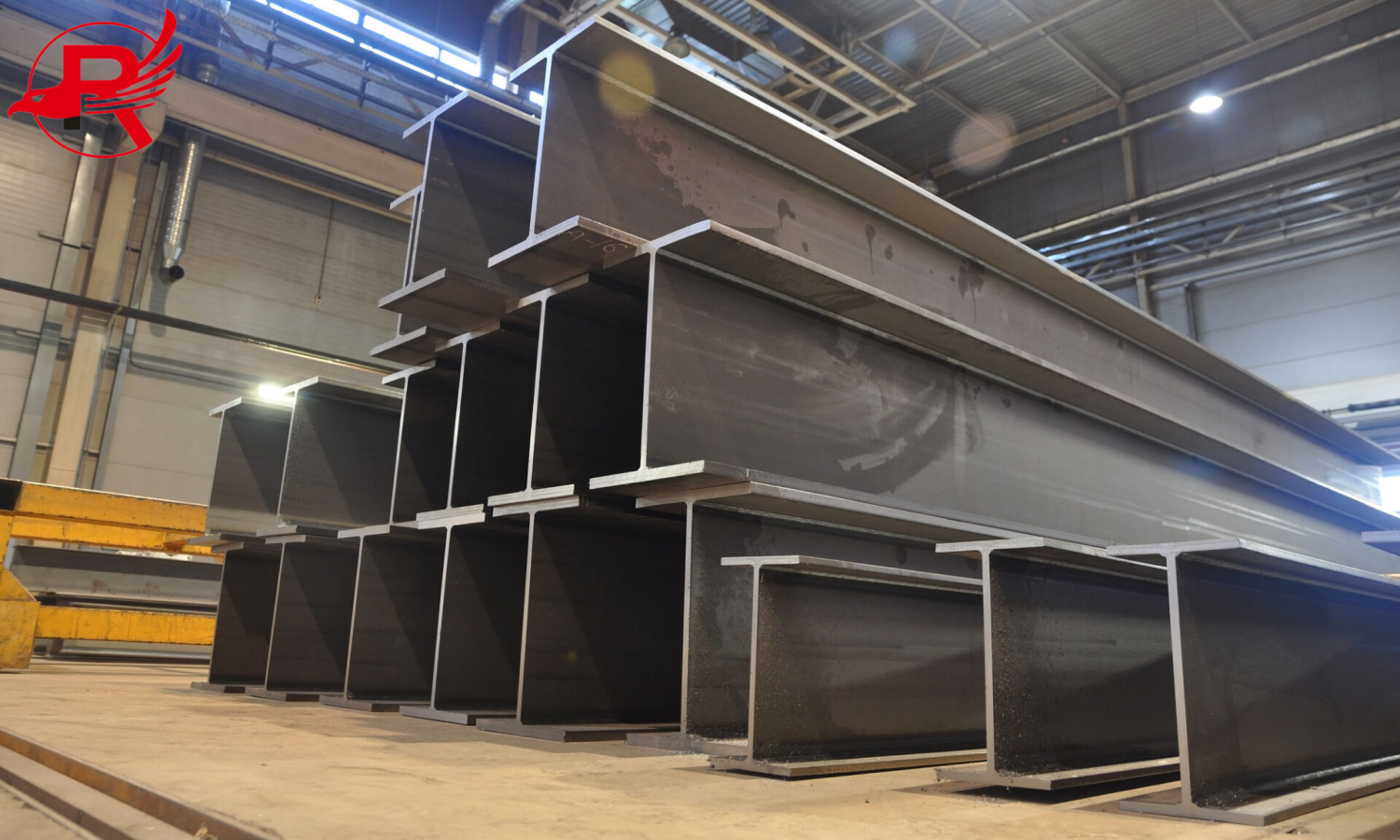

universal-steel-beams (1)

Dimension & Weight Charts

H-Beam Size (mm) Height (H) Flange Width (B) Web Thickness (tw) Flange Thickness (tf) Weight (kg/m)
H100×100×6×8 100 100 6 8 14.2
H150×150×7×10 150 150 7 10 23.5
H200×200×8×12 200 200 8 12 35.0
H250×250×9×14 250 250 9 14 50.0
H300×150×10×15 300 150 10 15 57.0
H400×200×12×20 400 200 12 20 96.0
H500×200×15×25 500 200 15 25 140.0
H600×300×18×30 600 300 18 30 210.0

Steel Grades and Performance

Apart from being structurally superior, the H-beams also are offered in different grades such as EN S235JR H Beam and S355JR H Beam, which have different yield strengths suitable for different requirements of the projects. The right choice of steel grade and the right dimensioning allow the engineer to be cost-effective and ensure durability for many years.

Royal Group Advantage

Royal Group has mature expertise in all kinds of steel structure projects, including H-beam specifications for any engineering you require. We have professional designers to draw accurate 3D drawing for you, so you can plan with certainty and incorporate into the complex. For particular steel projects Royal Group provides custom cutting, bending, welding and a variety of surface finishes, offering you solutions customized to the most demanding project needs. When customers work with Royal Group, they have a partner they can count on at every step of the steel structural design and manufacturing process.
