Do You Really Understand W Beam / W-Beams / Wide Flange H Beam?

In the worldwide steel building market, W Beam (or Wide Flange H Beam) is considered as one of the most popular structural steel products. It is crucial to the modern infrastructure industrial buildings bridges and energy projects.

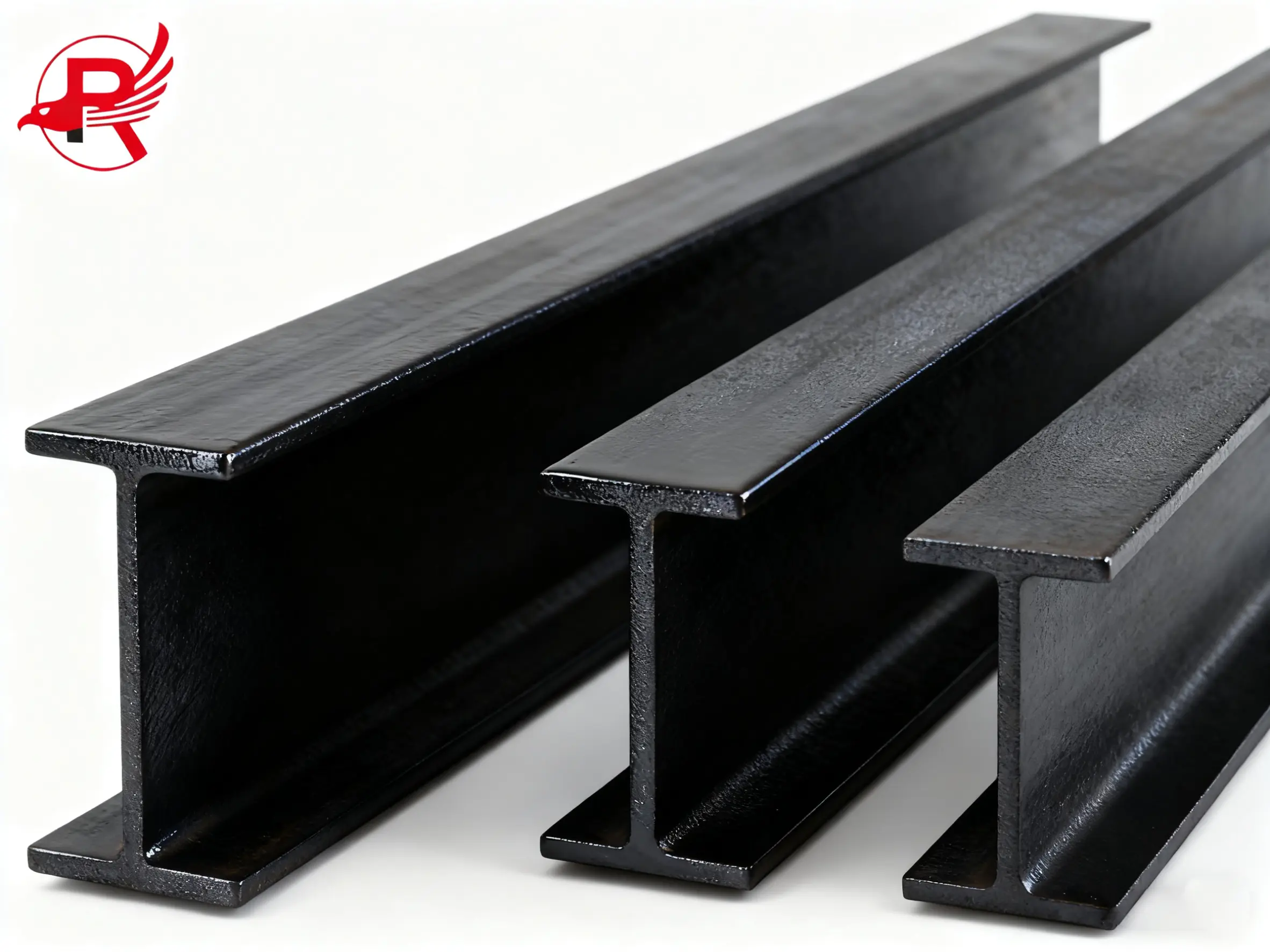

black-oil-surface-h-beam-royal

What is a W Beam (Wide Flange H Beam)?

A W Beams (Wide Flange Beam) is a H Beam Structure with the following features:

Wide parallel flanges
Equal thickness
Strength with low weight

In contrast with conventional I-beams, W Beams have superior load bearing and rigidity properties, which makes them perfect for heavy-duty work.



Common Names:

W Beam / W Beams / w-beams
Wide Flange H Beam
Astm A992 Wide Flange H Beam
Hot Rolled Steel H Beams
H Shaped Beam

Steel Beam

Popular Materials for W Beam

Selecting the appropriate material is very important for the service life and the performance. Here are the most common types of materials to use:

Carbon Steel W Beam
Low-cost and easily accessible Great for welding and machining Ideal for every day building applications

ASTM A992 Wide Flange H Beam
High strength structural steel
Yield strength ≥ 345 MPa (50 ksi)
It is the most common choice for designing buildings and bridges in North America

ASTM A36 W Beam / ASTM A572 W Beam
A36: Common shape structural steel grades
A572: More strength, greatest for light weight structures

Q235 / Q355  H Beam (China Standard)
Q235: Mild steel for small Section
Q355: High strength substitute of A572

Standard Sizes of W Beam

W Beams are available in various sizes to suit diverse engineering needs.

Typical Dimensions:

Section Size Height (mm) Flange Width (mm) Thickness (mm) Weight (kg/m)
W100x50 100 50 4–6 9–12
W200x100 200 100 5–8 20–30
W300x150 300 150 6–10 35–50
W400x200 400 200 8–13 60–80
W600x300 600 300 10–18 100–150



  • Custom sizes can be made according to project requirements
  • Compliant with ASTM, standard

Surface Treatments

For durability and corrosion resistance, W Beams may be provided with one of the following surface finishes:

Black (Hot Rolled Surface)
Standard finish for indoor use

Galvanized W Beam
Hot-dip galvanized coating (30–550 g/m²)
Very good corrosion resistance Suitable for outdoor use Galvanized and Galfan are hot dip solutions. Excellent corrosion resistance Perfect for seaside and outdoor use

Painted / Coated
Anti-rust primer or epoxy coating
Custom colors available Custom color options are available.

Applications of W Beam / H Beam Structure

Because of the strength of W-beams and the versatility of their uses, they are in great demanda in the following industries:

1. Building Construction
Steel Structure Frames
High-Rise Buildings Warehouses and Factories.

2. Infrastructure Projects
Bridges and Overpasses
Highway Guardrail Systems
Road and Transport Systems

3. Energy and Industrial Applications
Power Plants
Oil and Gas Platforms
Solar Supports

4.Machinery Manufacturing
Heavy Equipment Frames
Shipbuilding Structures

Why Choose Royal Steel Group?

The Royal Steel Group is a professional manufacturer of W Beam/Wide Flange H Beam in high quality for worldwide customers.Our Advantages:

Full Range of Products

Strict Quality Control: Mill test certificates (MTC), Third-party inspection service (SGS, BV)

Competitive Factory Price

Custom Solutions: OEM & ODM sevice available, Custom sizes, coating, and processing.

Fast Delivery & Global Export: Rich export experience to Southeast Asia, Middle East, Americas, Professional packaging and logistic support.
