API Pipe vs 3PE Pipe

In major engineering projects such as oil, natural gas, and municipal water supply, pipelines serve as the core of the transportation system, and their selection directly determines the project's safety, economy, and durability. API pipe and 3PE pipe, two widely used pipeline products, are often prioritized by engineering teams. However, they differ significantly in design standards, performance characteristics, and applicable scenarios. A thorough understanding of their characteristics is crucial for improving project quality.

Definition and Core Application Scenarios

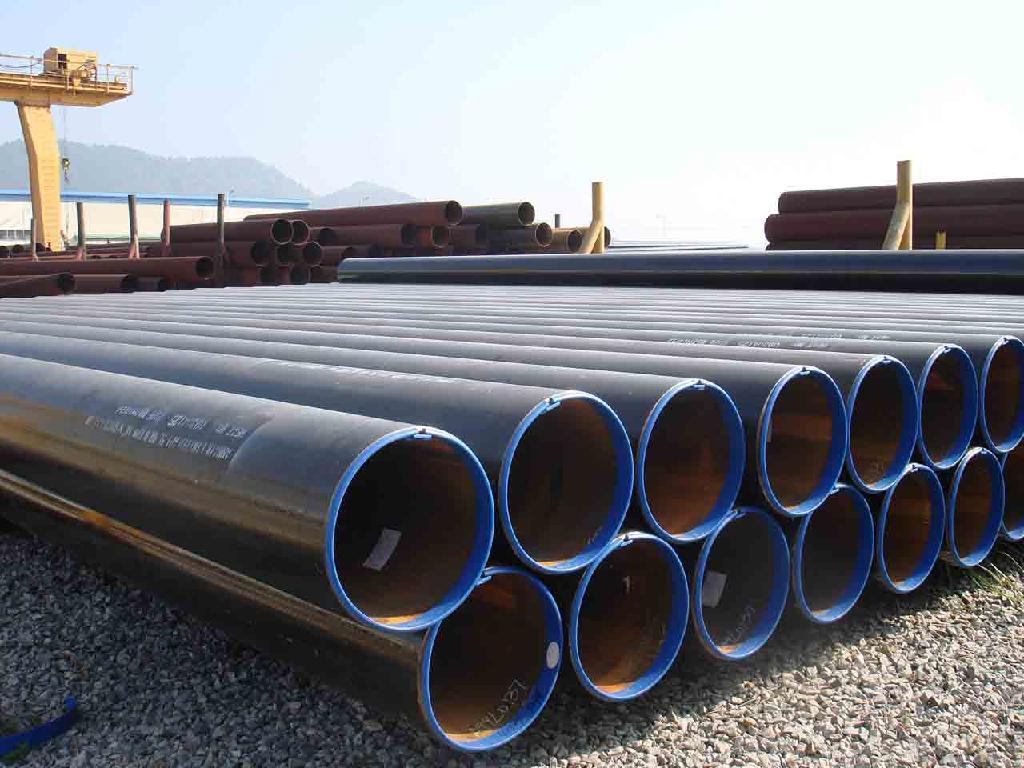

API pipe, short for "American Petroleum Institute Standard Steel Pipe," is manufactured in accordance with international standards such as API 5L steel pipe. It is constructed from high-strength steel and formed through seamless rolling or welding processes. Its core strengths lie in its high-pressure and tensile strength, making it widely used in high-pressure applications such as long-distance oil and gas pipelines and shale gas wellhead manifolds. Its structural stability in extreme temperatures ranging from -40°C to 120°C makes it a key component of energy transportation.

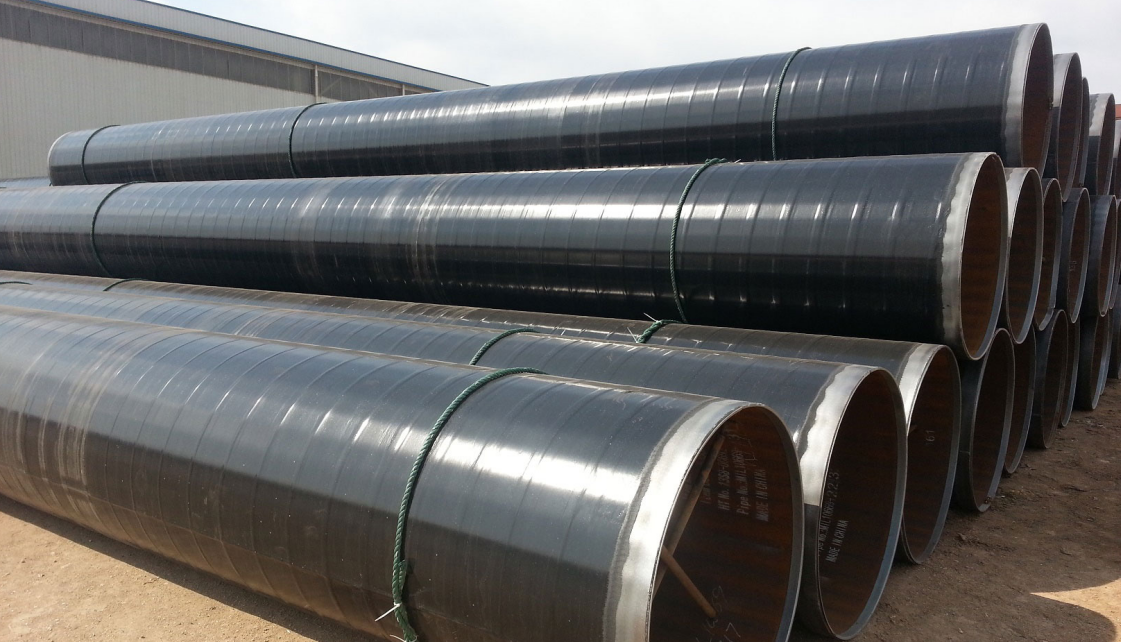

3PE pipe stands for "three-layer polyethylene anti-corrosion steel pipe." It uses ordinary steel pipe as a base, coated with a three-layer anti-corrosion structure consisting of epoxy powder coating (FBE), adhesive, and polyethylene. Its core design focuses on corrosion protection, significantly extending the pipe's service life by isolating soil microorganisms and electrolytes from the steel pipe base. In highly corrosive environments such as municipal water supply, sewage treatment, and chemical liquid transportation, 3PE pipe can achieve a service life of over 50 years, making it a proven anti-corrosion solution for underground pipeline construction.

Key Performance Comparison

From a core performance perspective, the two pipes clearly differ in their positioning. In terms of mechanical properties, API pipe generally has a yield strength above 355 MPa, with some high-strength grades (such as API 5L X80) reaching 555 MPa, capable of withstanding operating pressures exceeding 10 MPa. 3PE pipe, on the other hand, relies primarily on the base steel pipe for strength, and the anti-corrosion layer itself lacks pressure-bearing capacity, making it more suitable for medium- and low-pressure transportation (typically ≤4 MPa).

3PE pipes have an overwhelming advantage in corrosion resistance. Their three-layer structure creates a dual barrier of "physical isolation + chemical protection." Salt spray tests show that their corrosion rate is only 1/50 that of ordinary bare steel pipe. While API pipes can be protected against corrosion through galvanizing and painting, their effectiveness in buried or underwater environments is still inferior to that of 3PE pipes, requiring additional cathodic protection systems, which increases project costs.

Selection Strategies and Industry Trends

Project selection should adhere to the principle of "scenarios fit": If the conveying medium is high-pressure oil or gas, or the operating environment experiences significant temperature fluctuations, API pipes are preferred, with steel grades such as X65 and X80 being matched to the pressure rating. For buried water or chemical wastewater transport, 3PE pipes are a more economical option, and the thickness of the anti-corrosion layer should be adjusted according to the soil corrosivity level.

The current industry trend is toward "performance fusion." Some companies are combining the high-strength base material of API pipe with the three-layer anti-corrosion structure of 3PE pipe to develop "high-strength anti-corrosion composite pipe." These pipes meet the demands of high-pressure transmission and long-term corrosion protection. These pipes have already been widely used in deep-sea oil and gas production and inter-basin water diversion projects. This innovative approach provides a better solution for pipeline engineering.
